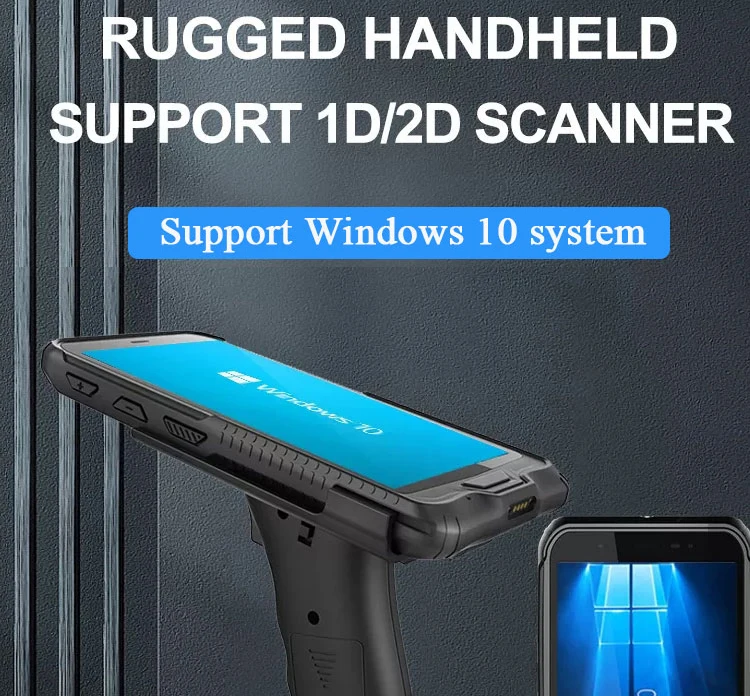

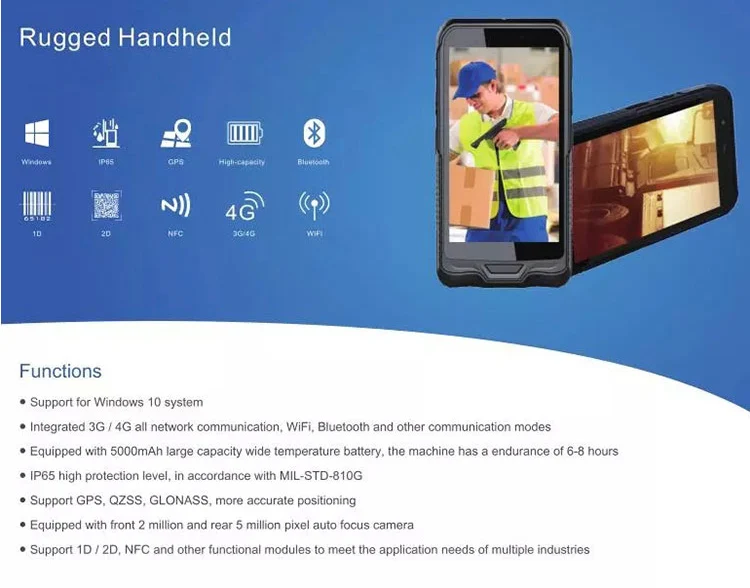

Rugged Ip65 Industrial grade 6 Inch full screen Handheld Mobile Computer Windows 10 Barcode Scanner Terminal Pda for restaurant
PHYSICAL CHARACTERISTICS | |
Dimension and Weight | 185 x 94.6 x 28.5mm |

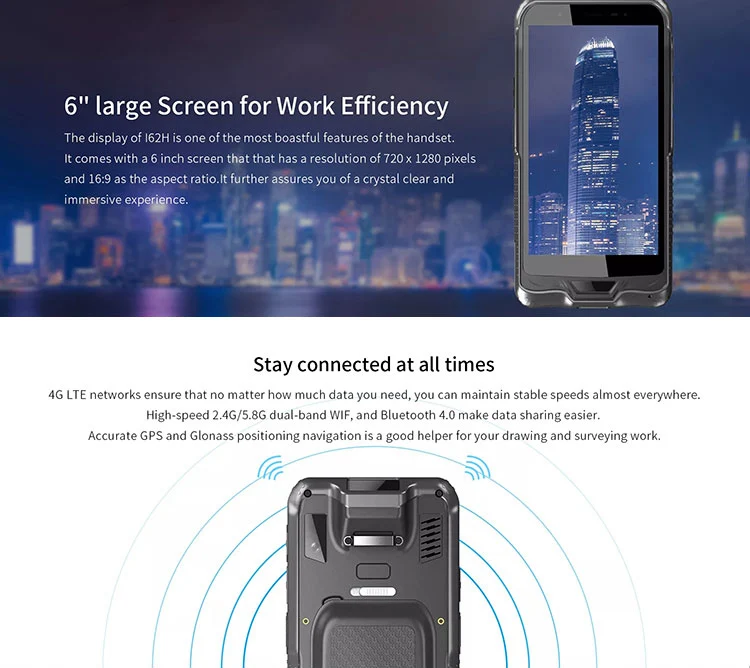

Display and Touch Panel | 5.98inch IPS 16:9, 1280x720, 430nits |

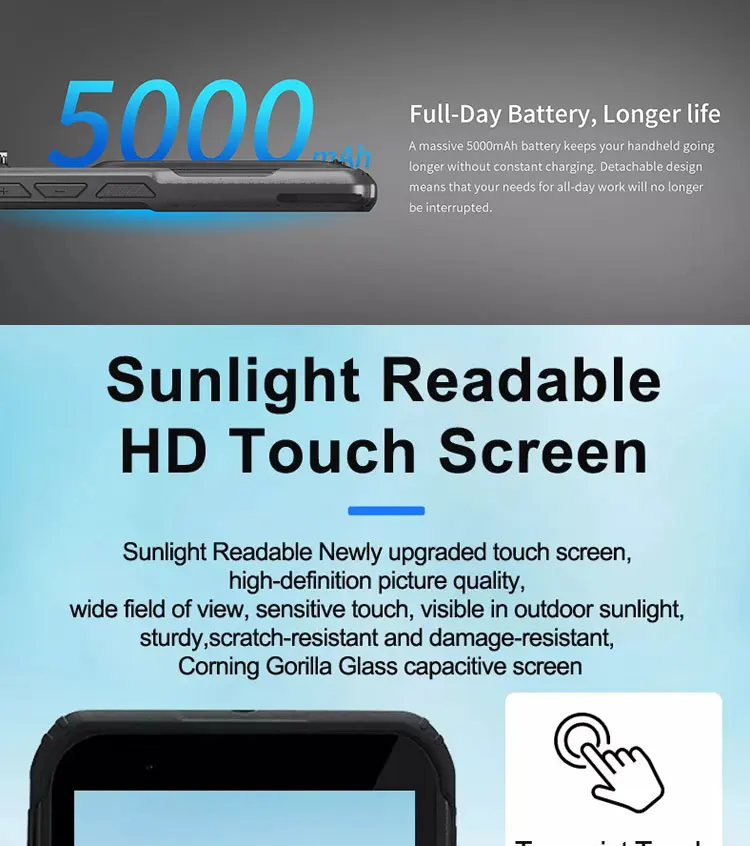

Power | 3.7V/5000mAh rechargeable lithium polymer battery |
Interfaces | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A |
Endurance | 6hrs (Default 50% volumn,Default 200 lumens brightness,Play 720P video) |
I/O | USB Type-C x 1, SIM Card x 1,TF Card x 1,4Pin machine buttom x 1 Φ3.5mm standard earphone jack x 1 |
PERFORMANCE CHARACTERSTICS | |

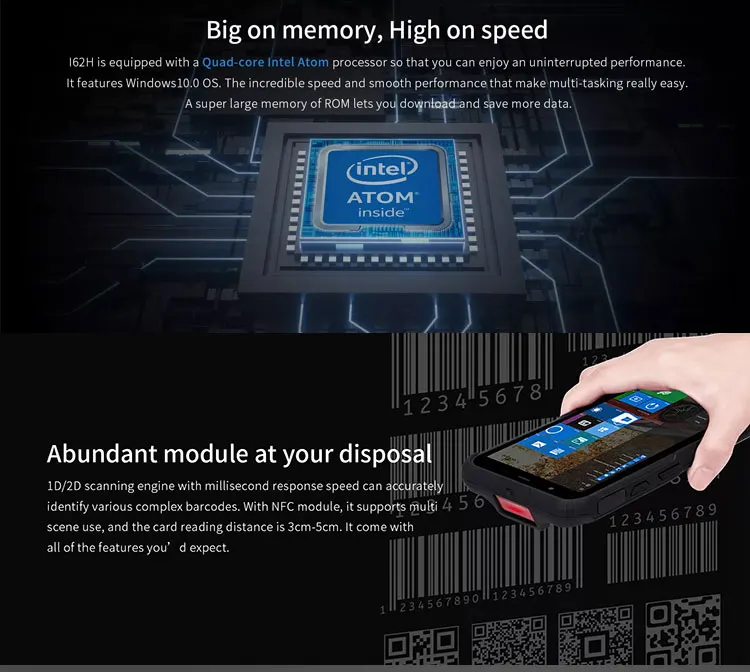

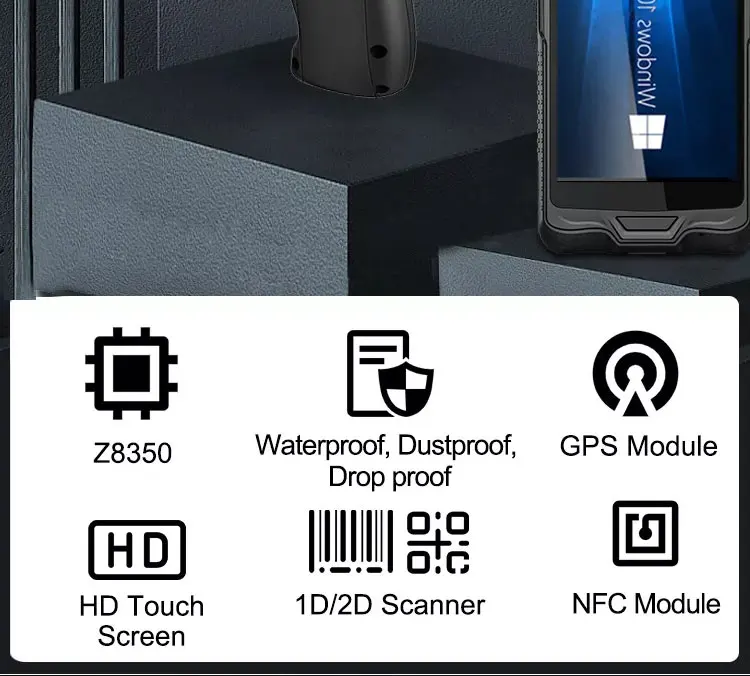

CPU | Intel Atom x5 Z8350 |
Storage | 4GB RAM+64GB ROM |
Operating System | Windows 10 |
USER ENVIRONMENT | |
Operating Temp. | -10°C to 50°C |
Storage Temp. | -20°C to 60°C |
Humidity | 95% Non-Condensing |

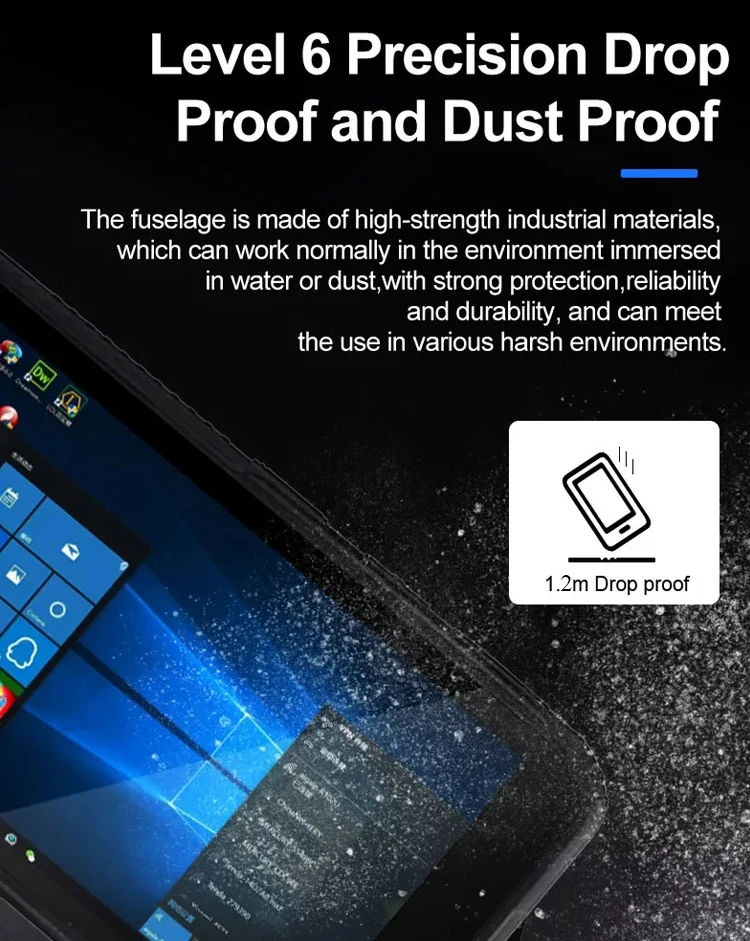

Drop Specifications | Multiple 1.5m drops to concrete across the operating temperature range |

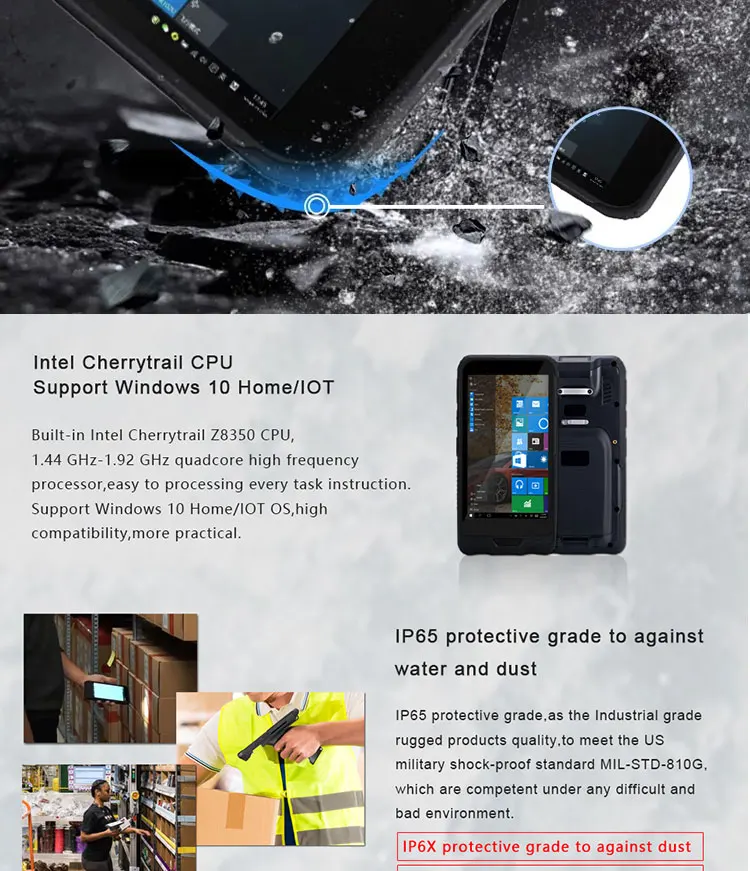

Sealing | IP65 |
Developing Environment | |
SDK | Software Development Kit |
Language and Tool | Android SDK + JDK + Eclipse |
DATA COMMUNICATION | |
2G/3G/4G | EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
WLAN | WiFi 802.11 a/b/g/n/ac (2.4G+5.8G) |
BLUETOOTH | BT4.2 |
GNSS | Built-in GPS |
BARCODE READER | |
2D imager scanner | Optional, EM80 |
1D Laser scanner | Optional, Honeywell N4313 |
COLOR CAMERA | |
Resolution | Front 2.0MP Rear 5.0MP |
NFC | |
Frequency | 13.56MHz |
Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
ACCESSORIES | |
Standard | AC Adapter,,USB cable,Manual, Hand Strap, Manual |

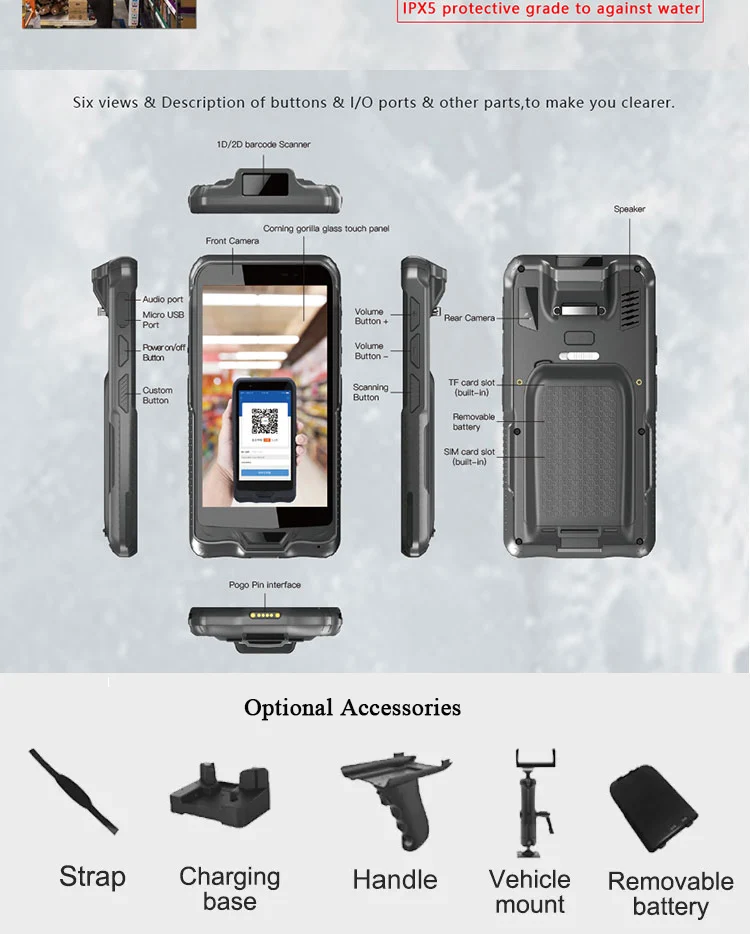

Optional | Dock cradle, Handle, Vehicle mount, Removable Battery |
NFC Reader:
NXP NFC 13.56MHz support under ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm

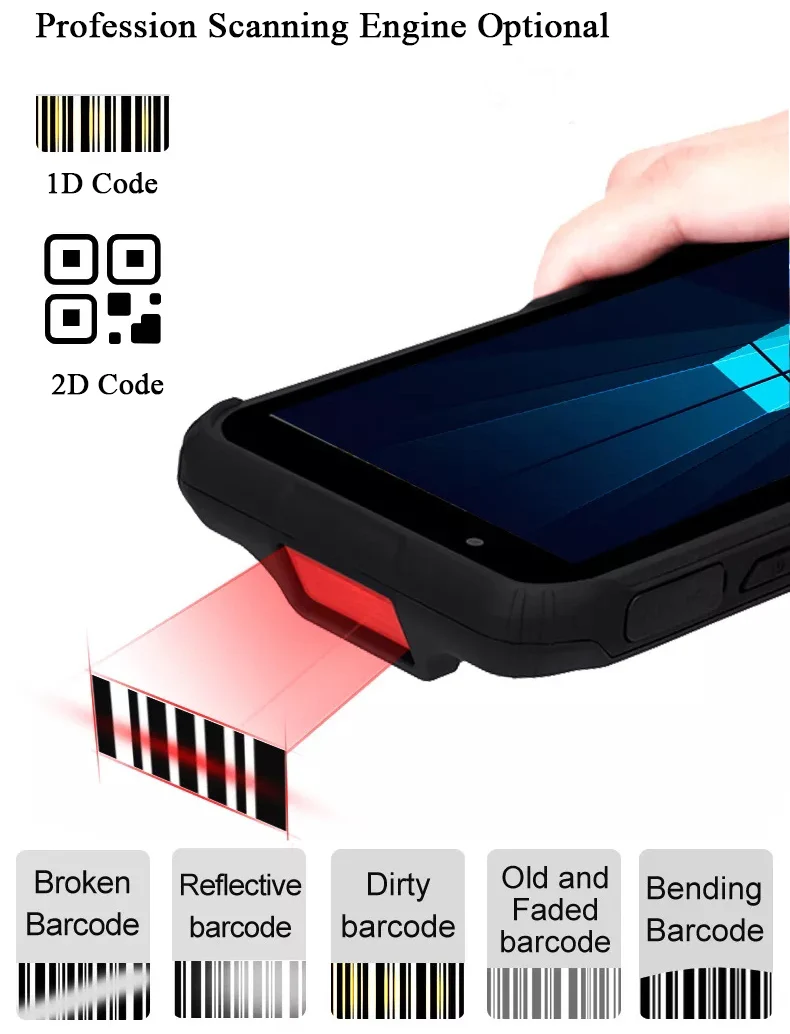

1D barcode scanner:
Honeywell N4313/Optical resolution: 5mil/scan speed: 50times/s
supportive code:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11
2D barcode scanner:
Honeywell N3680 hard decode.Optical resolution:5mil,scan speed:50times/s
supportive decode:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Dear all, Price on page is A version without scanner, if you need device with profession 1D or 2D barcode scanner, welcome to inquiry us then we can introduce you better!
Whatsapp/wechat/Tel:+86 15999652995 Skype: susie.su1990

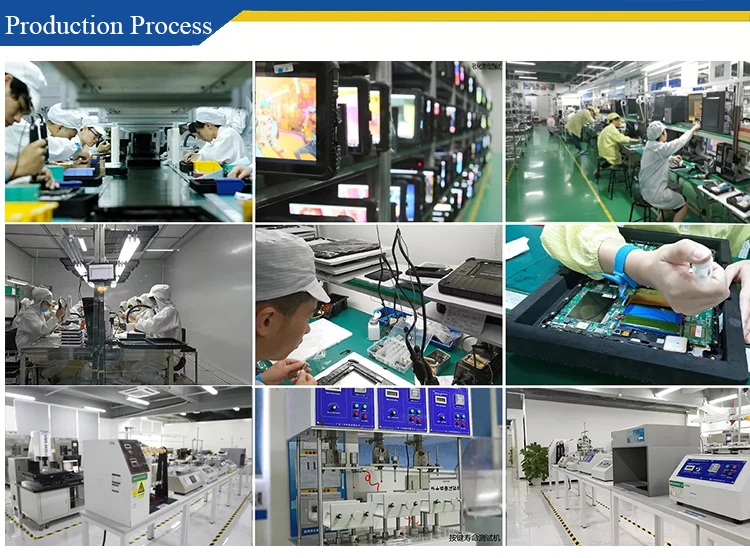

HQC is one of the largest industrial PDA/POSterminal/Barcode scanner/ Thermal printer providing company in China.Currently HQC has a R&D team of more than twelve people,eighteen Technical staff over one hundred and ninety production workers.
We have provided more than 42 industrial customized products which are widely used in the logistics,transportation, security,access control, cashless payment, data capture,field service,educationmedicalmilitary,finance, industrial control and other related industries.And now our IT equipment. solutions and intelligent terminal has been applied in more than 40 countries and regions around the global.Welcome to inquiry us and sincerely look forward to build long term cooperation with you!
1.Are you manufacturer?
Yes, we are manufacturers.We are profession in PDA/POS/Barcode scanner/thermal printer and provide OEM / ODM customized service according to our customers'various application and demands.
2.What will be the MOQ?
We accept one unit for standard products. we can even customized with your logo if needed.
3.Would you provide SDK for me?
Yes,we offer free SDK and tech support after sample device ordered.
handheld pda restaurante
4.What the after sale service warranty?
a.Our all products will provide 12 months warranty.
b.if there is no Man-made problem,we will replace or repair for your freely.1% extra device and spare parts will be provided when bulk order
c.Professional engineers provide 7*24 online service
pda win-dows 10 barcode scanner
5.What payment methods you accept?
T/T, Western Union, Paypal, Alibaba trade assurance, Cash etc.
6.How long it will take for delivery?
Normal production lead time around 3-10days depend on requirement and quantity.
Shipping time by DHL/UPS/FEDEX/TNT etc, delivery time would around 7-9 working days.
