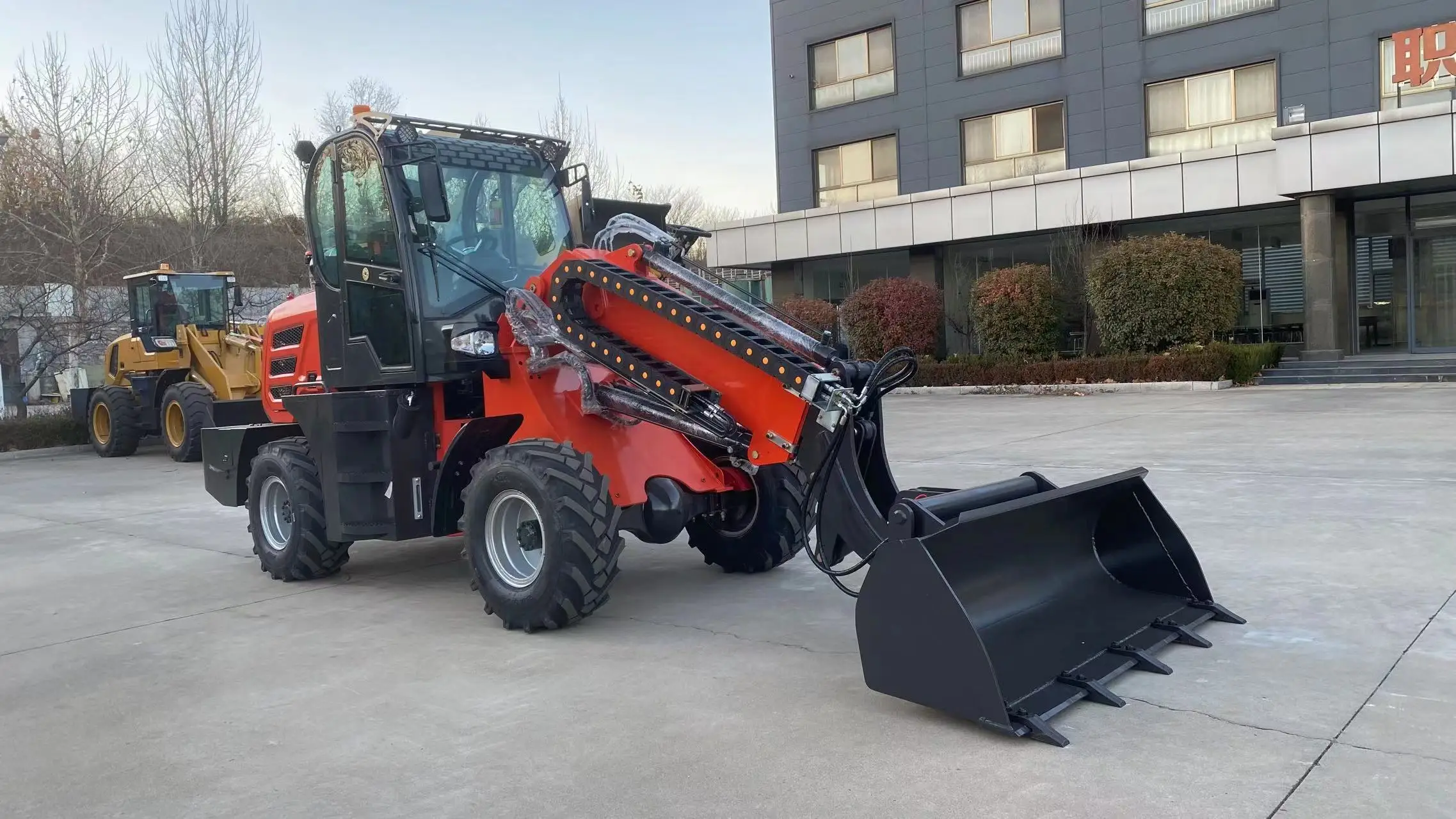

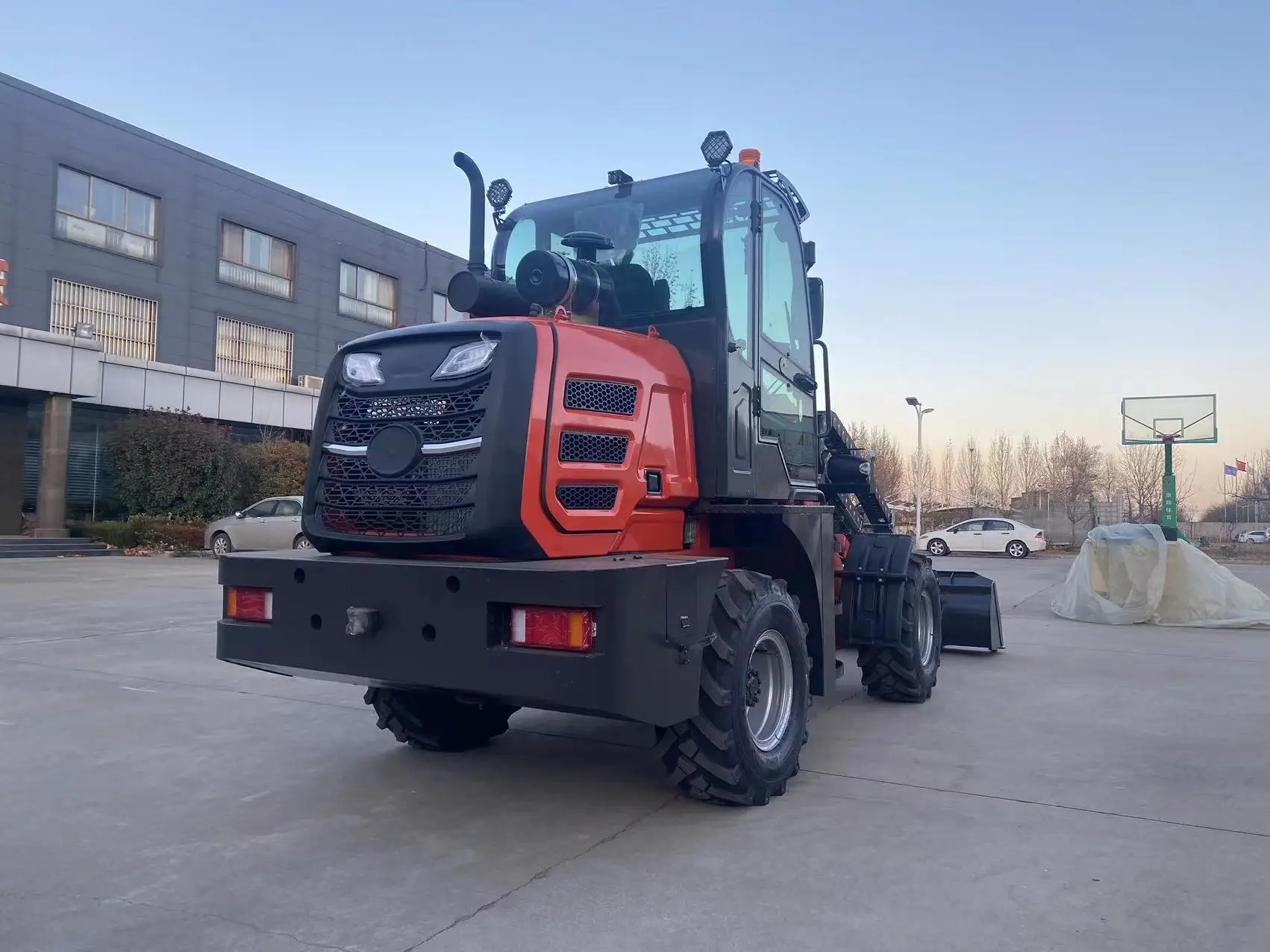

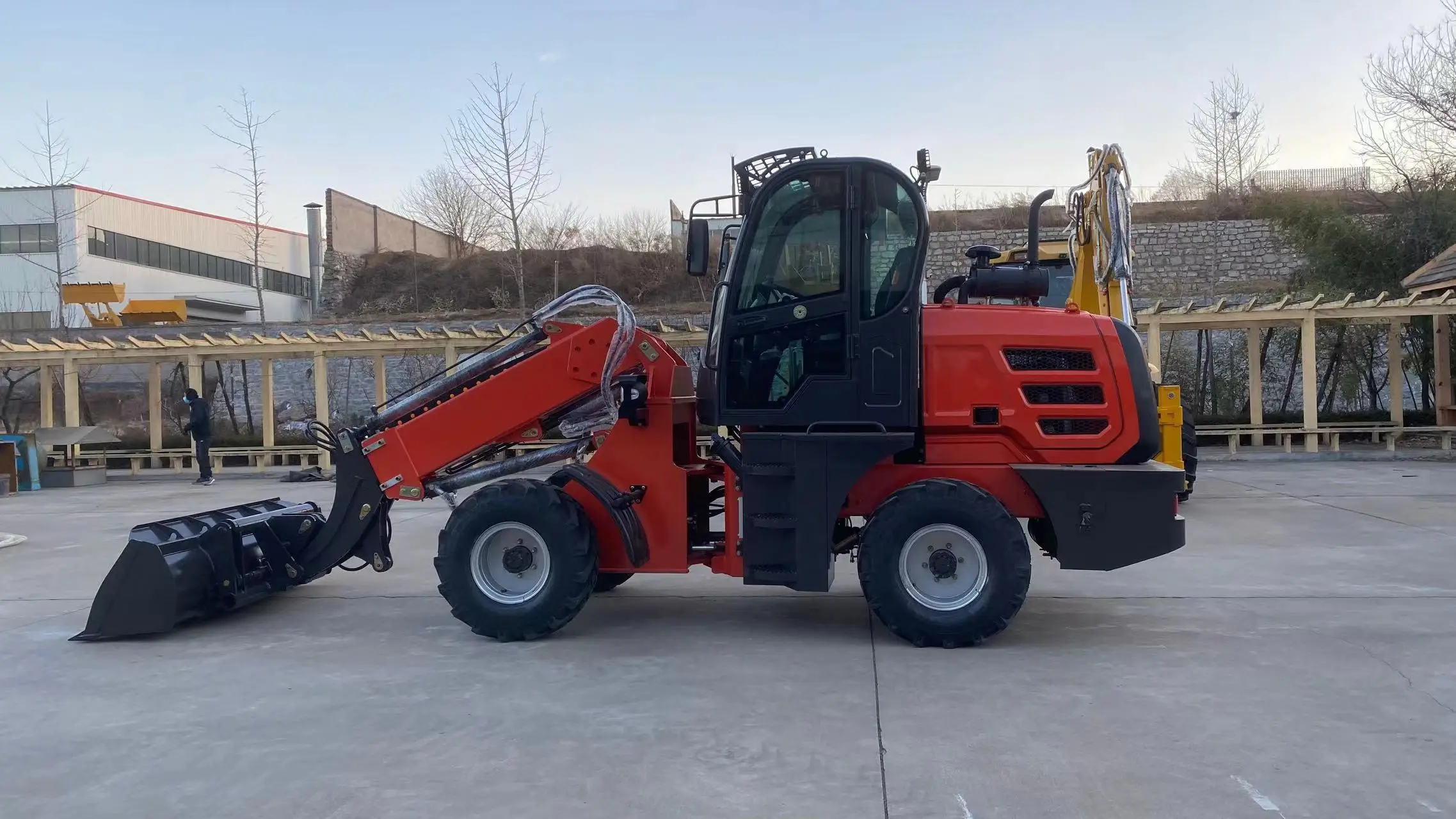

HT1500 Telescopic Wheel Loader | |
1.0 Engine | |
(1) Brand/Model: | Yunnei YN25GB |
(2) Type | In-line arrangement, water-cooled, four cylinder, diesel engine |
(3) Rated Power | 58KW |
2.0 Overall Dimensions | |
(1) Overall Length: | 5800mm |
(2) Overall Width: | 1800mm |
(3) Overall Height: | 2680mm |
(4)Bucket Max.unloading height | 4500mm |
3.0 Transmission System:Gearbox+Hydraulic converter + Drive shaft + Isuzu axles(Disc brake) Optional Hub reduction axle(Disc brake) | |
4.0 Bucket: | |
(1) Capacity: | 0.65 m³ |
(2) Type: | Heavy-duty bolt on teeth |
(3) Max. Load: | 1500kg including bucket or attachment
|
5.0 Operating Specifications | |
(1) Steering System: | Articulated hydraulic steering
|
(2) Driving System: | Four wheel drive |
(3) Hydraulic quick release | Yes |
(4) Mechanical pilot joystick | Yes |
(5) Steady rise | Yes |
6.0 Brake System | |
(1) Service Brake: | Four wheel disc brake |
(2) Parking Brake: | Disc brake |
7.0 Tyre | |
(1) Model: | 20.5/70-16 |
(2) Size: | Width: 300mm Diameter: 890mm |
(3) Optional Model: | 31*15.5-15 tubeless tire |
8.0 Wheel base: 2500mm | |
9.0 Track: 1500mm | |
10. System pressure: | 16Mpa |
11. Weight: | 4200KG |
Product Application

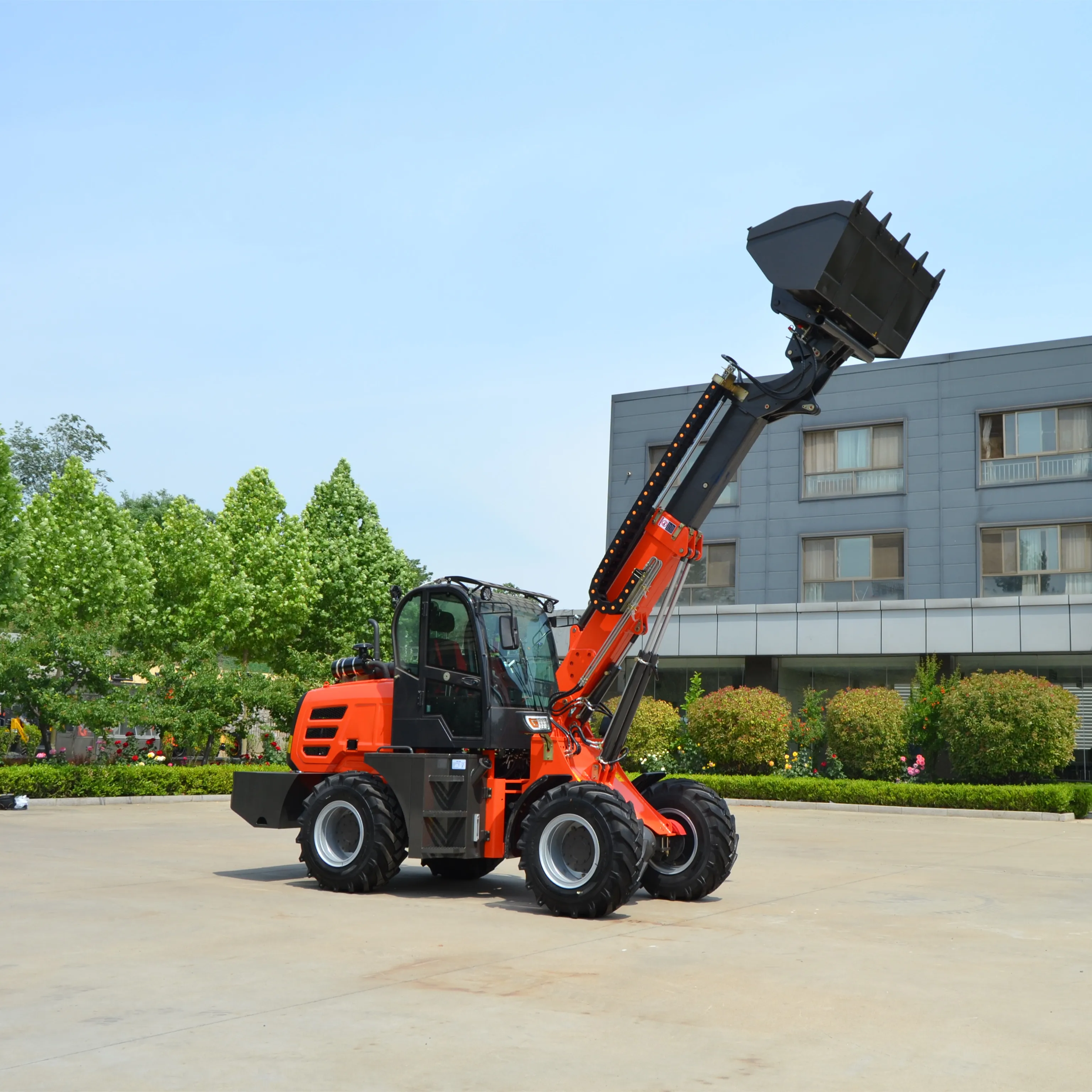

Telescopic boom loader HT1500 can reach 4.5 m greatly increase it’s working scope,(Quick change )option attachment:wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc. sweeper hundreds kinds of accessories meet the needs of different customers.
Main Features
1.Equipped with YUNNEI engine, If other engines are required, can also be selected.
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
5. (Quick change )option attachment:wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc.

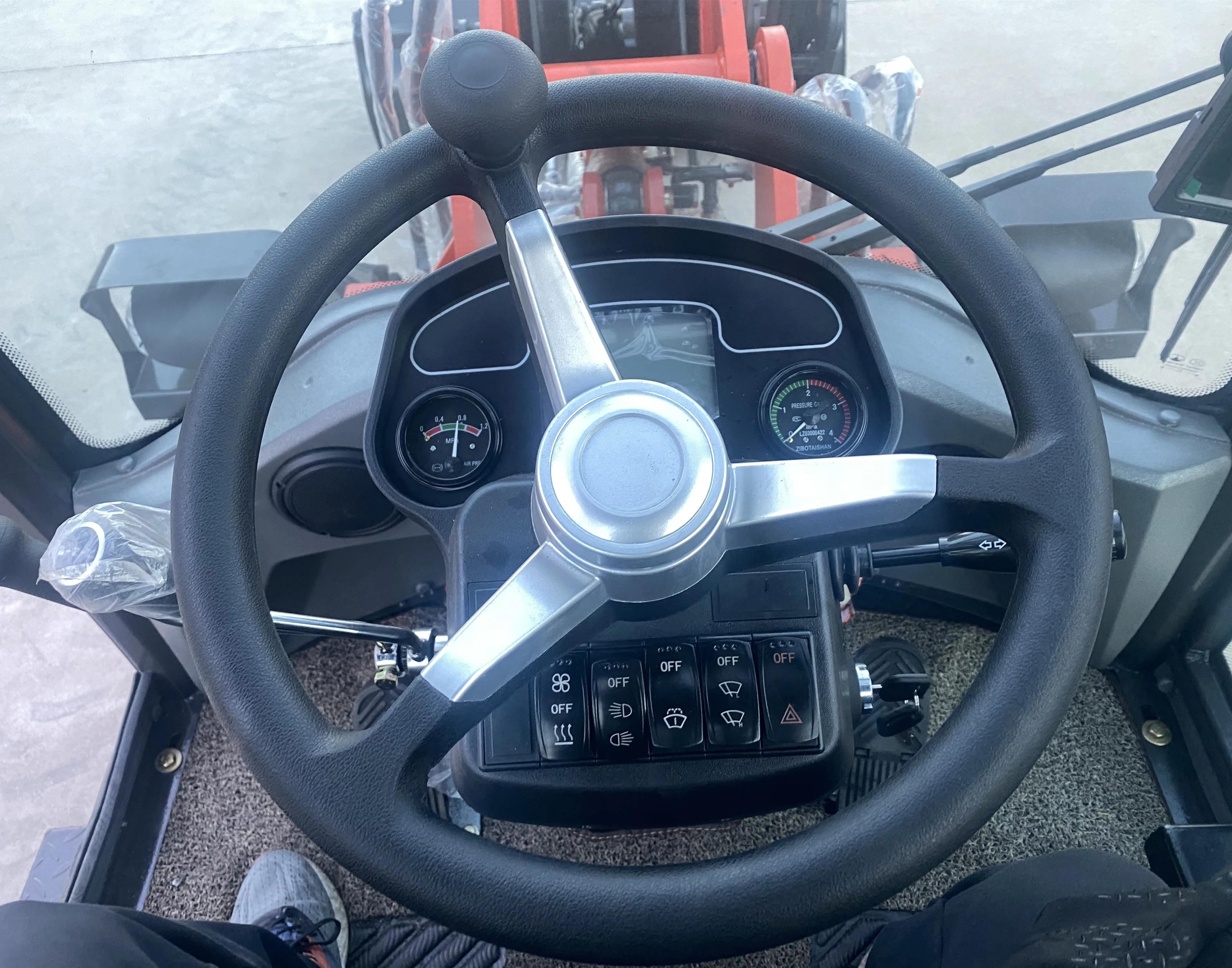

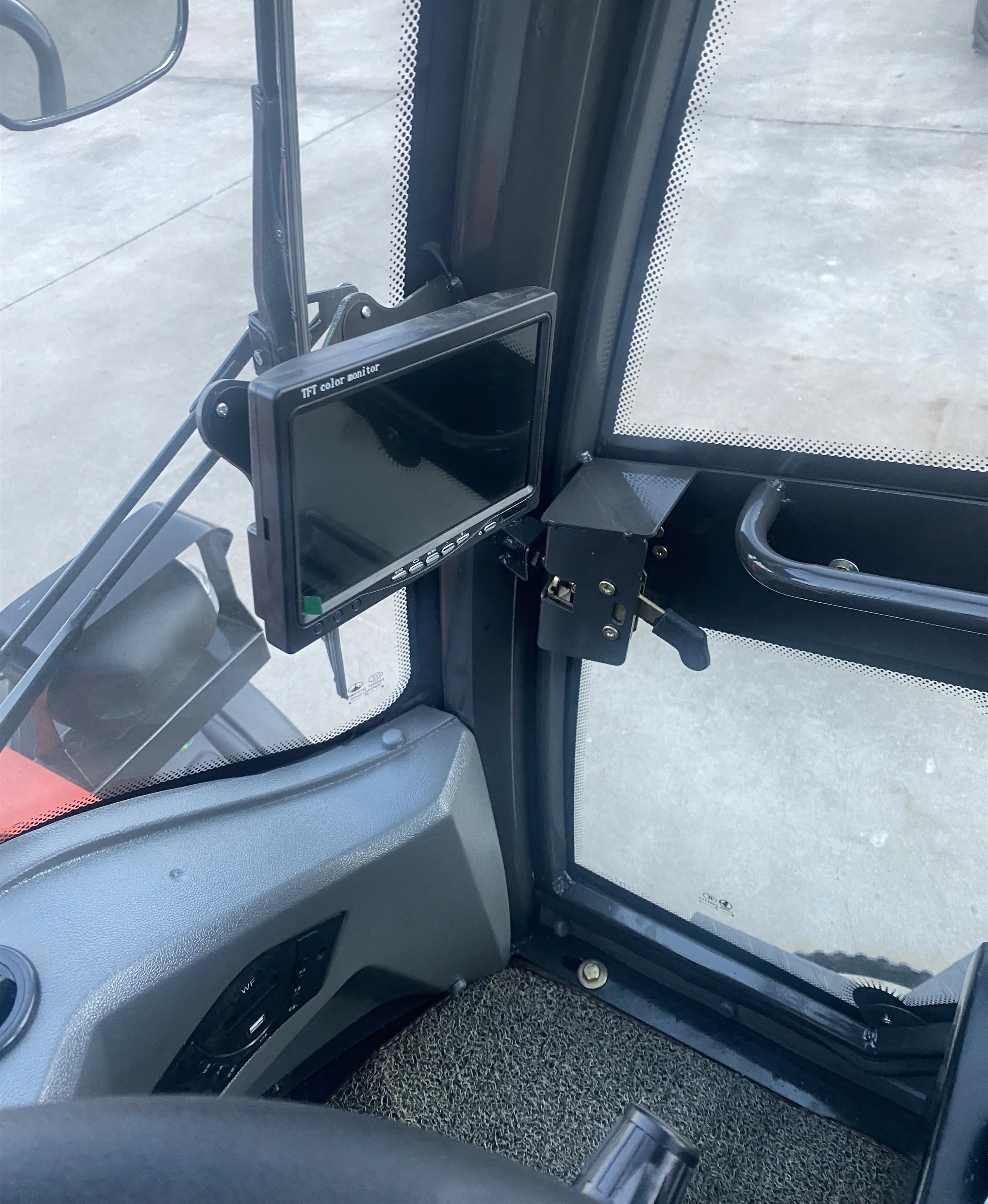

6. Optional luxurious meter, air conditioner, back camera, more comfortable for driving.
7. High pressure and safer air assist disc brake braking system
8. According to clients request, customize higher dumping and longer arm products.
1. For 1 set order,wooden case.

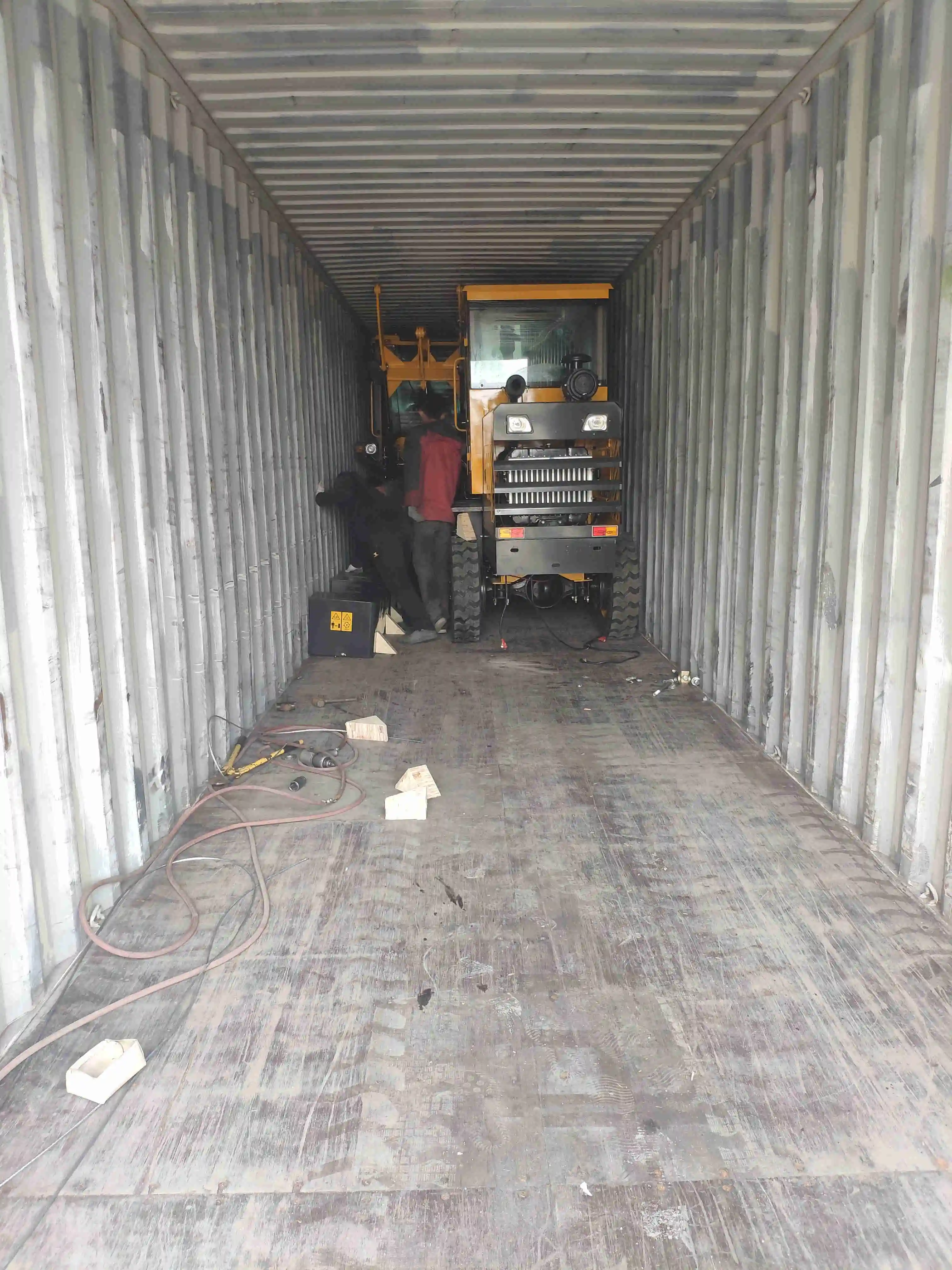

2. For big order, container.
Our company is a large-scale engineering construction machinery and equipment manufacturing group integrating scientific research, production and service.Its headquarter is located in Jining City, Shandong Province.
Our main products include construction machinery series, such as mini excavators ranging from 1 ton to 3.5 ton. Spraying equipment series, such as two-component high-pressure Pu spraying machine. Agricultural machinery series, wheel loader series, etc.
Hightop has got ISO 9001 international quality system certification, European Union CE certification, SGS certification, Germany TUV and France BV certification.
1. 1 year warranty;
2. Online guidance;
3. Provide repair videos;
4. Spare parts is available all the time.
5. For container order, spare parts kit for free will be sent with each machine.
We can supply excavators, wheel loaders, lawn mowers, spray machines, tractors, skid steers loader, etc. If you need others, we can help you find them too.
Q1: What is the Minimum Order Quantity (MOQ)?
A1: 1 set
Q2: What is the lead time?(How long will it take to prepare my goods?)
A2: 5-7 days for sample orders, 15-20 days for bulk orders.(The exact time will be based on the requirements)
Q3: What's your warranty?
A3: 1 year or 1500 working hours
Q4: What are your terms of payment?
A4: Usually 30% deposit by T/T, balance 70% before shipment, for large orders can also be negotiated.
Q5: What certification do you have?
A5: Our products have obtained many certifications, such as CE, ISO 9001,SGS, TUV, BV, etc
Q6: How will you deliver my goods to me?
A6: Normally, we will ship the goods by air, by sea and by express.
Q7: Can you print my own logo on the products?
A7: Yes, of course. Not only the logo, but also the packing design and other OEM services are available.
Q8: What is your product quality?
A8: Our raw materials are all purchased from qualified suppliers. And we have very strict QC standard to assure our final products meet your requirements.
Q9. Do you test all your goods before delivery?
A9: Yes, we have 100% test before delivery.
