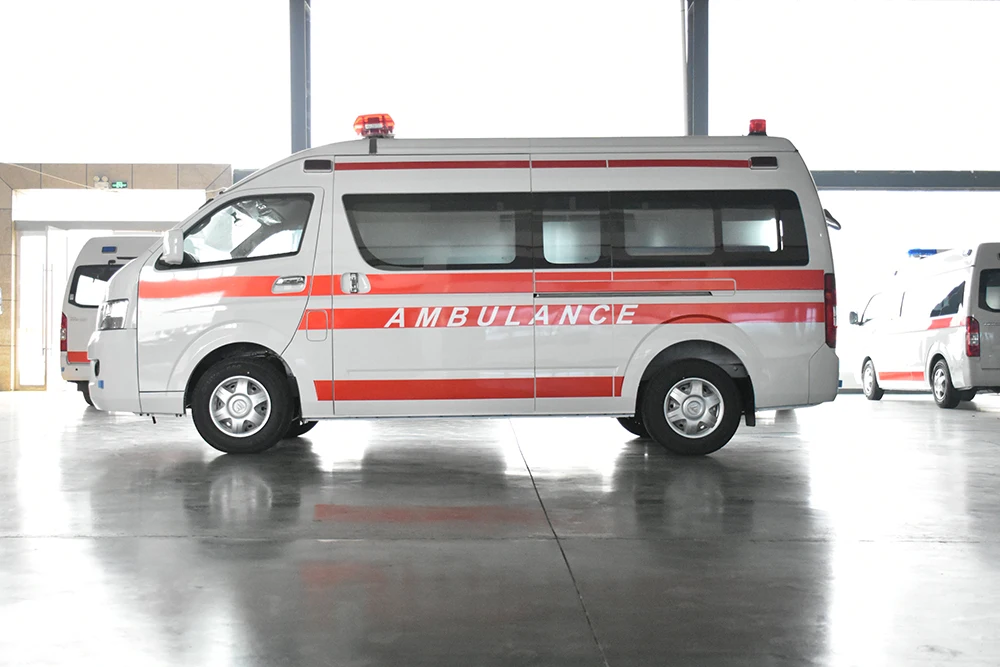

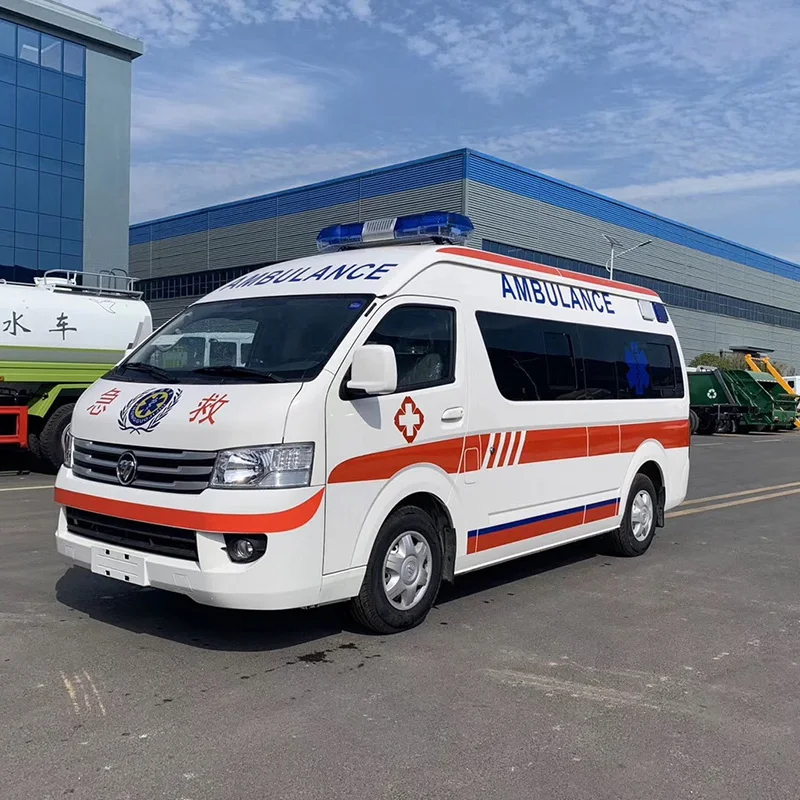

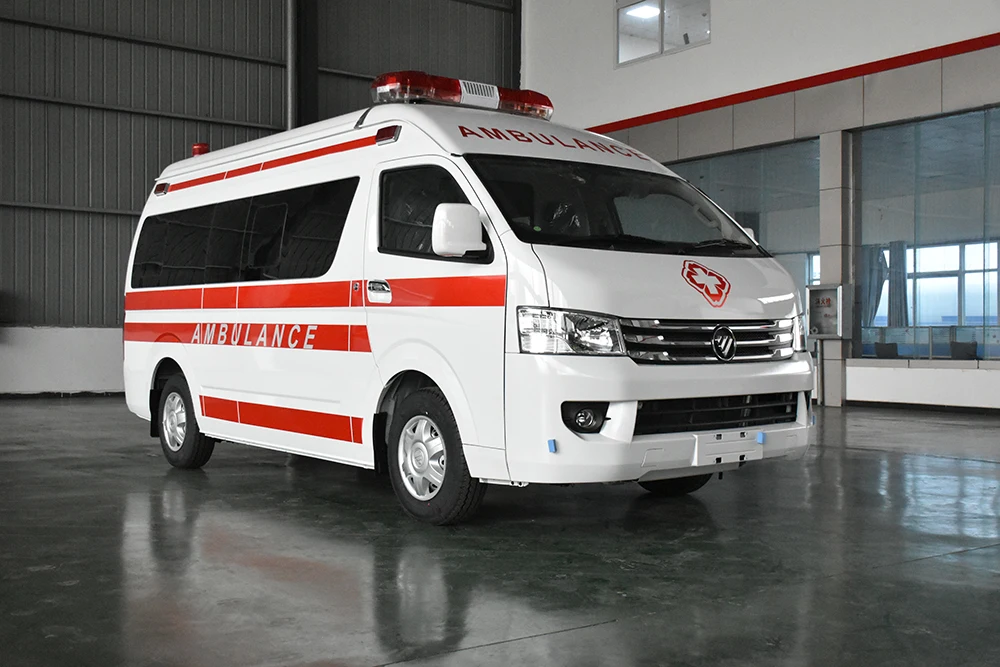

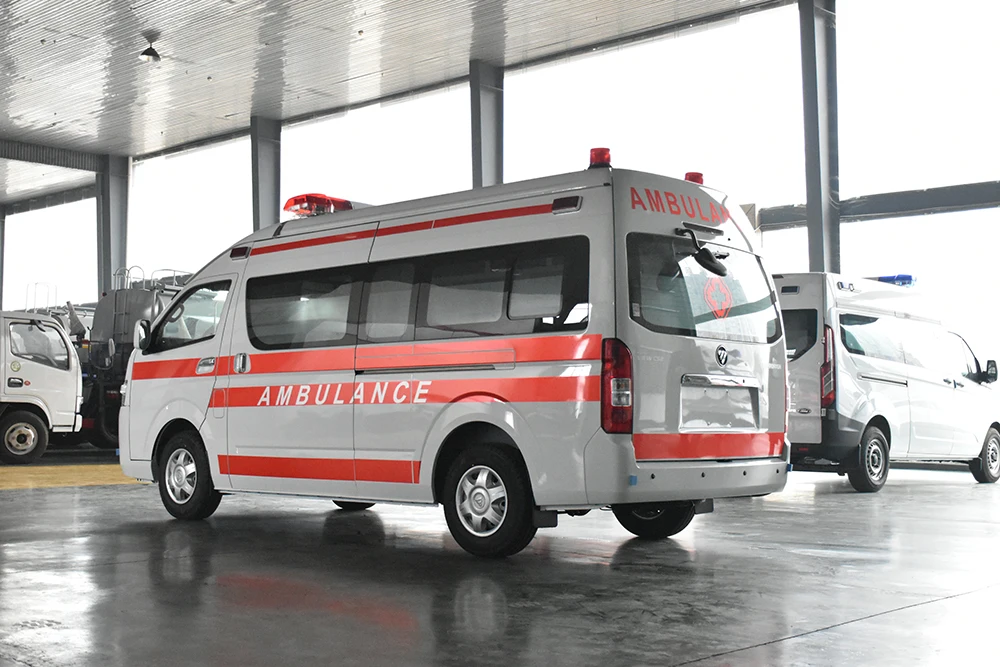

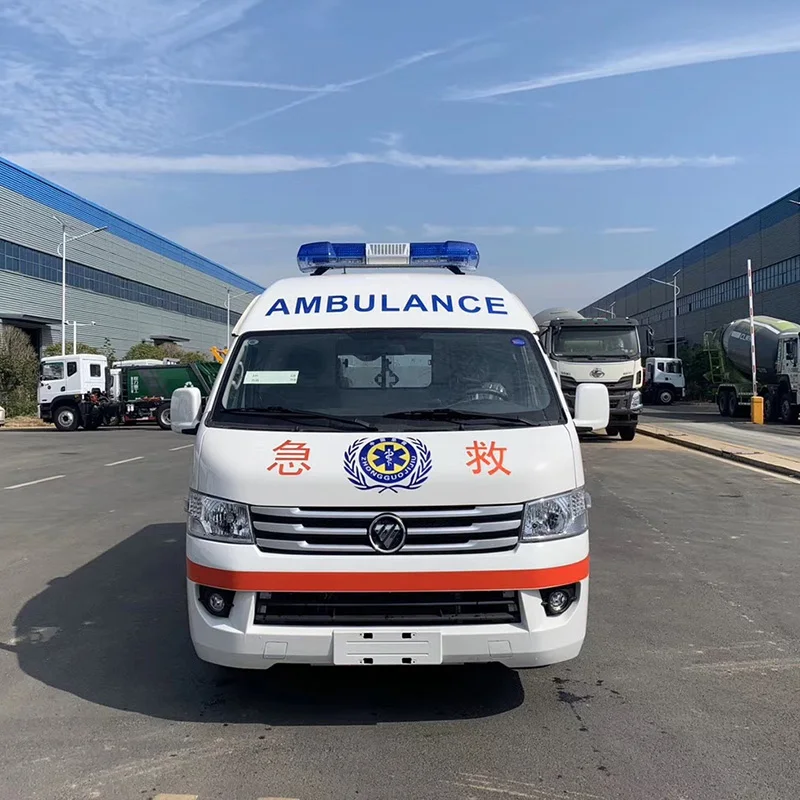

Экстренная скорая помощь FOTON Transport
- Категории: Ambulance >>>
- Поставщик: Hubei,Xindongri,Special,Vehicle,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Chassis Parameters | Basic Vehicle Parameters | ||
Size（mm）（L*W* H） | 5320×1695×2435 | ||
Wheelbase（mm） | 3050 | ||
minimum ground clearance（mm） | 170 | ||
Approach Angle / Departure Angle（°） | 16/17 | ||
Fuel | Diesel | ||
Emmission Standard | Euro IV | ||
Engine Power | 95hp | ||
Displacement（ml） | 2771 | ||
Max torque | 220/1700 | ||
Curb Weight(kg) | 2390 | ||
Gross Weight(kg) | 3400 | ||
Rated Passenger | 5-7 people | ||
Gear Box | 5 forwards & 1 reverse by manual | ||
Tire Specification | 195R15C | ||
Brake | Front: Ventilated disc Rear: Solid drum | ||
Suspension system | Front：Double transverse arm torsion bar spring independent suspension Rear:Leaf spring frame | ||
Transport Type Ambulance configuration: | ||||||
Location space | No. | Project | Remark | |||
Basic configuration | ||||||
1 | Medical cabin air conditioner | |||||
2 | Medical cabin heater | |||||
Circuits and appliances | ||||||
Alarm, warning system | 1 | Long row standard warning light | ||||
2 | 100W alarm and controller | |||||
3 | Two flash lamp on the left and right sides (one before and after) | |||||
Interior, power supply | 4 | 500W Power inverter | ||||
5 | Medical cabin rocker control switch | |||||
6 | Two 220V power port and one 12V port | |||||
7 | Four top light | |||||
8 | Disinfection lamp | |||||
Oxygen | ||||||
Oxygen supply system | 1 | Two 10-liter medical oxygen cylinder and Shock absorbing clamp | ||||
2 | One Wet bottle with oxygen pressure reducing valve and Direct oxygen cylinder | |||||

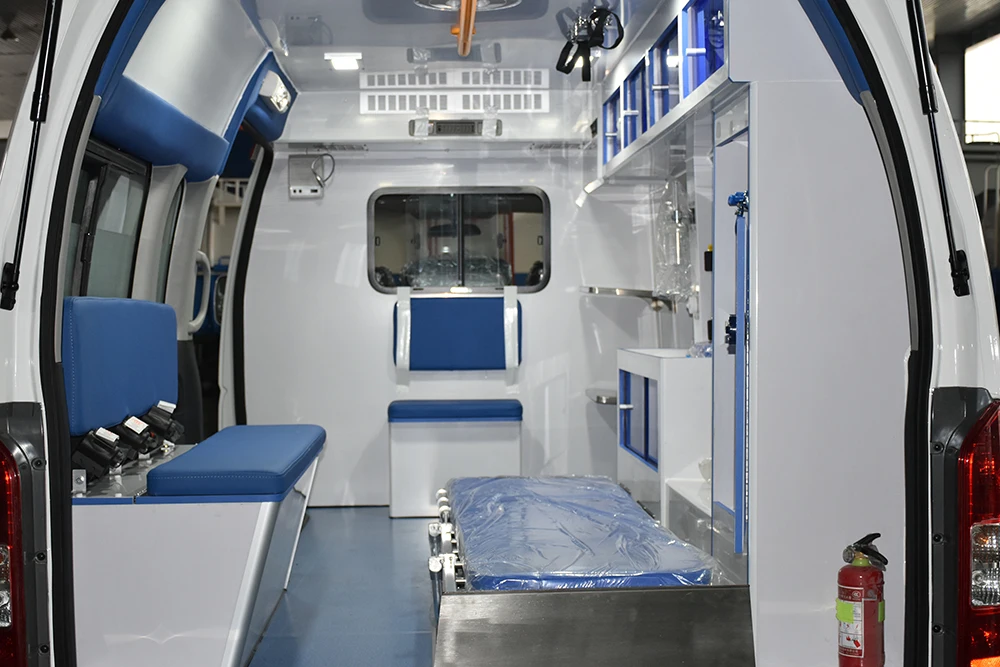

Medical cabin | ||||||
Medical cabin interior | 1 | Original interior | ||||
2 | Partition wall | |||||
3 | Observation window | |||||
4 | Left front fixed oxygen cylinder | |||||
5 | Left side medical cabinet (encircling oxygen cylinder) | |||||
6 | Long seat belt and seat belt pre-buried | |||||
7 | Blue medical floor leather | |||||
Seats | ||||||
Seat system | 1 | Right side long soft seat | 1 | |||
2 | Right side one positive seat | 1 | ||||
First aid | ||||||
Medical system | 1 | Automatic loading stretcher | ||||
2 | Stretcher pad and guide | |||||
3 | 2 infusion hooks | |||||
4 | Fire extinguisher 1KG | 1 | ||||
5 | A Pair of simple stretchers for the tailgate | |||||
Exterior | ||||||
Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | ||||
2 | Right and rear translucent frosted film | |||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
