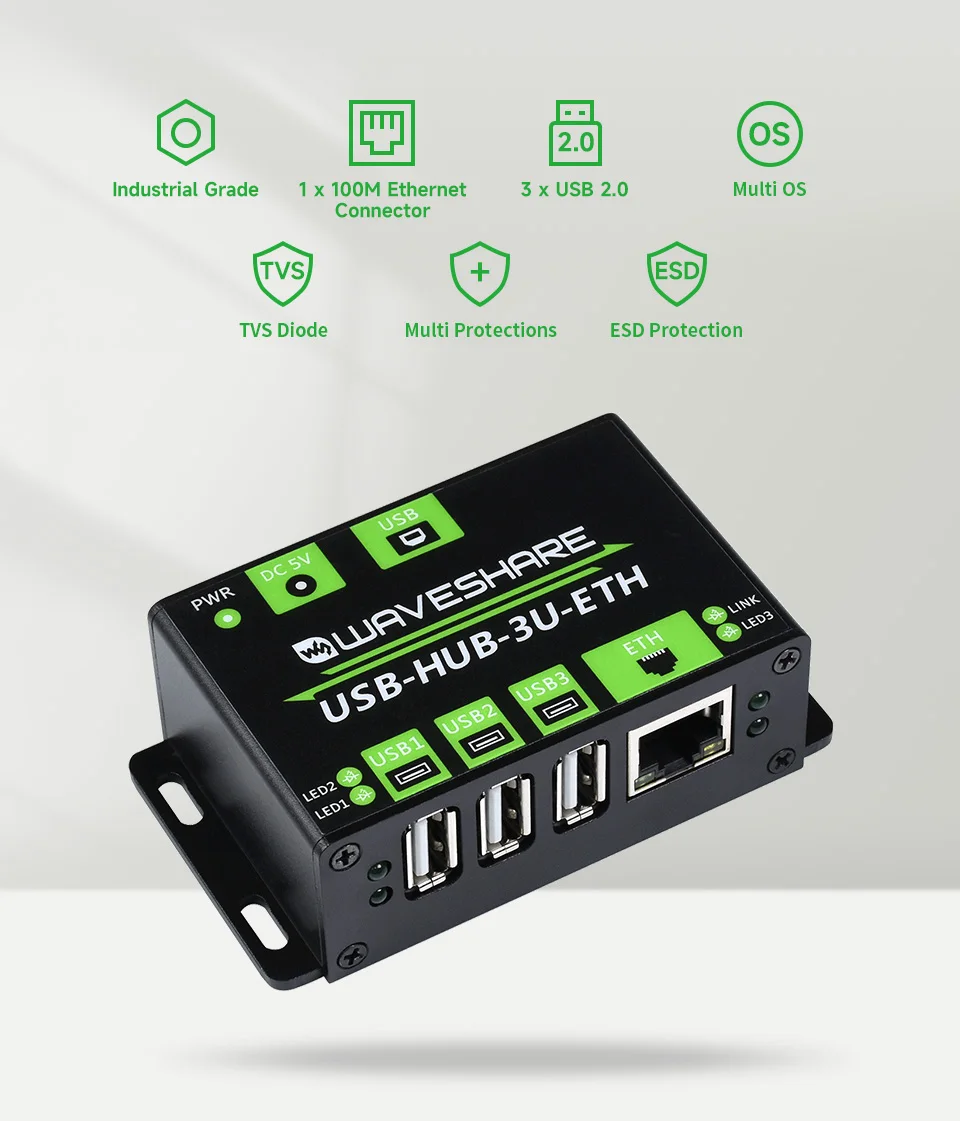

Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического
Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического
Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического
Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического
Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического
Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического
Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического

Многофункциональный USB-концентратор промышленного класса расширяющий 3 x USB-порта + 100M Ethernet-порт защищает от электростатического


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Description


USB-HUB-3U-ETH
3x USB + 100M Ethernet Connector
Suitable For Industrial/Office Environments Requiring Higher Level Device And Network Connection




Features At A Glance
* 3x extended USB ports, compatible with USB 2.0 / 1.1
* Onboard RTL8152B Ethernet chip, adapting RJ45 network port, 10/100M adaptive
* Industrial grade HUB chip, adopting STT technology, allows stable and smooth concurrent USB connections
* ESD protection for each USB port, preventing electric surge damage and data loss
* Onboard large-capacity electrolytic capacitor, effectively making the power supply output of the USB port more stable
* Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
* Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage
lock-out, 8KV ESD protection, filtering protection, etc.
* LED indicators for monitoring operating statuses of power supply, network port and USB ports
* Industrial grade metal case, rugged & durable, with mounting holes for easy installation




Specifications


USB PORT
USB 2.0 Port x 3, theoretically up to 480Mbps
NETWORKING
10/100 adaptive
USB HUB INPUT
operating voltage:5V
connector:USB-B
USB OUTPUT
operating voltage:5V@Imax:1.2A①
connector:USB-A
EXTERNAL POWER
power supply voltage:DC 5V②
connector:DC jack
OPERATING ENVIRONMENT
-40℃ ~ 85℃
OS SUPPORT
Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP


① up to 1.2A Max output current for each USB ports, when there's enough power input
② comes with 5V 2A power supply, it is recommended to use another 5V 4A or above power supply for higher USB loads

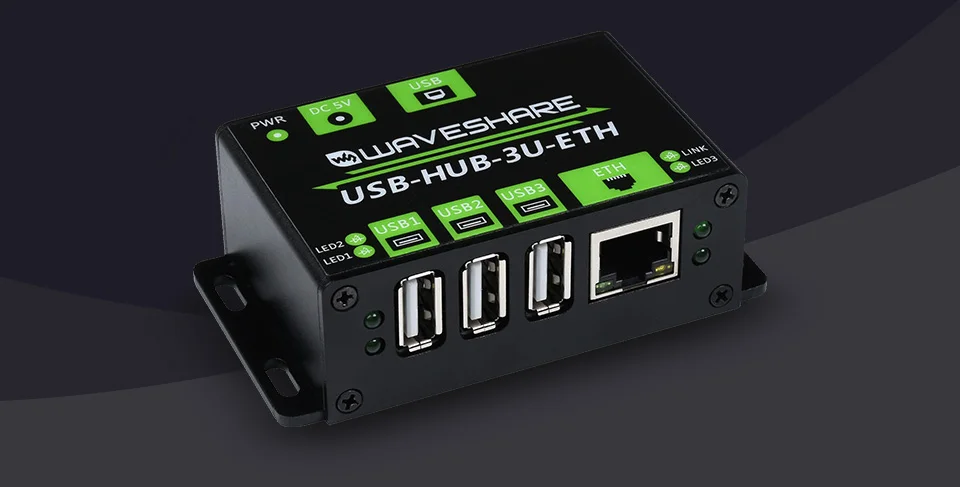

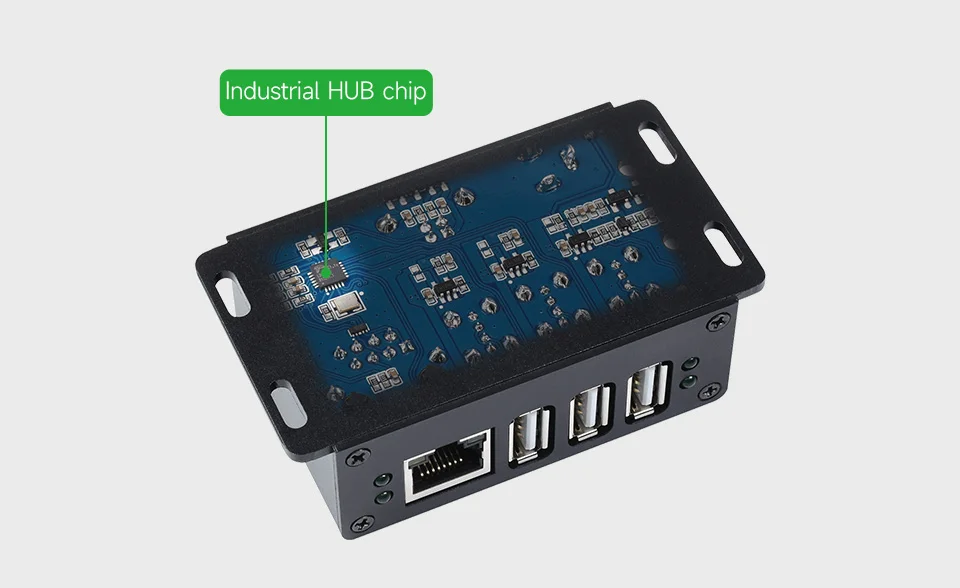

Industrial Grade HUB Chip
STT Technology, 3x Concurrent USB Connections, Stable And Smooth

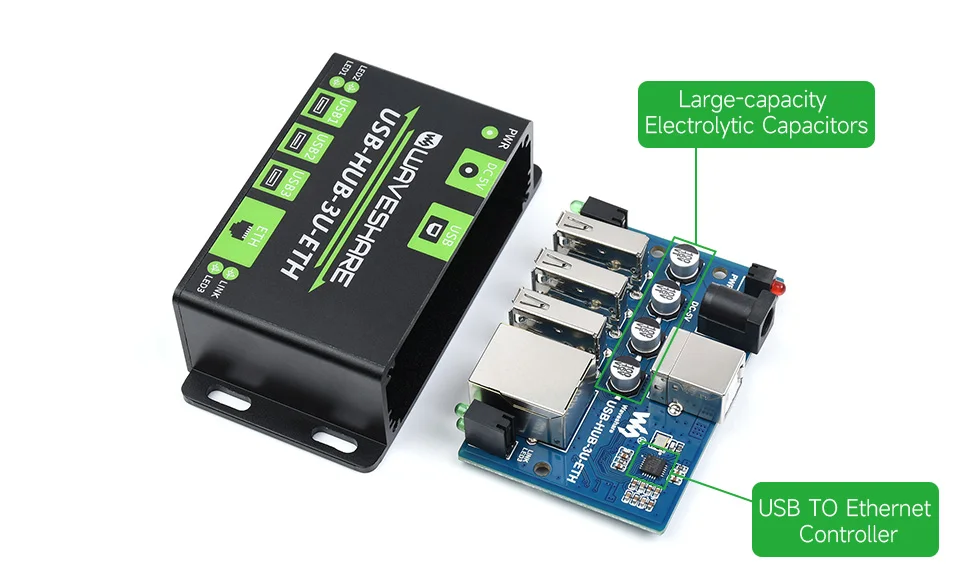

Large-Capacity Electrolytic Capacitors
More Stable Power Output Via USB Port




Multiple Protections, More Safe
Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection,
Filtering Protection...




Multiple OS Support, Plug & Play

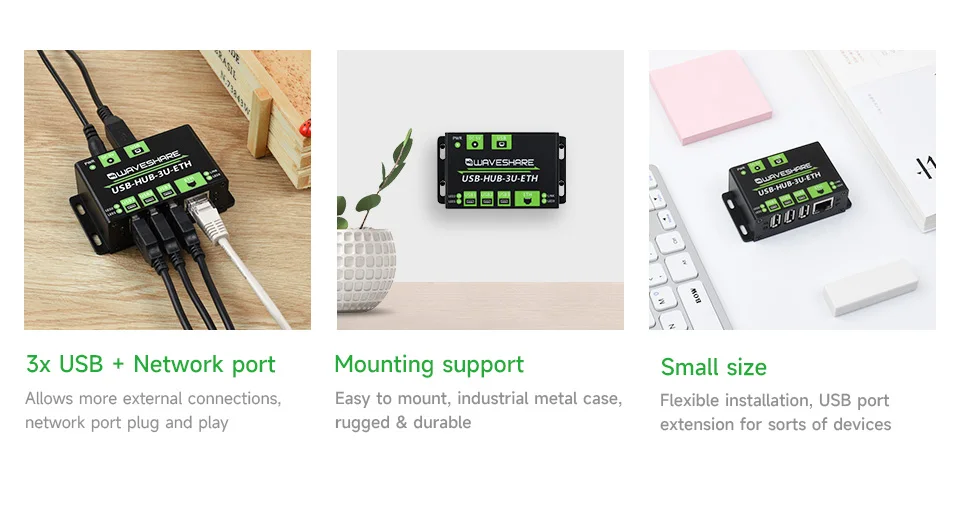

Application Environments
Suitable For Industrial/Office Environments Requiring Higher Level Device And Network Connection

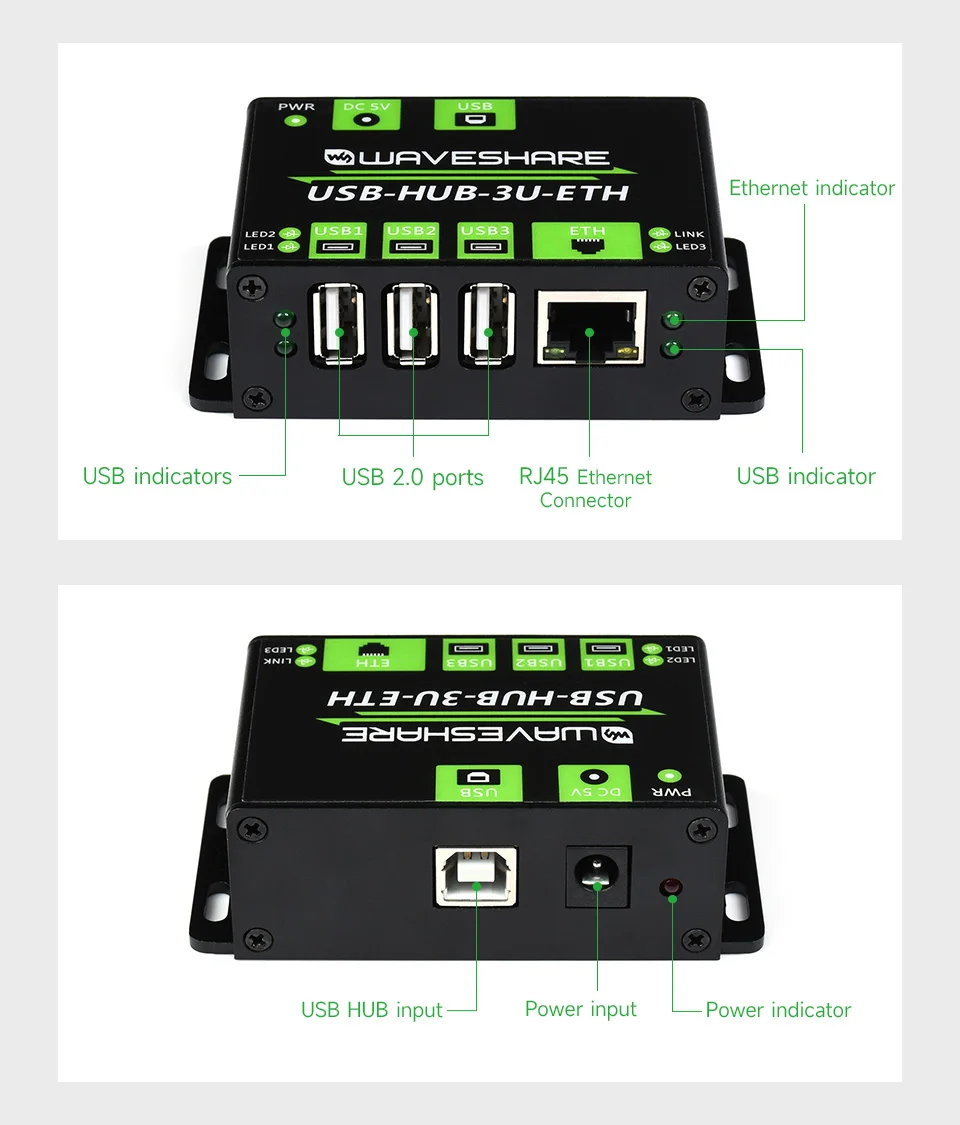

Interface Introduction

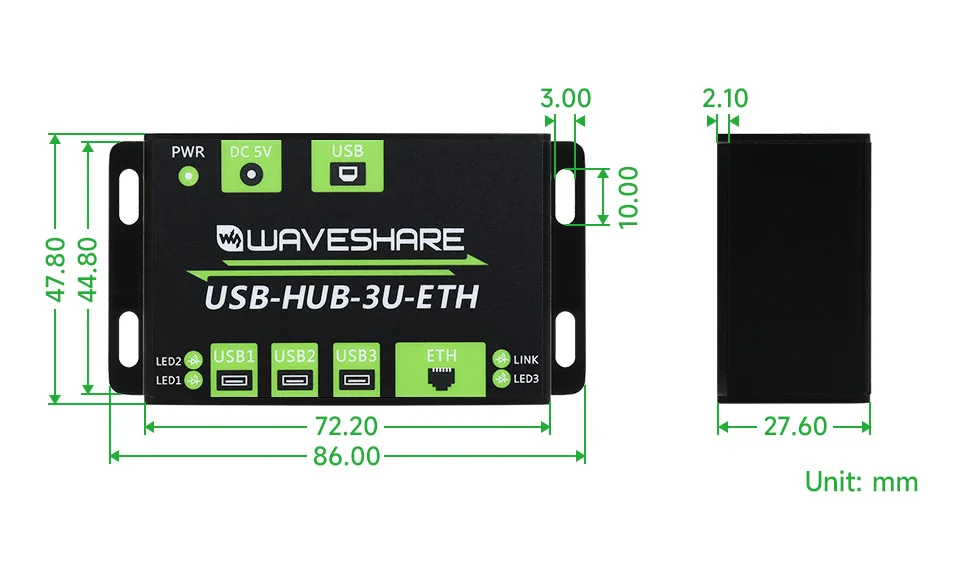

Outline Dimensions




PACKAGE CONTENT
Weight:0.249 kg
1. USB-HUB-3U-ETH x1
2. USB cable ~1.2m x1
3. OPTIONS 5V 2A power adapter x1
