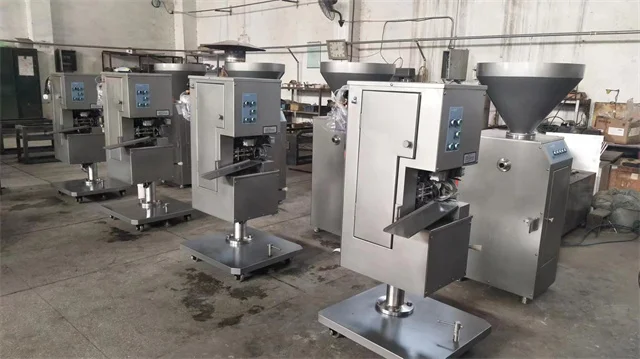

Sausage ham filling machine clipping machine

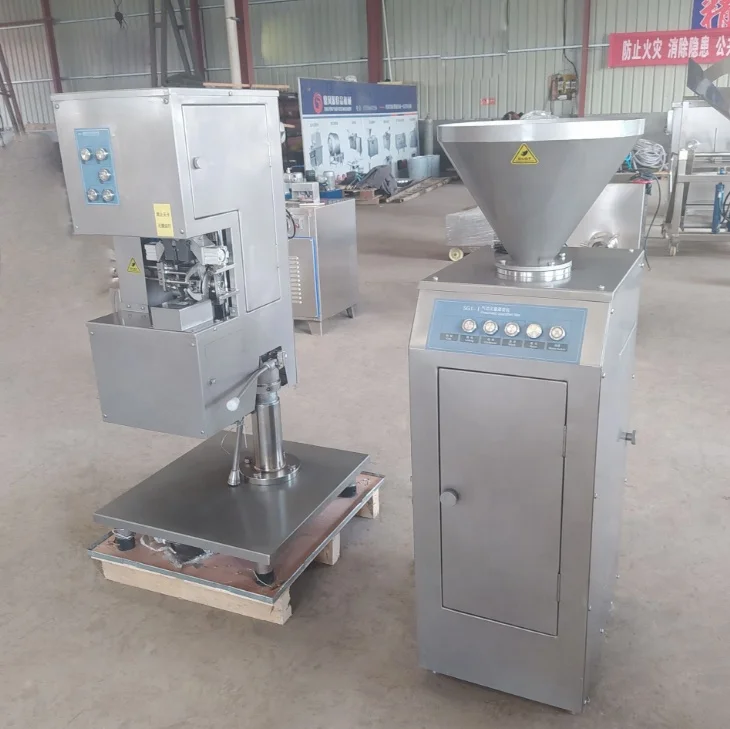

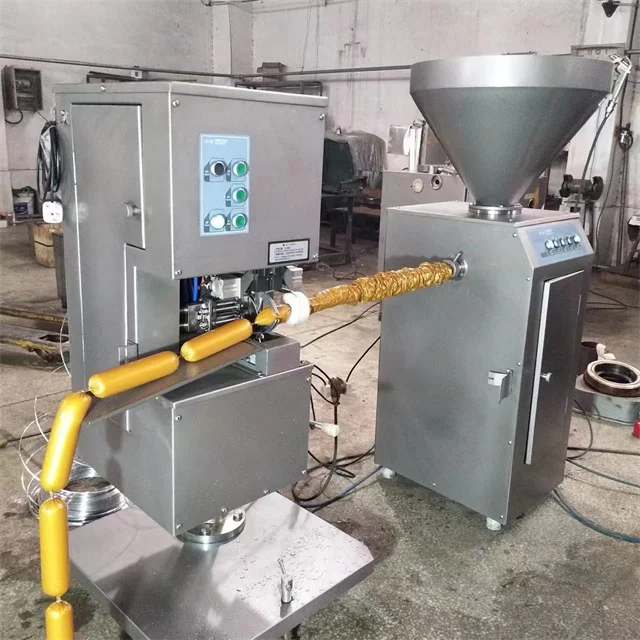

These two machine adopts international advanced techonlogy, using compressed air as the power. SGI-I filling machine connect with SZK-I Clipping machine to form a sausage production combination. Apply to make the sausage which casing is Nylon shrinkable film casing, Nylon casing, PVDC film casing and  Artificial composite membrane casing. SGI-I and SZK-I are high efficiency, waterproof, conveniently and simple to operate. It wins reputation and confidence by excellent performance, delicate technology, reliable quality and pretty appearance.

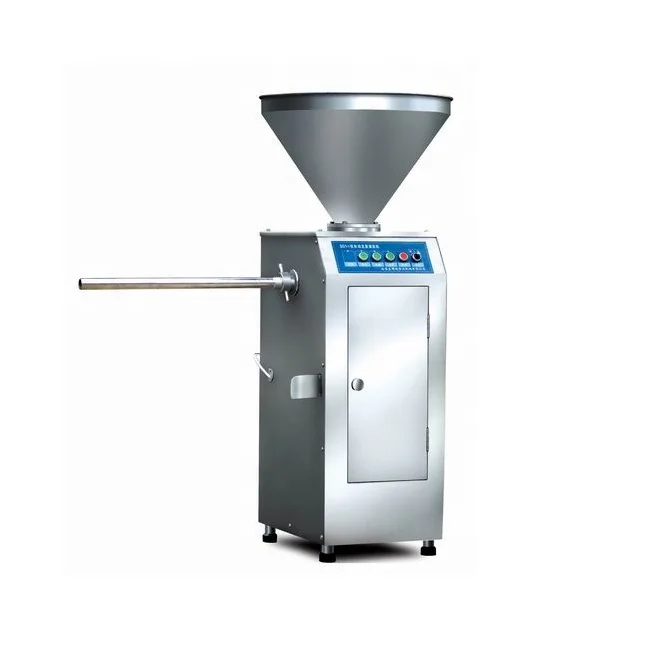

Pneumatic quantified ham sausage filling machine

1. Made of stainless steel 304
2. Quantitative scope: 50-1000g
3. Pressure: more than 0.5Mpa
4. Power: 220V 50HZ
5. Height of center :850mm
6. Funnel Volume: 57 L
7. Pipes:Φ15, Φ20, Φ25, Φ33
8. Overall dimensions : 640*640*1430(mm)
9. Weight: 120kg

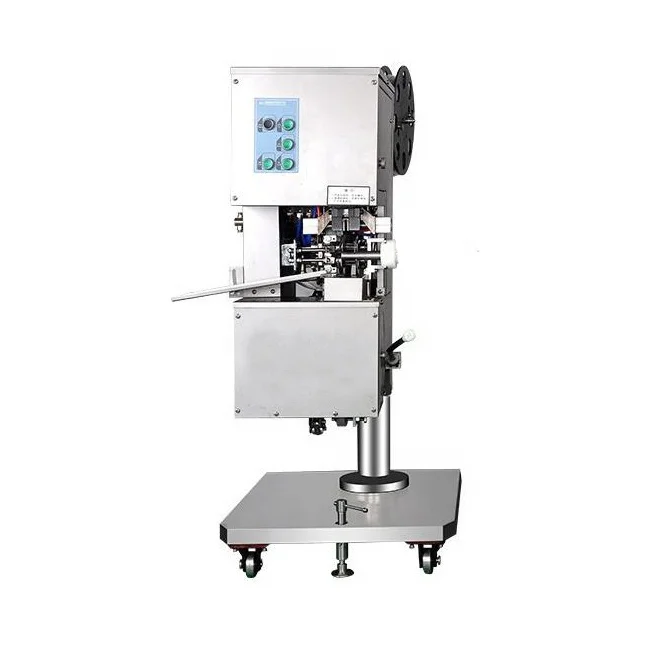

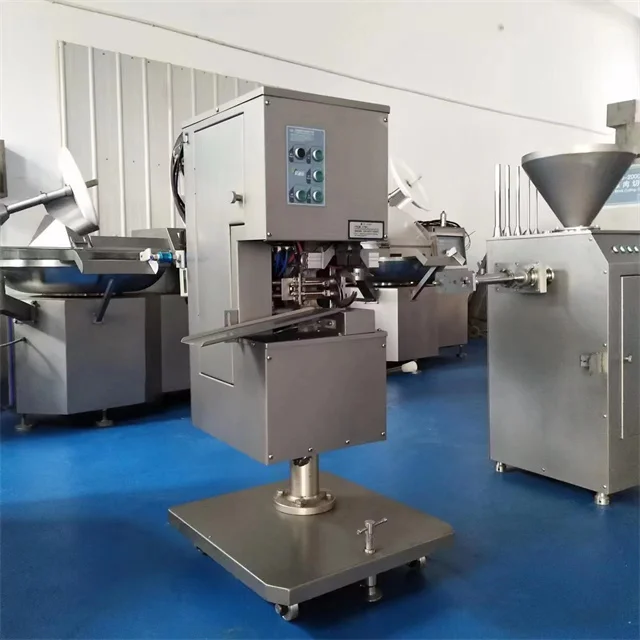

Ham sausage double sealing and clipping machine

1. Made of stainless steel 304
2. Speed: 30-40pcs/min
3. Pressure: more than 0.6Mpa
4. Power: ~220V 50HZ
5. Height of center :850mm
6. Sausage casing fold diameter:30-90mm
7. Aluminum wire: Φ2.1-2.9mm
8. Overall dimensions : 630*630*1500(mm)
9. Weight: 290kg

10. Apply to Nylon shrinkable film casing, Nylon casing, PVDC film casing and  Artificial composite membrane casing.
