Products Description

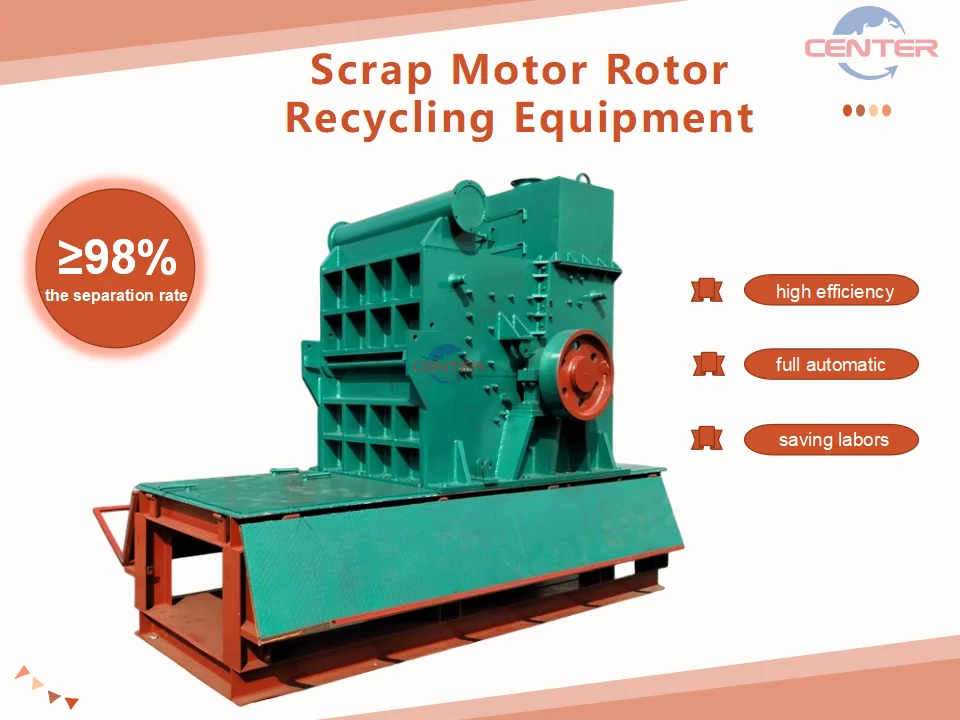

Scrap Motor Rotor Recycling Equipment
With the development of the world economy, more and more electrical equipment and power tools are used, and a large number of used motor rotors are also produced. The rotors of these motors have a relatively compact structure and are difficult to disassemble and recycle. In order to recover a large amount of scrap metal copper in scrap motor rotor, professional motor rotor recycling machine is necessary. Scrap motor rotor recycling line can effectively realize the separation and recycling of copper, iron and other metals in scrap motor rotor.
Parameters | ||||||
Model | 1000 | 1200 | 1600 | |||
Capacity(t/h) | 1-2 | 2-3 | 3-5 | |||
Power(kw) | 75 | 132 | 200 | |||
Sorting Efficiency | 0.98 | 0.98 | 0.98 | |||
Dust Removing Efficiency | 0.99 | 0.99 | 0.99 | |||
Working Voltage:380V, 415V ,440V or can be customized. (If you want more detailed parameters and quotations, please contact us) | ||||||
Product Application
Details Images

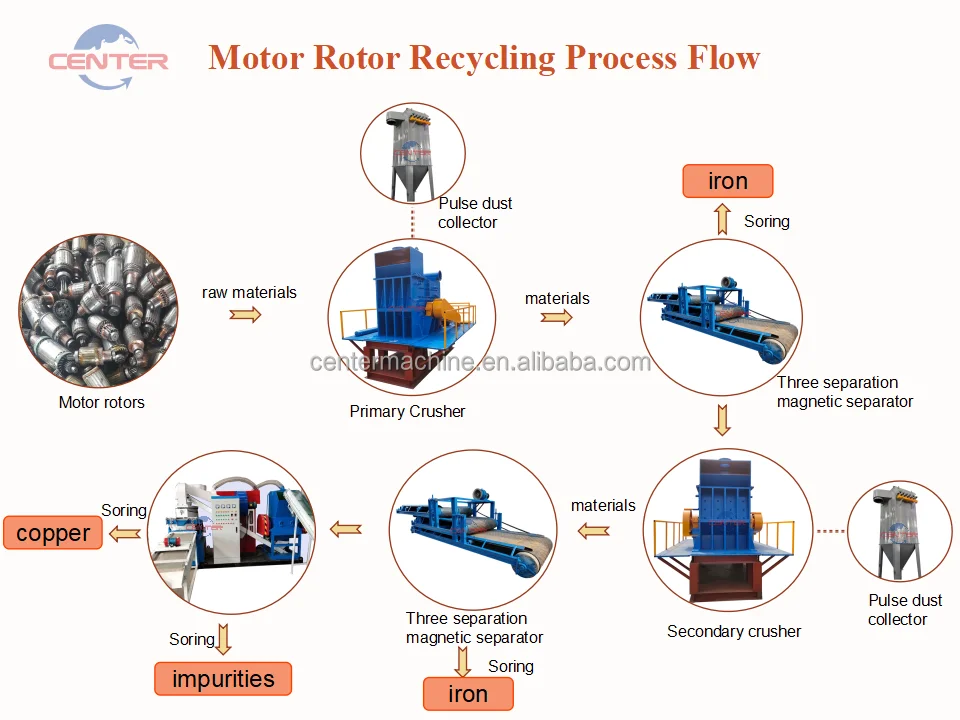

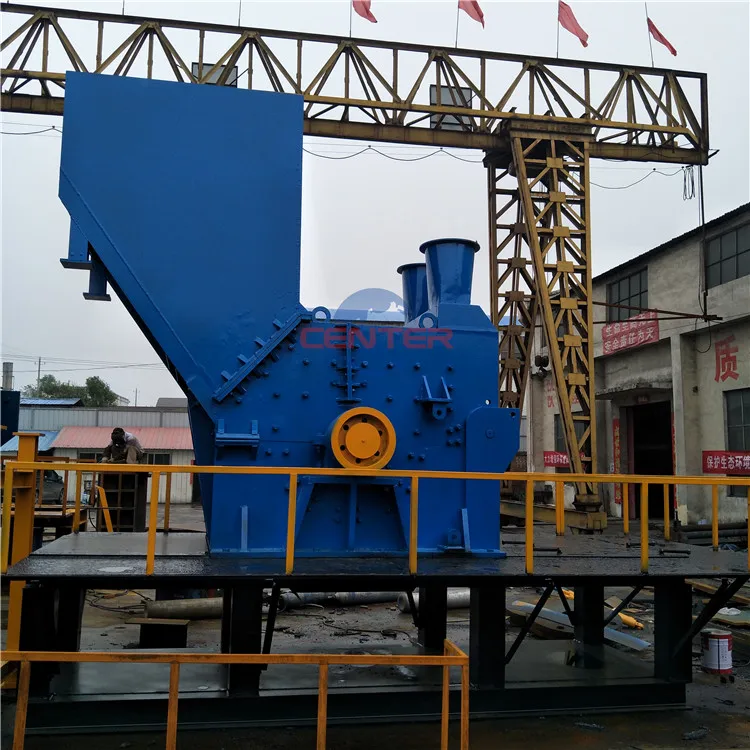

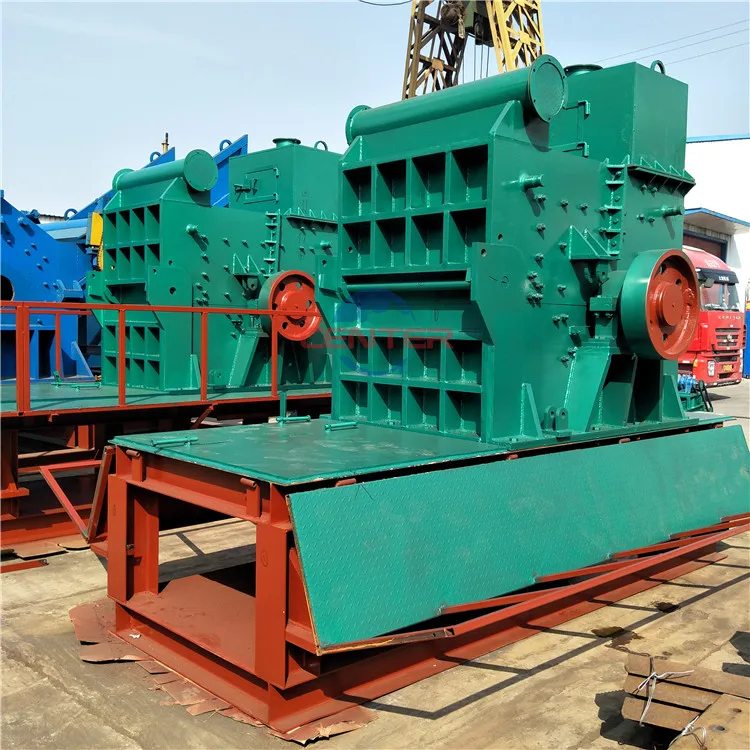

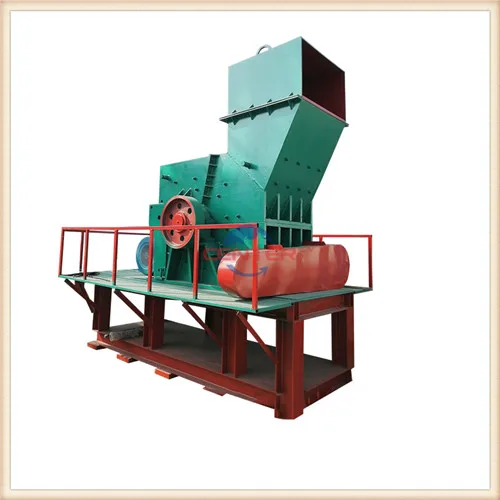

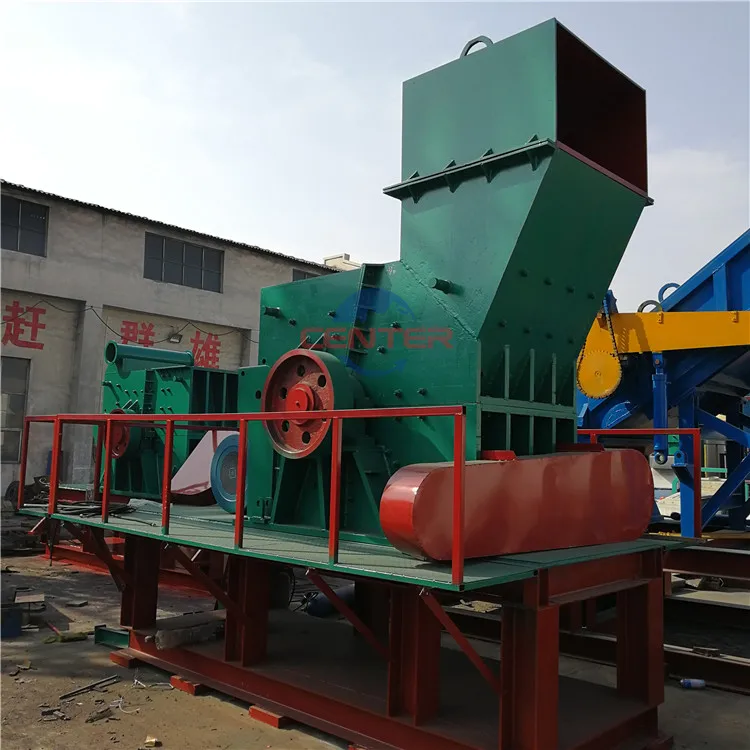

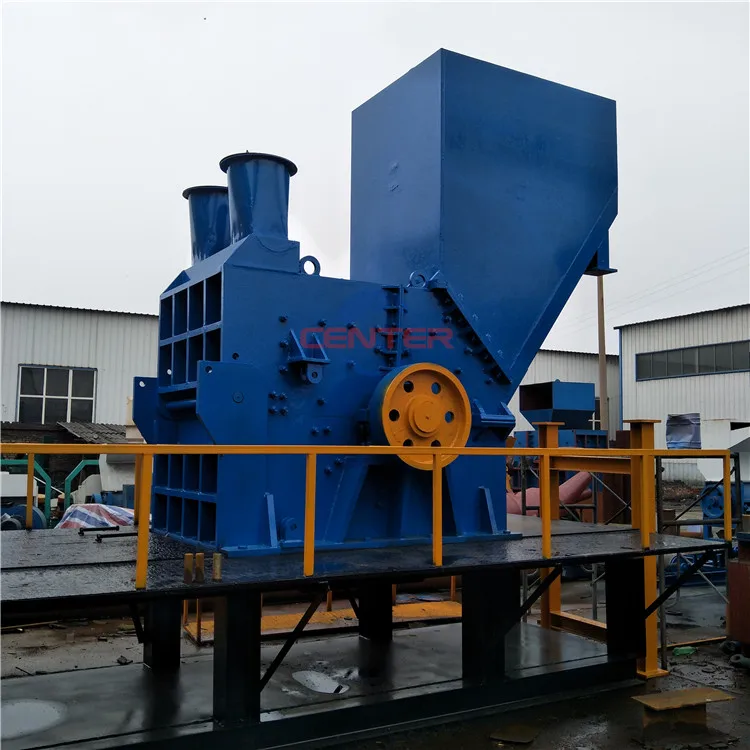

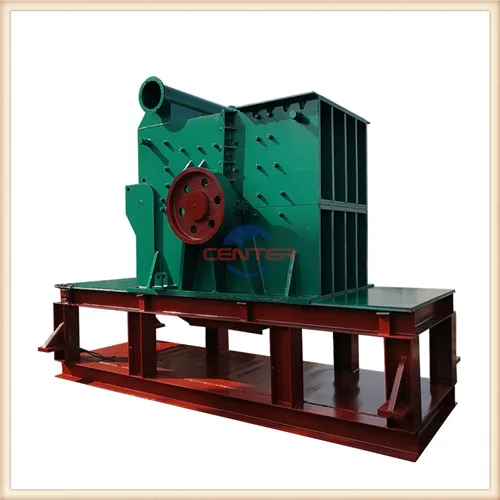

1 Primary Crusher
Firstly, motor rotor is crushed by a primary crusher. The motor rotor crusher has a precise structure and a reasonable layout, and with strong crushing capacity, stable running，The crushed material is a mixture of iron and copper.
2 Three Separation

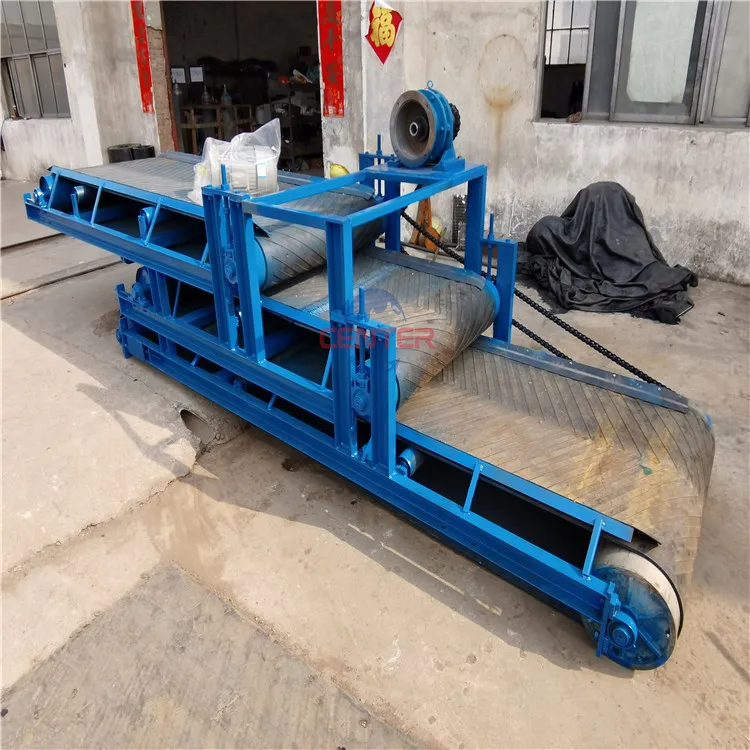

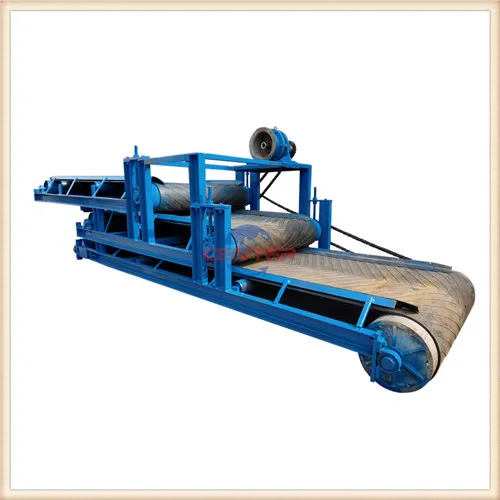

Magnetic Separator
The broken material after first crushing enters the magnetic separator.The magnetic separation equipment has a strong magnetic,It can separate the iron after the first crushing for three times so that the sorting rate is high .

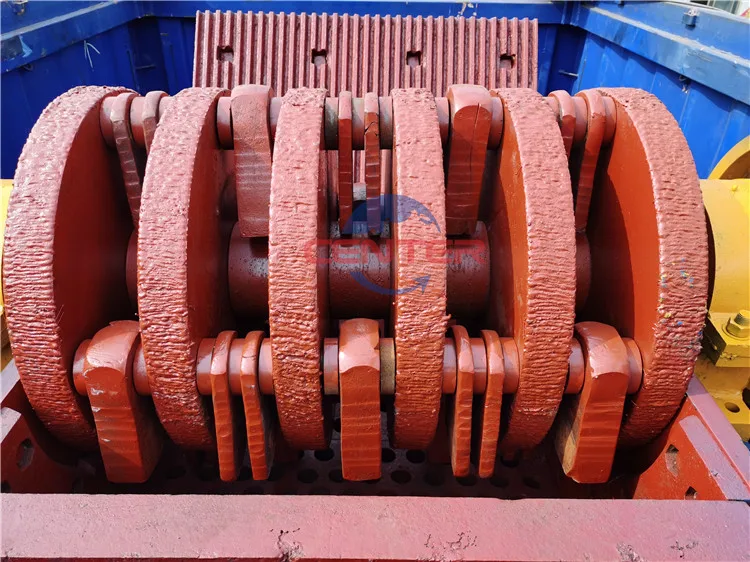

The crusher tool is made of a special steel with special processing technology, with a wide range of crushing.The whole machine is sturdy and durable, safe and reliable,with small vibration, low noise and high efficiency.and the crushing granularity is smaller.
magnetic separator
The material after the secondary crushing get into the three separation magnetic separator, once again separated out the iron, the remaining copper and non-metallic materials will get into the copper wire separator for the next step processing.

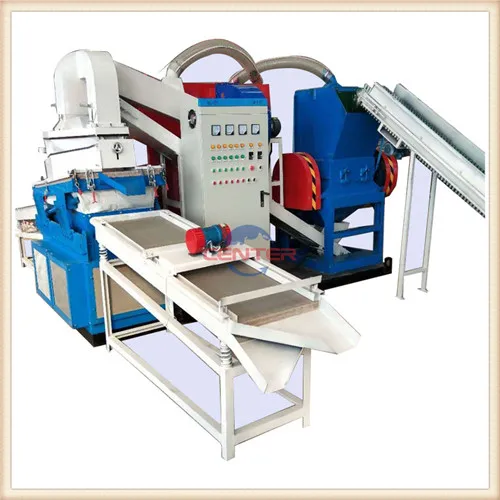

5 The copper wire
separator
The left copper material is transported to the copper wire recycling machine, and then the copper wire recycling machine strips the plastic wrapped around the copper wire, and at the same time the stripped paint and some fibers are collected by the dust removal system.The copper wire separator makes the copper get a higher purity.

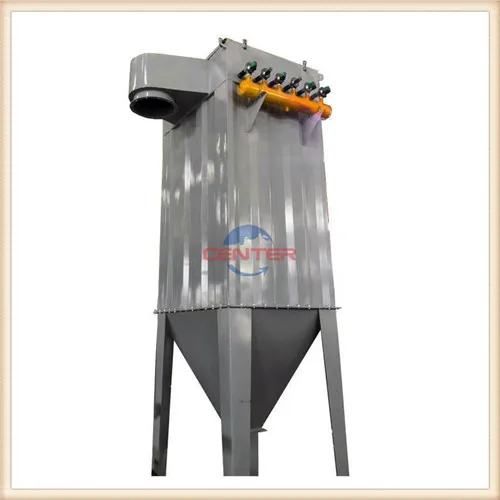

system
The dust removal rate of the dust collector is 99%, which effectively suppresses the volatilization of dust, and with no secondary pollution, fully meeting the requirements of environmental protection.

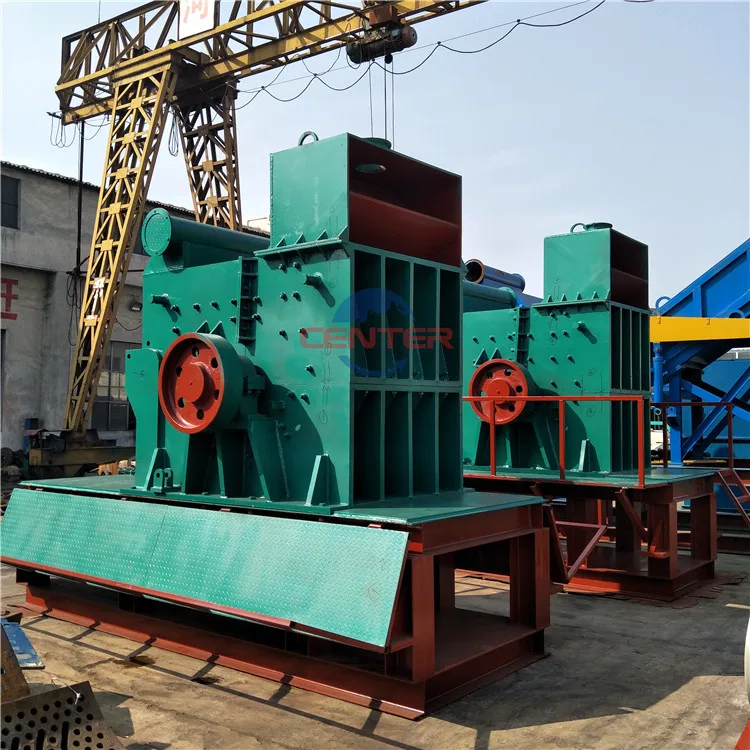

More Pictures
Product packaging
Company Profile
Company Introduction
Henan Center Machinery Manufacturing Co., Ltd. was established in 2005 and has 17 years of manufacturing experience.As one of the largest Solid Waste Recycling Machine manufacturer, our factory can provide the whole solutions.Our Company has advanced domestically-leading technology,professional R&D team and perfect sales service system.Our advanced equipment have been currently exported to more than 50 countries and regions. It is our mission to offer best quality product and best service for every customer. Warmly welcome all customers to visit our factory!
FAQ

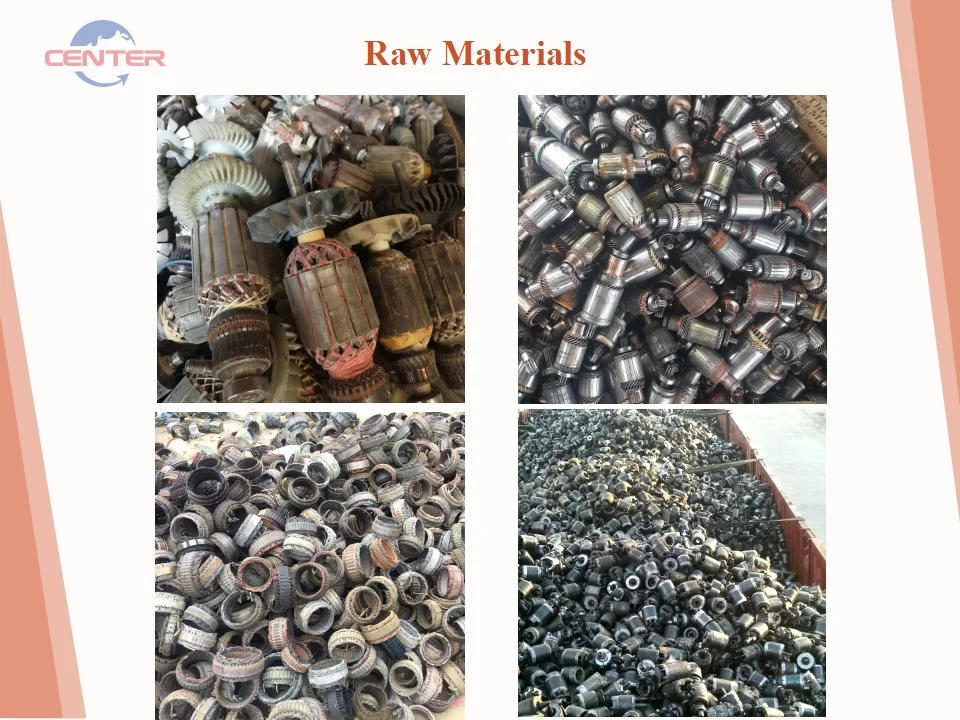

Q: What's the requirements for raw materials??
A: The raw materials under 20 cm can be processed by the production line directly, but the raw materials above 20 cm should be dismantled manually to recycle or by cutting machine and copper extracting machine.
Q: What about the machine installation?
A: We will send you installation guidance, commissioning and training when everything is ready on the working site, like power, cable, labors, forklift, etc.
Q: How do I know the quality of your recycling machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: What can we do if the machine have some problems?
A: We provide 7×24 hours technical support, will provide solution in 24 hours.
Q: Will you test the machine before delivery?
A: Yes, we will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.
A: The raw materials under 20 cm can be processed by the production line directly, but the raw materials above 20 cm should be dismantled manually to recycle or by cutting machine and copper extracting machine.
Q: What about the machine installation?
A: We will send you installation guidance, commissioning and training when everything is ready on the working site, like power, cable, labors, forklift, etc.
Q: How do I know the quality of your recycling machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: What can we do if the machine have some problems?
A: We provide 7×24 hours technical support, will provide solution in 24 hours.
Q: Will you test the machine before delivery?
A: Yes, we will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.
