Hengwang 1100m Hydraulic Crawler SPT Mine Core Diamond Sample Drilling Rig for sale
Product Description
Hengwang full hdyraulic drill rig adopts full hydraulic driving, travelling with crawlers itself. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 45 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks
pretty in overall structure and embodies the design thought of people oriented.
(2)High Efficiency With big torque, high power unit allocation and with reasonable structure design and advanced operation method, all these guarantee the drill rig’s high operation and performance efficiency.
(3)Environmental Protection With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4)Energy Saving Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.
pretty in overall structure and embodies the design thought of people oriented.
(1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
(2)High Efficiency With big torque, high power unit allocation and with reasonable structure design and advanced operation method, all these guarantee the drill rig’s high operation and performance efficiency.
(3)Environmental Protection With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4)Energy Saving Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.
Detail Images
Technical Parameter

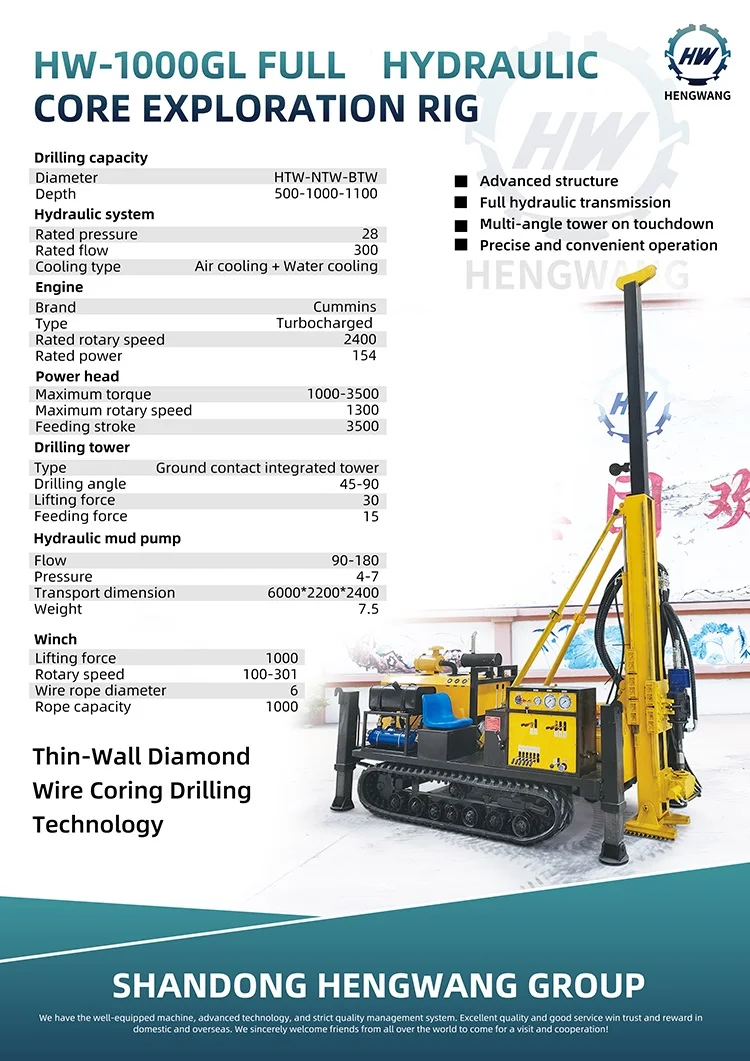

Model | HW-YDX-400XL | HW-YDX-600XL | HW-YDX-600GL | HW-YDX-800XL | HW-YDX-800GL | HW-YDX-1000GL | ||||||
Drilling capacity | ||||||||||||
Diameter | HTW-NTW-BTW | HTW-NTW-BTW | HTW-NTW-BTW | HTW-NTW-BTW | HTW-NTW-BTW | HTW-NTW-BTW | ||||||
Depth(m) | 180-400-500(M) | 200-600-650(M) | 200-600-650(M) | 400-800-1000(M) | 400-800-1000(M) | 500-1000-1100(M) | ||||||
Hydraulic system | ||||||||||||
Rated pressure(Mpa) | 21(MPA) | 21(MPA) | 21(MPA) | 25(MPA) | 25(MPA) | 28(MPA) | ||||||
Rated flow(L/min) | 168(L/min) | 192(L/min) | 192(L/min) | 260(1./min) | 260(1./min) | 300(L/min) | ||||||
Cooling type | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling | ||||||
Engine | ||||||||||||
Engine Brand | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai | Cummins | ||||||
Type | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge | Turbocharge | ||||||
Rated rotary speed(rpm) | 2400(RPM) | 2400(RPM) | 2400(RPM) | 2400(RPM) | 2400(RPM) | 2400(RPM) | ||||||
Rated power(KW) | 78/70 | 92 | 92 | 92 (6 cylinders) | 92 (6 cylinders) | 154 | ||||||
Power head | ||||||||||||
Maximum torque(Nm) | 300-500(N.M) | 450-1000(N.M) | 450-1000(N.M) | 950-1300(N.M) | 950-1300(N.M) | 1000-3500(N.M) | ||||||
Maximum rotary speed(rpm) | 1300(RPM) | 1300(RPM) | 1300(RPM) | 1300(RPM) | 1300(RPM) | 1300(RPM) | ||||||
Feeding stroke(mm) | 1900(MM) | 1900 (MM) | 1900 (MM) | 2400 (MM) | 2400 (MM) | 3500(MM) | ||||||
Drilling tower | ||||||||||||
Type | Ground contact integrated drilling tower | Ground contact integrated drilling tower | Ground contact integrated drilling tower | Ground contact integrated drilling tower | Ground contact integrated drilling tower | Ground contact integrated drilling tower | ||||||
Drilling angle(°) | 45-90(°) | 45-90(°) | 45-90(°) | 45-90(°) | 45-90(°) | 45-90(°) | ||||||
Lifting force(T) | 12(T) | 16(T) | 16(T) | 24(T) | 24(T) | 30(T) | ||||||
Feeding force(T) | 6(T) | 8(T) | 8(T) | 12(T) | 12(T) | 15(T) | ||||||
Winch | ||||||||||||
Lifting force(KG) | 500(KG) | 600(KG) | 600(KG) | 600(KG) | 600(KG) | 1000(KG) | ||||||
Rotary speed(rpm) | 100-240(RPM) | 100-300(RPM) | 100-300(RPM) | 100-300(RPM) | 100-300(RPM) | 100-300(RPM) | ||||||
Wire rope diameter(mm) | 6(MM) | 6(MM) | 6(MM) | 6(MM) | 6(MM) | 6(MM) | ||||||
Rope capacity(m) | 500(M) | 600(M | 600(M | 800(M) | 800(M) | 1000(M) | ||||||
Traveling system | ||||||||||||
Type | Manual + remote control | Manual + remote control | Manual + remote control | Manual + remote control | Manual + remote control | Manual + remote control | ||||||
Traveling speed(km/h) | 2.5(KM/H) | 3.5(KM/H) | 3.5(KM/H) | 3.5(KM/H) | 3.5(KM/H) | 3.5(KM/H) | ||||||
Climbing angle(°) | 45(°) | 45(°) | 45(°) | 45(°) | 45(°) | 45(°) | ||||||
Hydraulic mud pump | ||||||||||||
Mud Pump | BW-90 | BW-90 | BW-90 | BW-90 | BW-90 | BW-160 | ||||||
Flow(L/min) | 30-90(L/min) | 30-90(L/min) | 30-90(L/min) | 90-180(L/min) | 90-180(L/min) | 90-180(L/min) | ||||||
Pressure(Mpa) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | ||||||
Transport dimension(mm) | 4000*1900*1800(MM) | 4000*2000*1800(MM) | 4000*2000*1800(MM) | 5500*2100*2000(MM) | 5500*2100*2000(MM) | 6000*2200*2400(MM) | ||||||
Weight(T) | 4.3(T) | 4.5/5.5(T) | 4.5/5.5(T) | 6.5(T) | 6.5(T) | 7.5(T) | ||||||
