DNM/AO38RC 165/190/200 мм с мягким хвостом Mtb задний воздушный ударный амортизатор проводным контролем замочком отскок


Поделиться:

Цена:7 714,80 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Brand: DNM
Model: AO-38RC AOY-36RC
Version: wire control | manual control
Length: 165mm, 190mm, 200mm, 210mm
Stroke: (35,50,53,53) ± 2mm
Functions: adjustable damping | compression adjustment | air pressure soft and hard adjustment | shock absorber locking
Features: DNM pneumatic shock absorber, light weight, good quality, superior function, suitable for all kinds of roads, with the highest air pressure of 250psi

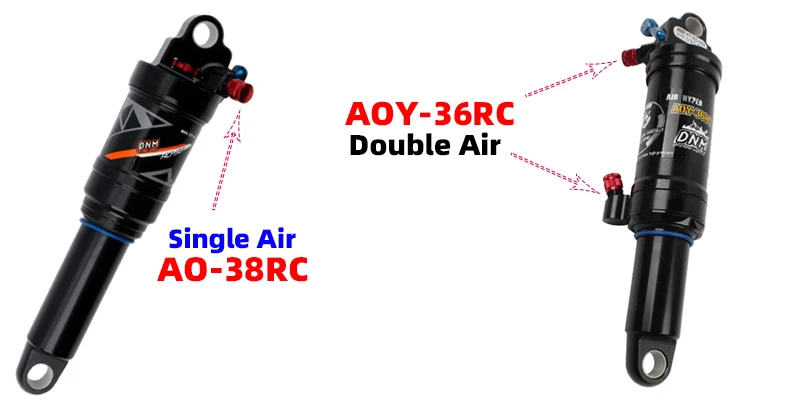

AO-38RC Shock Absorbers :Single Air


AOY-36RC Shock Absorbers:Double Air


AO38RC (6).jpgAO38RC (31).jpg

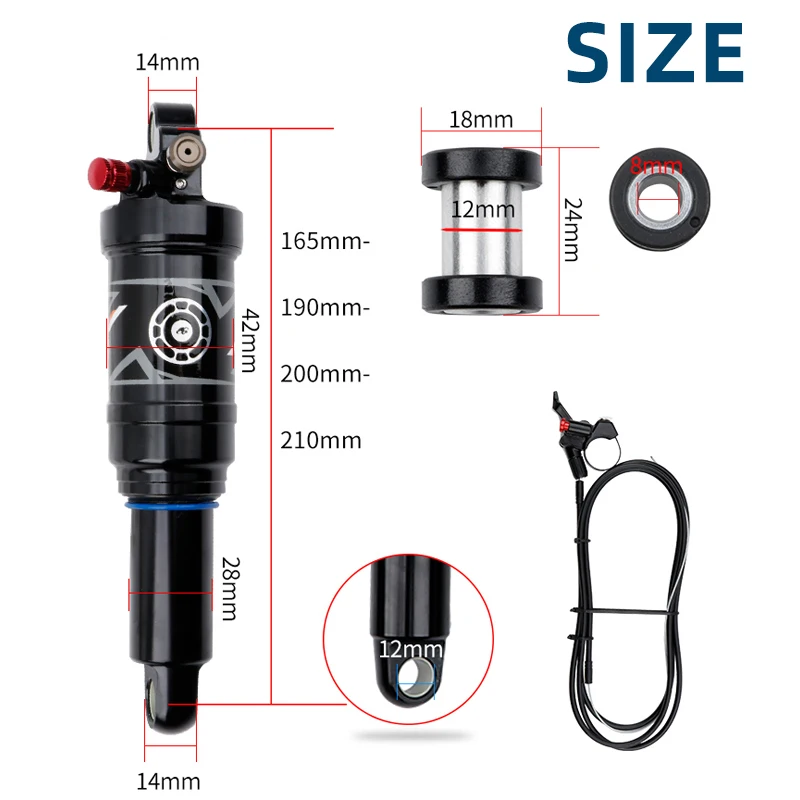

Bicycle Air shock absorber size


AO38RC (35).jpg

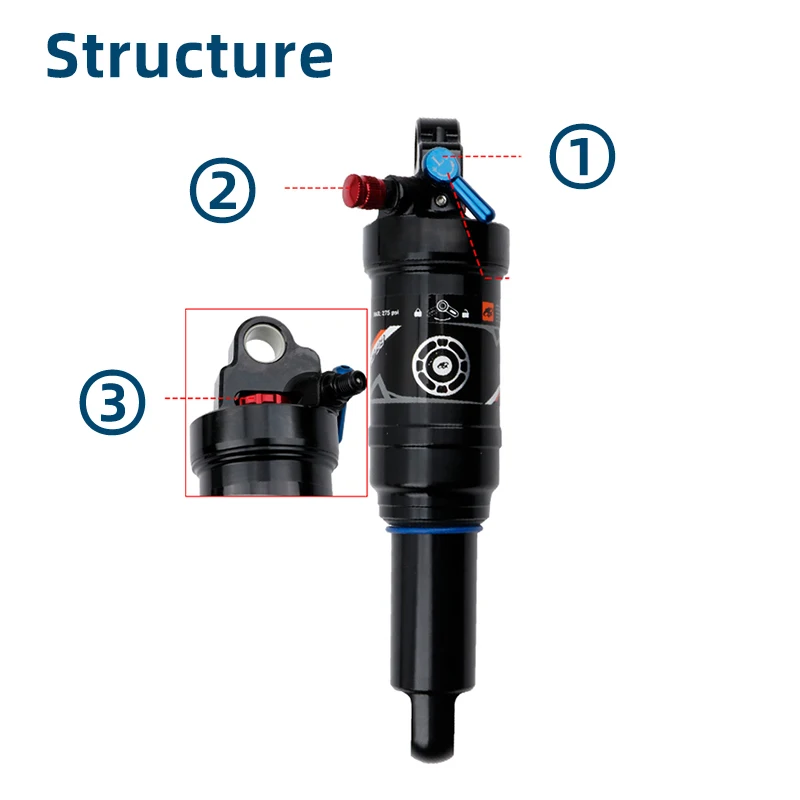

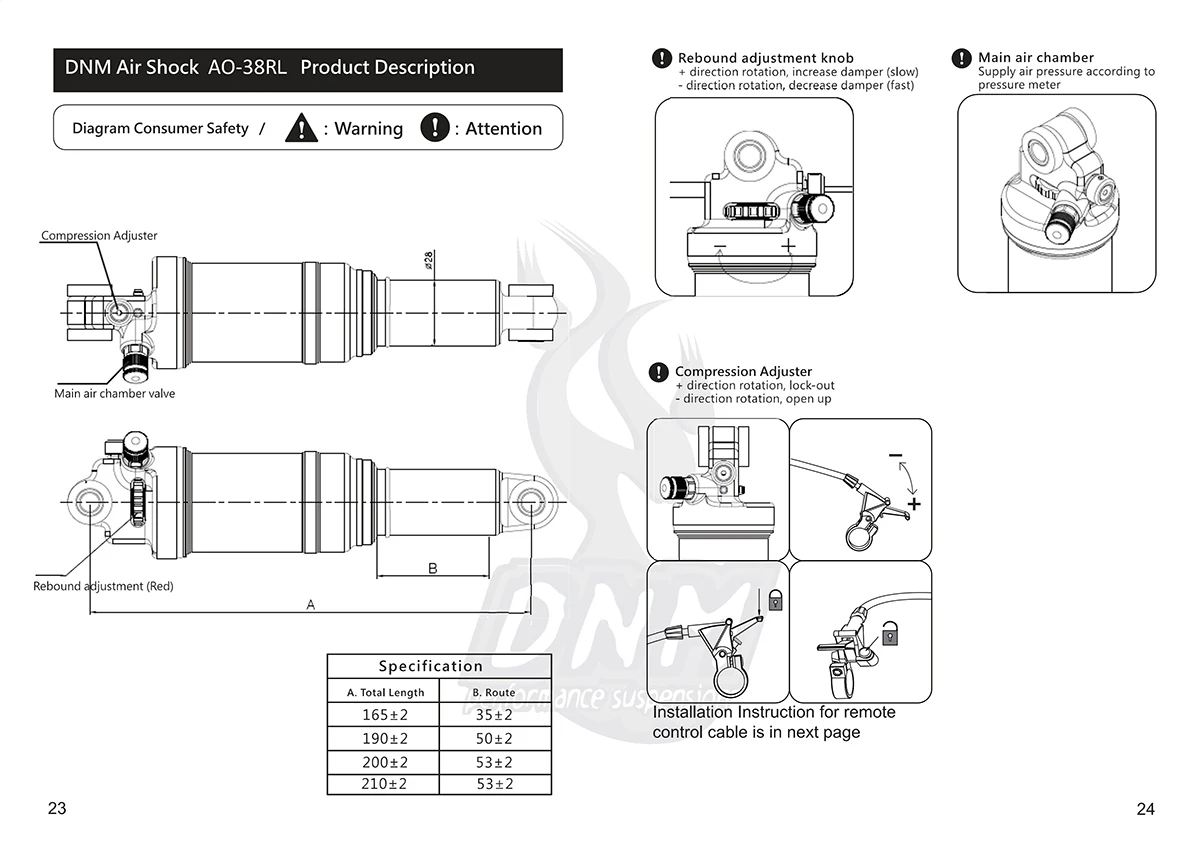

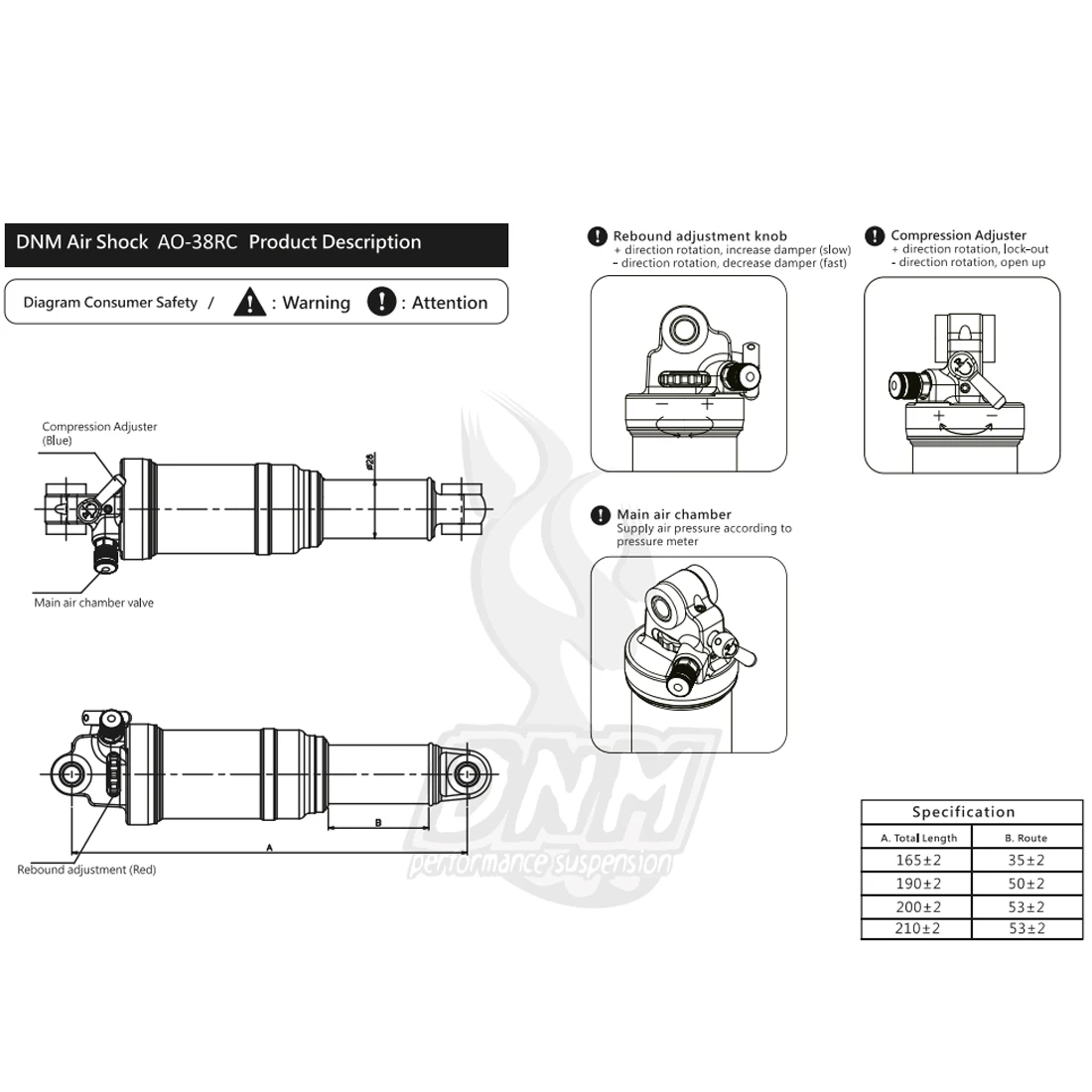

Shock absorber structure


1Lock switch
"+": Locked
"-": open

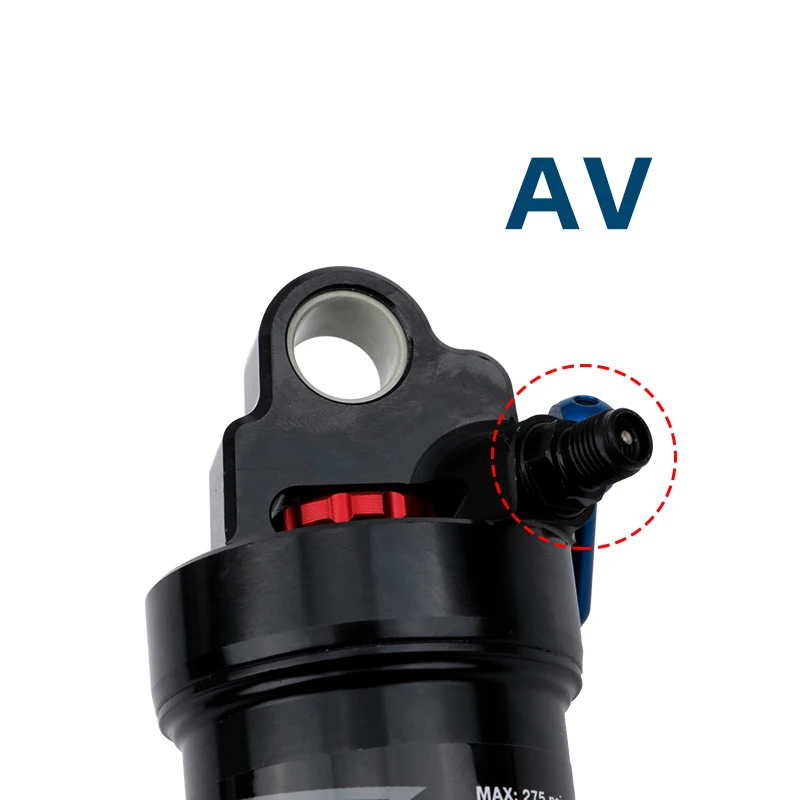

2Main air pressure adjustment
It is recommended to use a high-pressure pump with a pressure value for pumping
3Damp adjustment button
Adjust the speed of suspension damping


AO38RC (3).jpg

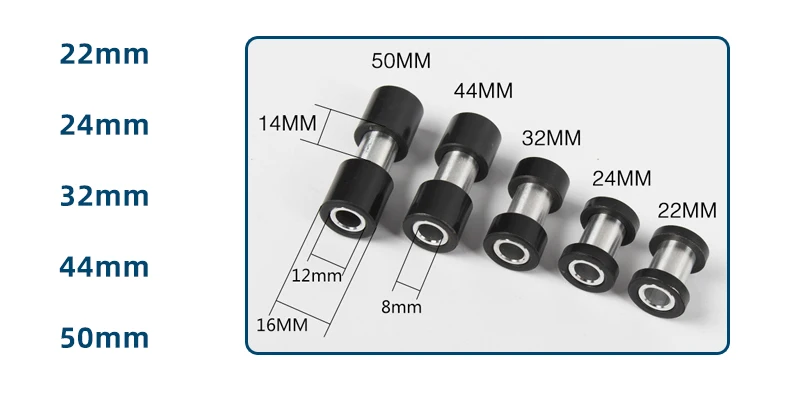

Each shock absorber is equipped with two 24mm bushings by default. If you need bushings of other lengths, please let us know. There are bushings of the following lengths, thank you.


AO38RC (2).jpg

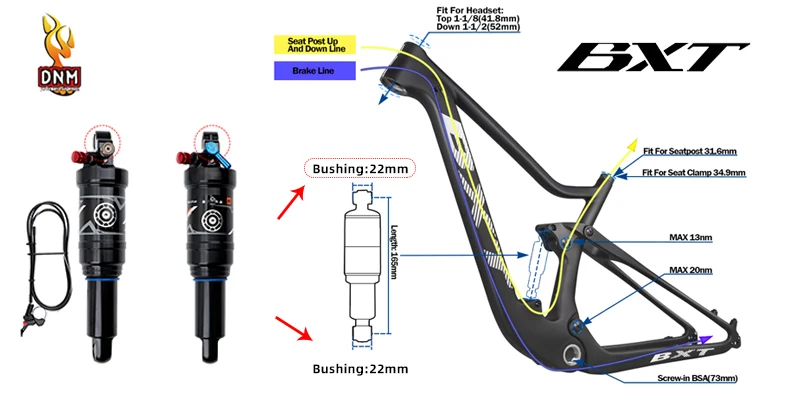

The length of the shock absorber is selected. Generally, the frame trader will indicate the installation length and width of the shock absorber of the frame, such as the BXT brand carbon fiber frame.


AO38RC (1).jpgAO38RC (34).jpg

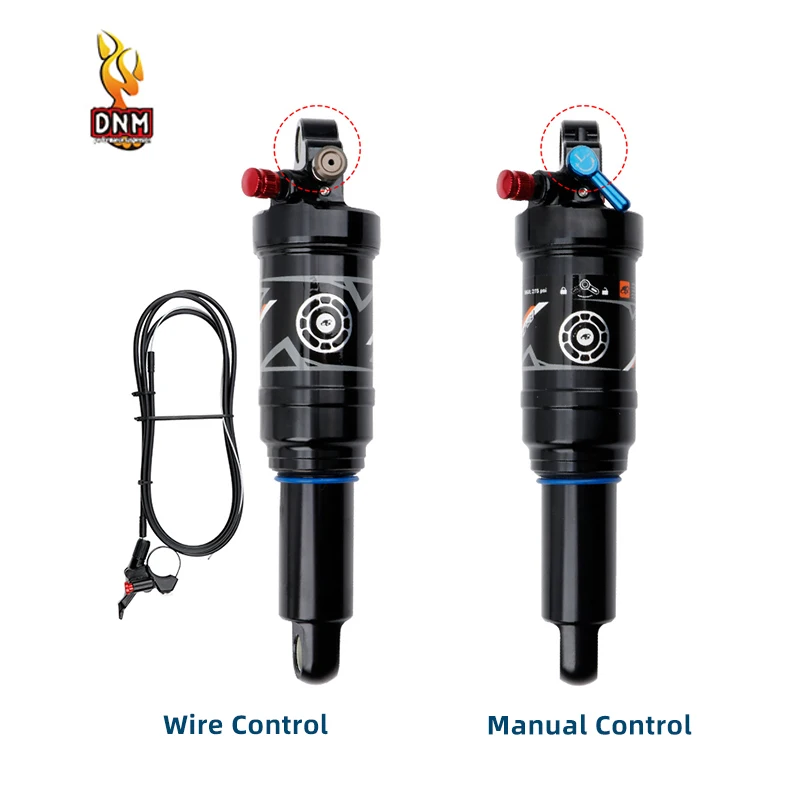

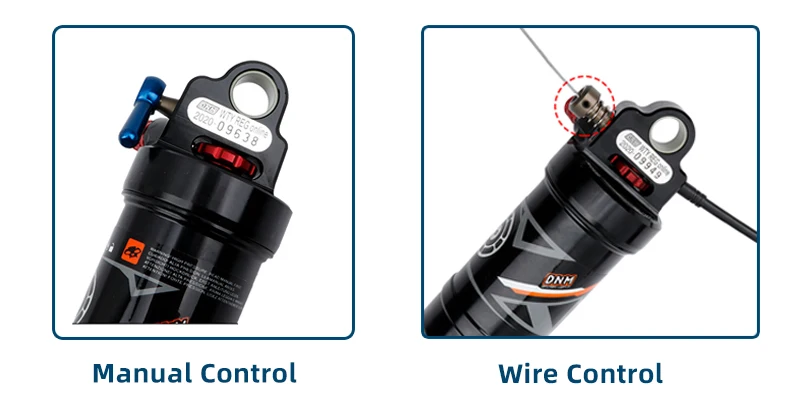

Manual control wire control distinction


Manual control :The shock absorber needs to be adjusted by hand to lock the switch button

Wire Control:The shock absorber can use the wire controller to remotely control the lock switch

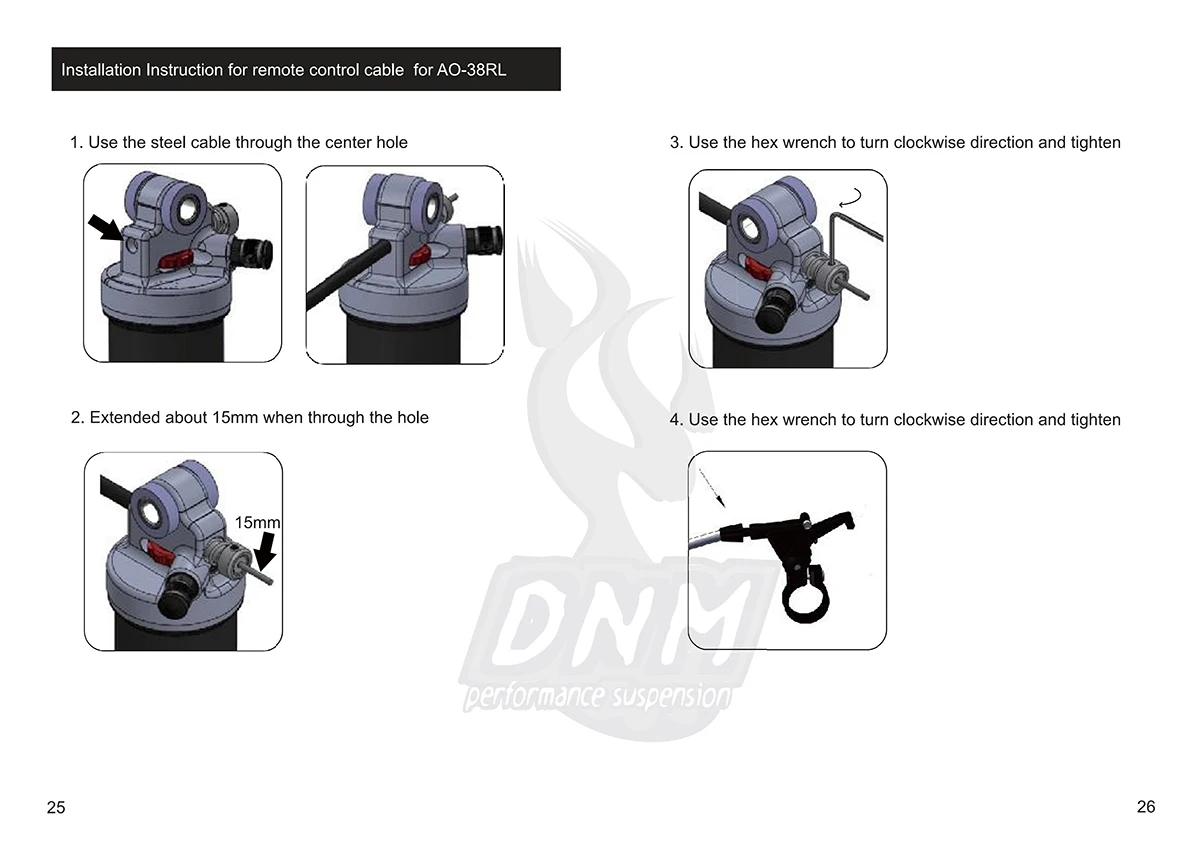

AO38RC (32).jpgWire-controlled shock absorber installation methodAO38RC (12).jpgAO38RC (5).jpgAO38RC (8).jpg


DNM brand offline exhibition, hold downhill sports competition.AO38RC (7).jpgAO38RC (10).jpg
