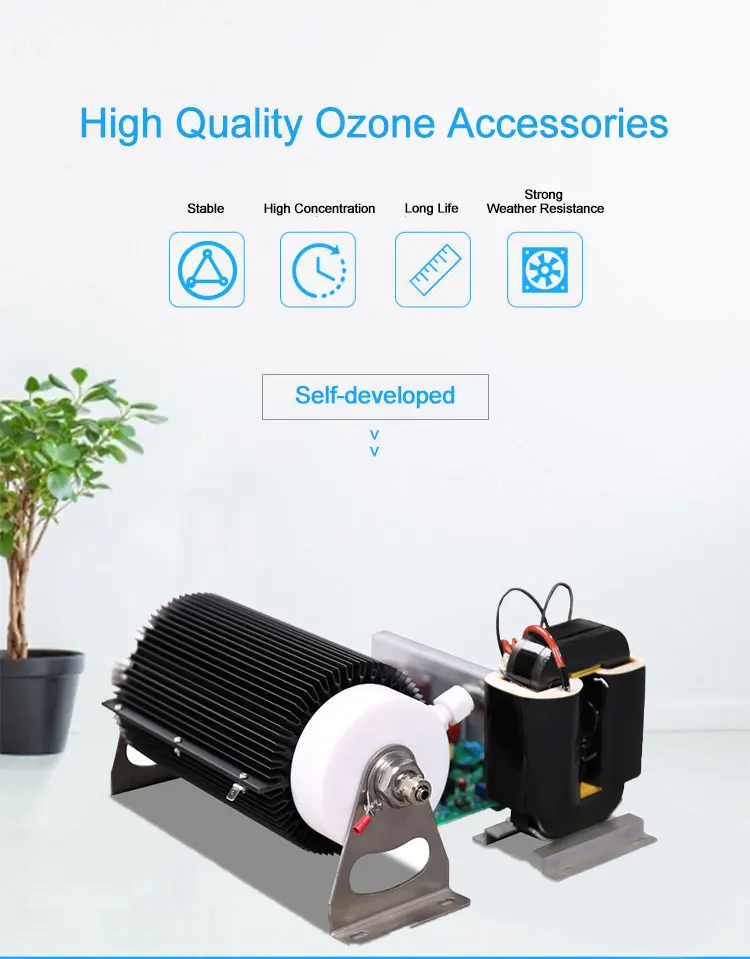

CHUANGHUAN OZOCENTER Air and water cooled 40g/h ceramic ozone tube for ozone generator

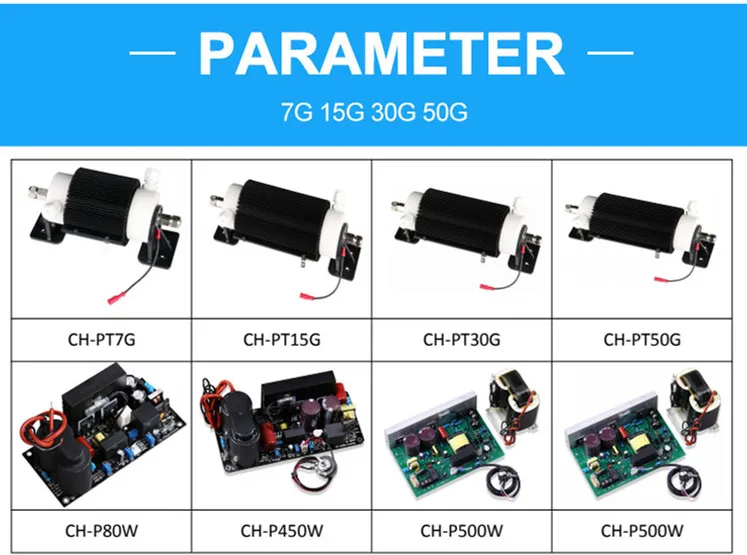

Product parameter







Features:
1. Extremely low rate of ozone decay & high ozone concentration.
     Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
2. Domestic patent product -- got domestic patent in 2008.
     A. The internal electrode cooled by water, external electrode cooled by air (fan).
     B. The aluminum plate looks like sun flower which has larger cooling area, easy for heat dissipation.
     C. High technology-the thickness of ceramic tube is only 1.70 mm.
3. Low working voltage
     The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
     It is 1/4 smaller than similar products with same capacity.
5. Easy to maintain and install







































































































Item



Unit






CH-PT



7GM



7GA



15GA-1



30GA



50GA



Oxygen feed flow rate



LPM



1~3



3~5



7~9



15~18



Ozone concentration



Mg/L



70-40



66.4~53



62~53



52~49



Ozone output



G/Hr



4.2~7.2



   11.9~15.9



26~28.6



46.8~52.9



Power (220V)



  W



≤100



≤100



≤190



≤500



≤500



Cooling way




Air cooling for external electrode,water cooling for internal electrode



Cooling water flow rate



LPM



>2



Diameter of cooling water pipe



mm



ED10



Temperature of cooling water



°C



Ambient temperature ±8°C



Diameter of cooling fan



mm



1pcs Dia.150 fan



2pcs Dia.150 fan



Diameter of Gas inlet/outlet



mm



ED6



ED8

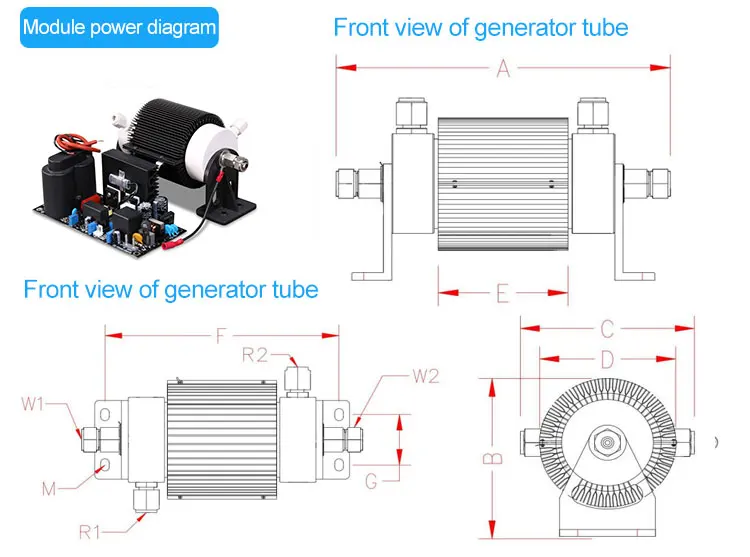

Ozone tube dimensions



mm



200×100×105



260×100×105



300×140×150



325×140×150



Power supply dimensions



mm



177×66×53



201×86×83



125×100×95



210×146×60



210×146×60

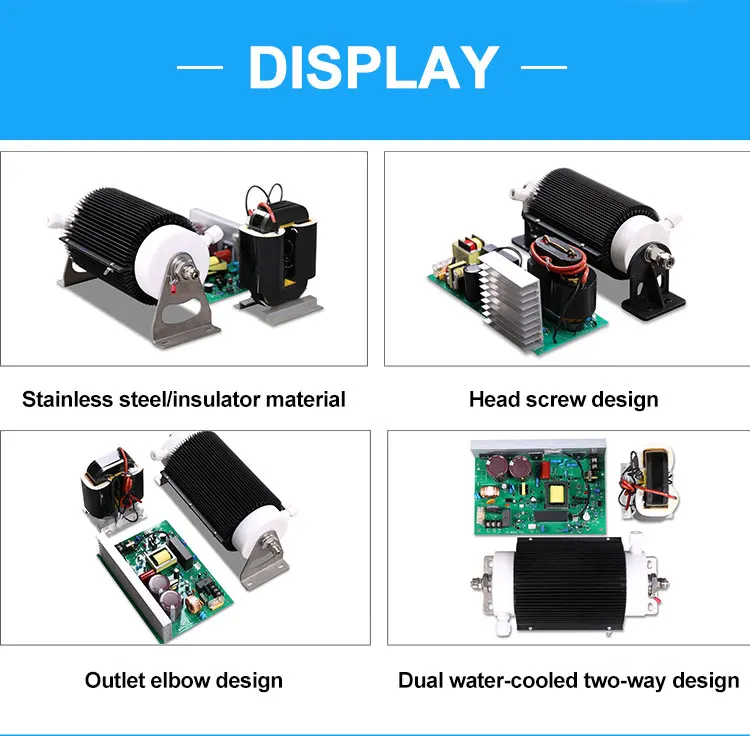

detail




company information

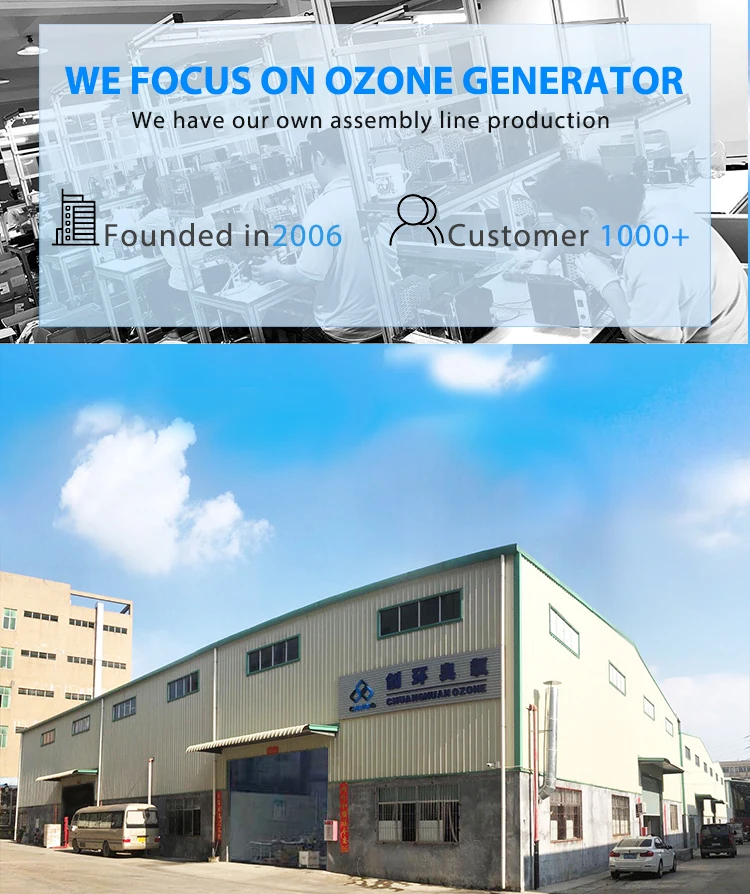

Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006.

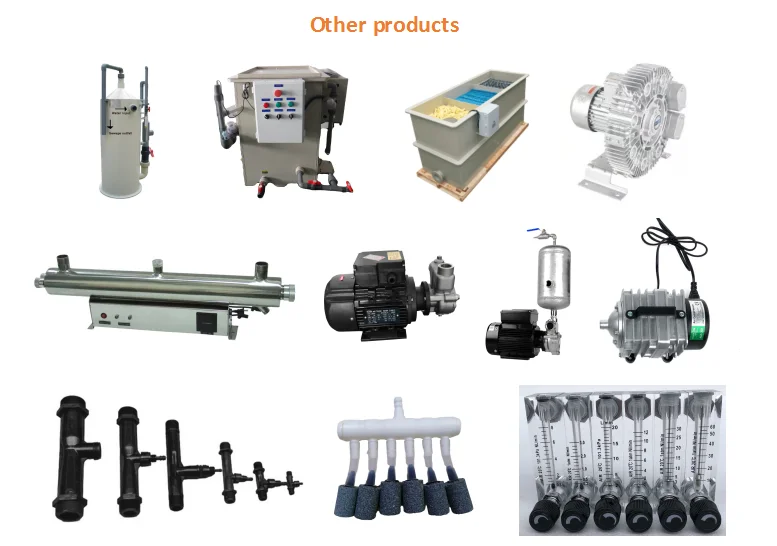

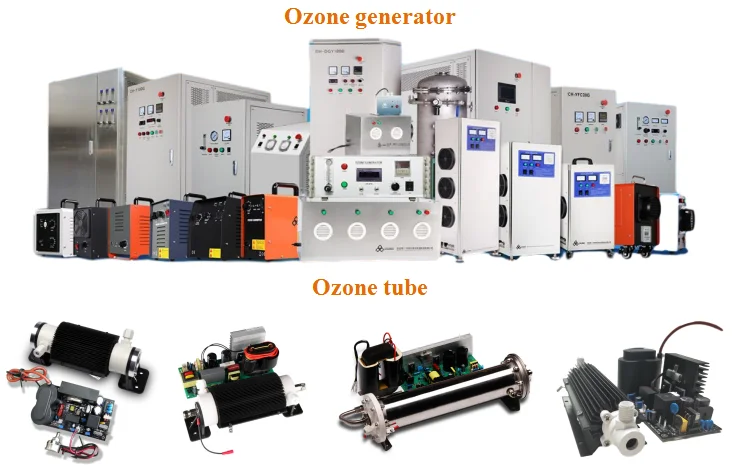

It is a high-tech enterprise integrating industry and trade, focusing on the Development and Application of Ozone Tube, Ozone Generator (100mg-10kg / h ) Oxygen Machine(3-40LPM), Oxygen Concentrator Molecular Sieve . Other related products: Sodium hypochlorite generator, titanium plate, biological filter, micro filter, micro bubble pump, mixing pump and so on.


We strictly implement the ISO9001 quality management system, most products have had CE certification.


We are committed to environmental governance (including air purification and water treatment), and our products are exported to dozens of countries in Europe, North and South America, Southeast Asia, the Middle East and other regions.


We can customize the required ozone system according to customer needs, including intelligent processing systems, online monitoring systems, and configure professional ozone processing systems according to different application environments to achieve unattended operation.


As a manufacturer of high-quality products, quality and service are always our top concerns. The raw material suppliers are strictly screened, and more than 90% of the suppliers have also obtained ISO9001 quality system certification. This is our guarantee for producing quality products.


Chuanghuan will work hand in hand with you to contribute to the improvement of the ecological environment!

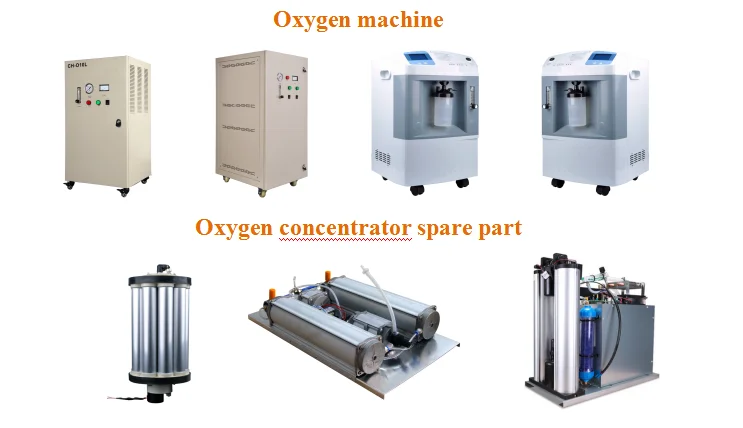

2. Oxyegen .png


4.other spare .jpg





Packaging and shipping





Packaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.









payment method









FAQ





Q1: Are you trading company or manufacturer ?


Re:We are a company integrating factory and trade

Q2: How long is your delivery time?
Re:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: What is your terms of payment ?
Re: We support T/T, Western union, Alipay , Paypal, L/C

Q4: Are you provide the after-sales service ?
Re: Yes,we offer one year warranty, and we have a dedicated after-sales service team to provide you with the whole process.
