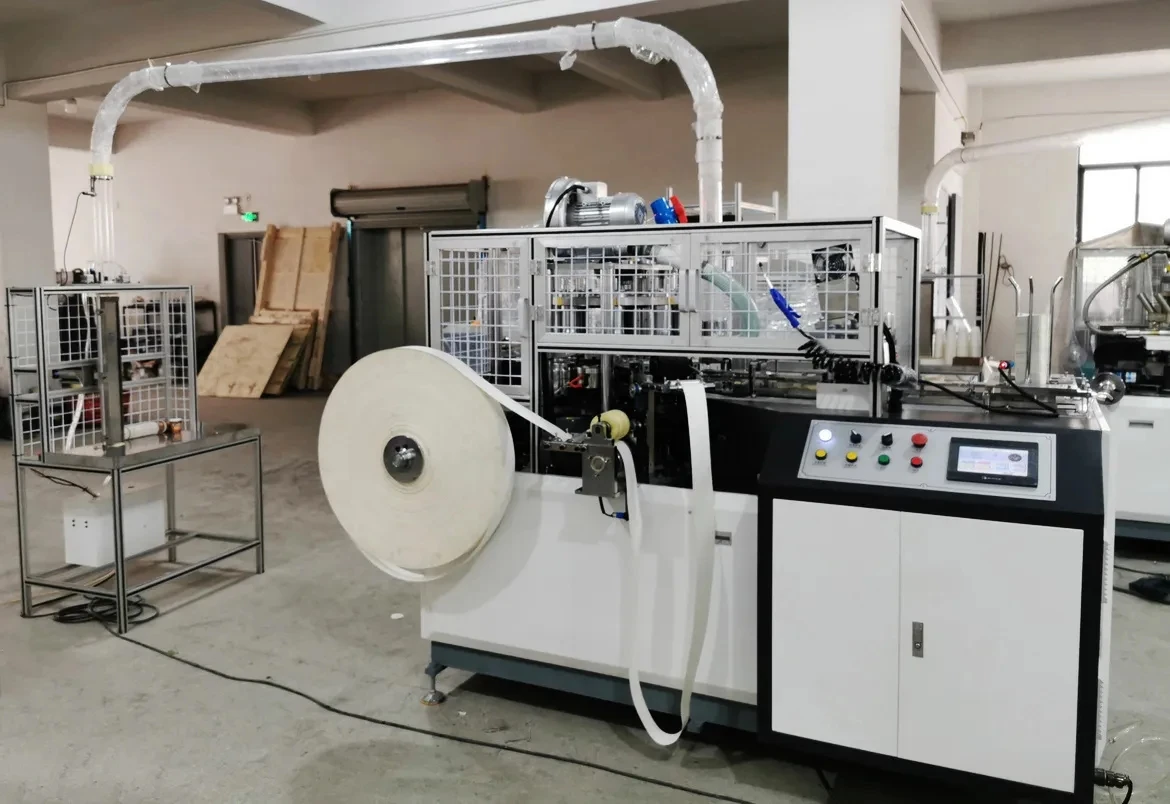

Automatic Double Wall Paper Coffee Cup Making Machine Price
Product Description
Yugong Brand paper cup forming machine adopts the latest technology to make it energy-efficient, economical and durable.
The shape is exquisite and the molds can be changed. Yugong will strive continuously to pursue the excellence in science and technology innovation.
This paper cup forming machine adopts open cam design, automatic oil lubrication system and PLC control system to improve the machine function and performance.
This paper cup forming machine adopts open cam design, automatic oil lubrication system and PLC control system to improve the machine function and performance.
Model | YGM100 |
Cup Size | 2 - 9Oz |
Raw Material | 160-350g/m2 Two side pe coated paper and one side pe coated paper |
Top Diameter | 60-90mm |
Bottom Diameter | 40-70mm |
Height | 60-180mm |
Bottom | depth 5-10mm |
Capacity | 90-100 pcs/min |
Main Motor Power | 1.5Kw |
Energy Consumption | 6Kw |
Total Power | 11.5Kw |
Air Source | 0.4m3/min;0.5-0.8Mpa |
Weight | 1600Kg |
Package Size | 1750*1350*1850mm |
The difference between ultrasonic paper cup machine and copper strip paper cup machine
The ultrasonic heater type is equipped with a hot air blowing system, which can provide hot air to ensure the perfect adhesion of the bottom of the cup, and the finished cup does not have any water leakage problems (much better than the ordinary bottom heater).
The ultrasonic heater type is equipped with a hot air blowing system, which can provide hot air to ensure the perfect adhesion of the bottom of the cup, and the finished cup does not have any water leakage problems (much better than the ordinary bottom heater).
Only the ultrasonic heater type machine is equipped with a hot air system, and the copper heater type machine is not equipped.

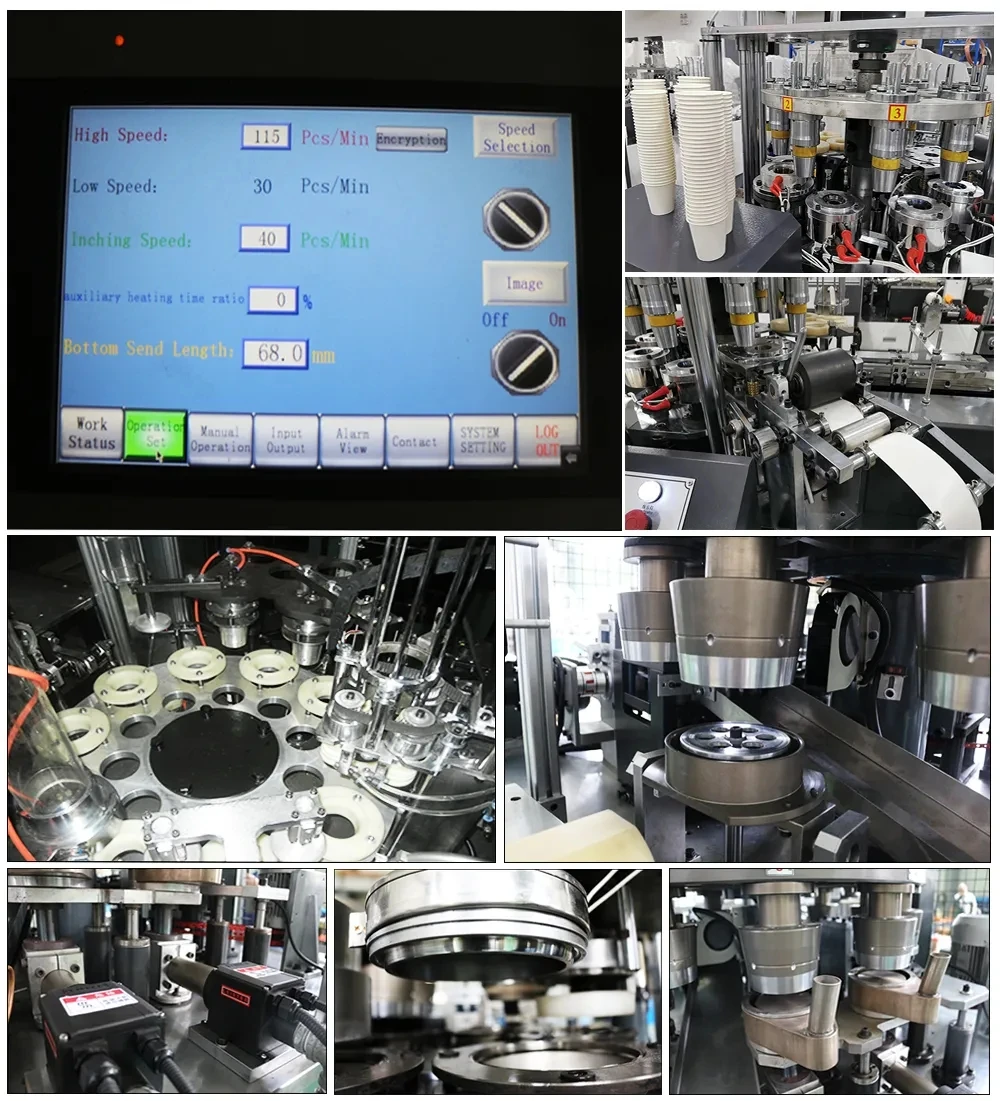

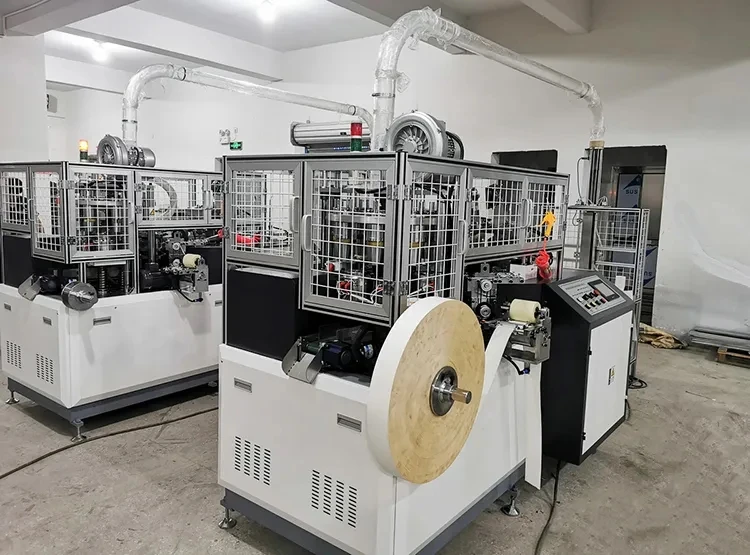

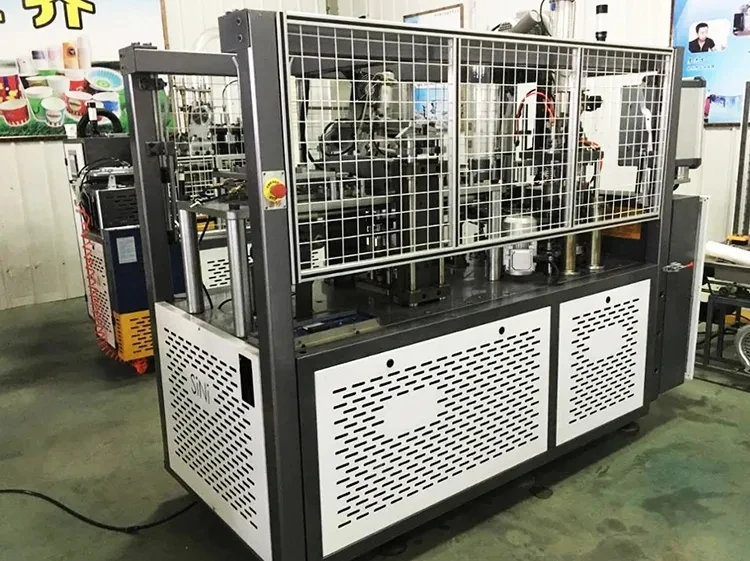

Products Real Shot
Packing & Delivery
Packaging of paper cup making machine
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

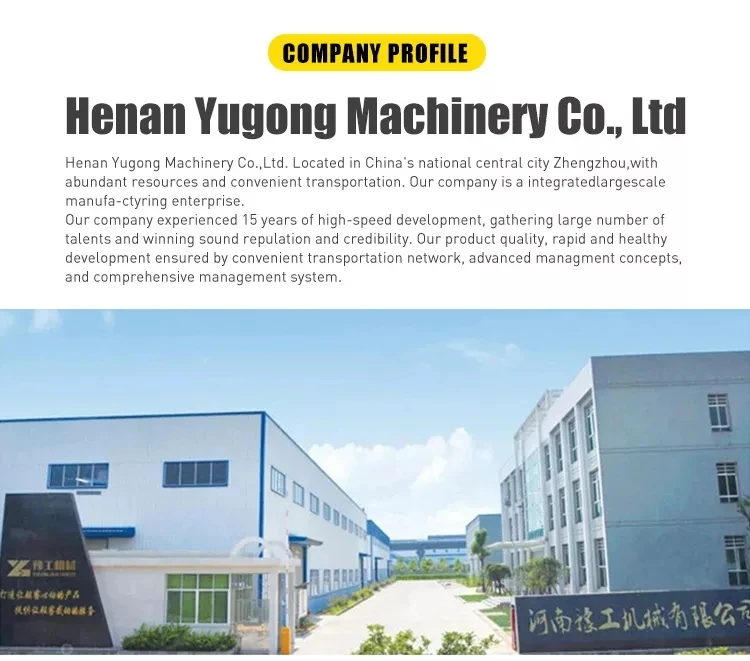

Company Profile
FAQ
Q: How long is your delivery time?
A: Generally it is 25-35 days, it is according to your quantity.
Q: Can you do the machines' appearance design for us?
A:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.
Q: What is your terms of payment ?
A: L/C,D/P,T/T,Western Union.
Q:Can you do the machines' appearance design for us?
A:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.
Q:What's your after-sale service?
A:Our own engineers could be asked by you overseas for your serve. You can also ask your staff or yourself to our factory to learn.
A: Generally it is 25-35 days, it is according to your quantity.
Q: Can you do the machines' appearance design for us?
A:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.
Q: What is your terms of payment ?
A: L/C,D/P,T/T,Western Union.
Q:Can you do the machines' appearance design for us?
A:Yes. We have a professional team with rich experience in machne's apperance design and manufacturing.
Q:What's your after-sale service?
A:Our own engineers could be asked by you overseas for your serve. You can also ask your staff or yourself to our factory to learn.
