High performance and low price 50x90x20 mm bearing Angular contact ball bearings 7210
Products Description
Product Name | Angular Contact Ball Bearing |
Type | Angular Contact Ball Bearing |
Structure | Angular contact |
Model Number | 7210 |
Applicable Industries | Machinery manufacturing plant, machine tool, mechanical equipment, motorautomobile hub, agricultural machinery |
Brand Name | HFZZ or according your requirement |
Accuracy class | P0, P6, P5, P4, P2 or as required20mm-500mm |
Seal type | open / 2RS |
Size | 20mm-500mm |
Number of Rows | Single row |
Origin | Shandong, China |
Material | GCr15 chrome steel / stainless steel bearing |
Features | long life, low friction, high speed |
Retainer Type | Brass / bakelite / steel |

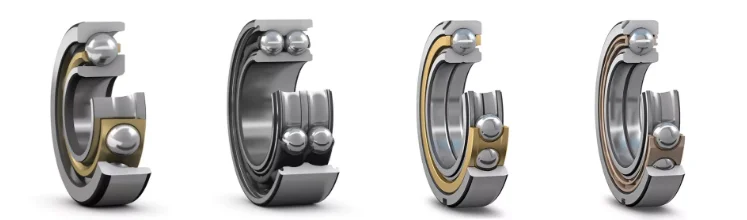

Types:
Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:
1.Single-row angular contact ball bearings
2.Double-row angular contact ball bearings
3.Four-point angular contact ball bearings
Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:
1.Single-row angular contact ball bearings
2.Double-row angular contact ball bearings
3.Four-point angular contact ball bearings

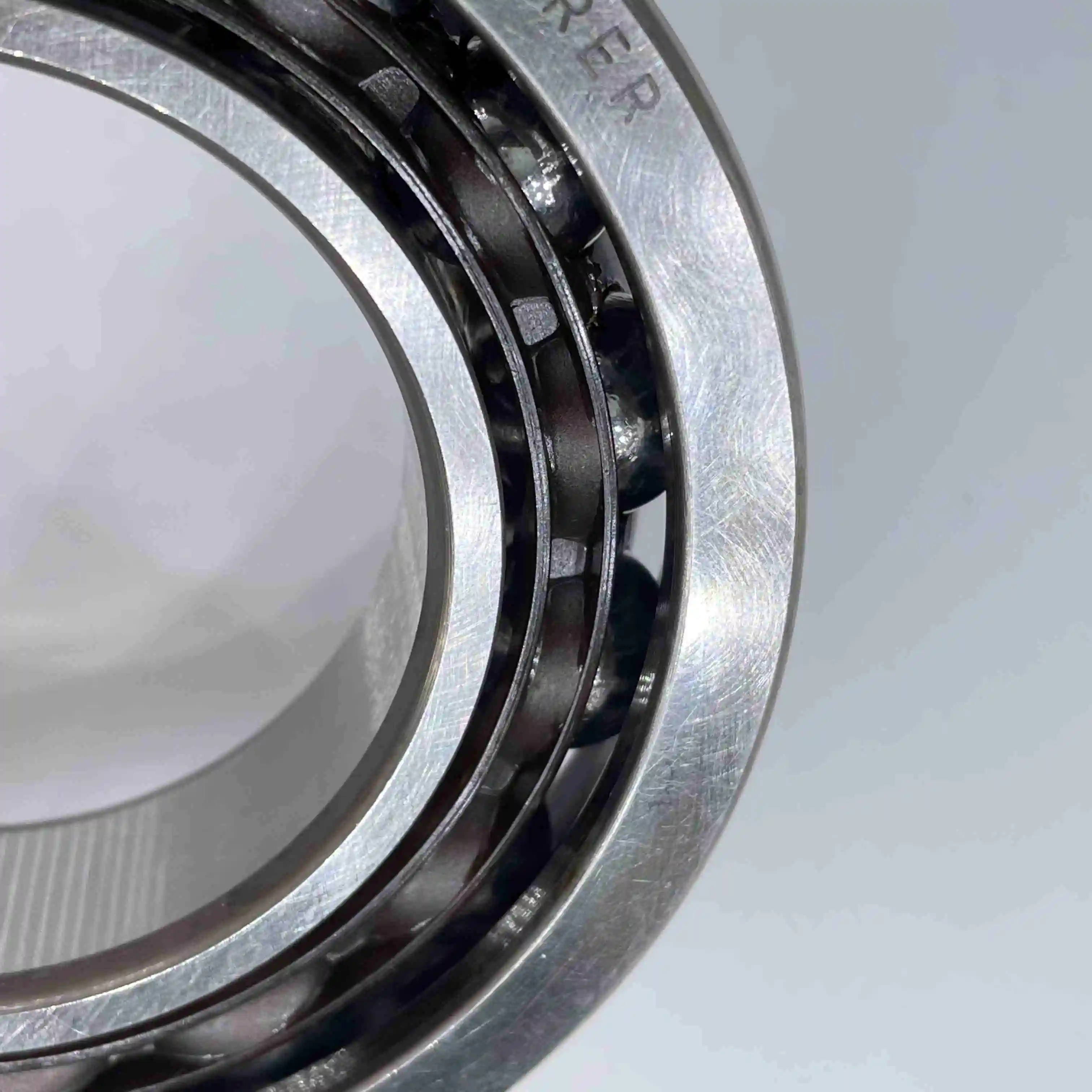

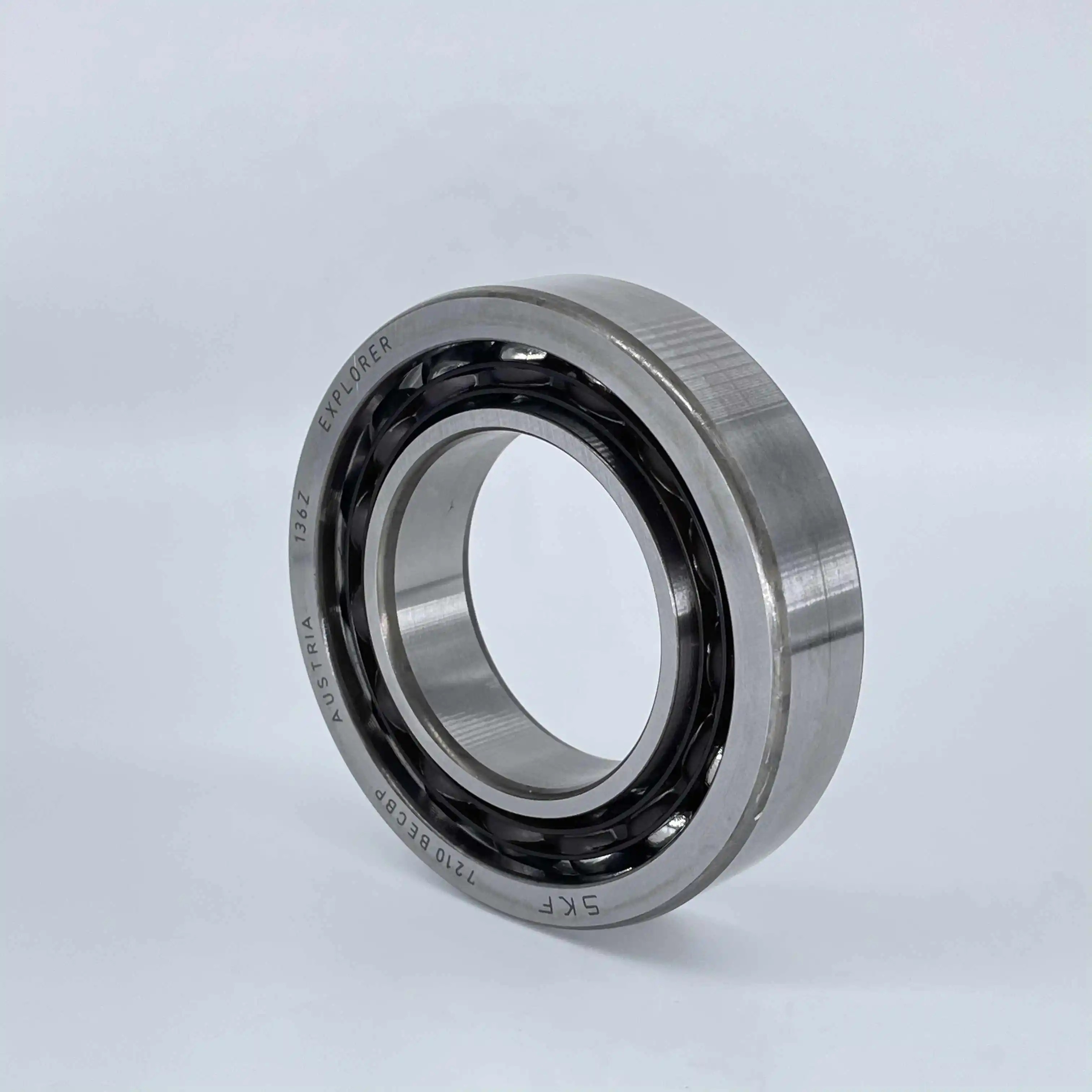

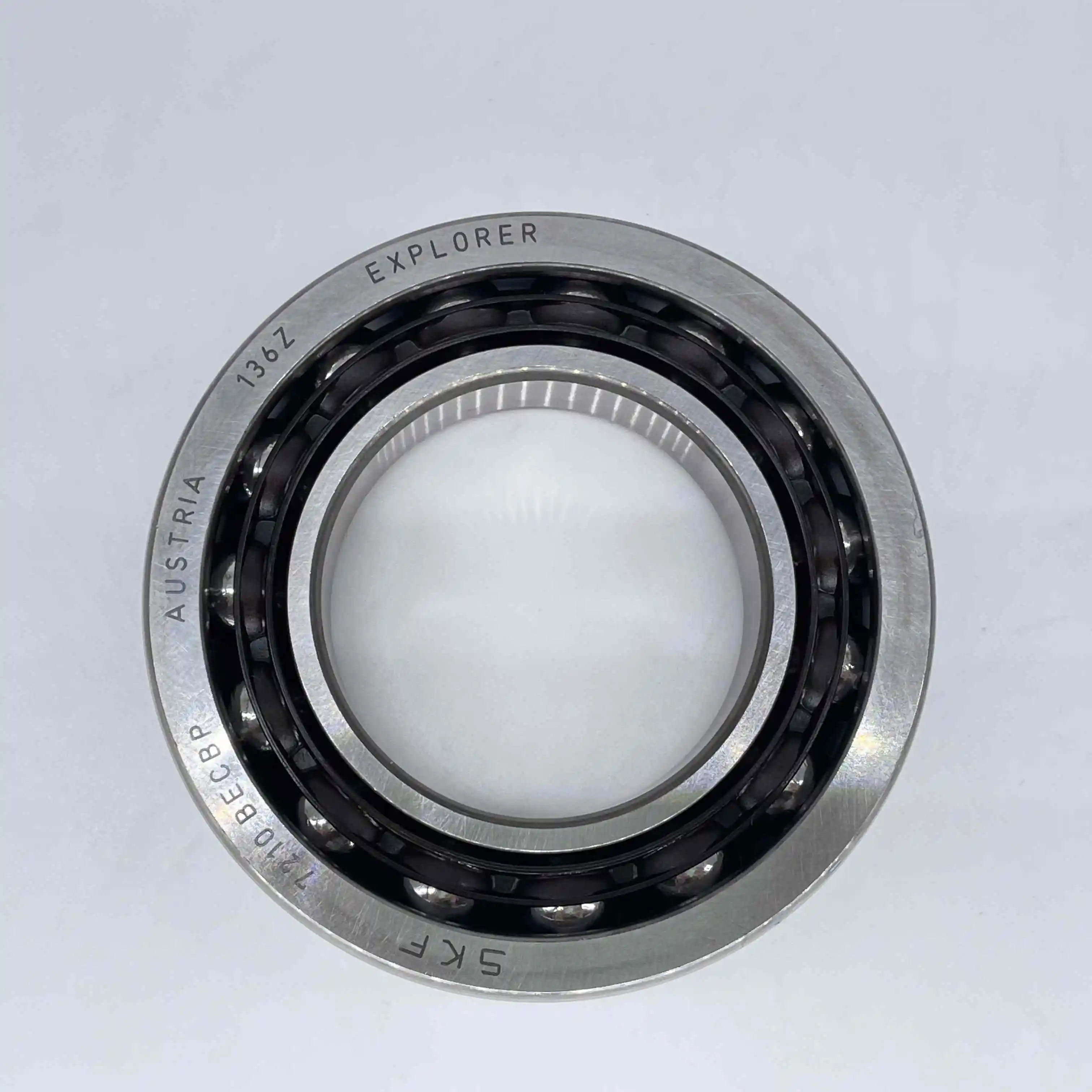

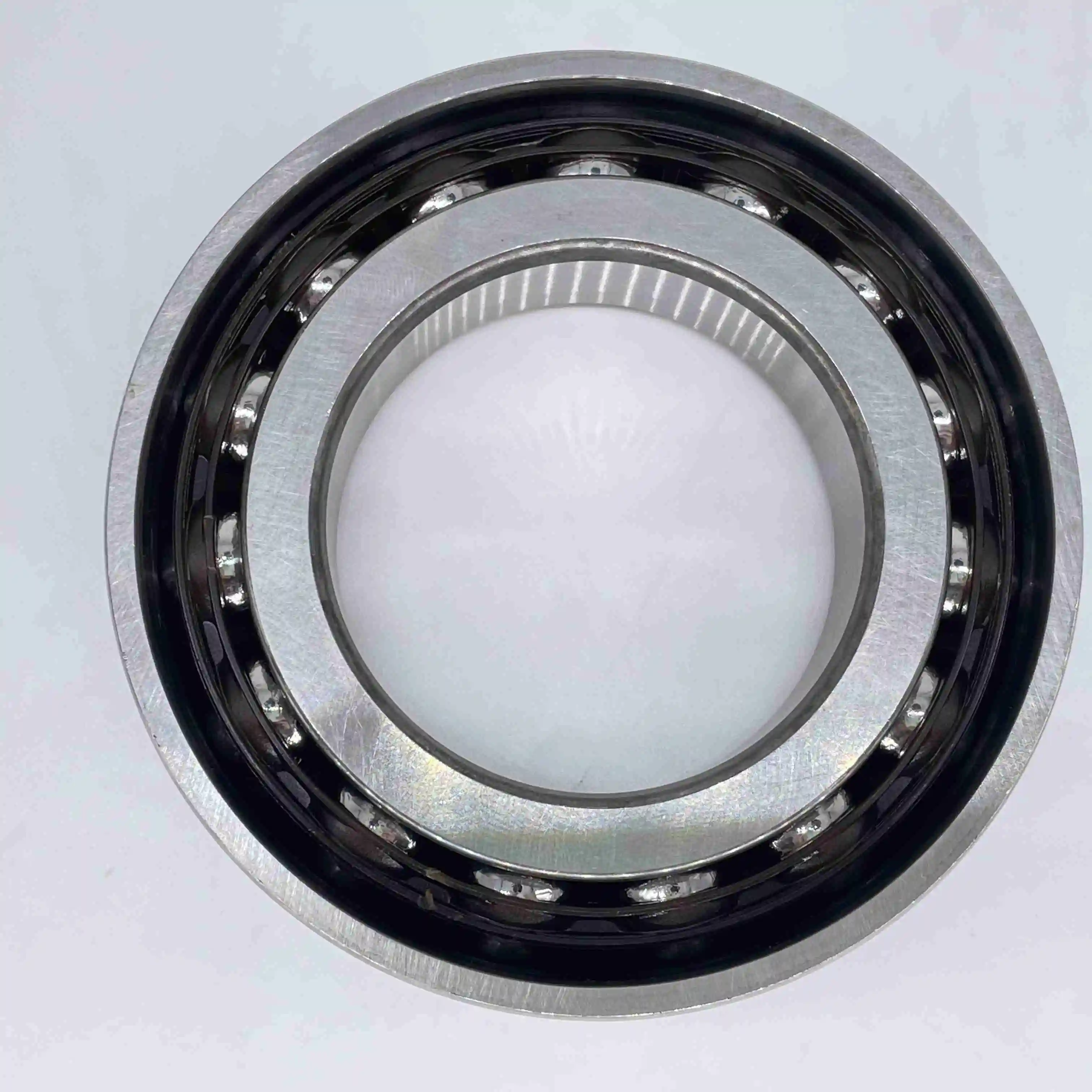

Details Images
Brief introduction:
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle.
The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle.
The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.

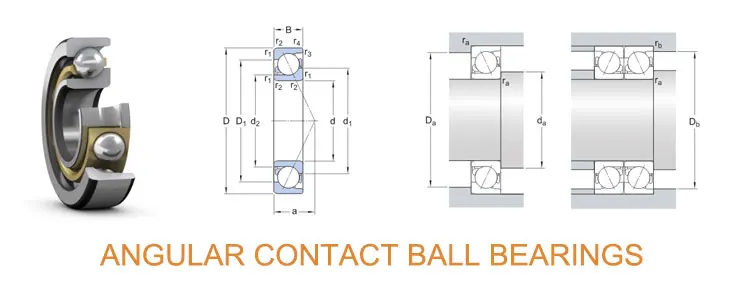

Product Paramenters
inner diameter | Outer diameter | thickness | dynamic | static |
50mm | 90mm | 20mm | 41300N | 31500N |

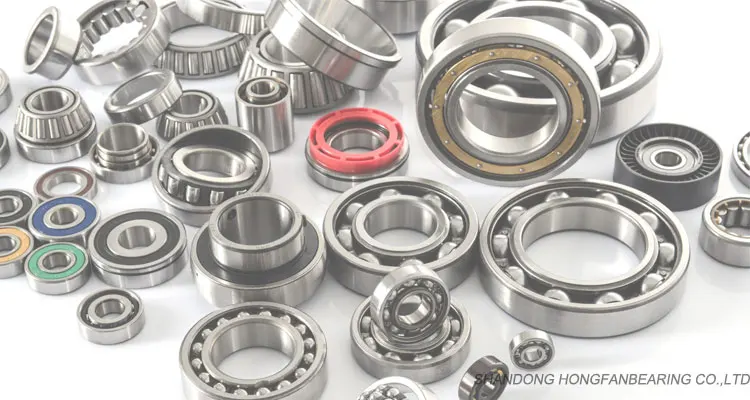

We do not only Angular contact ball bearings, there are other bearings, if you do not find your needs here, please contact me directly!
Recommend Products
Features:
1.Load capacities are higher than deep groove ball bearing of same dimensions.
2.Used for bearing radial-axial combined loads or pure thrust loads.
3.Low operating friction and high limiting speed.
1.Load capacities are higher than deep groove ball bearing of same dimensions.
2.Used for bearing radial-axial combined loads or pure thrust loads.
3.Low operating friction and high limiting speed.
Single row angular contact ball bearings: machine tool spindle, high frequency motor, gas turbine, centrifuge, small automobile front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, welding machine, low noise type cooling tower, electromechanical equipment, coating equipment, machine tool groove plate, arc welding machine
Double row angular contact ball bearings: oil pump, Roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, electric welding machine, electric soldering iron, square box, gravity spray gun, stripping machine, half shaft, inspection and analysis equipment, fine chemical machinery
Double row angular contact ball bearings: oil pump, Roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, electric welding machine, electric soldering iron, square box, gravity spray gun, stripping machine, half shaft, inspection and analysis equipment, fine chemical machinery
Why Choose Us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Company Profile

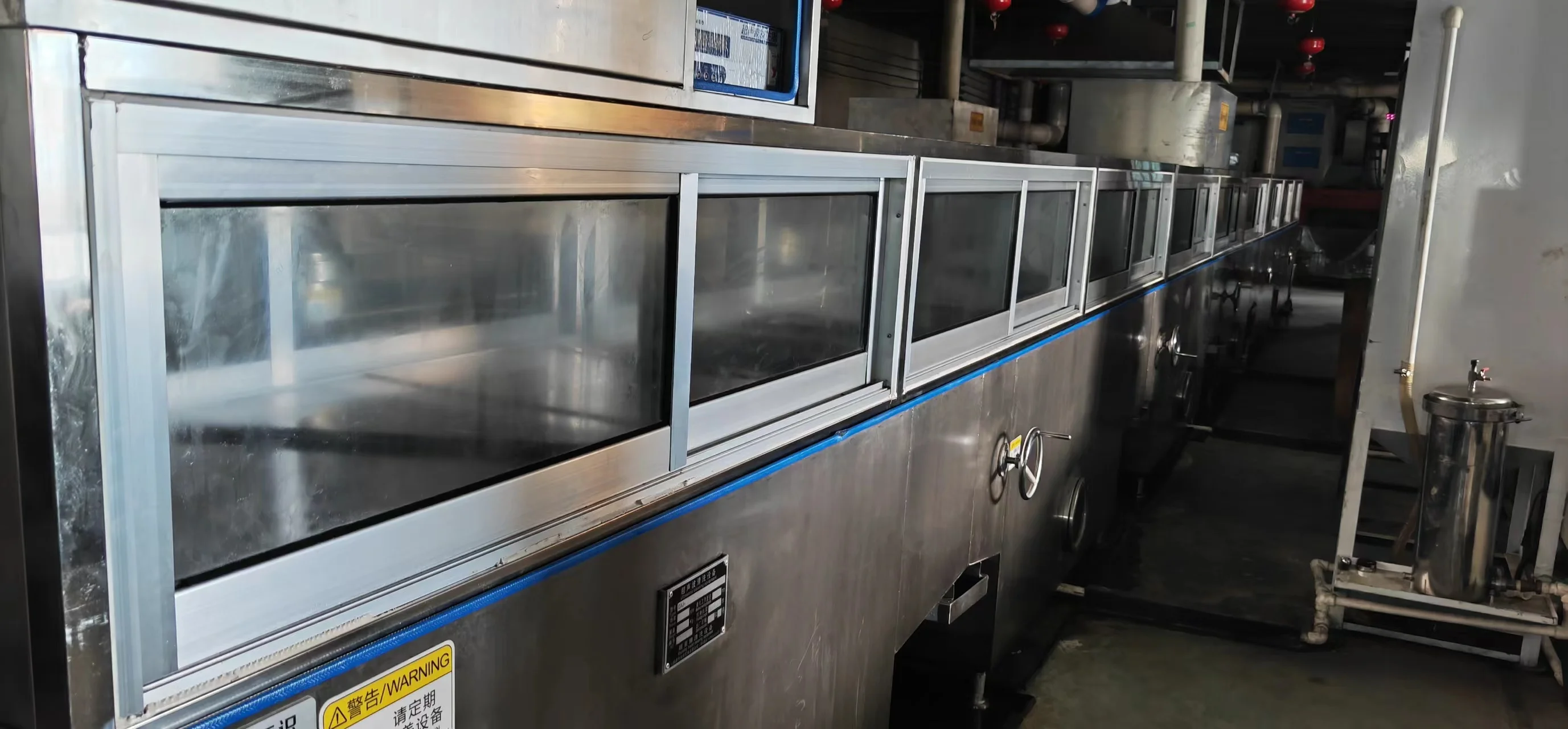

Shandong Hongfan Bearing Co., Ltd. is located in Shandong Province, China. The company has a high standard factory and high level production equipment. In addition, the company also has a professional engineer team and foreign trade team, with a full process service from production to after-sales. The company adheres to customer demand orientation, technological innovation as the source, closely follows the international cutting-edge technology, and constantly develops high-tech products with high cost performance, strong practicality and high degree of marketization.

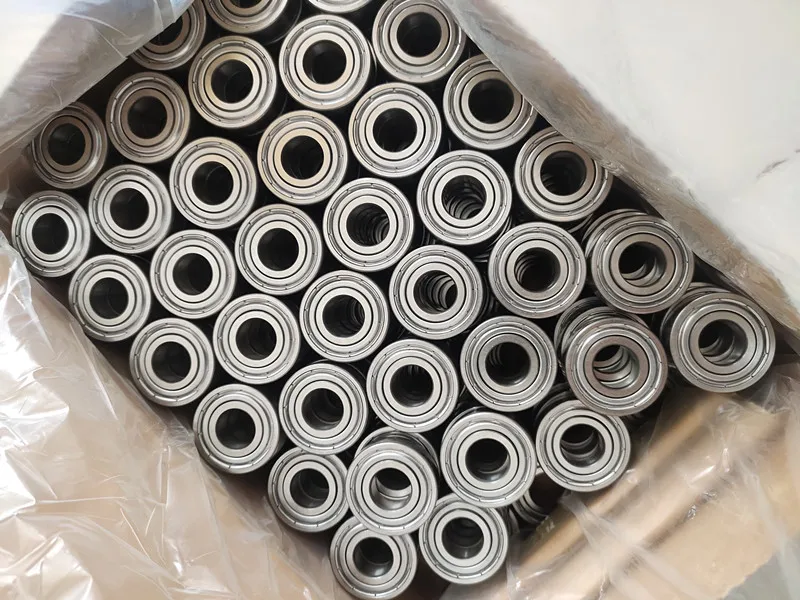

Packing & Shipping
Packing:
Acoording to your ordered goods, we offer three types of outer packing as following. About package of engine parts, we can use neutral packing and original packing in accordence with your requests.(If have other requests, pls negotiate with us)
Delivery:
Acoording to your ordered goods, we offer three types of outer packing as following.About package of engine parts, we can use neutral packing and original packing in accordence with your requests. (If have other requests, pls negotiate with
supplier)
Delivery:
Acoording to your ordered goods, we offer three types of outer packing as following.About package of engine parts, we can use neutral packing and original packing in accordence with your requests. (If have other requests, pls negotiate with
supplier)
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: If the goods are in tock, it is generally 3-7 days. If the goods are not in stock, then by quality.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we do not pay the freight.
Q: What are your strengths?
A: 1. Manufacturer, the
most competitive price and good quality.
2. The perfect team of technical engineers provides you with the best support.
3. A well-trained international sales team provides the best service. 4. Rich inventory and fast delivery
5. We have established
long-term cooperative relations with customers in many countries and regions in the world.
6. We have our own brand (HFZZ)
products and can provide customized products, co processing and OEM services.
Q: How long is your delivery time?
A: If the goods are in tock, it is generally 3-7 days. If the goods are not in stock, then by quality.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we do not pay the freight.
Q: What are your strengths?
A: 1. Manufacturer, the
most competitive price and good quality.
2. The perfect team of technical engineers provides you with the best support.
3. A well-trained international sales team provides the best service. 4. Rich inventory and fast delivery
5. We have established
long-term cooperative relations with customers in many countries and regions in the world.
6. We have our own brand (HFZZ)
products and can provide customized products, co processing and OEM services.
