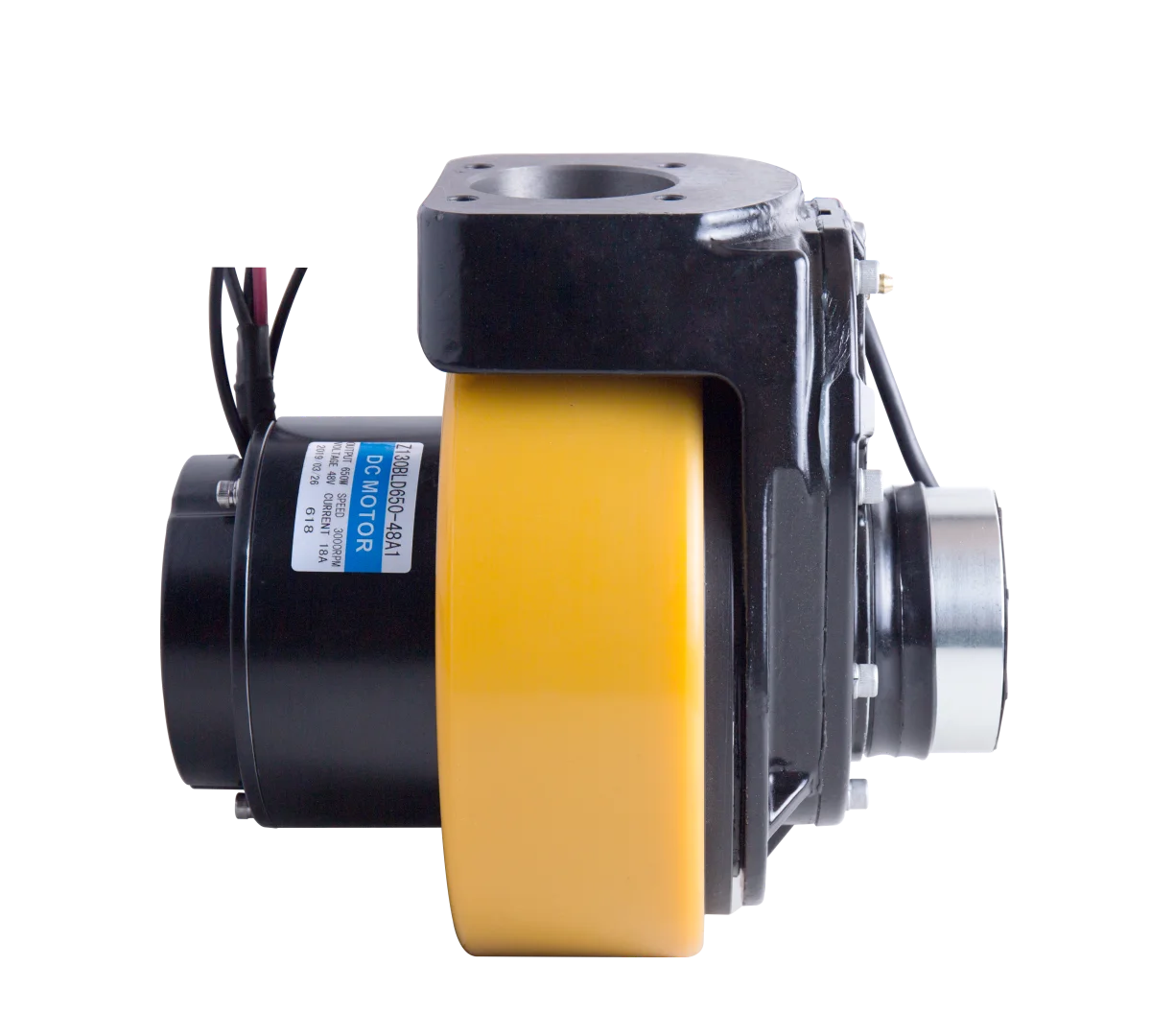

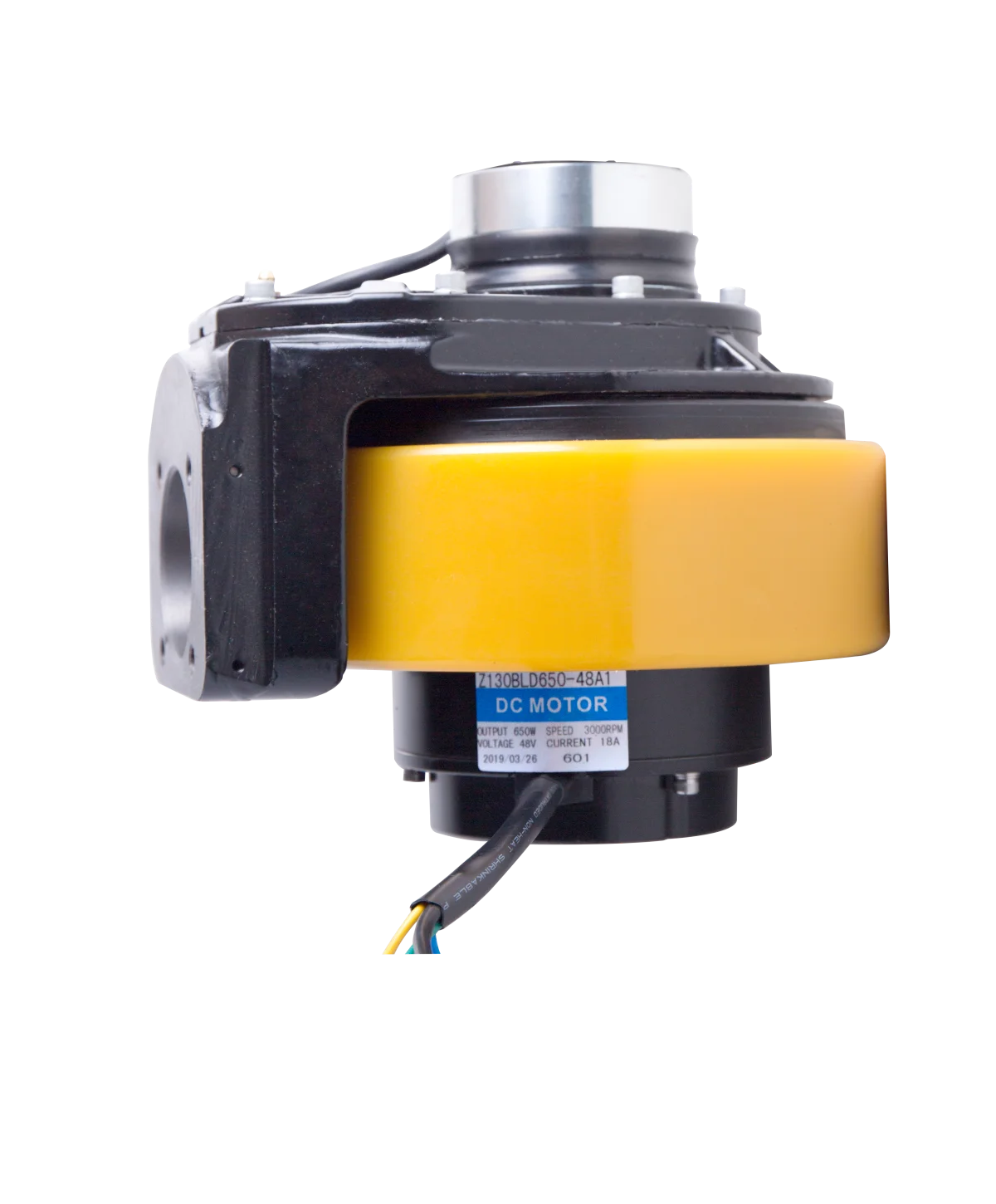

Вилочный погрузчик рулевое колесо сверхмощный Электрический для agv оборудование очистки пола система перегрузки нагрузки двигатель
- Категории: Material Handling Equipment Parts >>>
- Поставщик: Zhejiang,Xingli,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Type | Z130BLDC650-48A1-30S | Z130BLDC1000-48A1-30S | Z130DC650-24A2-26.5S | Z130DC750-24A2-26.5S | |||
Power | 650W/750W | 1000W | 650W | 750W | |||
Voltage | 48VDC (Brushless dc) | 48VDC (Brushless dc) | 24VDC (Brush dc) | 24VDC (Brush dc) | |||
Current | 18A | 28A | 38A | 41A | |||
Speed | 3000r/min | 3000r/min | 2650r/min | 2650r/min | |||
Work duty | S2 60Min. | S2 60Min. | S2 45Min. | S2 45Min. | |||
Protection grade | IP 20 / IP 42 /IP 44 | ||||||
Insulation class | B | B | F | F | |||
Reducer type | NL24.68KL/NL17KL | ||||||
Reduction ratio | 24.685K/17K | ||||||
Brake voltage | 24VDC/48VDC | ||||||
Brake torque | 6N.m/8N.m | ||||||
Ambient temperature | -10℃ ~ +40℃ | ||||||
Noise | ＜65dB(A)(L=100cm) | ||||||
Application | Load Movers / Material Handling / Floor Cleaning Equipment / Mobile Work Platforms / AGVs / Electric Forklift | ||||||
Product Category
About us

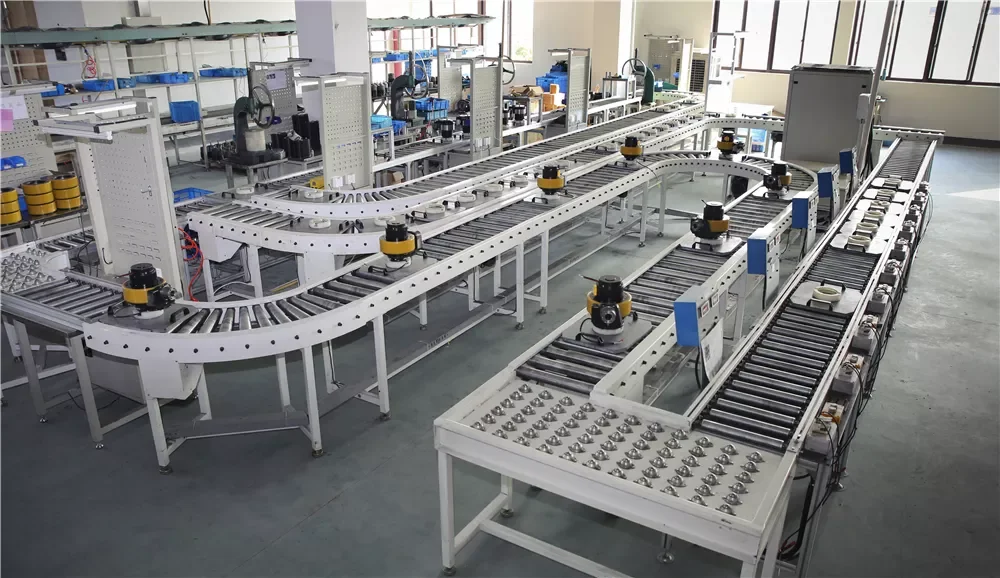

Applications
Certifications
Exhibition

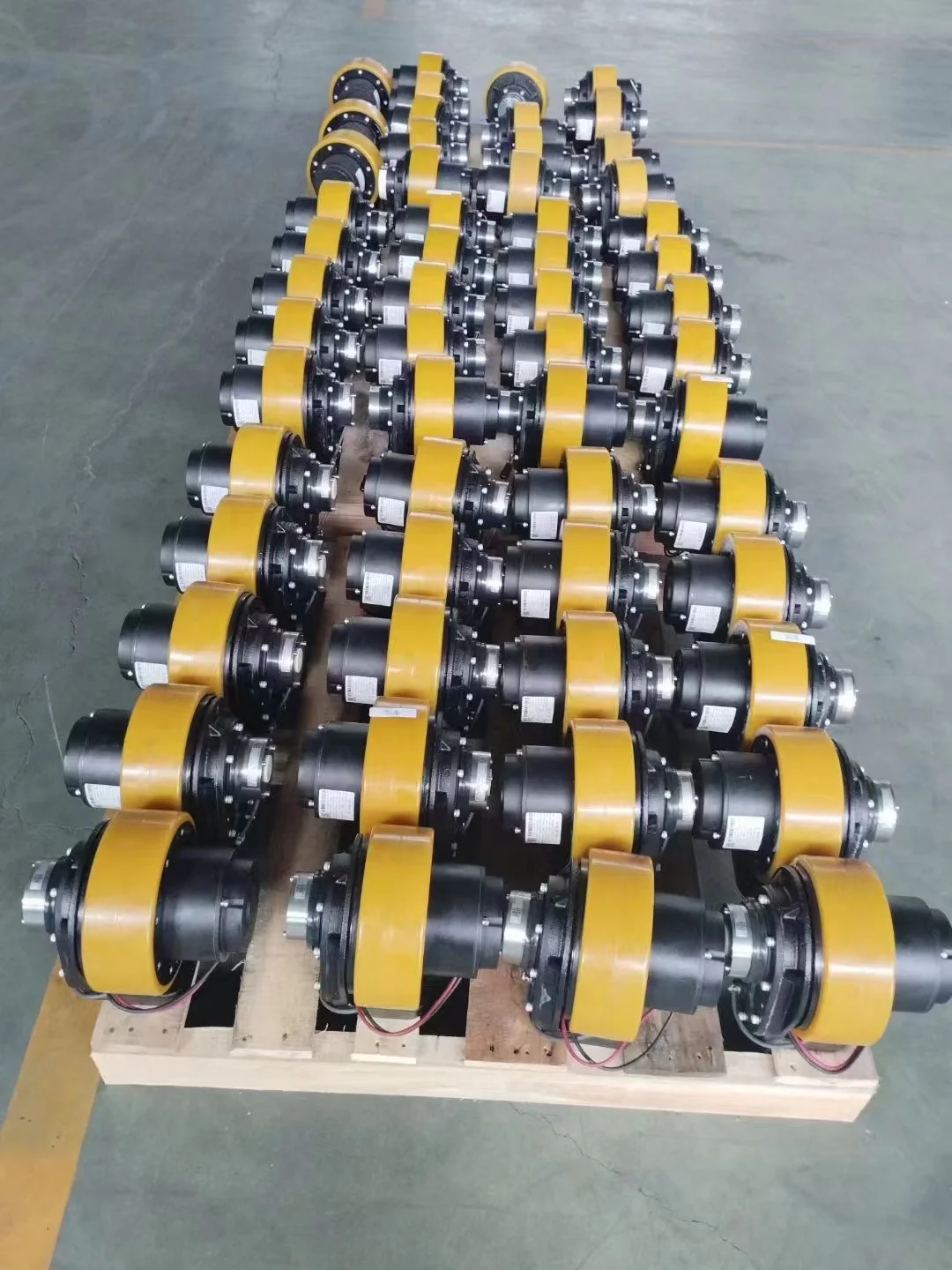

Packing & Delivery
