1 5 вт/м k 100 мм * термозазор наполнитель силиконовая термопрокладка для графической карты
- Категории: Insulation Materials & Elements >>>
- Поставщик: Anhui,Xuchuan,New,Materials,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1.5W/m.k 100mm*100mm
Characteristic | GP910 | GP915 | GP919 | GP925 | GP930 | GP940 | GP950 | GP960 | Test Method | |||||||
Colour | off-white | Pink | gray | light green | blue | light gray | light gray | light gray | Visual Inspection | |||||||
Density (g/cm3 ) | 2.2 | 2.55 | 2.63 | 2.7 | 2.85 | 2.92 | 3.25 | 3.35 | ASTM D792 | |||||||
Thickness (mm) | 0.3—10 | 0.5—5 | ASTM D374 | |||||||||||||
Hardness (shore C) | 30 | 20 | ASTM D2240 | |||||||||||||
Thermal Conductivity (W/m.k) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | ASTM D5470 | |||||||
Operating Temperature(℃) | -50~200 | / | ||||||||||||||
Breakdown Voltage (KV/mm) | >10 | >5 | ASTM D149 | |||||||||||||
Volume Resistivity （Ω-cm) | >1012 | ASTM D257 | ||||||||||||||
Fire-proof level | UL 94V-0 | UL File E471894 | ||||||||||||||
ROHS | Compliant | / | ||||||||||||||
Quality Guarantee Period(Months) | 24 | / | ||||||||||||||
Thermally conductive gap fillers can be used in a variety of applications and will not fail due to pressure changes and temperature fluctuations. The thermally conductive gap filler is based on silicone resin and filled with thermally conductive particles. The thermal conductivity can be arbitrarily selected in the range of 1.0-6.0 W/m-K.
Because of its good elasticity, it can be used to cover uneven or irregular device surfaces, fully fill the air gap between the heating device and the heat sink or metal casing, so that the heat can be effectively transferred to the heat dissipation mechanism, thereby improving the operation of the device. Efficiency and service life. Thermally conductive gap fillers are self-adhesive and do not require adhesive backing, so they do not affect their thermal conductivity.
Special coatings can also be applied to make single-sided adhesive products for easy handling and assembly.
* Soft and compressible
* Low thermal resistance
* High fire performance
* Self-adhesive surface
* Applicable under low pressure
* Good electrical insulation and temperature resistance
* Low thermal resistance
* High fire performance
* Self-adhesive surface
* Applicable under low pressure
* Good electrical insulation and temperature resistance

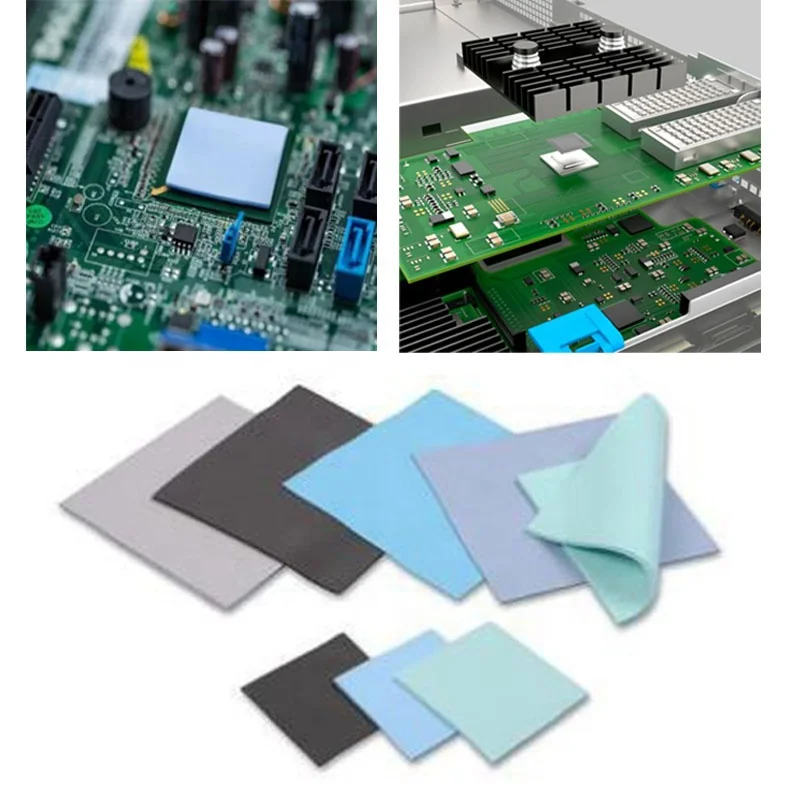

* Between the chip and the heat dissipation module
* Optoelectronics industry
* Netcom products
* New energy battery, automotive industry
* Appliance industry
* Wearable device
* Optoelectronics industry
* Netcom products
* New energy battery, automotive industry
* Appliance industry
* Wearable device
Packing
1. PET film covered--protection.
2. Use paper card to separate each layer.
3. Standard export carton or customized.
4. Marked with customer's information or customized.
5. QC Department will strictly check whether the packing is safe enough for each shipment.
3. Standard export carton or customized.
4. Marked with customer's information or customized.
5. QC Department will strictly check whether the packing is safe enough for each shipment.
Shipping
1. Through express delivery, such as DHL, UPS, FEDEX, etc. It is door-to-door and usually takes 3-5 days to reach its destination.
2. The flight to the airport usually takes 5-10 days.
3. Usually the transportation will take 15 to 20 days to reach the customer's factory.
2. The flight to the airport usually takes 5-10 days.
3. Usually the transportation will take 15 to 20 days to reach the customer's factory.
Q1:Do you provide samples?
A1: Yes, we do, and could delivery in 24 hours after confirmation for stock. And we can offer free samples. Just please pay the shipping fee.
Q2: Do you have MOQ?
A2: No MOQ for the standard product.
Q3: Are you factory or trading company?
A3: No, we are a professional manufacturer for over 10 years.
Q4: Will heat make the material softer?
A4: From -40°C to 220°C, there is no significant variance in hardness for silicone GAP PAD Materials and Gap Fillers.
Q5: What is the lead time for mass production?
A5: The lead time of mass production is about 5 - 15 days.
Q6: What is your payment method?
A6: Accept TT, Paypal, West Union, L/C, ect.
Q7: Can you provide finished product processing service?
A7: Yes, we can provide the finished product after die-cutting.
Q2: Do you have MOQ?
A2: No MOQ for the standard product.
Q3: Are you factory or trading company?
A3: No, we are a professional manufacturer for over 10 years.
Q4: Will heat make the material softer?
A4: From -40°C to 220°C, there is no significant variance in hardness for silicone GAP PAD Materials and Gap Fillers.
Q5: What is the lead time for mass production?
A5: The lead time of mass production is about 5 - 15 days.
Q6: What is your payment method?
A6: Accept TT, Paypal, West Union, L/C, ect.
Q7: Can you provide finished product processing service?
A7: Yes, we can provide the finished product after die-cutting.
