Китайская профессиональная лабораторная индивидуально вентилируемая клетка для разведения стойка мышей Лабораторная Система Ivc лабораторных
- Категории: Animal Cages >>>
- Поставщик: Hebei,Rital,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
cage quantity(one sided) | Specification(mm) | cage quantity(two-sided) | Specification(mm) |
8 layers×8 cages=64 cages | 1790x500x1990 | 8 layers×8 cages×2=128 cages | 1790x700x1990 |
8 layers×7 cages=56 cages | 1570x500x1990 | 8 layers×7 cages×2=112 cages | 1570x700x1990 |
8 layers×6 cages=48 cages | 1350x500x1990 | 8 layers×7 cages×2=96 cages | 1350x700x1990 |
7 layers×8 cages=56 cages | 1790x500x1770 | 8 layers×7 cages×2=116 cages | 1790x700x1770 |
7 layers×7 cages=49 cages | 1570x500x1770 | 7 layers×7 cages×2=98 cages | 1570x700x1770 |

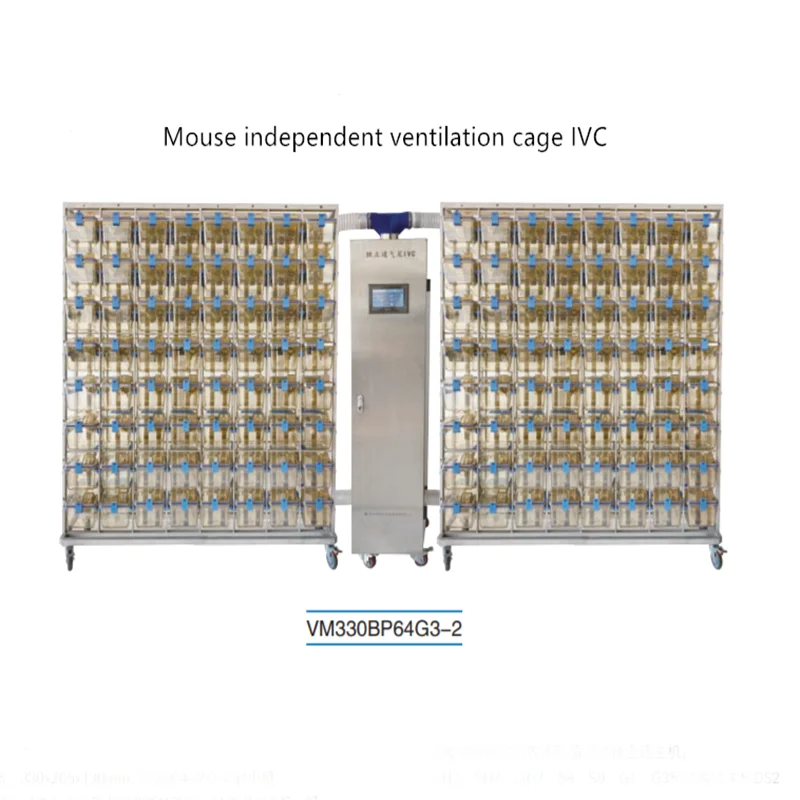

Model：VM330BP64G3-2
Configuration List：
64 sets PSU plastic cage box, One A2 intelligent host ，
stainless steel mice cage
Rack 8 layers x 8=64 cages
Configuration List：
64 sets PSU plastic cage box, One A2 intelligent host ，
stainless steel mice cage
Rack 8 layers x 8=64 cages
Technical parameters: It meets the requirements of GB14925 《 Experimental Animal Environment
and Facilities 》 and DB32/T972 《 Independent Ventilation Cage IVC System for Laboratory Animal Cages》.
and Facilities 》 and DB32/T972 《 Independent Ventilation Cage IVC System for Laboratory Animal Cages》.

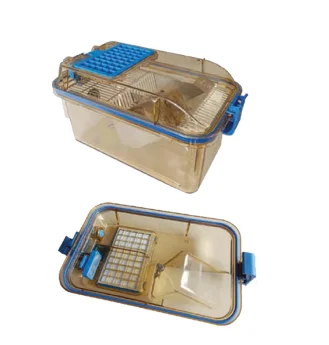

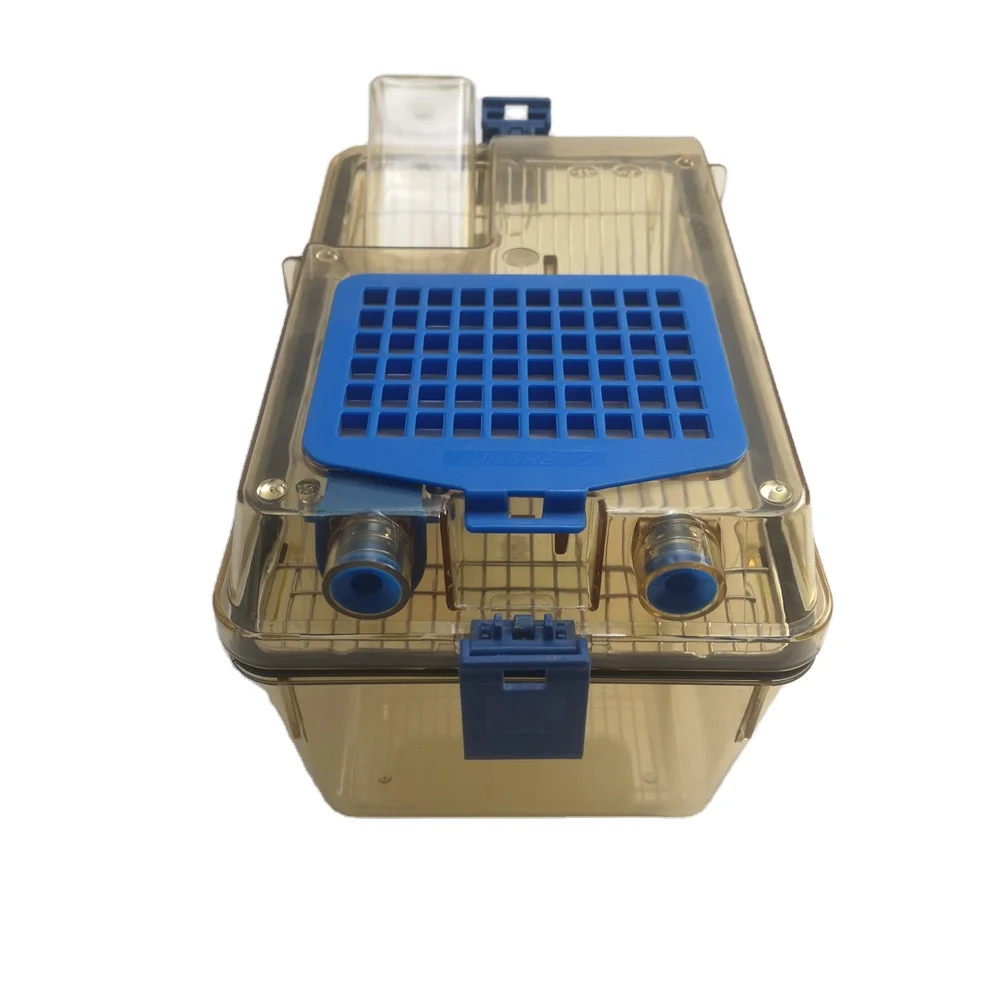

PSU cage (Built-in water bottle)
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.

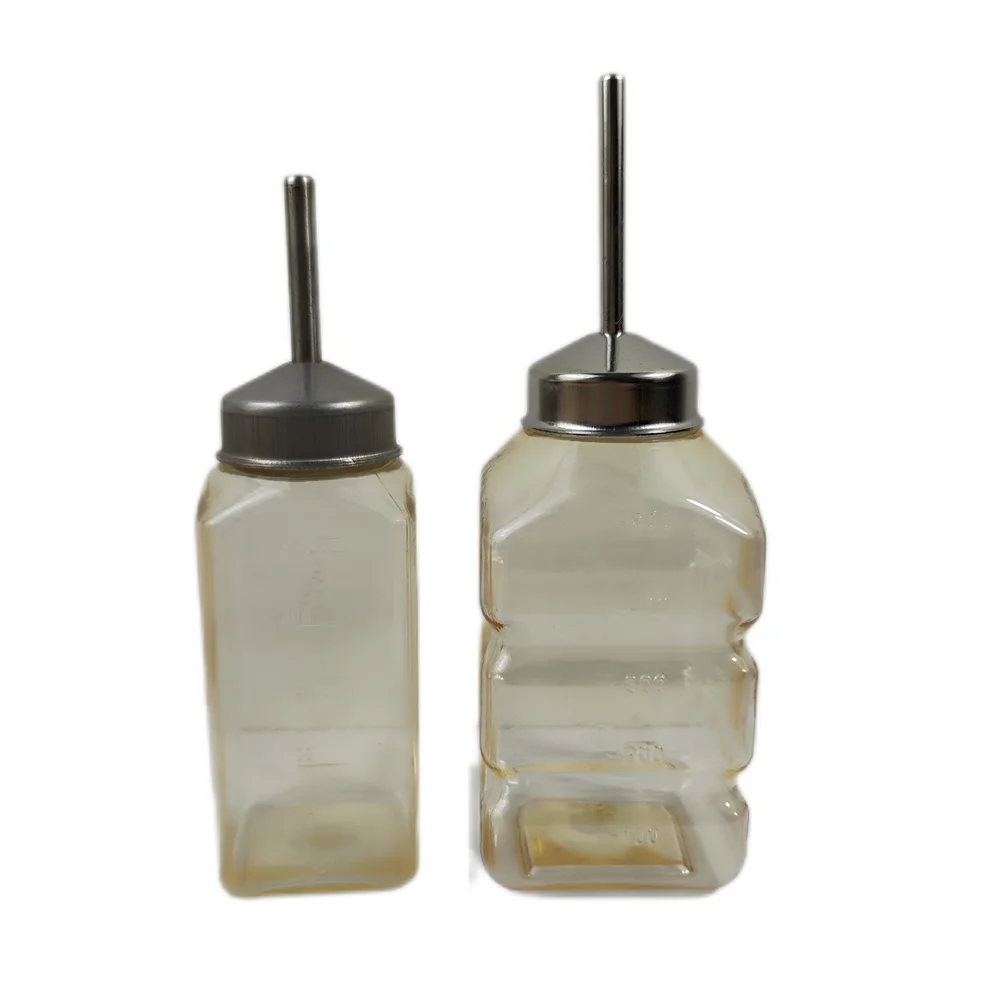

250ml water bottle with scaleThe square shape is stable, and the movement of animals in the box will not affect the shaking of the drinking bottle; The bottle body is made of PC plastic after one blow molding, and there is no mold joint at the bottom and no cracking. It canwithstand high pressure at 150 °C, ensuring that it will not be deformed or damaged during
● Touch screen:Inclined touch screen HMI control, ergonomic and comfortable operation.
● Body:The box body is made of 304 stainless steel, 1.5mm steel plate thickness.
●Power:The power of the host is 200W, which can be connected to 2 or more racks, and supports positive/negative pressure operation.
●Air filter:Primary and high-efficiency two-stage filtration, high-efficiency filtration efficiency ≥99.995%;
● Body:The box body is made of 304 stainless steel, 1.5mm steel plate thickness.
●Power:The power of the host is 200W, which can be connected to 2 or more racks, and supports positive/negative pressure operation.
●Air filter:Primary and high-efficiency two-stage filtration, high-efficiency filtration efficiency ≥99.995%;

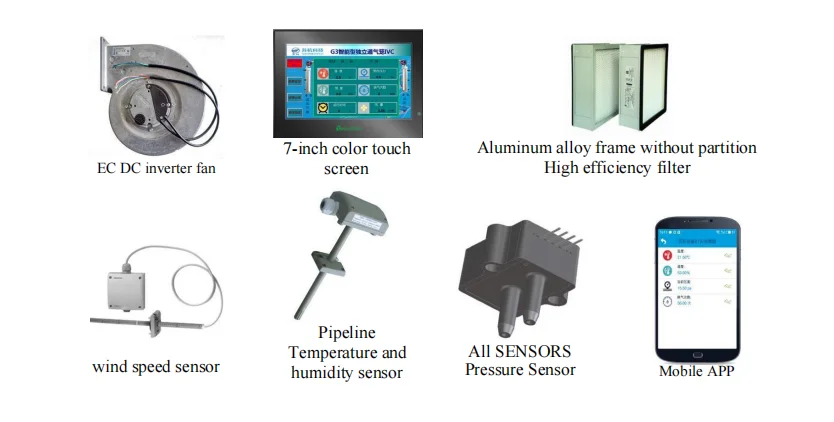

●Control system:Automatically control the supply and exhaust fans (EC brushless DC fans)
according to the number of air changes and the set value of the pressure difference, without the need for a frequency converter, the PLC directly performs 0-100% stepless speed regulation to protect the fans, and the system operates more stably, energy-saving, Mute.
according to the number of air changes and the set value of the pressure difference, without the need for a frequency converter, the PLC directly performs 0-100% stepless speed regulation to protect the fans, and the system operates more stably, energy-saving, Mute.
●Manual emergency operation:In case of failure of the control system, it can be manually switched to emergency mode operation.
● Monitoring system:7-inch color touch screen, Chinese and English operation, real-time display of parameters such as pressure, temperature and humidity, air volume, and ventilation times in the cage.
● Alarm system:If the power failure, equipment failure or monitoring value (ventilation times, pressure, temperature, humidity) continuously exceeds the set limit within 15 seconds, the system will automatically alarm.
● Daytime mode:12/12h or 14/10h day and night time periods can be set.
●Replacement Tips:The touch screen displays the accumulated running time, prompting to replace the high-efficiency air filter.
Contact us for more information......
Contact us for more information......
Warehouse
Wire Workshop
Plastic Tub Workshop
Plastic Tub Case
Q: How can you make sure your quality control?
A: We have very strict quality control system.Each piece of our goods would be
checked several times strictly before shipping, and we are glad to accept the Third-party inspection company to quality check.Also
we will full refund in case of any bad quality.
Q: How can you make sure my goods would be delivery on time?
A: We have 8 production lines, four quality inspection teams, and hundreds of skilled workers who have worked for more than five
years. The delay rate in the last years has been less than 0.3%
Q: Do you offer OEM service?
A: OEM accept and we offer confidentiality agreement "business secret contract” for your design safe.
Q: Can I place a small order for first time to test the quality?
A:Small order is also welcomed, and we offer free stock sample.
Q: This is the first time I buy from China. Can you help me?
A: We will supply you a professional completely import solution.You place order, We will do the rest.
Q: Can I visit your factory?
A: We will be more than happy to have you to visit our factory，and we will arrange everything for you.
checked several times strictly before shipping, and we are glad to accept the Third-party inspection company to quality check.Also
we will full refund in case of any bad quality.
Q: How can you make sure my goods would be delivery on time?
A: We have 8 production lines, four quality inspection teams, and hundreds of skilled workers who have worked for more than five
years. The delay rate in the last years has been less than 0.3%
Q: Do you offer OEM service?
A: OEM accept and we offer confidentiality agreement "business secret contract” for your design safe.
Q: Can I place a small order for first time to test the quality?
A:Small order is also welcomed, and we offer free stock sample.
Q: This is the first time I buy from China. Can you help me?
A: We will supply you a professional completely import solution.You place order, We will do the rest.
Q: Can I visit your factory?
A: We will be more than happy to have you to visit our factory，and we will arrange everything for you.
