GCAN-401CAN автобус рекордер с can-Bus шлюз использует TF картой для записи данных шины в режиме

Features

1,Interfaces: one CAN-Bus channels with OPEN3 terminal

2,High speed 32-bit industrial grade processor

3,Electrostatic discharge (ESD) Immunity level: Contact Discharge±2KV, Air Discharge±15KV

4,Fast transient Burst Impedance Level: ±1KV

5,Surge immunity level: ±1KV

6,Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898

7,Integrate with electrical isolation protection module

8,Support communication baud rate: 5Kbps~1Mbps

9,Supply external power:DC+9~30V

10,Current: 20mA, 24V DC

11,Electric isolation, insulation level: DC1500V

12,Receive maximum data flow: 14000 FPS

13,Working temperature: -40~ 85℃

14,Size: 102 * 63 * 23mm

Function

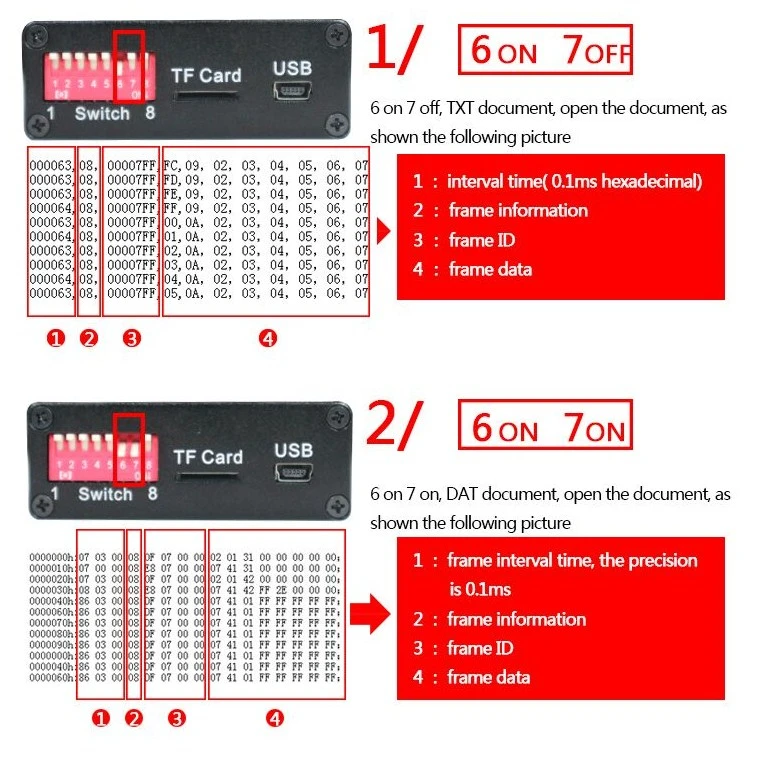

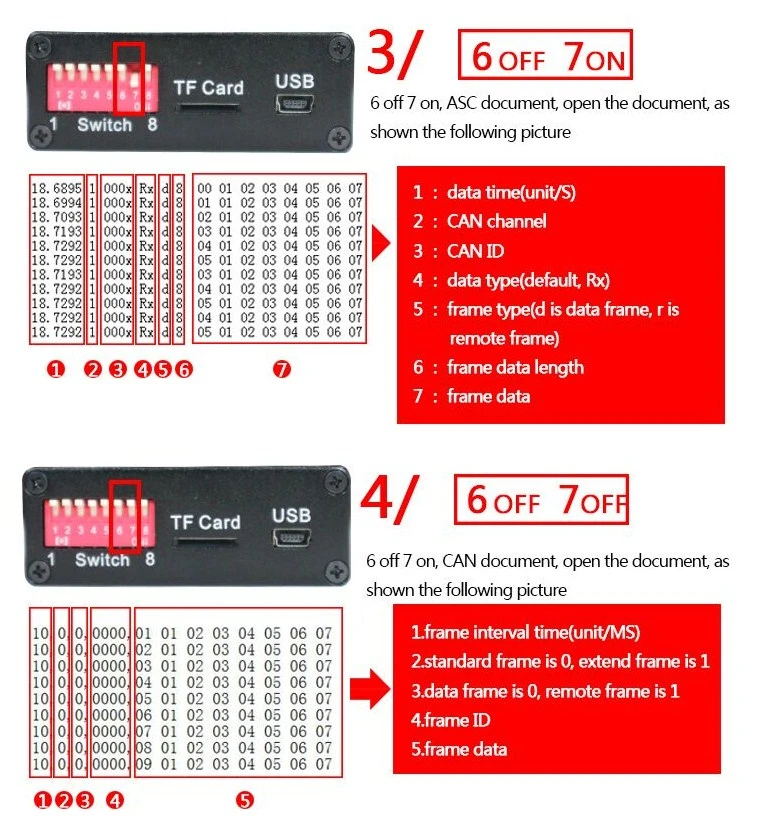

This module has integrated with system clock and document system. You can save and manage the data by the day, create a new
document by date, and the data on the same day save to corresponding document automatically.

This module will create a new document every minute on the same day and save the receiving data to corresponding document.

Note: GCAN-401 only support maximum capacity 32G document system as TF storage card of FAT32 format, if you don't use the TF
storage of FAT32 format, need reformat storage card to FAT32 format, but reformat storage card clearing all data, please act
cautiously.
