Product Description
| Item | Unit | Parameter |
| Overall length | mm | 9670 |
| Overall height | mm | 3880 |
| Overall width | mm | 2500 |
| Total weight | kg | 18100 |
| Extinguishant rated load weight | ||
| Water | kg | - |
| Foam | kg | - |
| Max. travel speed | km/h | ≥90 |
| Max. net power | kw | 203 |
| Rated working height | m | 32 |
| Rated load on platform | kg | 500 |
| Max. working radius | m | 18-20 |
| Time for deploying boom | s | ≤100 |
| Time for deploying outriggers | s | ≤30 |
| Monitor | ||
| Water monitor rated flow | L/s | ≥80 |
| Water monitor rated reach | m | ≥80 |
| Water pump | ||
| Fire rated flow | L/s | - |
| Fire rated pressure | MPa | |

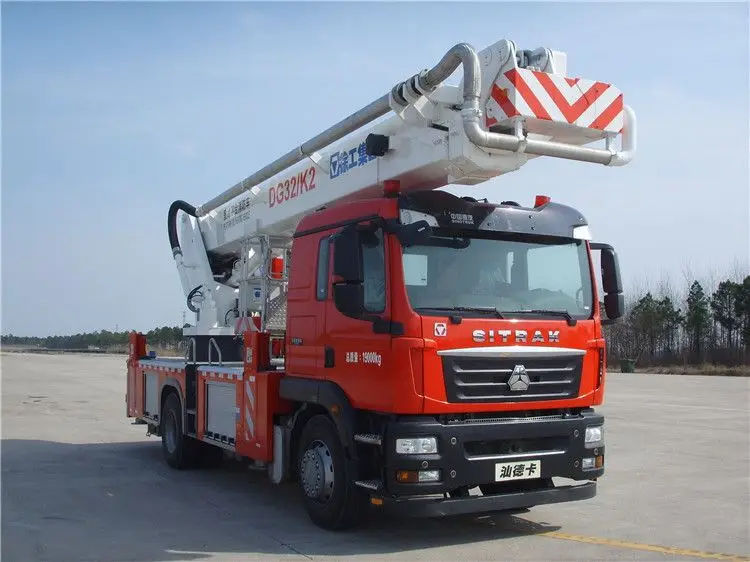

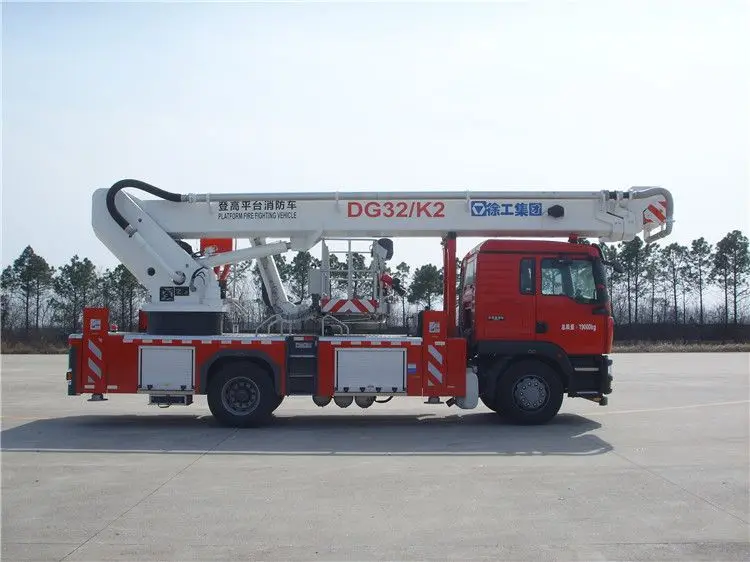

| DG32K2 uses ZZ5206N501GE1 national-V chassis.lt is a high-altitude rescue-oriented and fire extinguishment-assisted compact fire-fighting car. It Is fast and effldent, flexible with great rescue capacity. | ||
| * The truck is compact-arranged with its overall length v9.7m, tts turning radius <17m which highly improves the passage capacity in building-intesive area and applicability of operatton. | ||
| * His designed to be light weight that It full-load weight is only 18000kg and high mobility that Its specific power reaches 11.3. | ||
| * The truck Is fast and flexible* whose boom are able to automatically conduct compound control actions and self-navigation for abduction and adduction* and its superstruclure action takes 100$ and undercarriage action takes 30$, which Is leading In the Industry. | ||
| * It is equipped with multi-boom, whose obstacle over-leaping capacity reaches 8.5. With its maximum rated load of 500kg. It is equipped wilh variable rotation scale function of 20m maximum operation scale. | ||
| * It Is provided with aluminium alloy larga-bore Are fighting pipeline, whose flow reaches BOL/s. which enables less loss. | ||
| * AO tail-wagging rotary table, a built-in luffing mechanism and a flexible transport system, a rwv bench board to equipped In IL. | ||
