Products Description

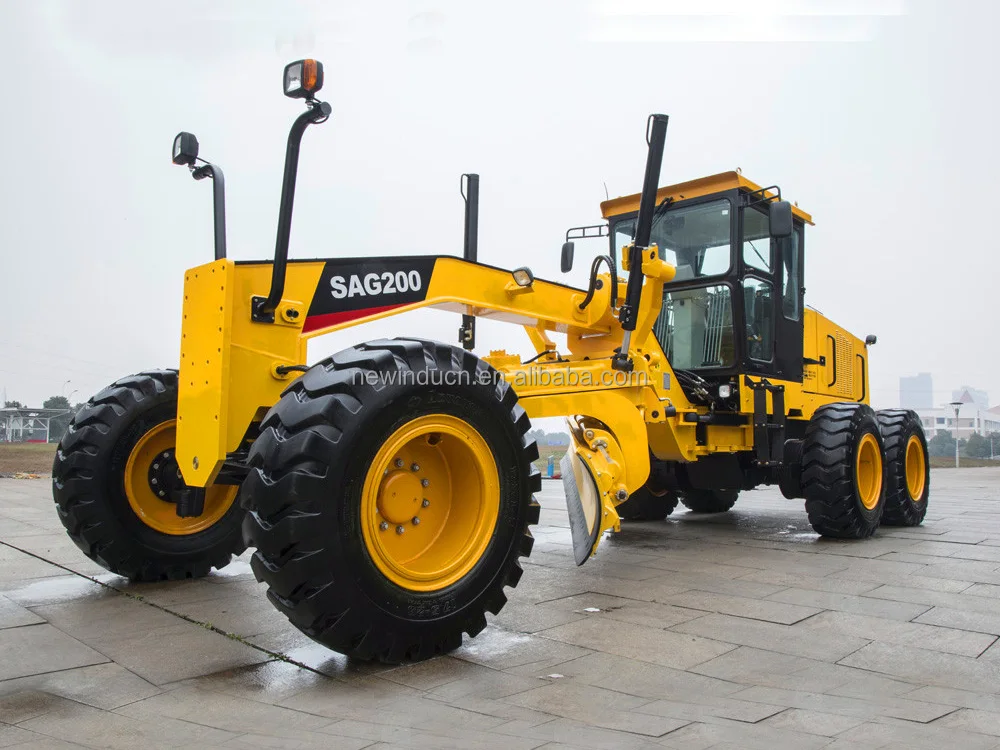

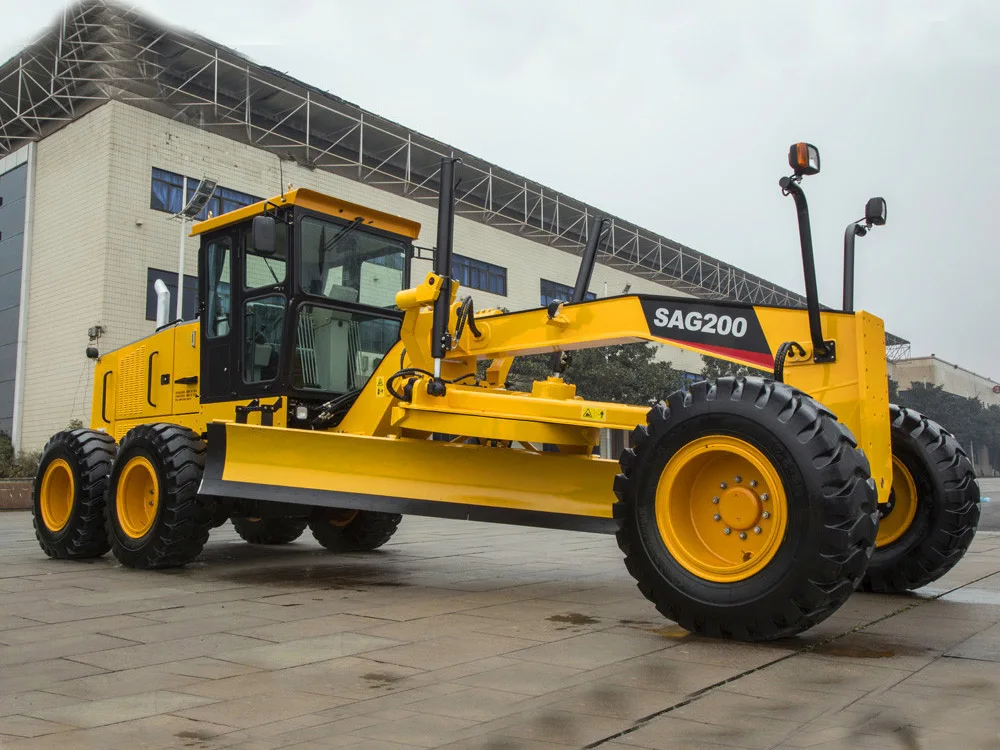

Newly 200HP Motor Grader SAG200 With Blade
With imported engine
* Combining advantages of direct drive system and hydraulic drive system, featuring wide speed range, powerful power transmission, stepless speed and easy operation.
* Intelligent control system can achieve the function of power reversing, maintenance prompt, automatic error diagnosis and easy manipulation.
* Enhanced mold board, high tensile wearing plate and large torque overload protection worm gear, all of this increase the service life of operating devices and enhancing reliability of the whole machine.
* Both left and right engine covers can be opened for easy maintenance. Centralized filters and common electric elements facilitate serviceability.
Contact
Julie Lan
WhatsApp / Wechat : +86 18701734839
Email:Julie@newindu.com
Specification
Emission class | Three stages |
rated power | 118kW |
Rated speed | 2200rpm |
Maximum torque | 624N.m |
Dimensions | 8750×2540×3280mm |
Wheelbase of front and rear axles | 6125mm |
Center and rear wheelbase | 1538mm |
Total Weight | 15200kg |
Blade size | 3660×610mm |
Blade inclination angle | 90° |
Swivel angle of blade | 360° |
Maximum lifting height of blade | 480mm |
Maximum speed in forward gear | 41km/h |
Maximum speed in reverse gear | 26km/h |
Front wheel steering angle | Left 50°, right 50° |
Tilt angle of front wheel | Left 17°, Right 17° |
Front axle swing angle | Up 15°, down 15° |
Minimum turning radius | 6.9m |
