Новейший сенсорный бесколлекторный мини-двигатель SURPASS HOBBY & Rocket-RC 1525 для 1/28 1/24 на дороге Дрифтинг скалолазание мини-радиоуправляемые
- Категории: RC Parts & Accs >>>
- Поставщик: Shenzhen,Surpass,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
SURPASS HOBBY & Rocket-RC Newest Mini 1525 sensored brushless motor for 1/28 1/24 on road Drifting Climbing mini RC cars
SURPASS HOBBY Newest High Power Mini 1525 sensored brushless motor for 1/28 1/24 on road Drifting Climbing mini RC cars
>The Max Power of the motor is 80 watts , and the power output efficiency is as high as 92%.
>Unique sensored and sensorless dual compatible mode startup .
>Thicken gold PCB circuit board ,solder with ESC cable make the frame is perfectly wired.
>Industry standard sensor hole & 5pin-0.8 terminal is connected with sensor cables.
>The slot full rate is extremely high, and the internal resistance of the resistance value can obtain high power output .

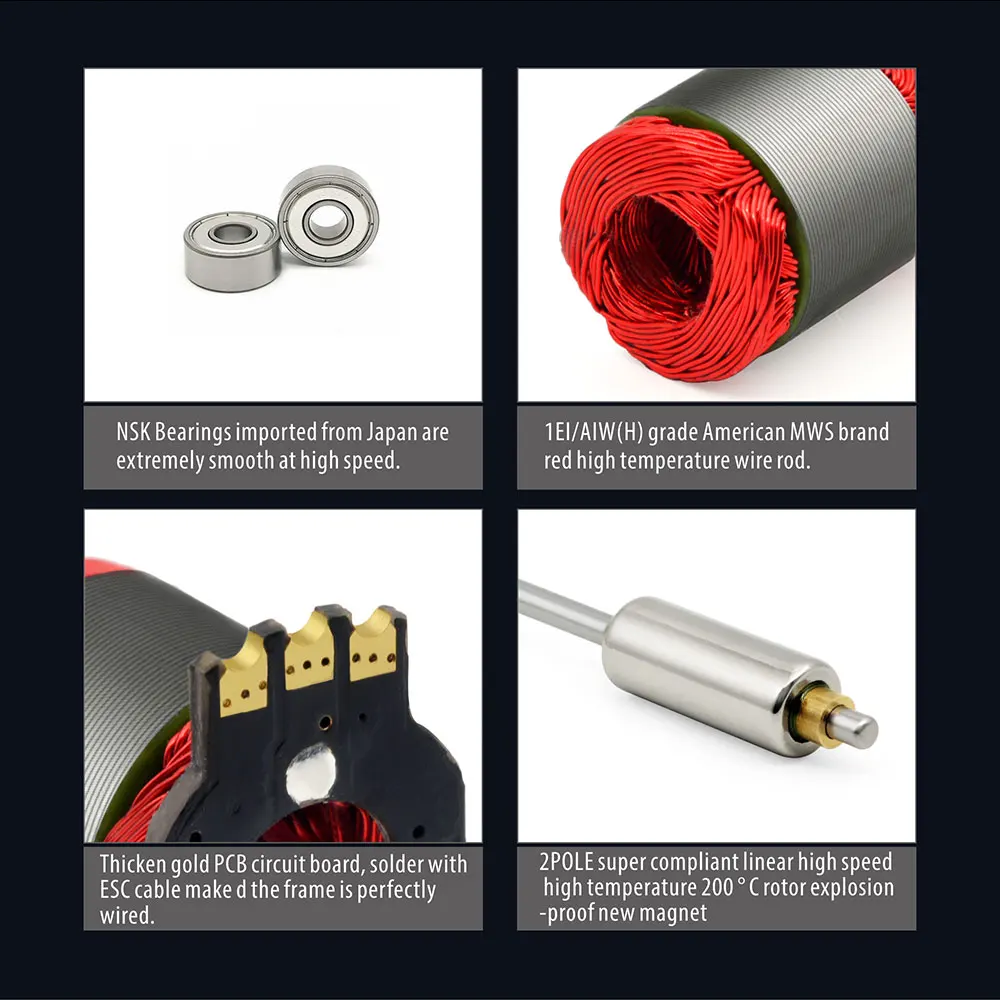

>NSK Bearings imported from Japan are extremely smooth at high speed .
>The unique stator adopts 0.2mm silicon steel sheet, and the efficiency conversion rate can reach 94% .
>2 pole super compliant linear high speed high temperature 200°C rotor explosion-proof new magnet, Material 1EI/AIW(H) grade American MWS brand red high temperature wire rod.
>Aluminum Alloy front-end integrated casing design, high-speed operation, stable and reliable.
>German Schenker balancing machine adjustment, mini motor rotor balance accurate 2mg.
>The maximum rpm of Turbo timing operation can reach 60,000rpm.

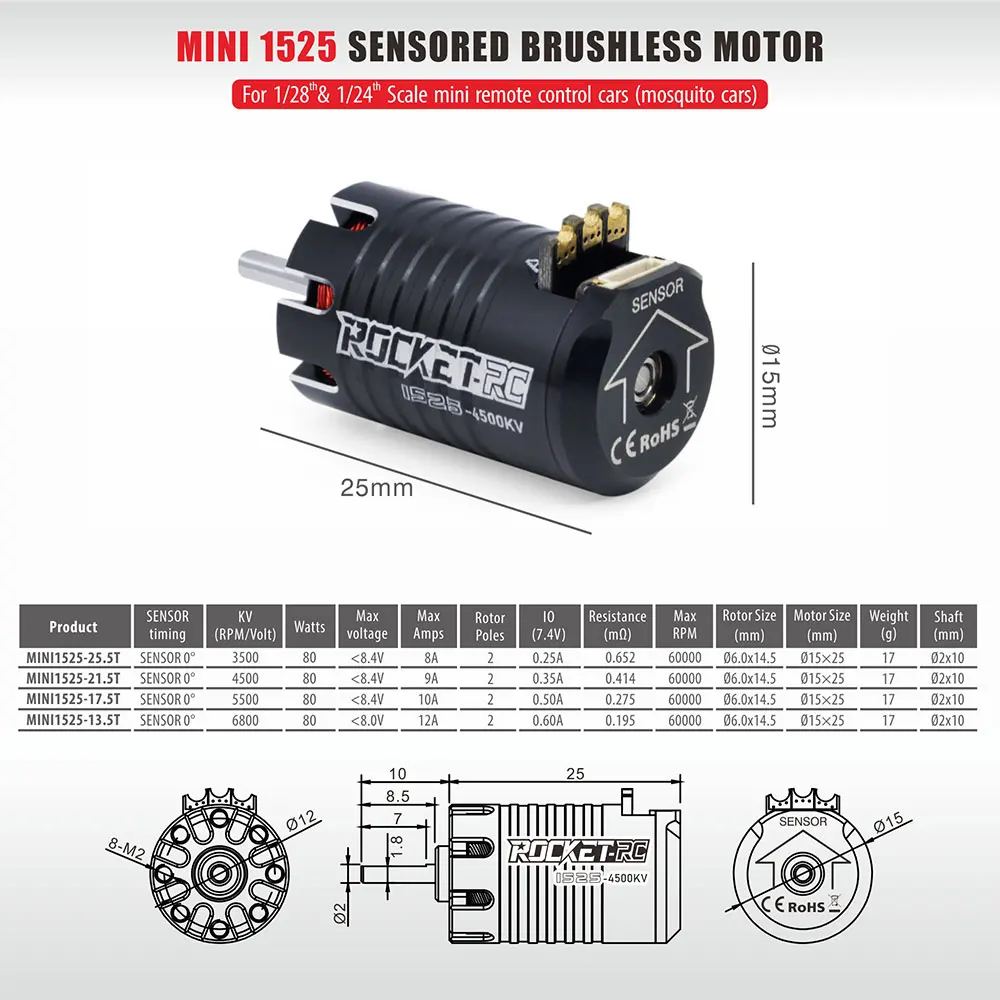

Model | Rocket-RC Mini 1525 sensored brushless motor |
Turns | 25.5T/21.5T/17.5T/13.5T |
KV(RPM/Volt) | 3500kv/4500kv/5500kv/6800kv |
Watts | 80W |
Max Voltage | 8.4V |
Max Amps | 8A/9A/10A/12A |
Rotor Poles | 2 POLE |
Max RPM | 60K |
Resistance（mΩ） | 0.652/0.414/0.275/0.195 |
IO(7.4V) | 0.25A/0.35A/0.5A/0.6A |
Motor Size(mm) | 15mm x 25mm |
Shaft(mm) | 2.0 x10mm |
Weight(g) | 17g |
