Литиевые аккумуляторные батареи 20 с11p 72 В 55 А · ч для

Описание и отзывы

Характеристики

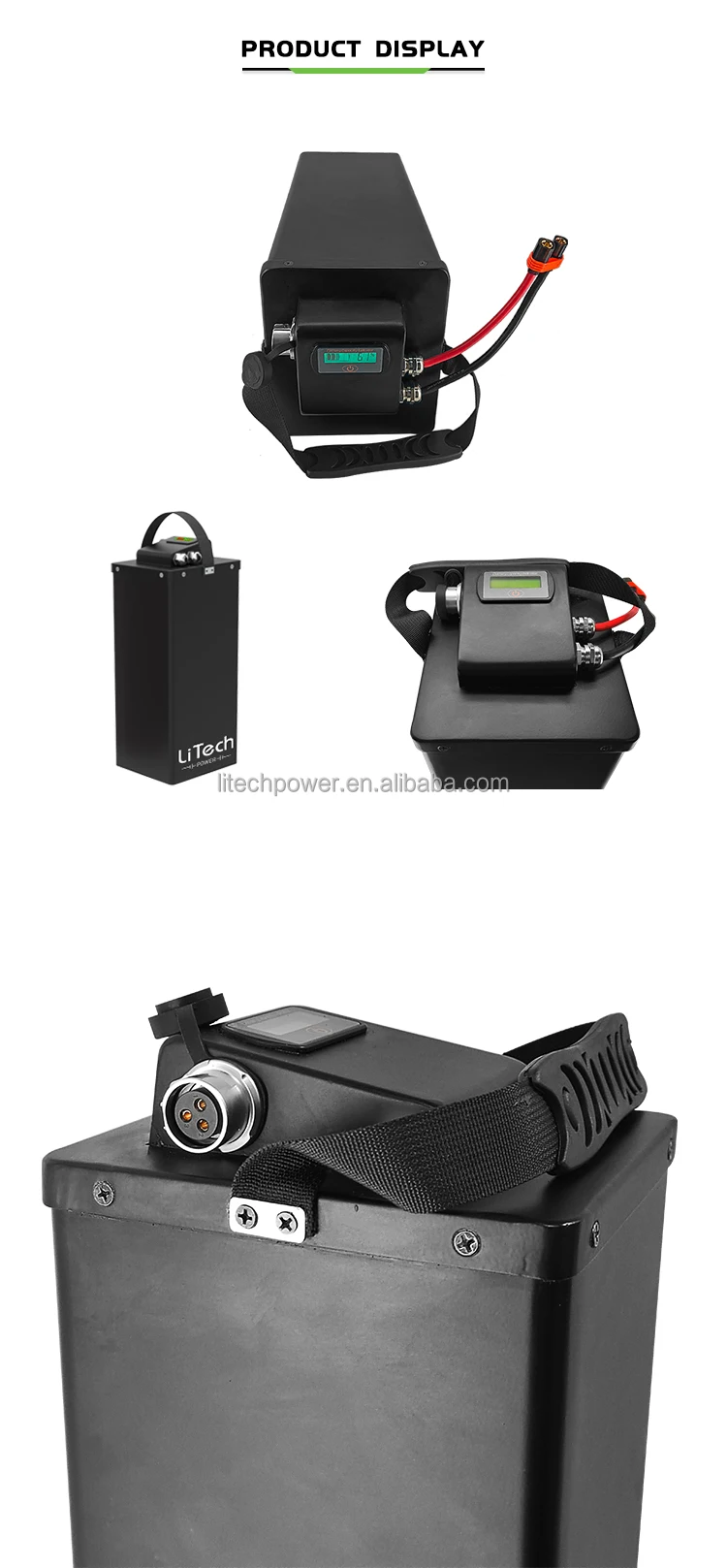

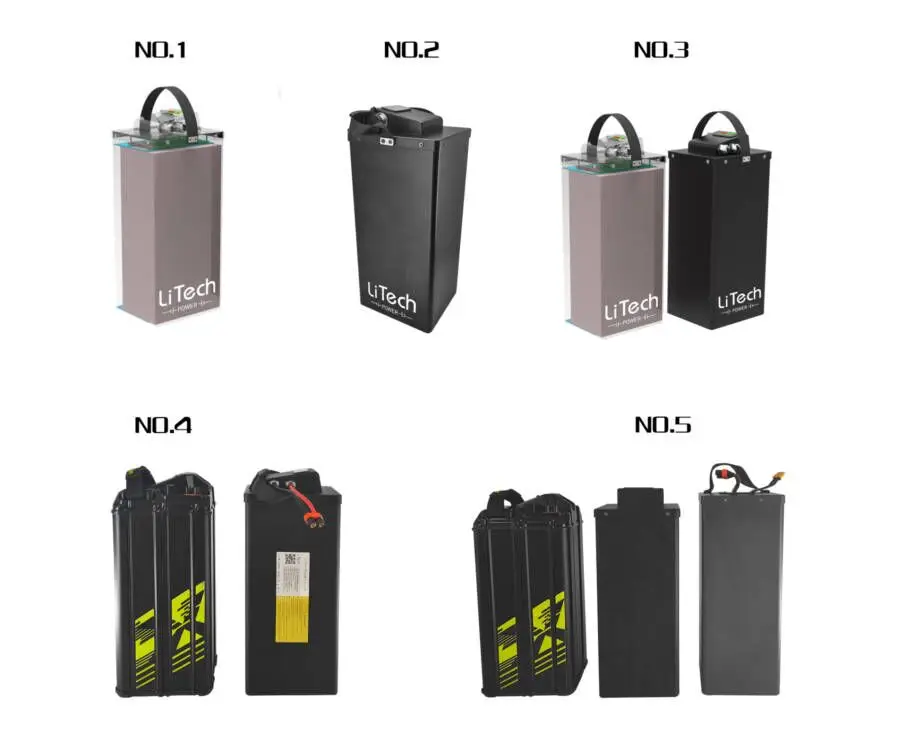

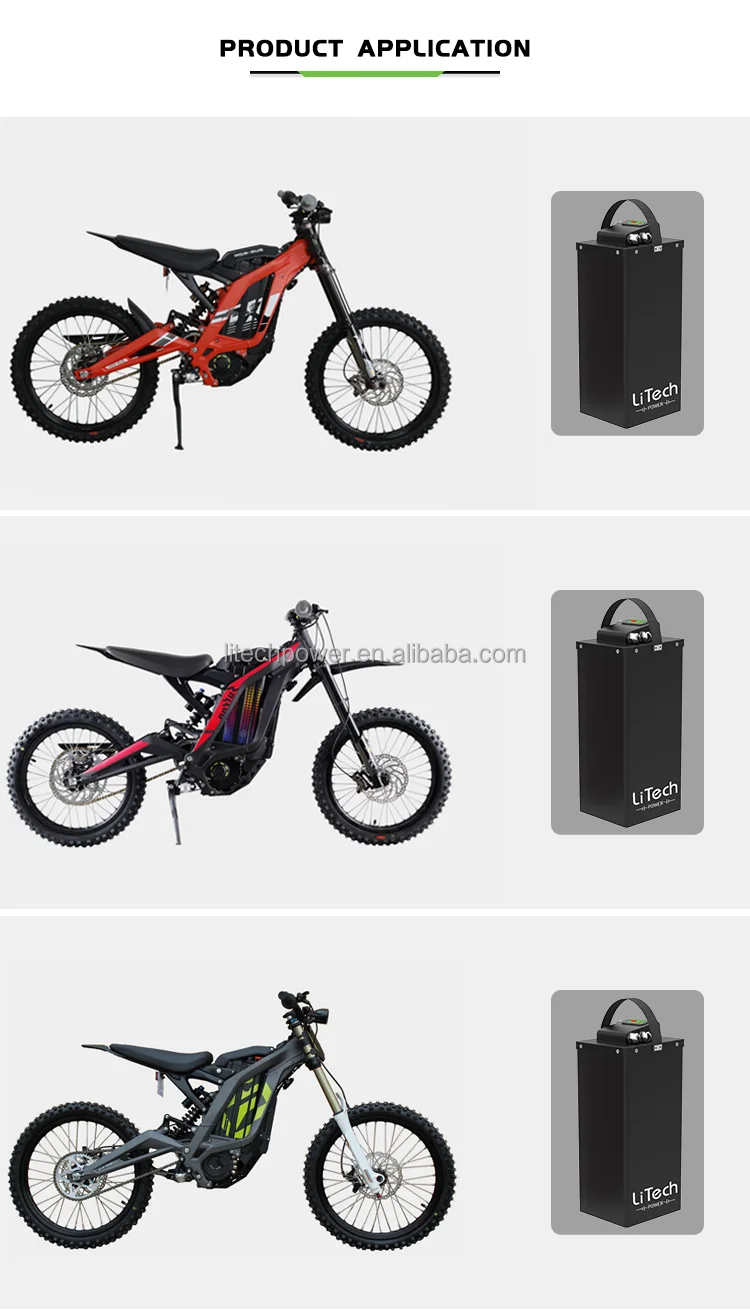

LiTech 20S11P 72V 55Ah battery pack is a Lithium-Ion rechargeable Battery Pack with ANT BMS blue-tooth build in Battery Management System integrated, normal voltage at 72V, rated capacity at 55Ah, terminated with Anderson connector for charge and discharge (it comes with bare leads in default but connector can be customized accordingly), it is mainly used on electric motorcycle, electric vehicles....

Voltage Range	60V		72V
Capacity	53Ah	55Ah	37.8Ah	45Ah	55Ah
Battery cell	Li Polymer	Samsung         50E	Molicel	Samsung           50E	Smasung    50S/Molicel M50A
BMS	16S With Bluetooth		20S With Bluetooth
Charge Cut-off Voltage	67.2V		84V
Discharge Cut-off Voltage	48V		60V
Continuous Discharge Current	120A	120A	120A	120A	150A
Discharge Peak Current	300A	300A	300A	300A	500A
Charge Current	20A	20A	20A	20A	20A
Cycle Life	≥ 1000 cycles, DOD 100% @ rated current and temp.
Weight	15.8kg ±0.5kg	18kg ±0.5kg	19kg ±0.5kg	16.8kg ±0.5kg	22kg ±0.5kg
Dimension(mm)	385*160*140	385*160*140	385*160*140	385*160*140	360*220*155
Installation Method	Plug& Play, No modification to Frame( Provide Latch for free)				Perfect size
Operation Temp.	Discharge at -20°C ~ 60°C & Charge at 0°C ~ 45°C
Communication Protocol	Bluetooth APP

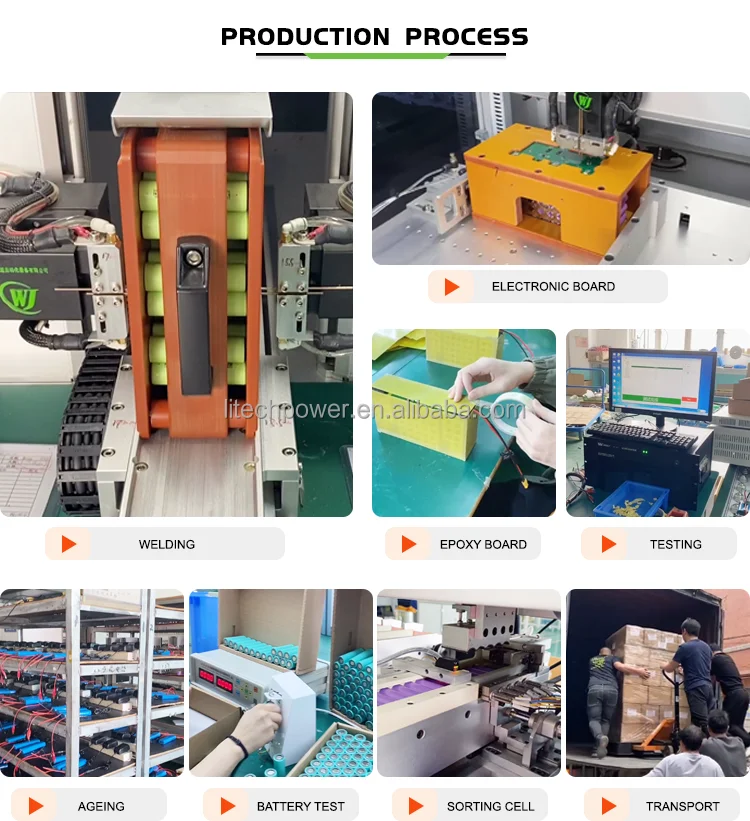

We strictly control each prodcution procedure, closer look at our battery inside. During production, there are more than 20 different testings are applied on all the battery packs. Battery is dangerous if you select wrong partner, LiTech will guarantee you on safety and reliability, make your products more robust.









FAQ

Q:Are you a trading company or factory?
A:Yes, we will make a PI (proforma invoice ) for you once the order confirmed.
Q:How do we make the payment?
A:T/T , Western Union , Ali Pay, Escrow, and Paypal are warmly welcomed.
Q:What's the sample time and production time?
A:7-10 days for sample,10-20 days for bulk order
Q:How long the goods will be diliveried?
A:shipping by Air:7-8 days around, shipping by sea:30 days auound
Q:Do you have OEM service for battery pack?
A: Sure,Voltage/Capacity/Size/Working Current/Cable/Terminal,etc all are customized available
Q:What informations should i provide to get a price?
A:Usually,we need to know the voltage, the current and the size..
