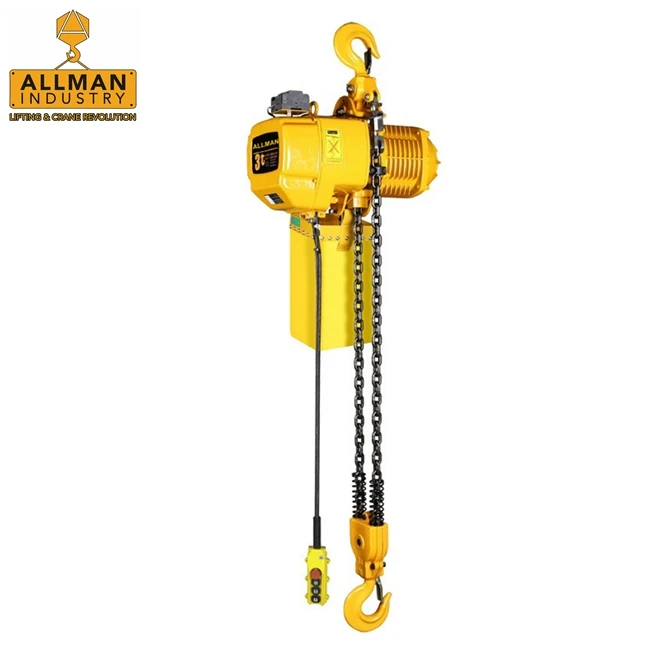

ALLMAN high quality 2 ton electric chain hoist 220V with hook suspension
Product Overview
Features
1.All aluminum die-cast body,make hoist much lighter weight.
2.Motor with cooling fan,make electric hoist service much longer life.
3.Motor protection:with overheating protector.
4.Power supply from 220v to 690v, single voltage /dual voltage optional,control voltage 24v/36v/48v.
5.Capacities:From 500kg---25ton.
6.Emergency stop button on the push button,push down it,the motor circuit will be cut off.
7.Dual speed or single speed optional.
8.Working grade:M4.
9.G80,G100,or FEC Japan chain optional.
10.Remote control,Travel limiter,Overhead limiter,Rain cover can be added.
2.Motor with cooling fan,make electric hoist service much longer life.
3.Motor protection:with overheating protector.
4.Power supply from 220v to 690v, single voltage /dual voltage optional,control voltage 24v/36v/48v.
5.Capacities:From 500kg---25ton.
6.Emergency stop button on the push button,push down it,the motor circuit will be cut off.
7.Dual speed or single speed optional.
8.Working grade:M4.
9.G80,G100,or FEC Japan chain optional.
10.Remote control,Travel limiter,Overhead limiter,Rain cover can be added.
Technical Paramenters
Model | AMEH | ||||||||||||||||
0.25-01S | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | |||||||||
Capacity(t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | ||||||||||
Lifting Speed(m/min) | 7.2 | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 4.4 | 2.2 | ||||||||
Motor Power(kw) | 0.8 | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | ||||||||
Rotation Speed(r/min) | 1440 | ||||||||||||||||
Insulation Grade | F | ||||||||||||||||
Power Supply | 3P 220V-690V | ||||||||||||||||
Control Voltage | 24V/36V/48V | ||||||||||||||||
No.of Chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | ||||||||
Model | AMEH | ||||||||||||
03-03S | 05-02S | 7.5-03S | 10-04S | 15-06S | 20-08S | 25-10S | |||||||
Capacity(t) | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | ||||||
Lifting Speed(m/min) | 2.2 | 2.7 | 1.8 | 2.7 | 1.8 | 1.4 | 1.1 | ||||||
Motor Power(Kw) | 1.5 | 3.0 | 3.0 | 3.0×2 | 3.0×2 | 3.0×2 | 3.0×2 | ||||||
Rotation Speed(r/min) | 1440 | ||||||||||||
Insulation Grade | F | ||||||||||||
Power Supply | 3P 220V-690V | ||||||||||||
Control Voltage | 24V/36V/48V | ||||||||||||
No. of Chain | 3 | 2 | 3 | 4 | 6 | 8 | 10 | ||||||

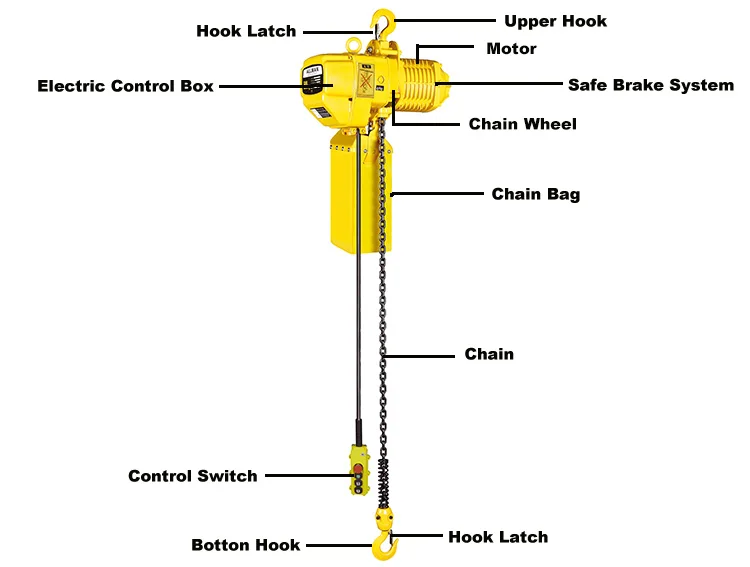

Details Images
Motor | Adopt advanced magnetic cone brake to provide reliable stopping | ||||||
Chain Wheel | Increase the number of load sheave pockets helps reliable vibrations produced by revolving polygonal sheave on the hoist's body and load chain. | ||||||
Safe Brake | Electric brake is designed for easy access and simple adjustment. It allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed. | ||||||
Electric Control Box | Upper and lower Limit Switch | The limit switch will cur off the motor circuit and prevent the damage to hoist structure and load chain when over-lifting or over-lowering happens. | |||||
Inverse phase sequence protecting device | It's the special electrical installation of controlling the circuit not work in case wiring error in the power supply. | ||||||
Contactor | Schneider/Eaton Brand | ||||||
Transformer | Available for voltage 220V, 380V, 440V etc. | ||||||
Hook & Hook Latch | High strength forged alloy steel hook with safety latch, allows 360° rotation in smooth and easy. | ||||||
Control Switch | Protection class：IP55 | ||||||
Emergency stop button | |||||||
Longer working life | |||||||
Chain | high strength FEC G80 chain, good abrasion resistance. | ||||||
Chain Bag | Light , attractive and durable. | ||||||
Product packaging
Company Profile
Nantong Allman Industry Co., Ltd is a leading exporter of lifting hoist and winch machine in China . For electric chain hoist , we have the biggest factory , can output over 5000units electric chain hoist per month . As for the electric winch , we are One of the Only two manufacturers of heavy duty electric winch , quality is the No.1 in China . Our engineers are still keeping developing more electric lifting winches like multipurpose electric winch , small electric winch to fit for different use situation. Moreover , ALLMAN is also a trustworthy supplier of other hand operated lifting tools like chain block , lever hoist , magnetic lifter, lifting clamps , girder trolley , hand pallet truck , steel wire ropes ,Aluminum and fiberglass ladders and so on .
After years of effort , we have established worldwide sales net , have many agents and distributors , products are well recognized by the market in different countries like Europe , USA , Latin America , UAE , the cooperation between our customers are keeping growing every year .
After years of effort , we have established worldwide sales net , have many agents and distributors , products are well recognized by the market in different countries like Europe , USA , Latin America , UAE , the cooperation between our customers are keeping growing every year .
Certifications
Exhibition
Contact US
FAQ
1, Q: Are you manufacturer or trade company?
A : We are a professional manufacturer of electric hoist and electric winches . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: What’s your quality guarantee?
A: “Quality is life “ . Almost of our products have CE certificate , all the products are designed and manufactured according to the international standard . Different products meet different quality standard . All the products will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .
5, Q: How long is the lead time ?
A : Samples orders with small quantity within 7 days . Bulk order around 15 days .
6, Q: Which is the nearest sea port for you ?
A : Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
7, Q: What advantages we have?
A: Rich experience: We have over 10 years experience in exporting hoisting and lifting equipment , all of our sales have been in lifting industry over 8 years , some over 10 years .
We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement .
We have our own factory , so that , no matter the electric hoist and electric winches which manufactured by ourselves , but also other related lifting and handling equipment we get from our partners . All will be re-tested again in our factory .
8, Q:How about the after sale service?
A: We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. All your
questions you are asking will be solved by our sales and engineers .
A : We are a professional manufacturer of electric hoist and electric winches . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: What’s your quality guarantee?
A: “Quality is life “ . Almost of our products have CE certificate , all the products are designed and manufactured according to the international standard . Different products meet different quality standard . All the products will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .
5, Q: How long is the lead time ?
A : Samples orders with small quantity within 7 days . Bulk order around 15 days .
6, Q: Which is the nearest sea port for you ?
A : Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
7, Q: What advantages we have?
A: Rich experience: We have over 10 years experience in exporting hoisting and lifting equipment , all of our sales have been in lifting industry over 8 years , some over 10 years .
We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement .
We have our own factory , so that , no matter the electric hoist and electric winches which manufactured by ourselves , but also other related lifting and handling equipment we get from our partners . All will be re-tested again in our factory .
8, Q:How about the after sale service?
A: We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. All your
questions you are asking will be solved by our sales and engineers .
