Product Description

Product description:



MF67 is a dynamic QR code payment terminal for small-sum consumption independently developed



by our company. It supports QR code scanning, contactless small amount password-free payment,



mobile phone NFC payment, etc. It can quickly complete payment function by communicating with



host computer via wired USB interface, or communicating with smart phone by Bluetooth, or docking



with payment platforms by wireless GPRS / WIFI. It’s widely used in convenience stores, food markets,



fast food restaurants and other small payment scenarios.



Product features:



* Can be used alone, or nested on a desktop plate as a desktop code tablet



* Support QR code master scanning, generate dynamic QR code in real time



* Support non-contact IC card, mobile phone NFC and other small transactions without PIN input



* Support voice broadcast



* Support USB wired communication, optional GPRS/ WIFI/ Bluetooth wireless communication methods

Specification

\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t

\t\t\t CPU \t\t\t	\t\t\t High performance 32-bit secure processor \t\t\t
\t\t\t Memory \t\t\t	\t\t\t Large capacity memory \t\t\t
\t\t\t Display Screen \t\t\t	\t\t\t 128*128 Dot matrix LCD, output shows dynamic QR code, NFC and transaction prompts, etc. \t\t\t
\t\t\t Keypad \t\t\t	\t\t\t 4 buttons: power key, F1, F2, F3 \t\t\t
\t\t\t NFC card reader \t\t\t	\t\t\t 13.56MHZ， support ISO14443 Type A/B, Mifare one card \t\t\t
\t\t\t Indicator light \t\t\t	\t\t\t NFC four-color status indicator changes (blue, yellow, green, red) \t\t\t
\t\t\t Voice broadcast \t\t\t	\t\t\t Support voice broadcast related transaction information \t\t\t
\t\t\t Communication \t\t\t	\t\t\t USB wired communication \t\t\t \t\t\tGPRS wireless communication (optional) \t\t\t \t\t\tWIFI wireless communication (optional) \t\t\t \t\t\tBluetooth dual mode 3.0/4.0 (optional) \t\t\t
\t\t\t Physical interface \t\t\t	\t\t\t One MICRO USB (power input, data exchange) \t\t\t
\t\t\t Battery (optional) \t\t\t	\t\t\t Inbuilt chargeable Lithium batter：3.7V 800mAH \t\t\t
\t\t\t Charge jack \t\t\t	\t\t\t Standard Micro USB interface charge \t\t\t
\t\t\t Power supply  \t\t\t	\t\t\t Input: 5V/1A \t\t\t
\t\t\t Size \t\t\t	\t\t\t 65.6mm X 88mm X 18.6mm \t\t\t
\t\t\t Certificate \t\t\t	\t\t\t QPBOC 3.0 L1 & L2 \t\t\tQR code based payment terminal secure cert. \t\t\tUnionpay dynamic QR code cert test  \t\t\t

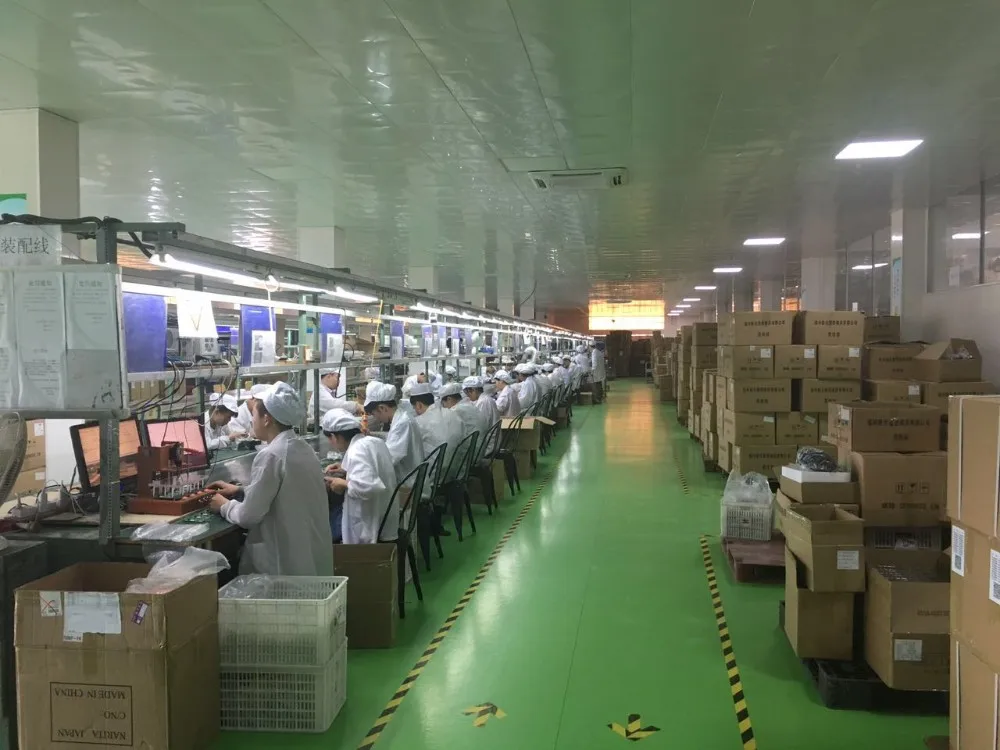

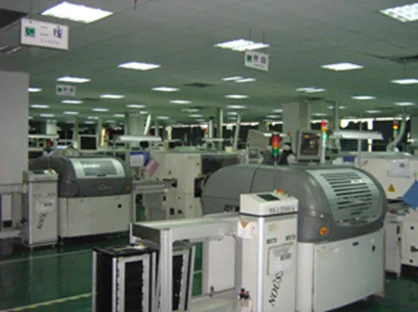

Our Company

Exhibitions

FAQ

1, Manufacturer?

We are manufacturer with import & export right, and we provide OEM/ODM service as well.



2, SDK?

We offer free SDK, you are welcome to contact us for technical support.



3, Language default?

English, or according to your request.



4, MOQ?

Not exactly, you can start with 1 pcs.



5, Free sample?

Sorry, we accept sample order but not free.



6, Lead time?

1 week for sample.

5 weeks for mass production.



7, Warranty?

One year from delivery date.



8, Payment terms?

100% in advance through T/T or Visa, Master, Western Union, Paypal…



9, Shipment terms?

By Sea, by air, or by express.

EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP, Negotiable.



10, After-sales service?

We view great service as part of our product. By minimal response time, customized solutions, and a deep understanding of various industries we enable your organization to benefit fully by gaining competitive value to your product.
