Гарантия один год скоростное вращение 6-30 об/мин буровая установка для строительных свай вращающаяся
- Категории: >>>
- Поставщик: APIE,FOUNDATION,EQUIPMENT(CHINA),LIMITED
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
Performance Parameter | Unit | Value |
Max. torque | kN.m | 125 |
Max. drilling diameter | mm | 1300/1500 |
Max. drilling depth | m | 37/43 |
Working speed | rpm | 6~30 |
Max. cylinder pressure | kN | 100 |
Max. hoist capacity | kN | 150 |
Main winch pull force | kN | 110 |
Main winch speed | m/min | 78 |
Auxiliary winch pull force | kN | 60 |
Auxiliary winch speed | m/min | 60 |
Max. cylinder stroke | mm | 3200 |
Mast side raking | ° | ±3 |
Mast raking forward | ° | 5 |
System pressure | mpa | 34.3 |
Pilot pressure | mpa | 3.9 |
Max. walking speed | km/h | 3 |
Max. pull force | kN | 220 |
Operating height | mm | 15480 |
Operating width | mm | 3000 |
Transport height | mm | 3645 |
Transport width | mm | 3000 |
Transport length | mm | 14035 |
Total weight | t | 35 |
Engine performance | ||||||
Engine type | Cummins QSB7 | |||||
Engine form | 6 cylinder line, turbocharged, air - to - air cooling, high - pressure common rail, electronic control direct injection | |||||
Cylinder number*cylinder diameter*stroke | mm | 6×107×124 | ||||
Displacement | L | 6.7 | ||||
Rated power | kw/rpm | 124/2050 | ||||
Max. torque | N.m/rpm | 658/1500 | ||||
U．S．EPA | Tier3 | |||||
Kelly bar | ||||
Model | Friction | Interlocking | ||
Outer diameter | φ355 | φ355 | ||
Layers*Length of each section | 5×9.5 | 4×10 | ||
Max.depth | 43 | 37 | ||

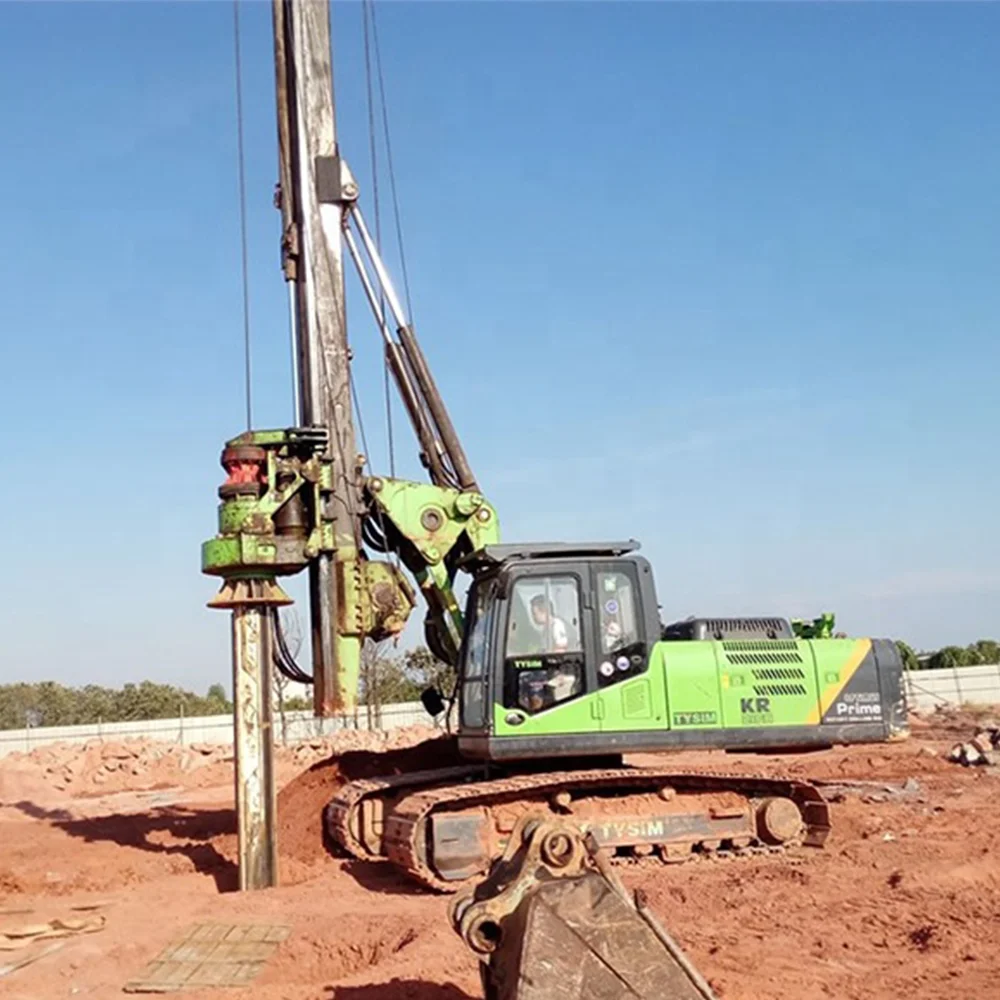

Products Description
Company Profile

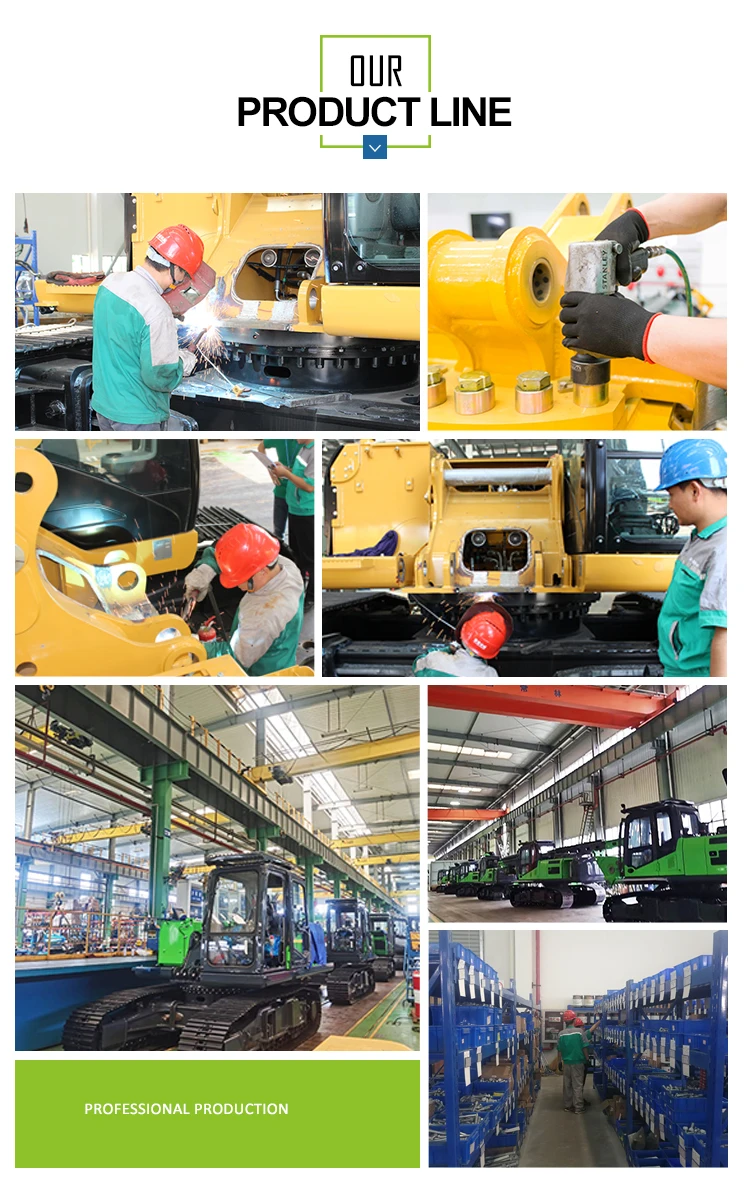

Our product line
Product packaging
Our exhibition
Our customers
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
TYSIM is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent. TYSIM core team is instituted by the senior researchers.
5: What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language:Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
6: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
TYSIM is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary
drilling rig and obtains more than 40 pile driving products patent. TYSIM core team is instituted by the senior researchers.
5: What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language:Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
6: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
