Профессиональное интеллектуальное оборудование для прямой трансляции 15 6 дюйма 10 точек касания настольный потоковый экран в реальном времени устройство
- Категории: TV Receivers & Accessories >>>
- Поставщик: Sichuan,Jingchuang,Pingcai,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

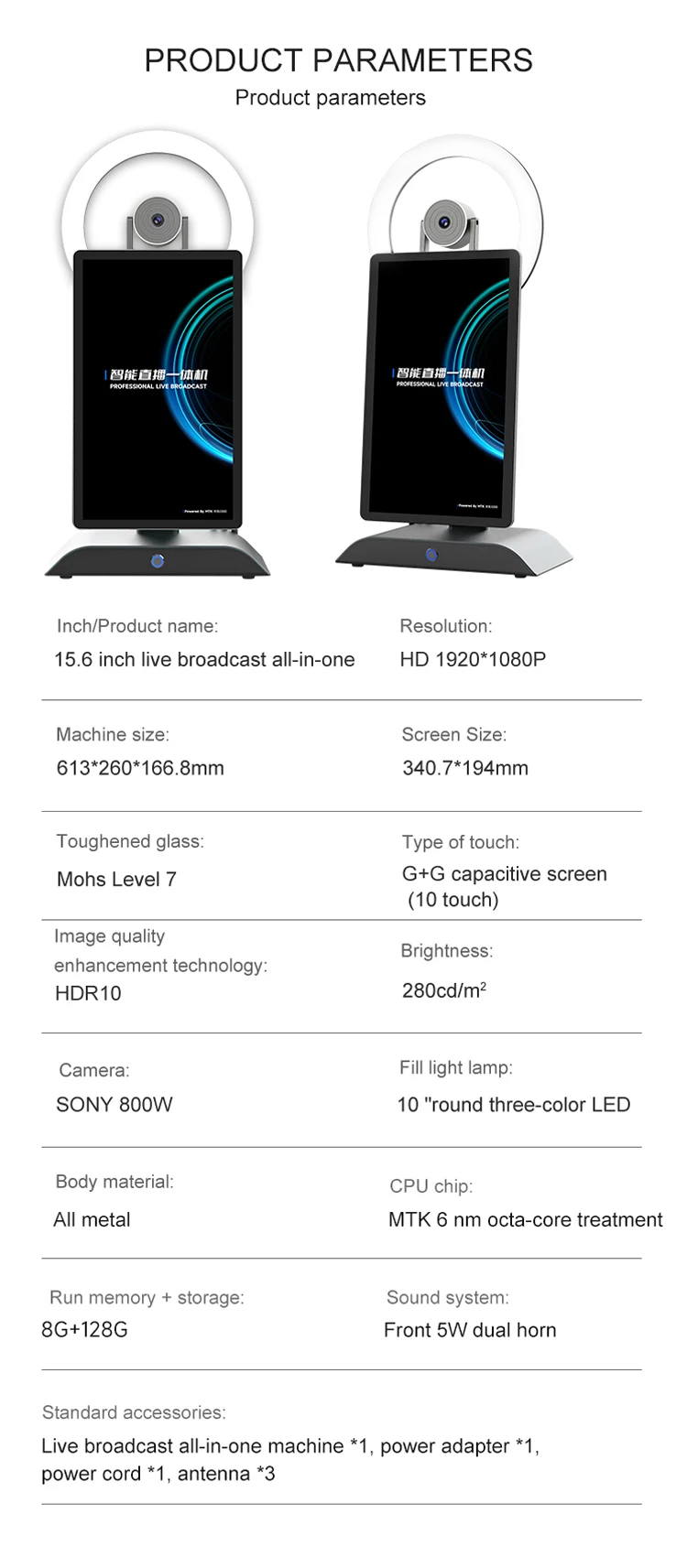

Product Paramenters
Product Name | Desktop All In One Live Broadcast Machine / Equipment | |
Display information | ||
Size | 15.6 inch | |
Backlight Type | DLED | |
Display Type | 2D | |
Effective display area | 340.7 * 194 mm | |
Brightness | 280-450cd/㎡ (Brightness can be customized) | |
Screen Ratio | 16:9 | |
physical Resolution | 1080*1920 FHD | |
Ratio contrast | 1400：1（Typ.）transmission | |
Visual Angle (horizontal/vertical) | 178°/178° | |
Response time | 5ms | |
Refresh | 60Hz | |
Audio output power | 8Ω5W x2 | |
Touch characteristic | ||
Touch the specifications | Capacitive touch screen | |
glass | Explosion-proof Tempered glass | |
Touch Points | 10 Touch Points | |
Touch screen sensing method | Fingers or other non-transparent touch-sensitive media | |
Mechanical specification parameters | ||
The net weight | 3 kg | |
30Gross weight | 5.5 kg | |
Bare machine outline size (L x W x H) | 613*166.8*260 mm | |
Shell color (face frame/back shell) | silver /Customized | |
To protect the glass | Toughened glass/level 7 earthquake resistant | |
Type of installation | Desktop , portable | |
The environment | ||
Working temperature | -10℃~55℃ | |
Working humidity | 10%~90%(No condensation) | |
Storage temperature | -20℃~60℃ | |
Store humidity | 10%~90%(No condensation) | |
Using lifetime | ≧50000 hrs | |
Android System parameter | ||
Android System | Android 6.0/7.1 and other Version for optional | |
Android motherboard type | AMR A20 (can be upgraded to AMR MSTAR358/RK3288) | |
Processor | Dual-core max 1.2GB (4 Core ,1.5GHz/4 core,1.8GHz for optional) | |
WIFI | 2.4G | |
Bluetooth | Support | |
standard memory | 8GB RAM，1288GB SSD | |
Configuration upgrade option | 1GB RAM，16GB ROM or 2GB RAM，16GB ROM（max is 128GB ROM） | |
Picture | JPEG、BMP、PNG | |
Audio | MP3,WVA,ACC,AC3,PCM,COOK,MP2 | |
Video | MPEG‐1/2,MPEG‐4 SP/ASP,DivX,Xvid,MJPEG,H.264,H.263/H.264,HEVC,RV30/RV40 | |
Windows System for option | ||
Processor | Intel I3/I5/I7 for optional | |
Main frequency | 2.4GHz | |
Chipset | Intel(R) 7 Series Chipset Family Mobile | |
Memory | 4G | |
Hard disk | Hard 128G | |
Graphics card | Core HD Graphics 3000 | |
Sound Card | Onboard Realtek ALC622 HD | |
WIFI | 2.4G | |
Maximum resolution | 1920*1080 | |

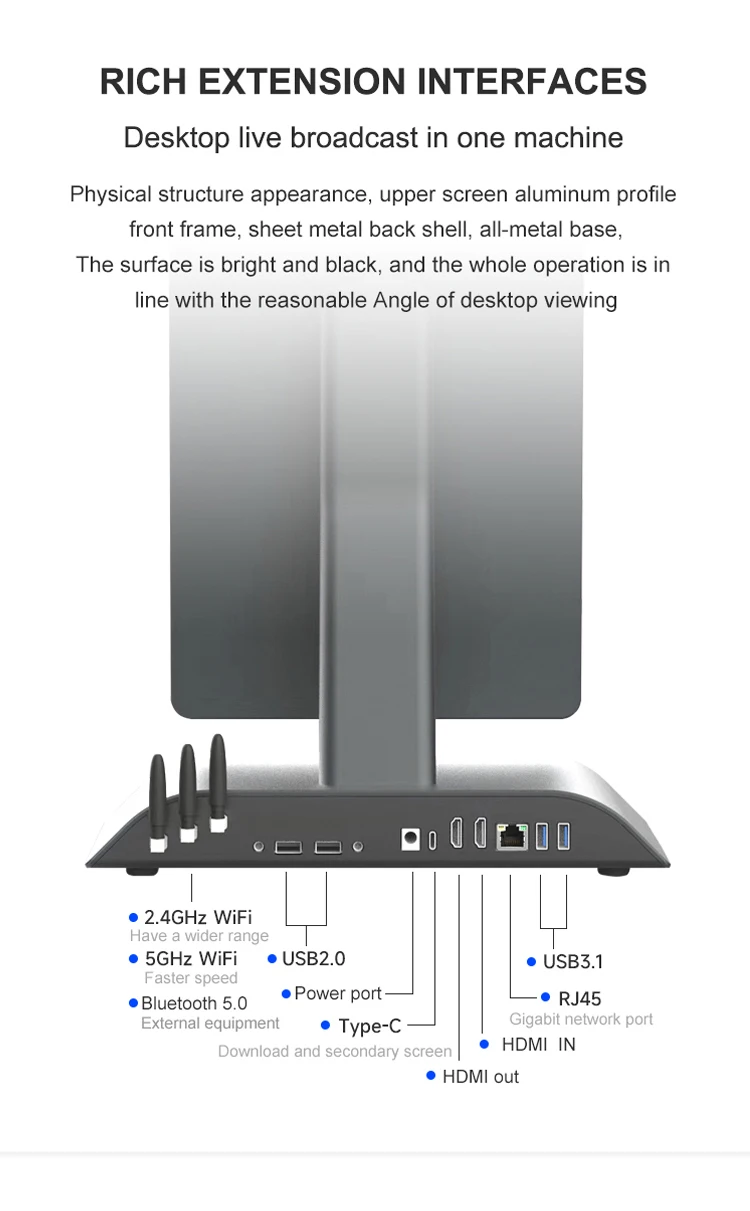

Input Port | 1*LAN, 3*USB3.0, 3*USB2.0, 1*MIC-IN | |
Ouput Port | 1*HDMI, 1*VGA, 1*LINE-OUT | |
Product Details
Company Profile
Recommend Products
Why Choose Us
FAQ
Q1.Could you introduce your company?
A : We are a professional provider of business display intelligent terminal solutions integrating industry and trade. In addition to providing you with hardware equipment, we can also provide you with software technology and resources.
A : We are a professional provider of business display intelligent terminal solutions integrating industry and trade. In addition to providing you with hardware equipment, we can also provide you with software technology and resources.
Q2.What is your products warranty and your after-sales service?
A : Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system certification, China Compulsory Certification(CCC), CE, RoHS, and other certifications.
A : Our company is a certified national high-tech enterprise. Our products have passed ISO9001 quality management system certification, China Compulsory Certification(CCC), CE, RoHS, and other certifications.
Q3.What payment method does your company accept?
A : We accept most payment methods and give preference to wire transfer, Alipay.
A : We accept most payment methods and give preference to wire transfer, Alipay.
Q4.Could you customize the product for me?
A : Our company supports customization of LOGO, SDK and PCBA, and provides teaching video services. If you are interested in customizing more products, please contact our sales manager.
A : Our company supports customization of LOGO, SDK and PCBA, and provides teaching video services. If you are interested in customizing more products, please contact our sales manager.
Q5.What is your modes of transportation in logistics? What’s the delivery charge and delivery date?
A : Our transportation methods mainly include express delivery, sea transportation and air transportation. The delivery cost is calculated according to your address and quantity. If we have inventory, all products can be delivered within 7-10 days. If you have any customization requirements, please contact us for confirmation. Our strong R&D team can meet your special needs in a timely manner.
A : Our transportation methods mainly include express delivery, sea transportation and air transportation. The delivery cost is calculated according to your address and quantity. If we have inventory, all products can be delivered within 7-10 days. If you have any customization requirements, please contact us for confirmation. Our strong R&D team can meet your special needs in a timely manner.
