Products Description












Air Blower Features


1). Positive displacement blower, stable pressure and capacity

2). Three lobe type roots blower, high efficiency, energy saving

3). Good sealing treatment, oil free, no oil pollution to conveying medium.

4). lmported accessories in high quality, ensuring the long service life of whole set rootsblower.

 5) Each size roots blower has in storage, short delivery time is available

6). Both whole set roots blower and bare shaft blower can be provided.

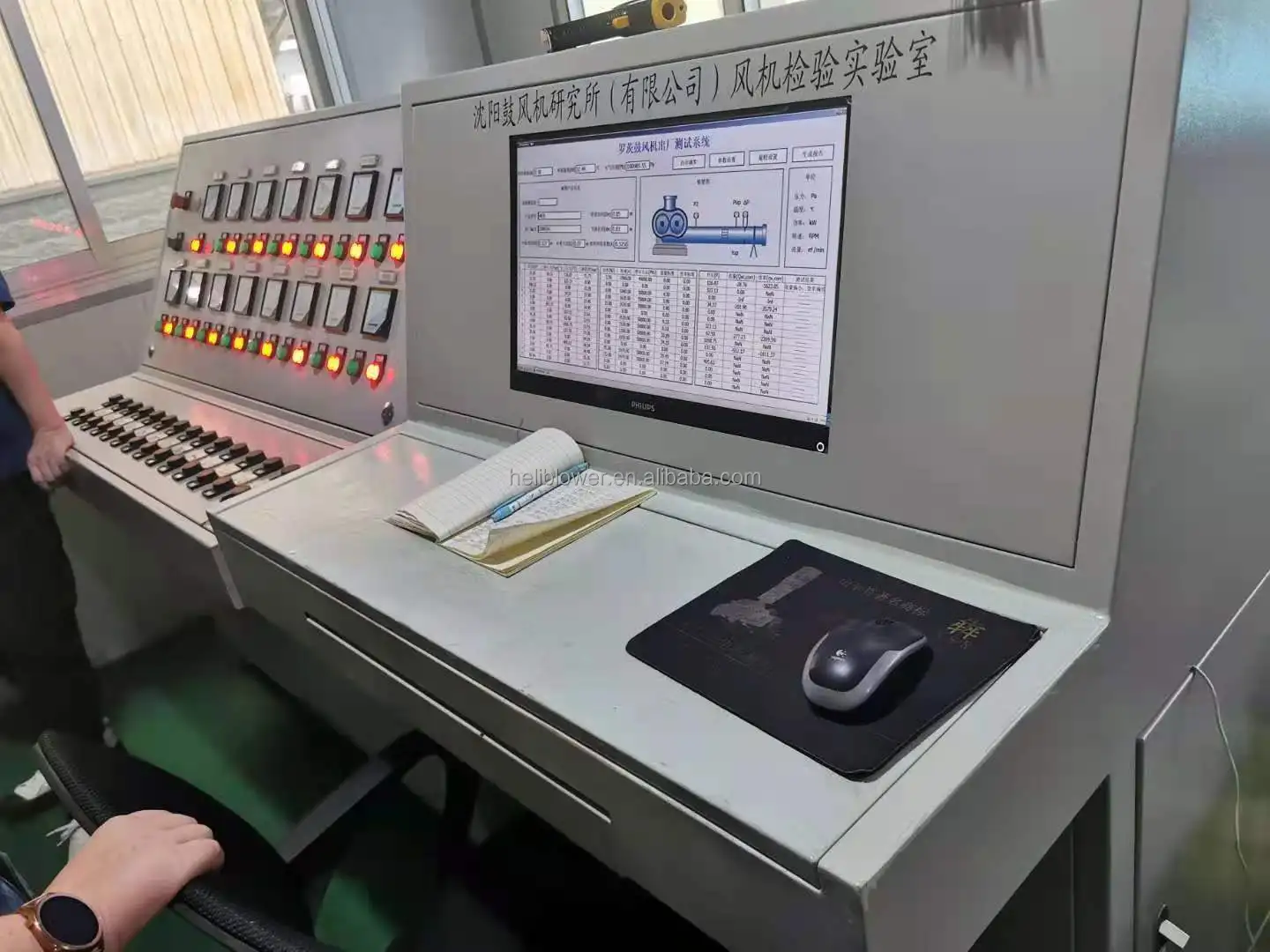

7). Every roots blower has been tested before delivery, each one of them can workefficiently.

8). Wide range of pressure rise and flow rate.

9) Extremely compact, easy installation, low noise, improved efficiecny






Technical Specification









































































Model




Discharge pressure




Power




Speed

(RPM)




Air volume

(M3/min)




Installation dimension



HLSR 50


9.8 KPA - 98 KPA


0.75 KW -5.5 KW


1100-2120


0.49-2.48


1360*350*850 MM


HLSR 65


9.8 KPA - 98 KPA


0.75 KW -7.5 KW


1110-2130


0.76-3.64


1450*400*950 MM


HLSR 80


9.8 KPA - 98 KPA


2.2 KW - 11 KW


1140-1900


2.07-5.43


1800*480*1200MM


HLSR 100


9.8 KPA - 98 KPA


3 KW - 18.5 KW


1060-1980


2.94-9.07


2000*580*1300MM


HLSR 125


9.8 KPA - 98 KPA


4 KW - 30 KW


980-1850


5.04-12.48


2300*760*1750MM


HLSR 150


9.8 KPA - 98 KPA


7.5 KW - 55 KW


810-1730


10.39-27.05


2850*760*1750MM


HLSR 200


9.8 KPA - 98 KPA


18.5 KW - 110KW


810-1480


26.35-59.20


3400*980*2100MM

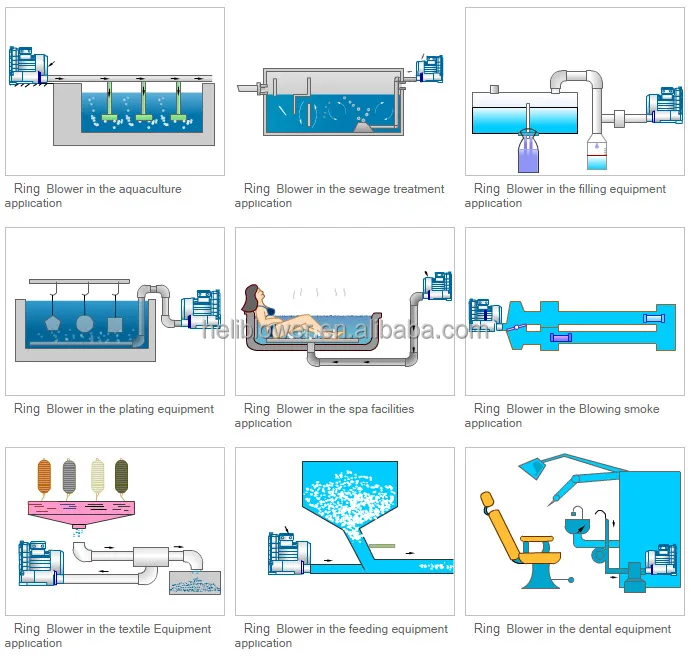

Application











1.Aquaculture
2.Sewage treatment/ Effluent Treatment & Sludge Management
3.Conventional anaerobic & aerobic systems
4.Chemical industry
5.Mining
6.Solid Waste Management Bio gas plants
7.Engineered landfills
8.Printing and paper feeding
9.Electrical transportation
10.Pneumatic conveying
11.Pneumatic transport
12.Air Pollution Control, Noise Abatement & Ventilation Wet scrubbers.
13.Vacuum packaging
14.Part demolding

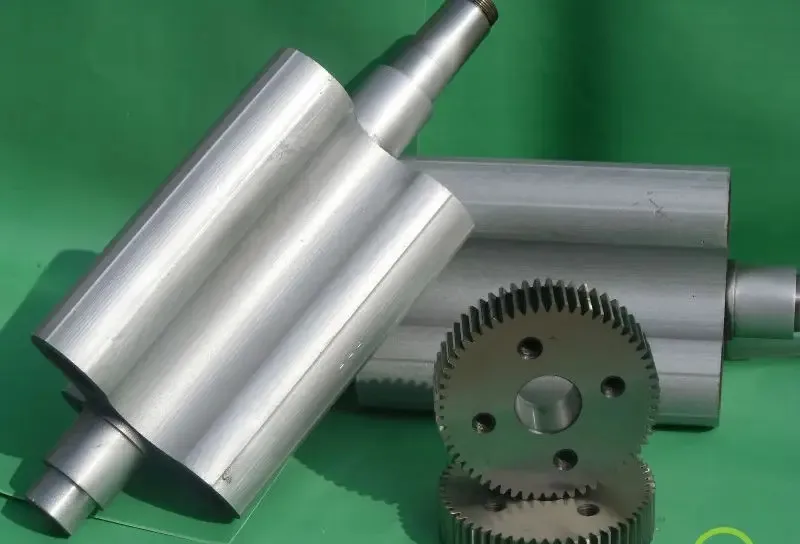

Impeller are three lobes.
By adoption of an unique profile of impeller, the clearance between the impeller can be held to be constant, which makes the efficiency even higher.

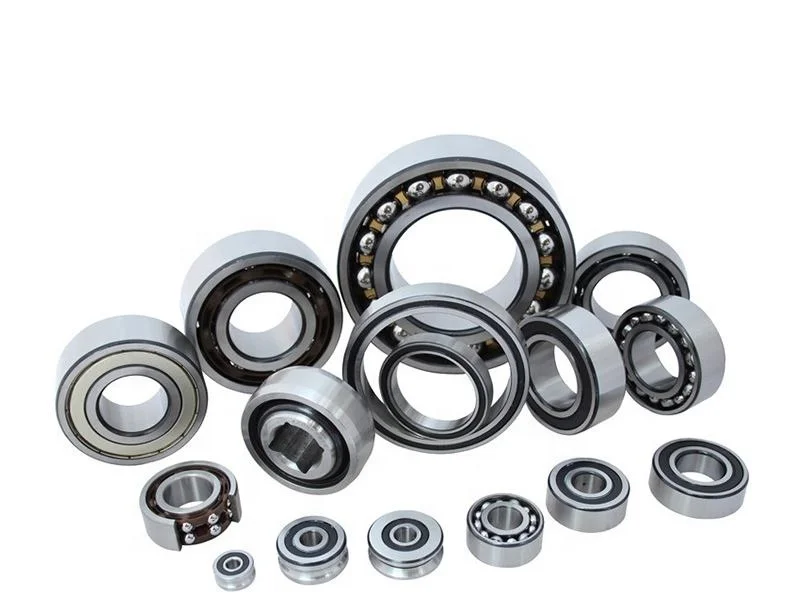

Advanced SKF driving gears are adopted but only to extend the use life but also to make noise lower.

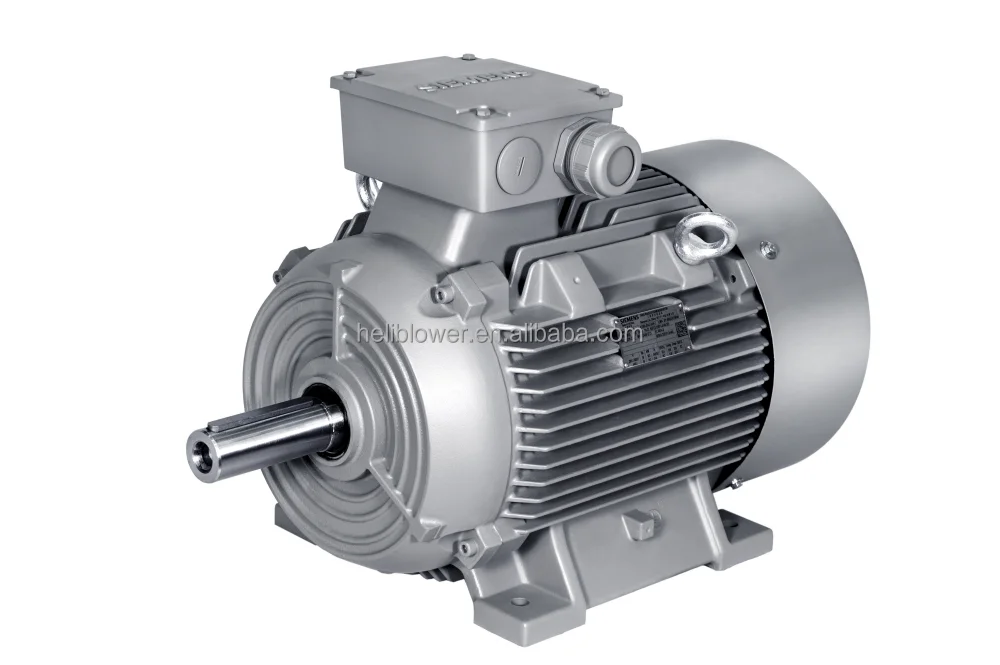

Copper wire motor
High power

Low noise, long service life

stable performance

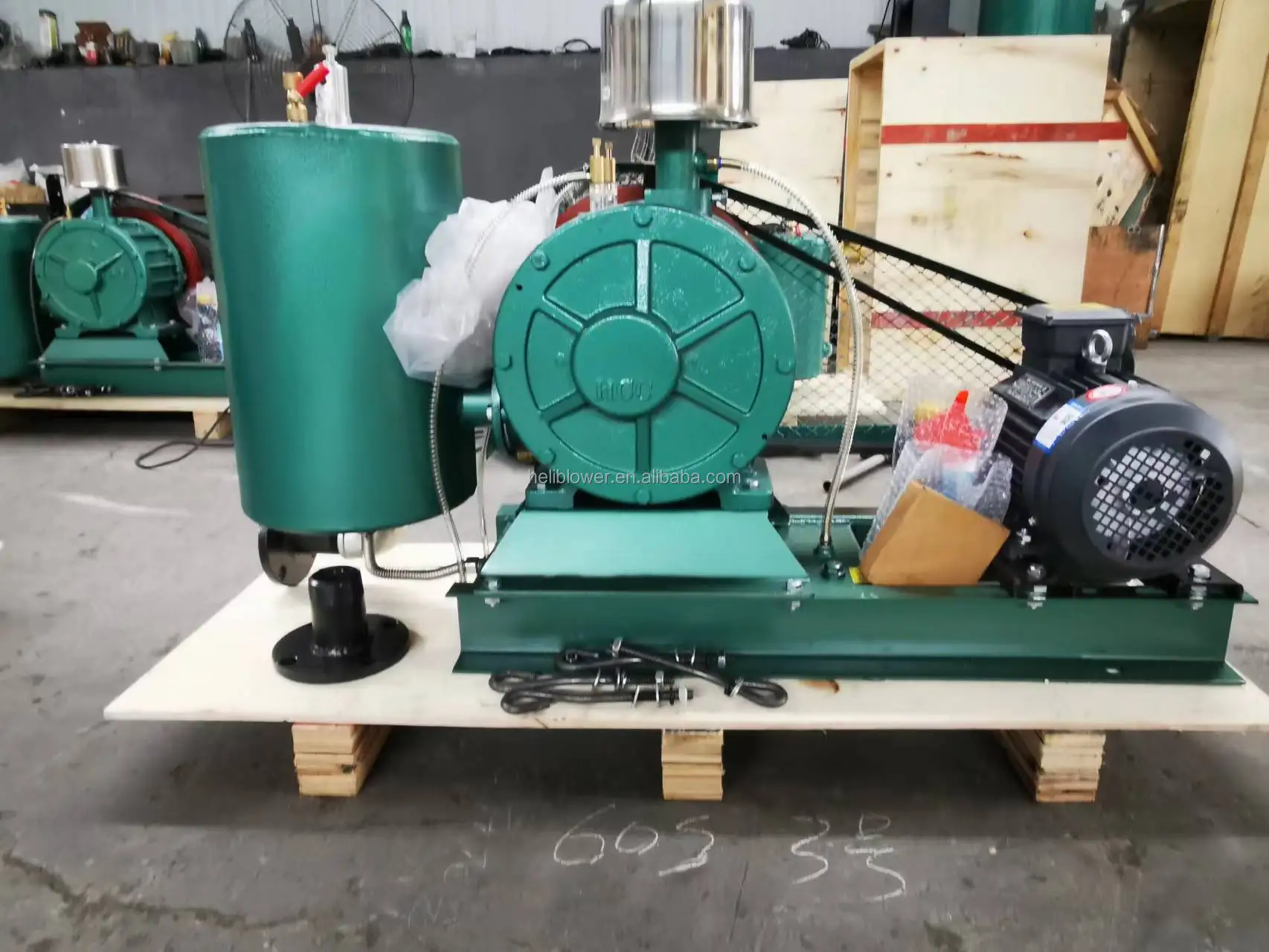

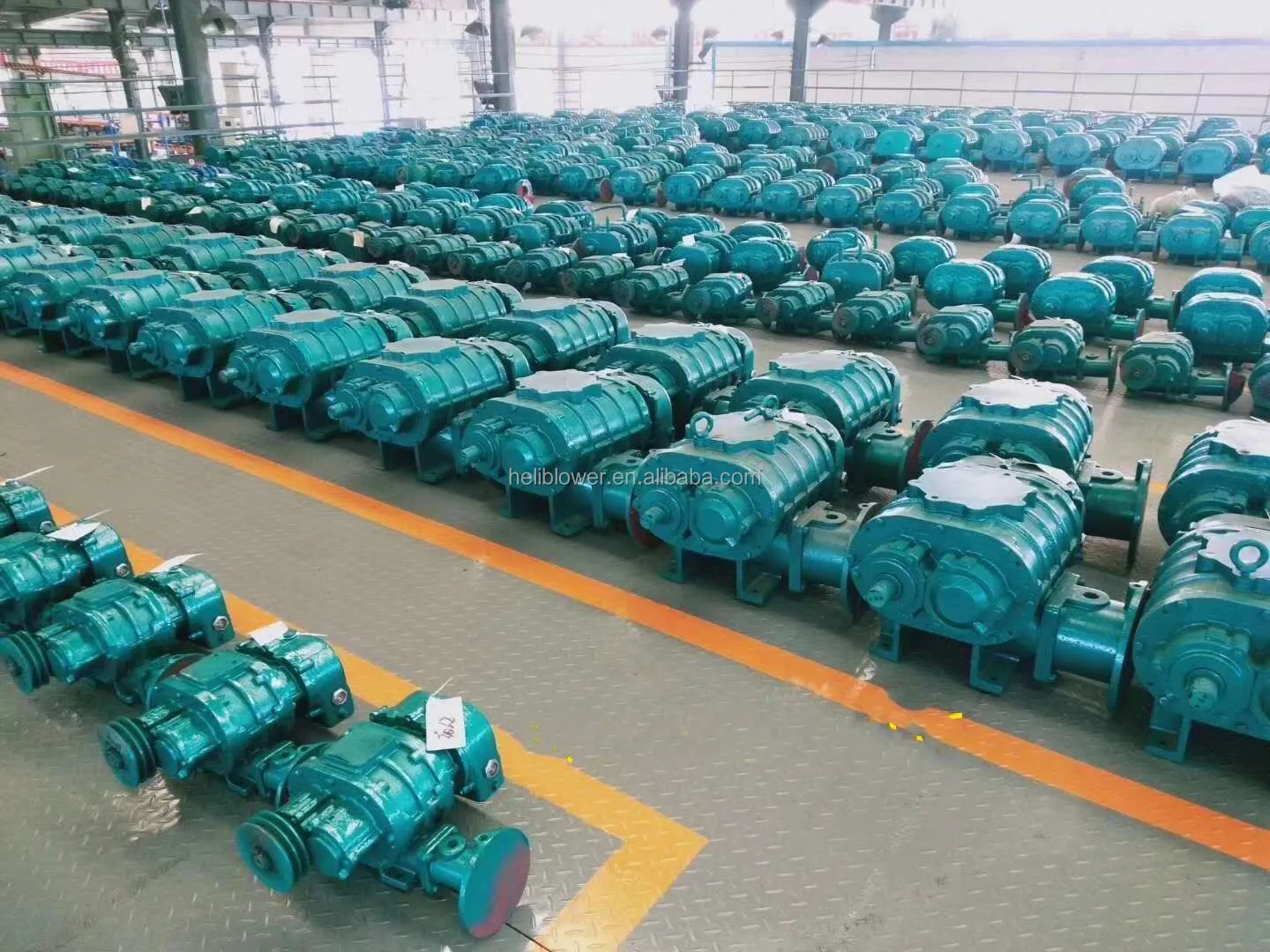

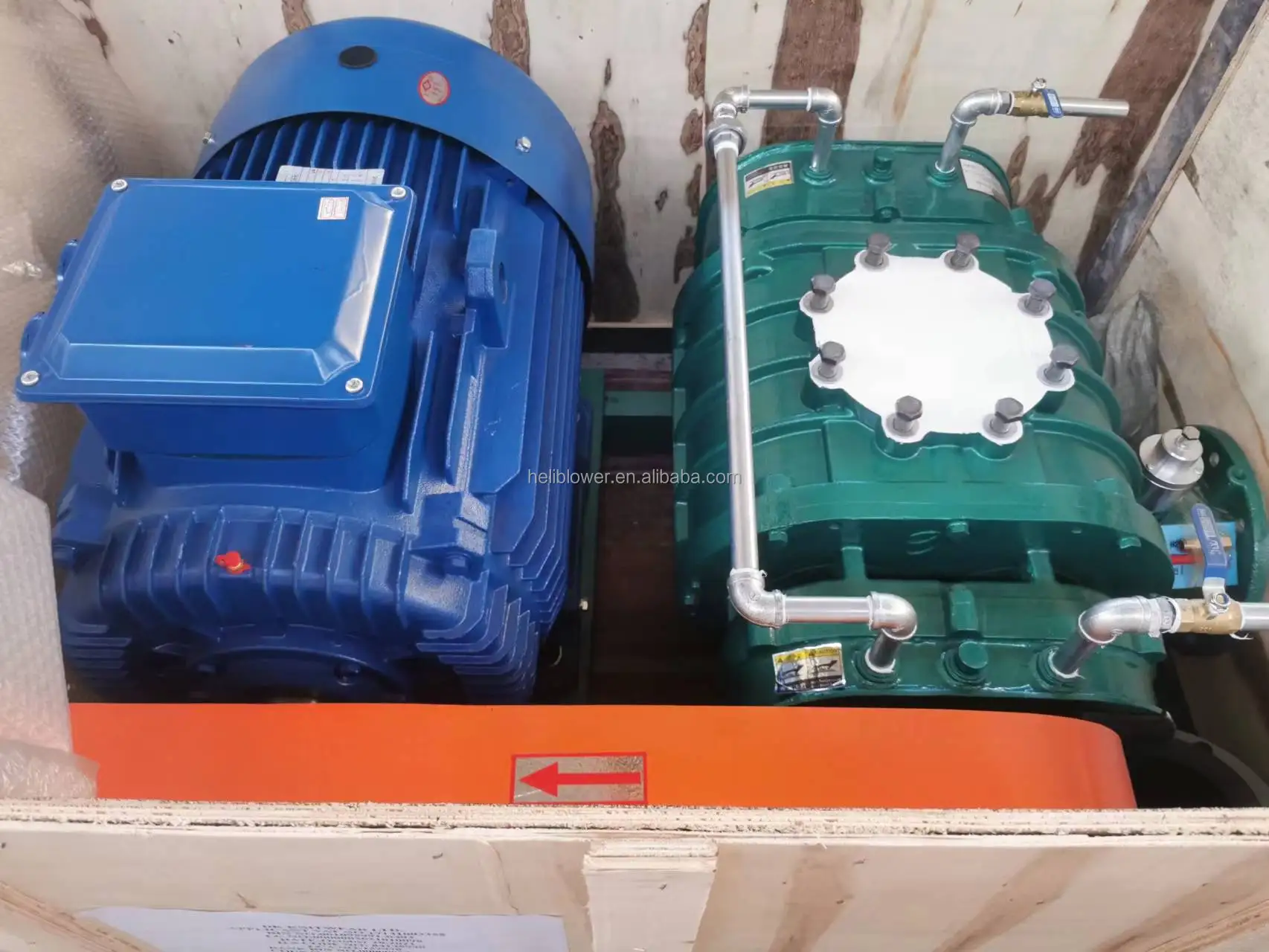

Packing&Delivery
















Project Case

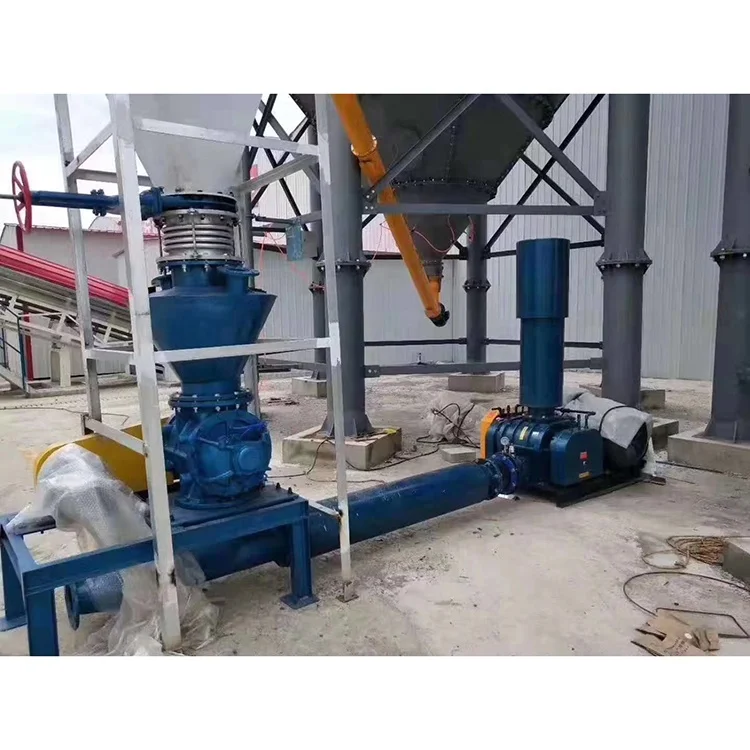

Power plant fly ash transportation

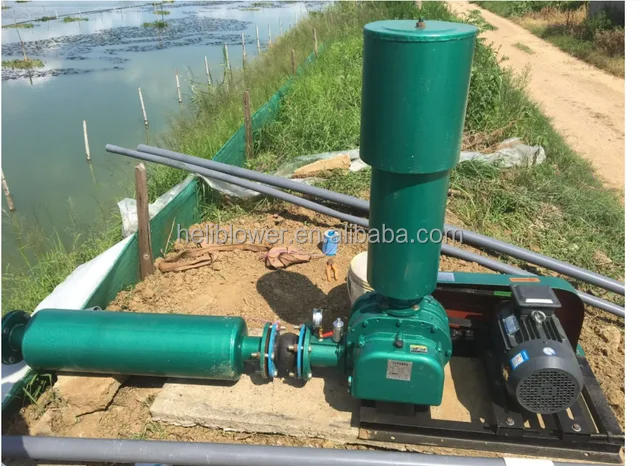

Aquaculture

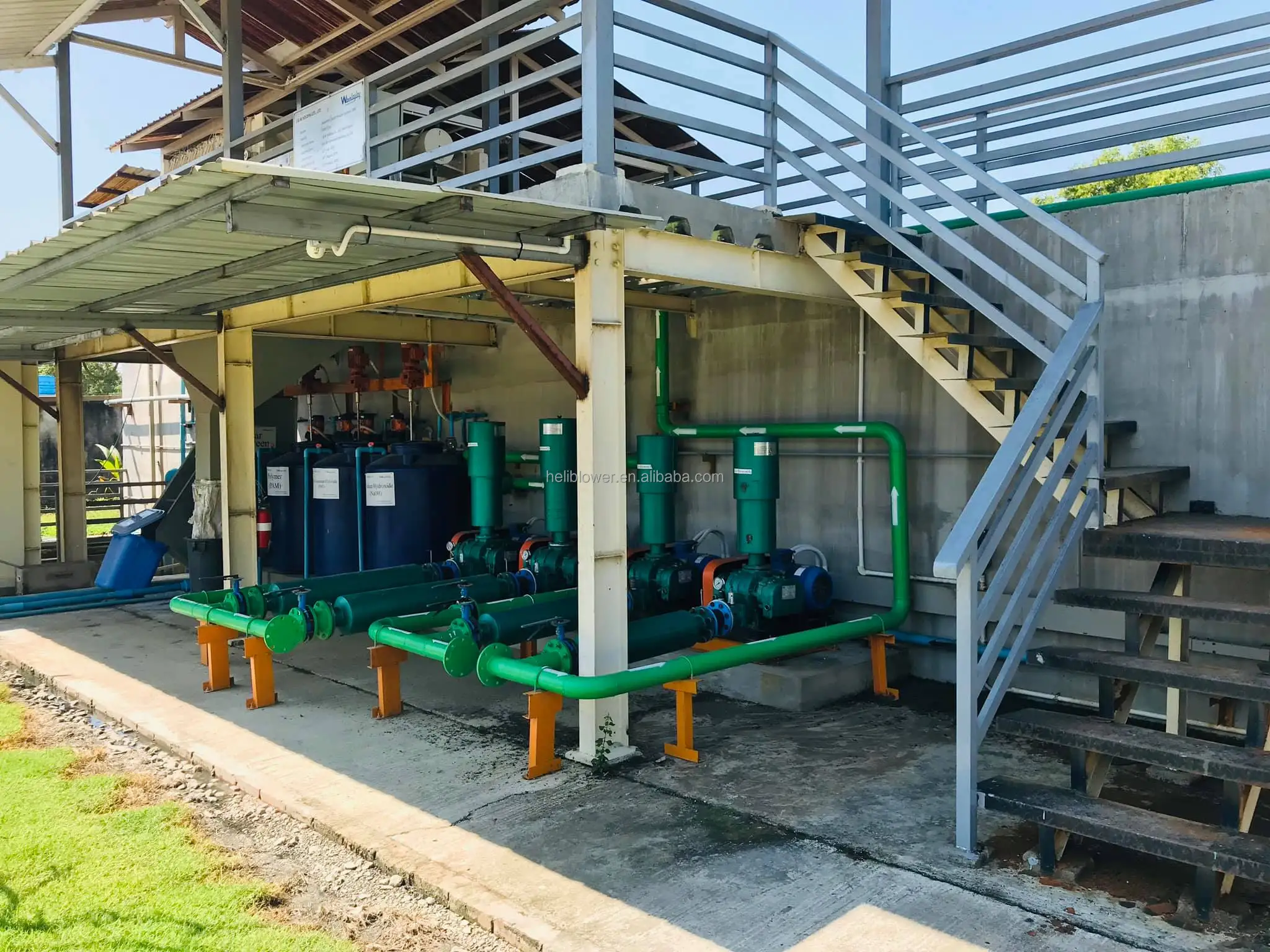

wastewater treatment

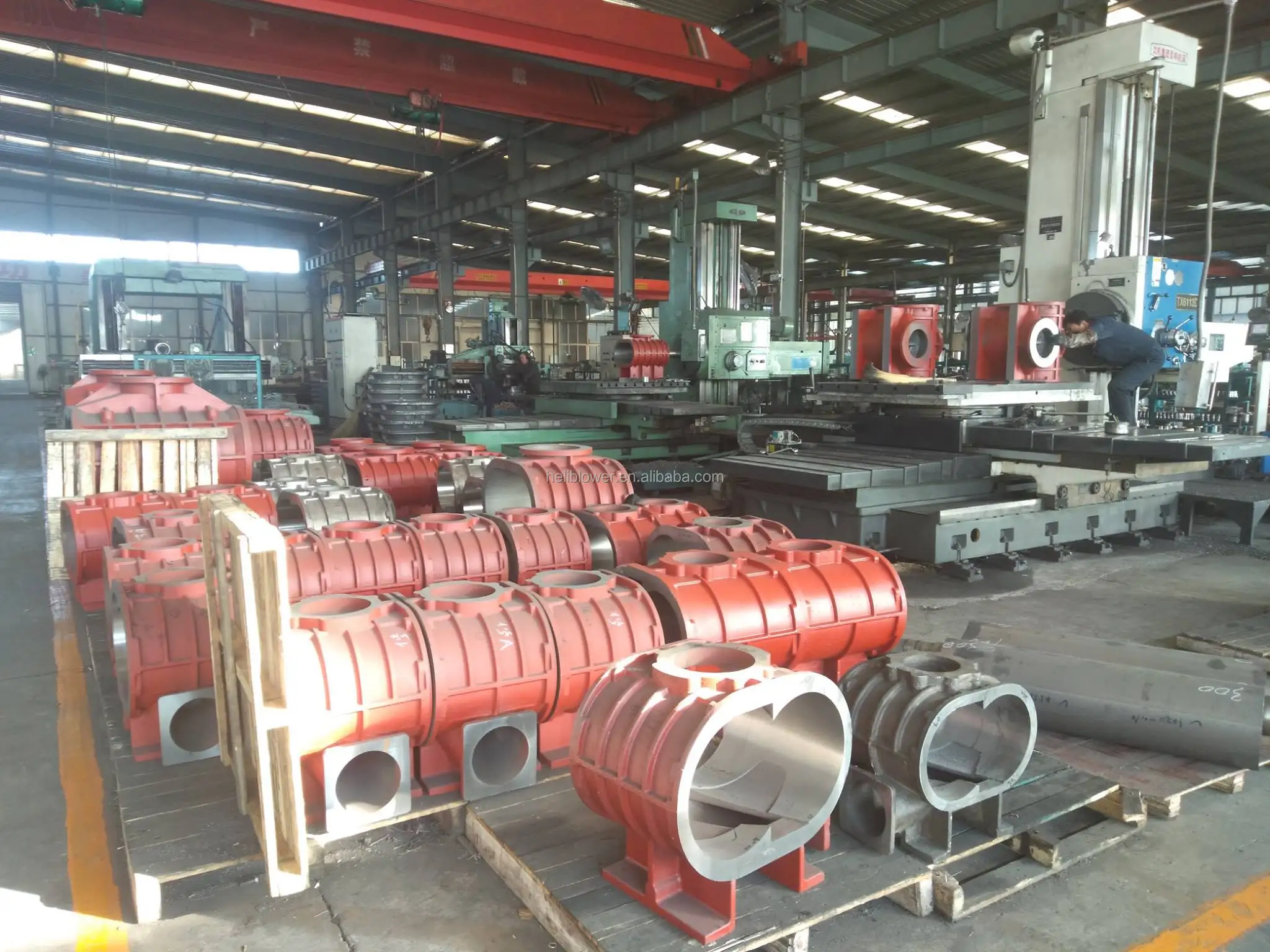

Company Profile







Shandong Heli Machinery Co., Ltd is specialized in the research, development, production and sales of roots blower,biogas blower,roots vacuum pump. They're widely used by clients in more than 20 countries and regions. Our products are
applied in aquaculture, Slaughtering sewage treatment plants, steel mills, power plants, paper mills.Chemical Plant.
Welcome to be our distributor and partner.

















































FAQ







Q1: What's your business range?
A: We manufacture roots blower,biogas blower, roots vacuum pump.

Q2: May I visit your factory?
A: Of course, our factory is located in Shandong, welcome your arrival.

Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales,returns, claims etc.

Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
