Product Description

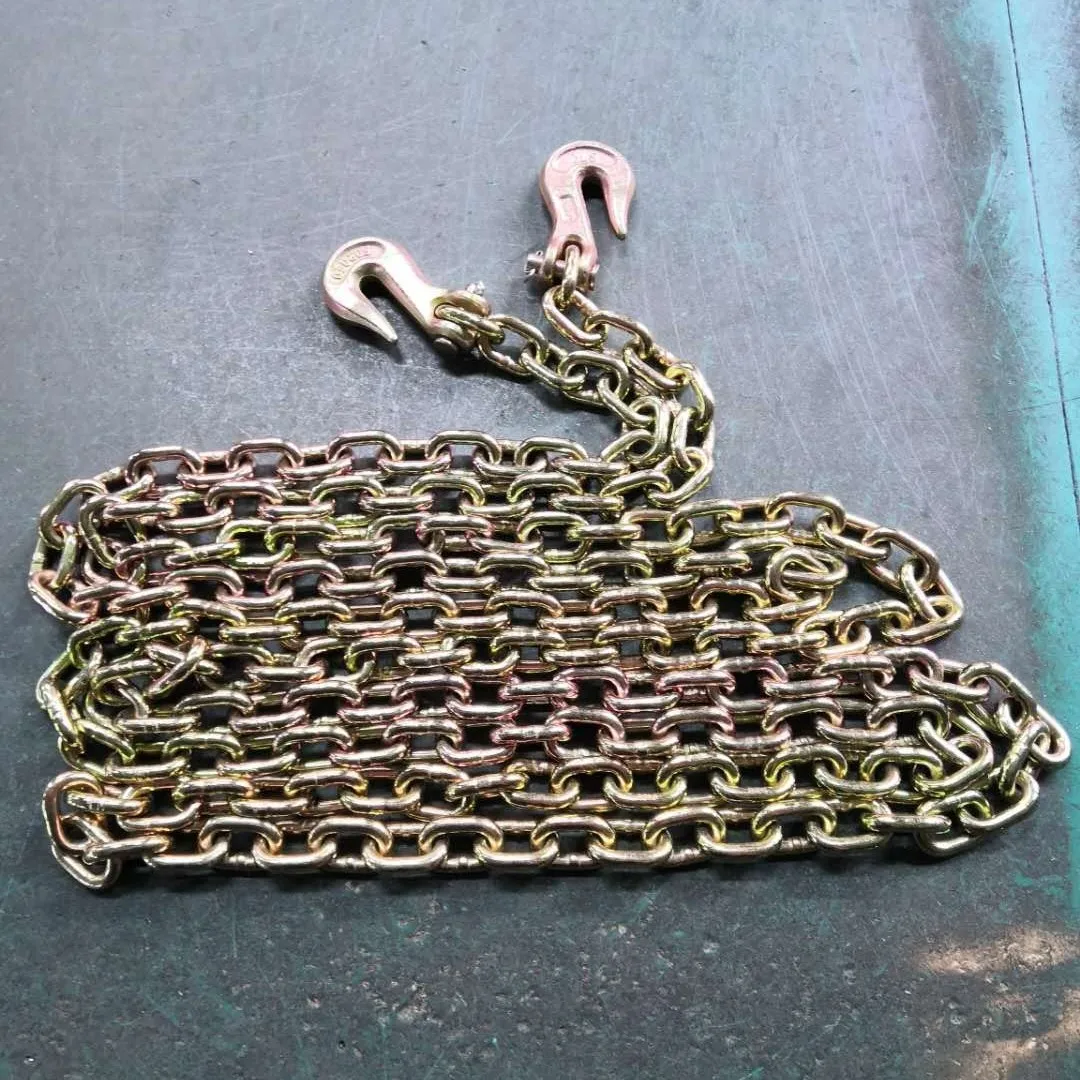

Heavy duty Grade 70 Transport Chain
is made using high-strength, low-alloy carbon steel and coated with a yellow zinc chromate finish for corrosion protection and quick identification as grade 70 tie down chains. The high quality, standard link chain is heat-treated, and strength tested for superior quality.

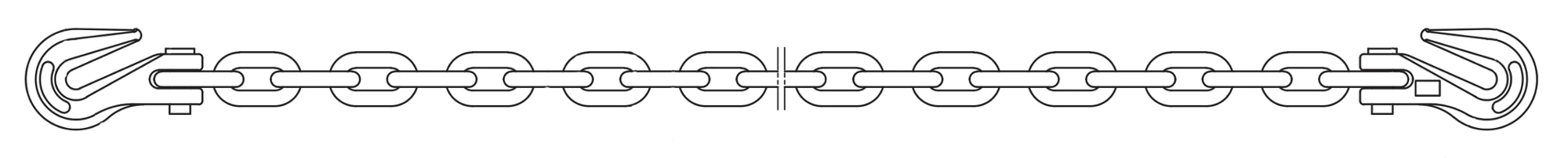

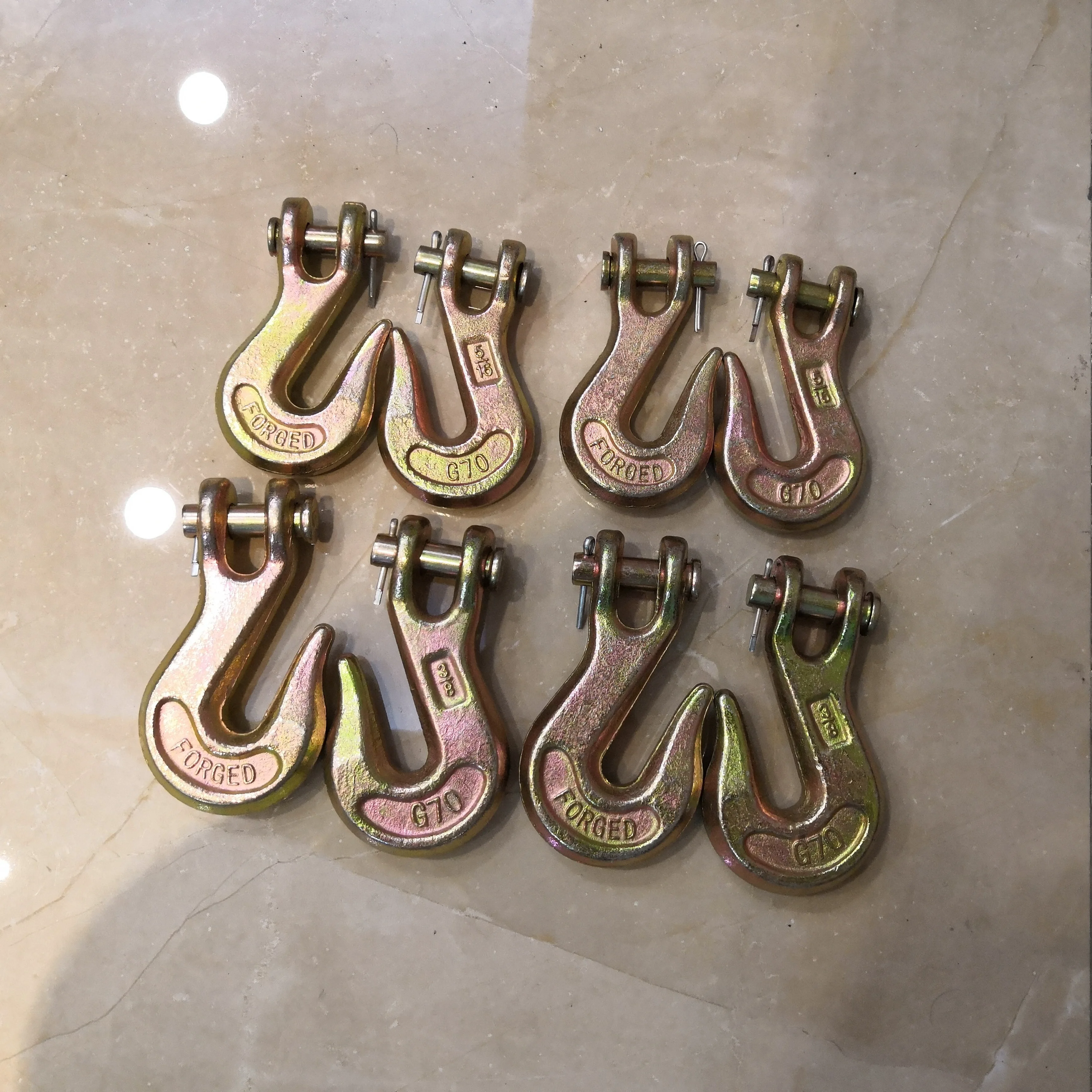

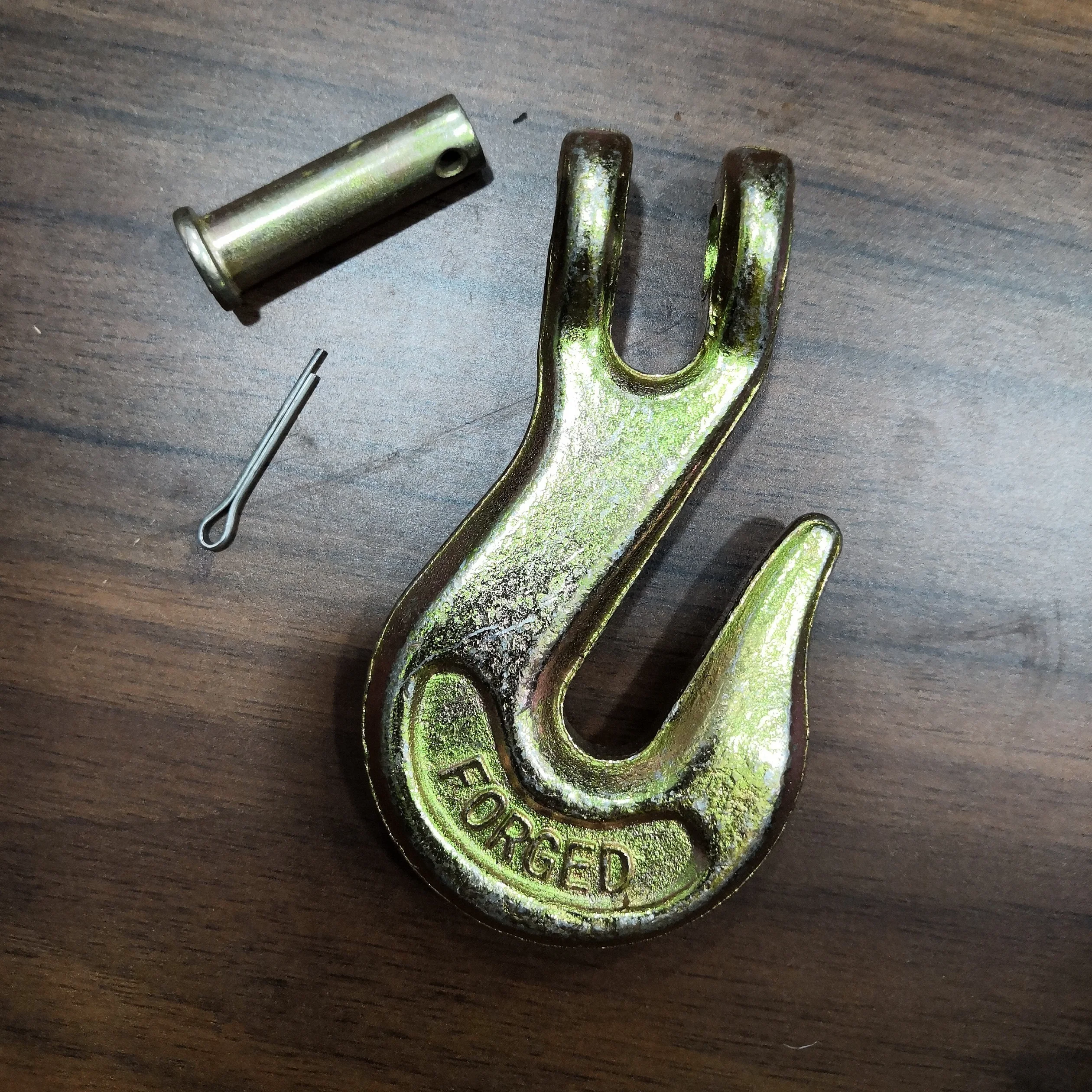

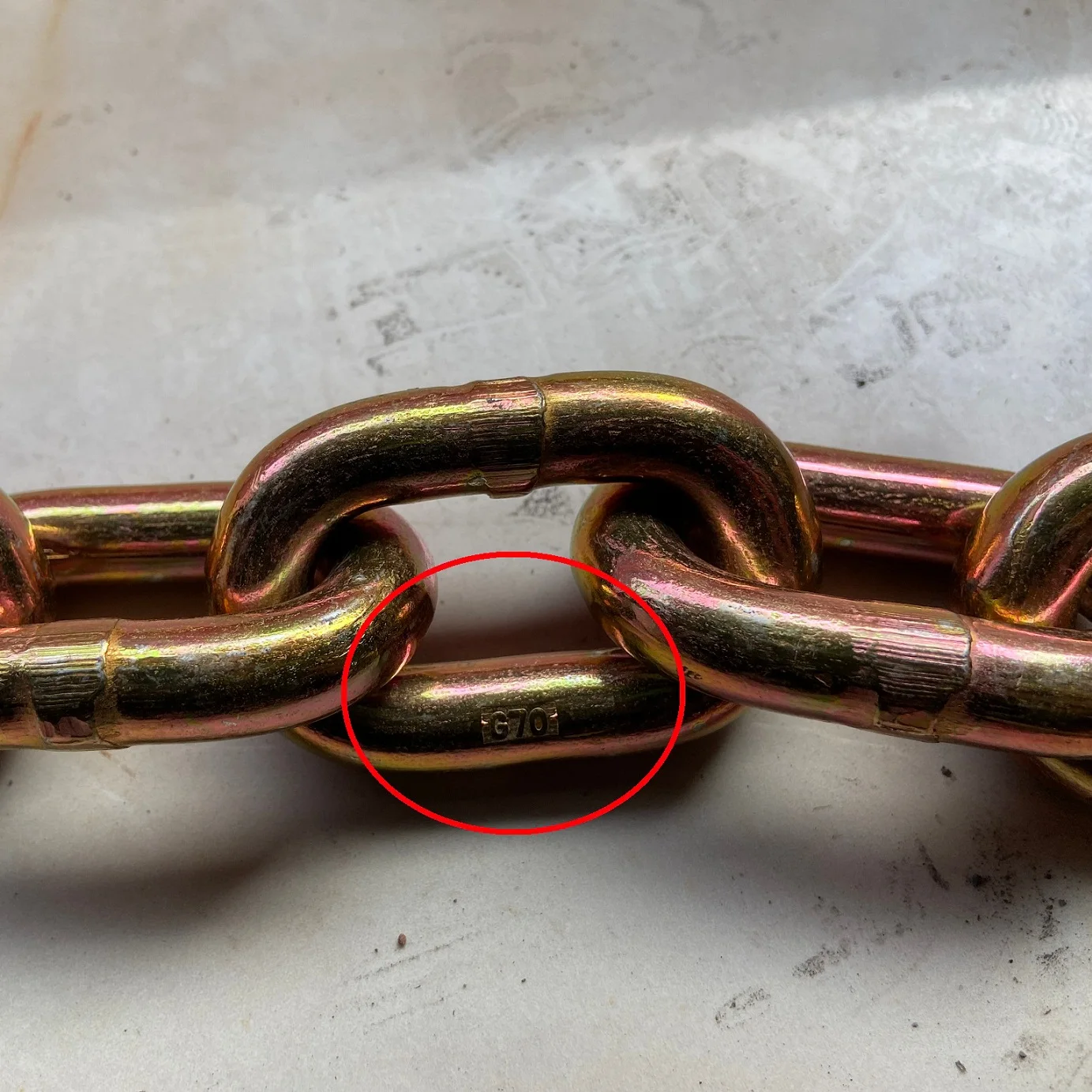

All our grade 70 chains are embossed with the proper markings to meet NACM standards. Fitted with forged carbon steel clevis grab hooks attached at both ends.


· Grade 70 Transport Chain is used for load securement and binding applications designed specifically to provide a light, yet strong chain for binding, tie-downs, towing and construction use. Yellow Zinc is induction heat treated, the chain meets all requirements set by the Department of Transportation (DOT), CCMTA & CVSA for truck tie-down use.

· Grade 70 Chain is used in the following industries: Agriculture & Forestry, Construction, Bridge Builders, Highway and Street, Military, Transportation & Utilities - Power, Water, Sewer & Pipe.
G70 binder chain is NOT TO BE USED FOR for OVERHEAD LIFTING.




    SIZE (IN-MM)
WLL(LBS)
PITCH(MM)
INSIDE WIDTH (MM)
BREAKING FORCE(LBS/KN)
1/4"-7
3150
31.5
9.8
12600/56
5/16"-8
4700
32.8
11.2
18800/83.6
3/8"-10
6600
35
14
26400/117.4
7/16"-11
8750
41.6
16.6
35000/155.4
1/2"-13
11300
45.5
18.2
45200/200.8
5/8"-16
15800
56
20
63200/280.8
3/4"-20
24700
70
25
98800/439.2

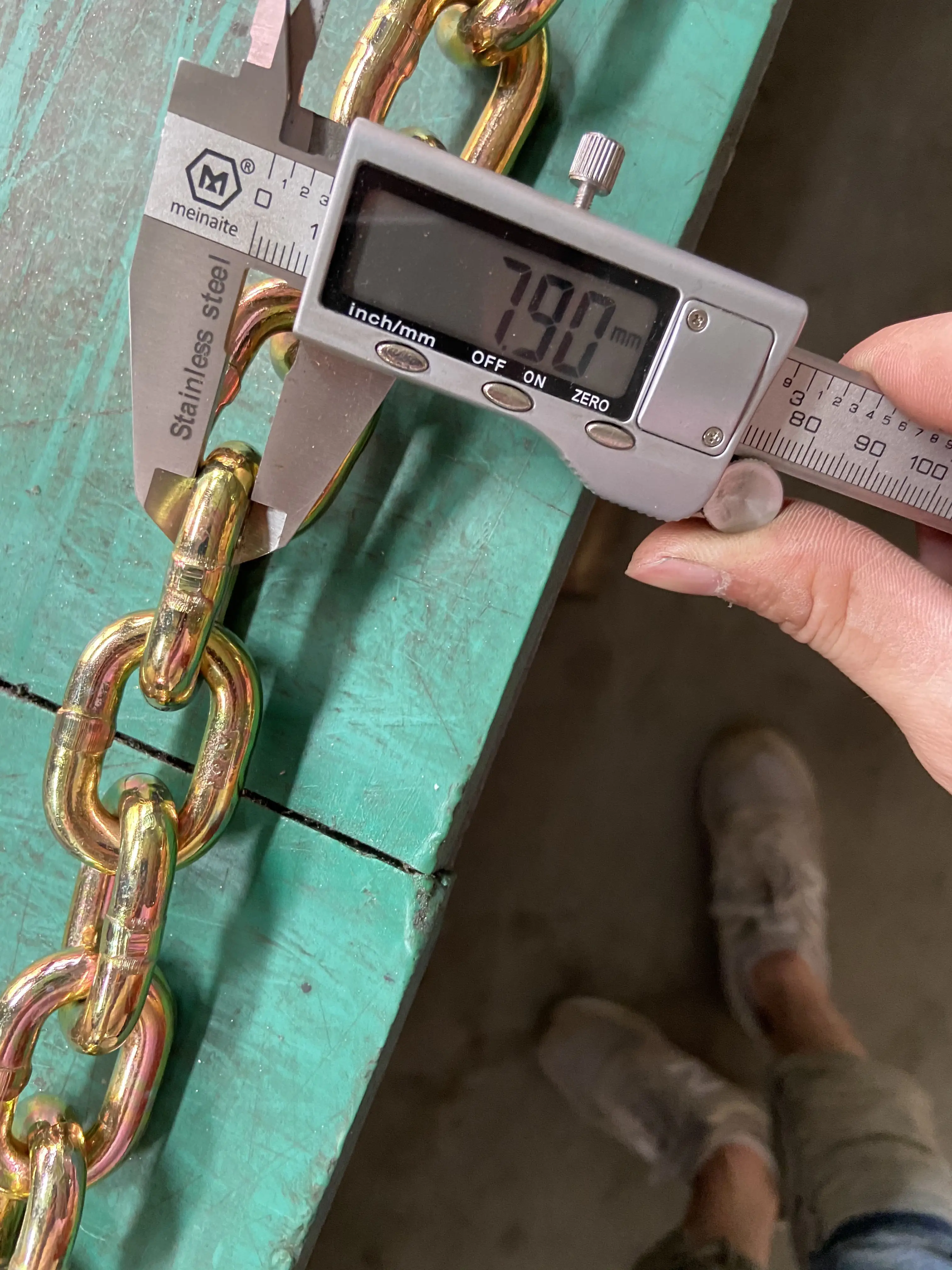

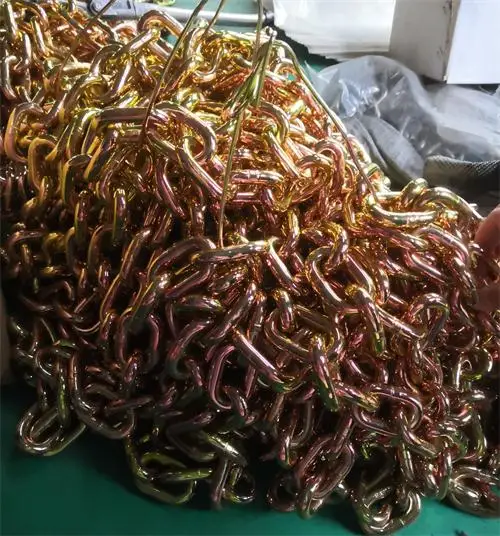

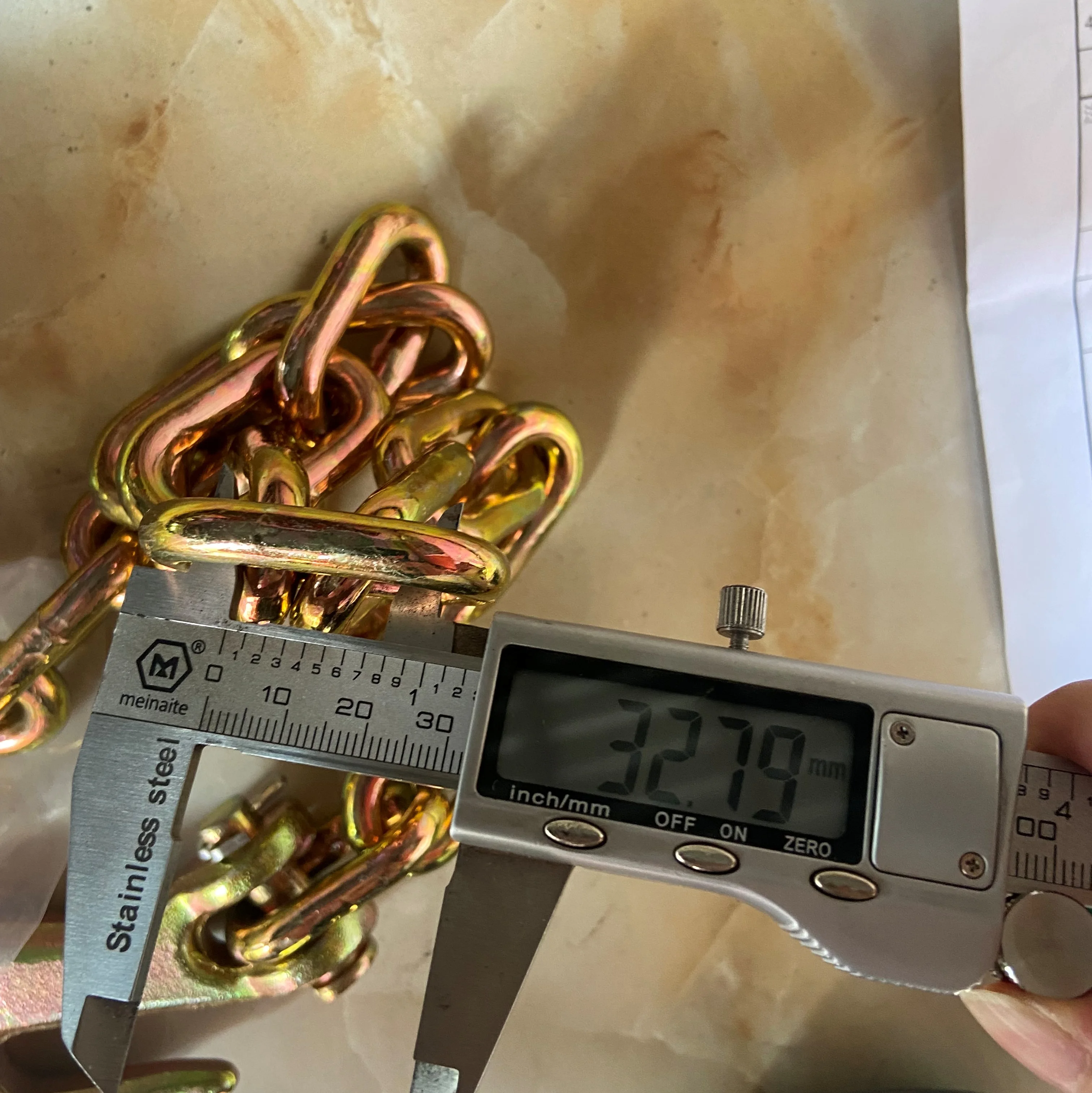

Detailed Images

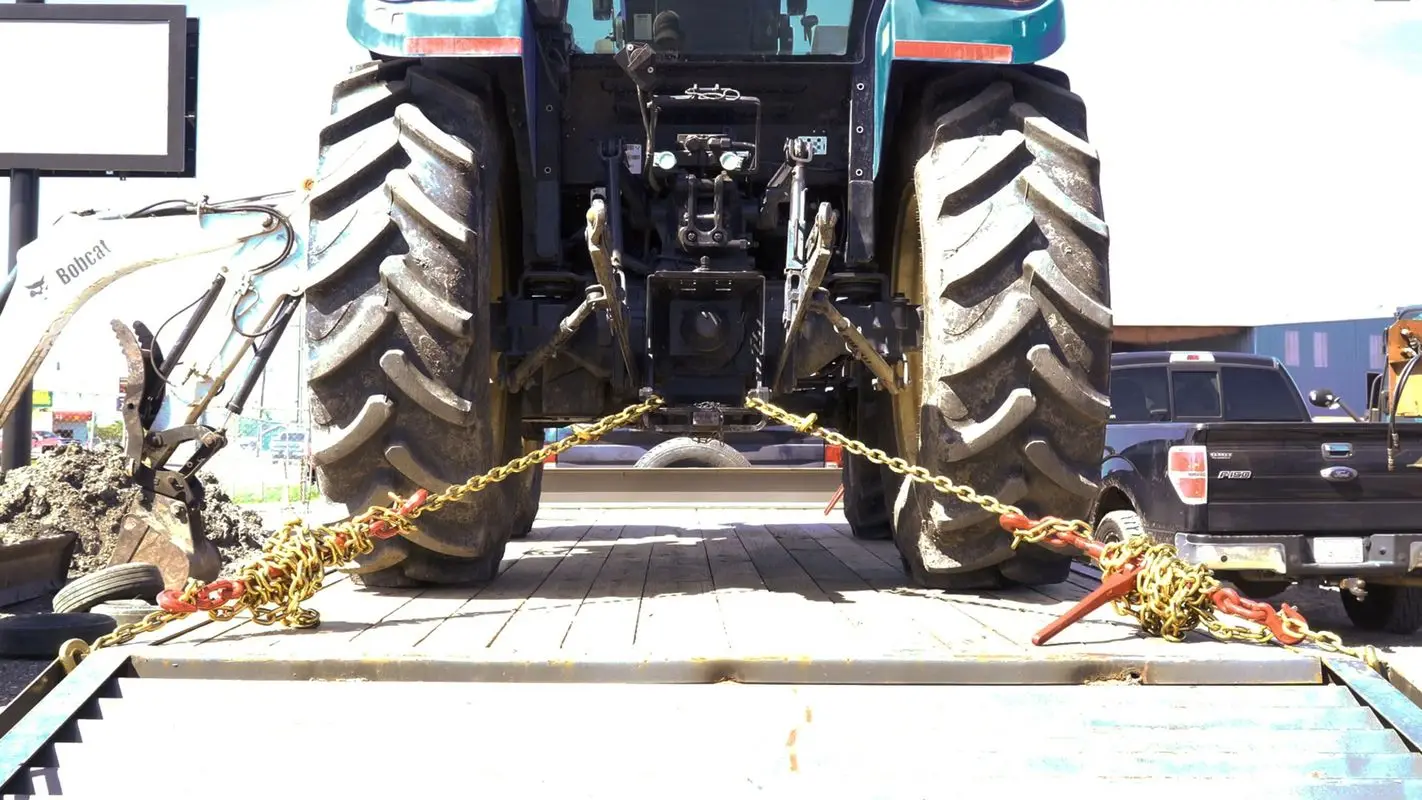

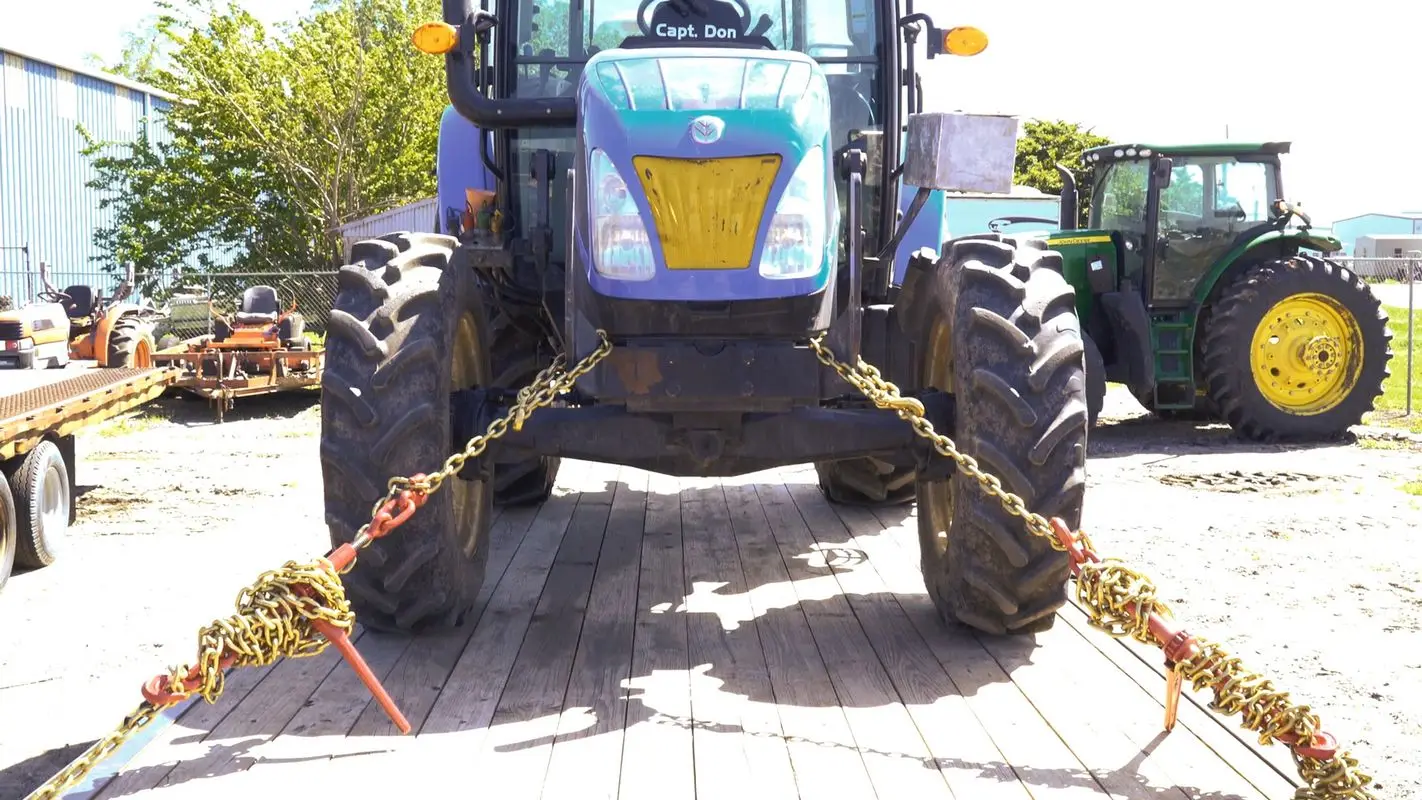

Usage

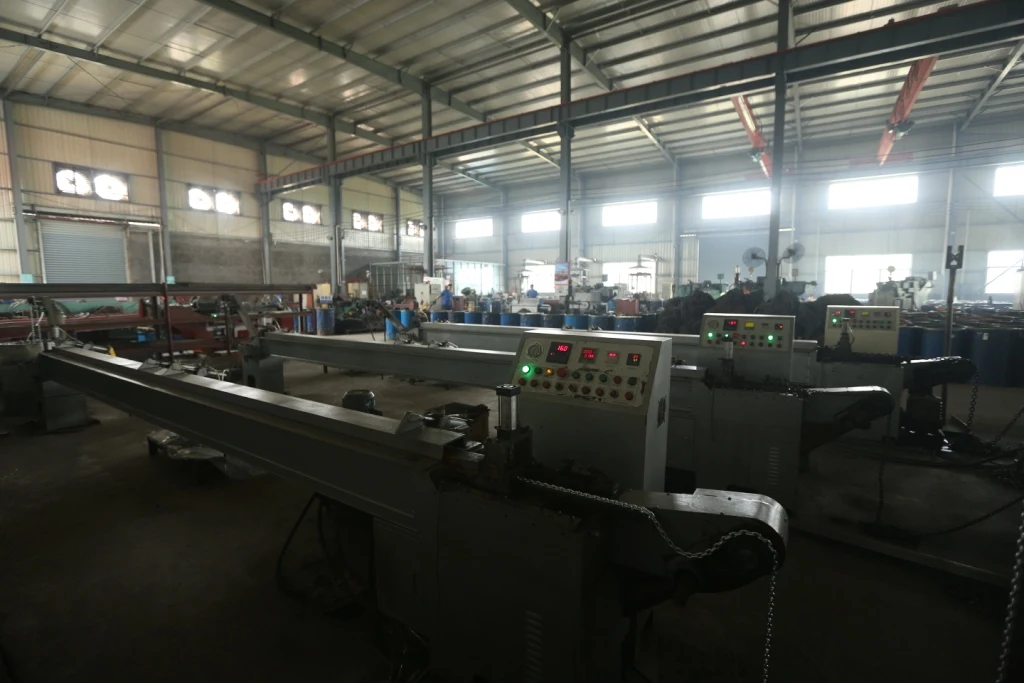

Production Area

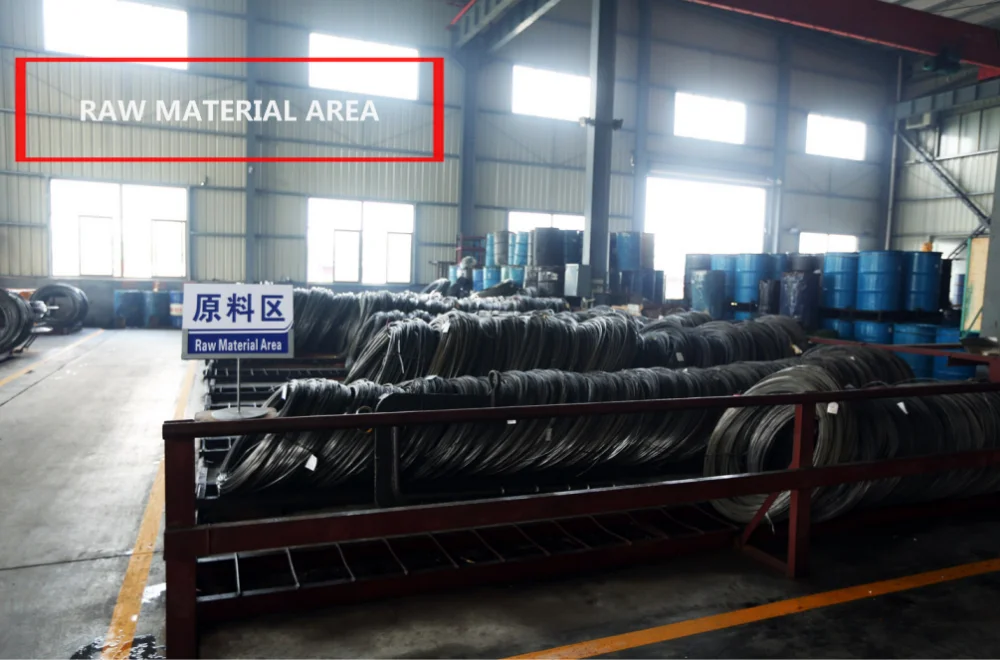

Raw material Area

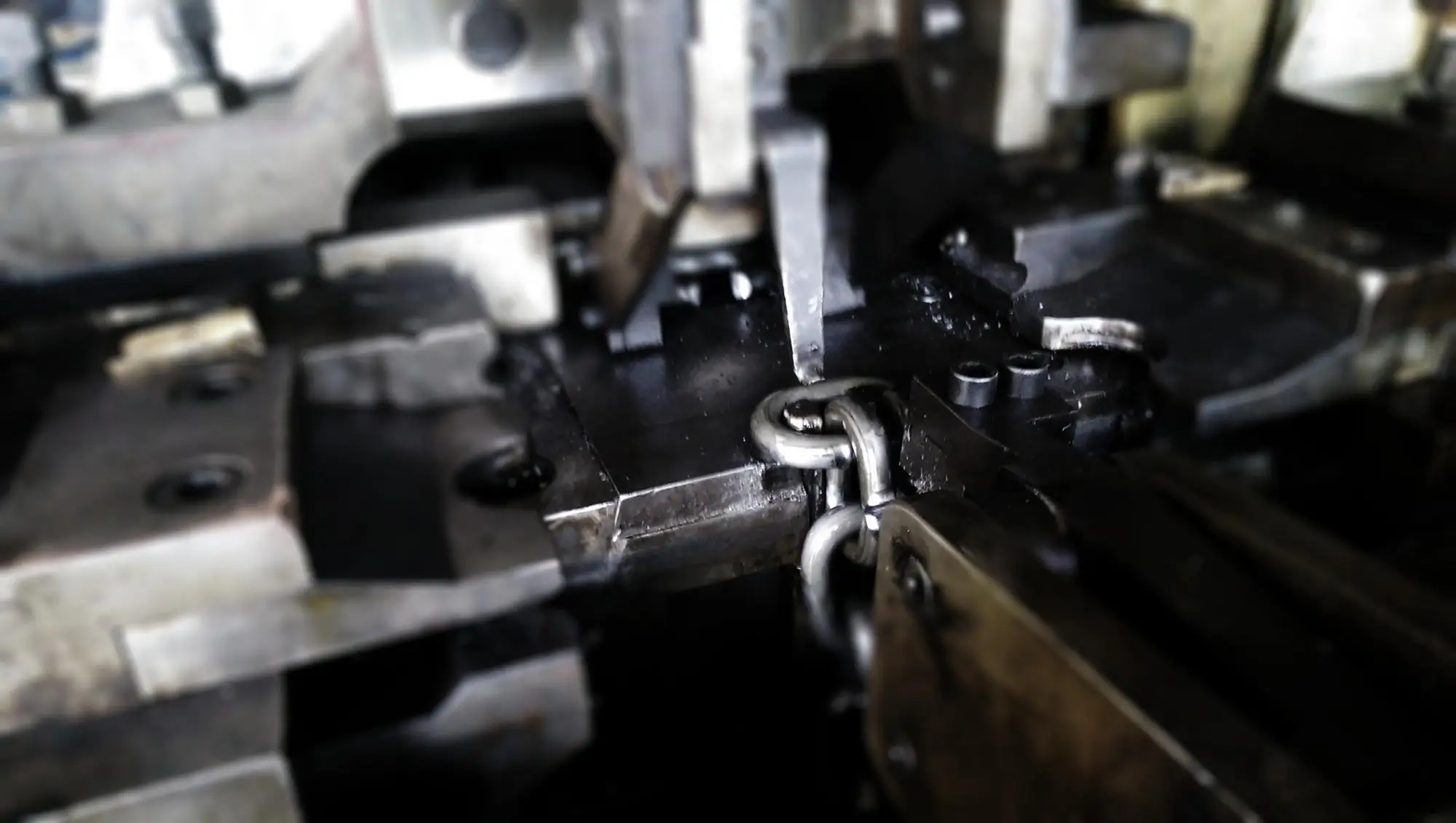

Forming: be formed to the required dimension. Z2 self-designed bending macine series for 3mm to 25mm chain.

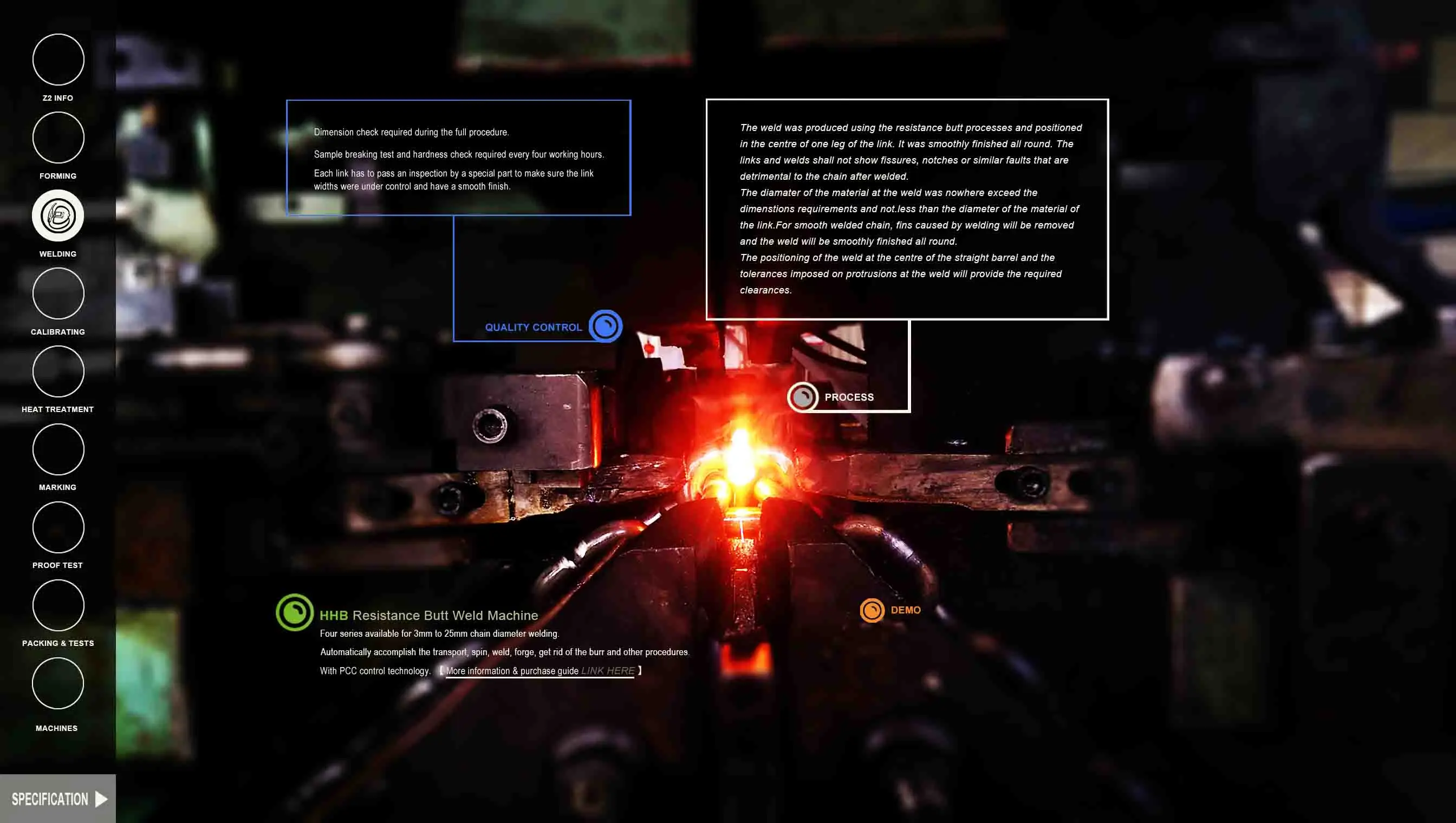

Welding: The weld was produced using the resistance butt processes and positioned in the center of one leg of the link.

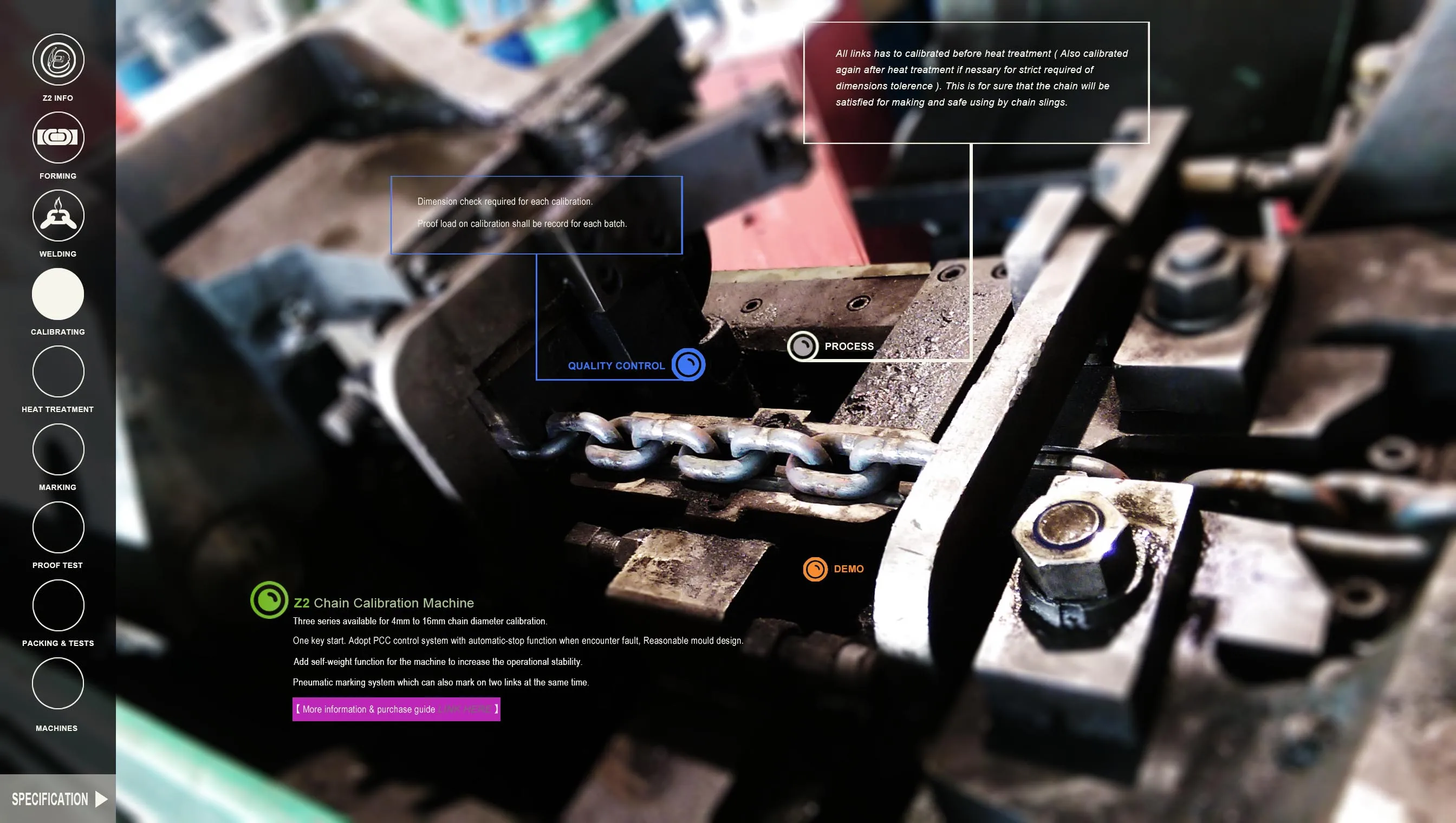

Calibrating: All links has beed calibrated before heat treatment.

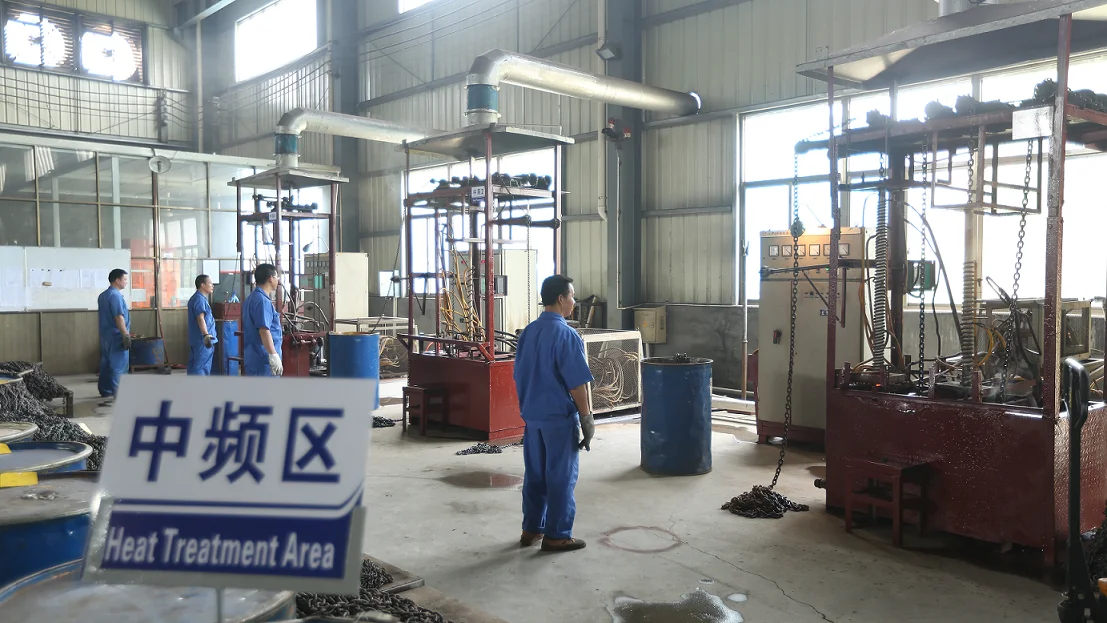

Heat treatment: All the chain has been intermediate-frequency heat treated.
Proof testing: All the chain has been subjected to the manufacturing proof force test specified as standard.

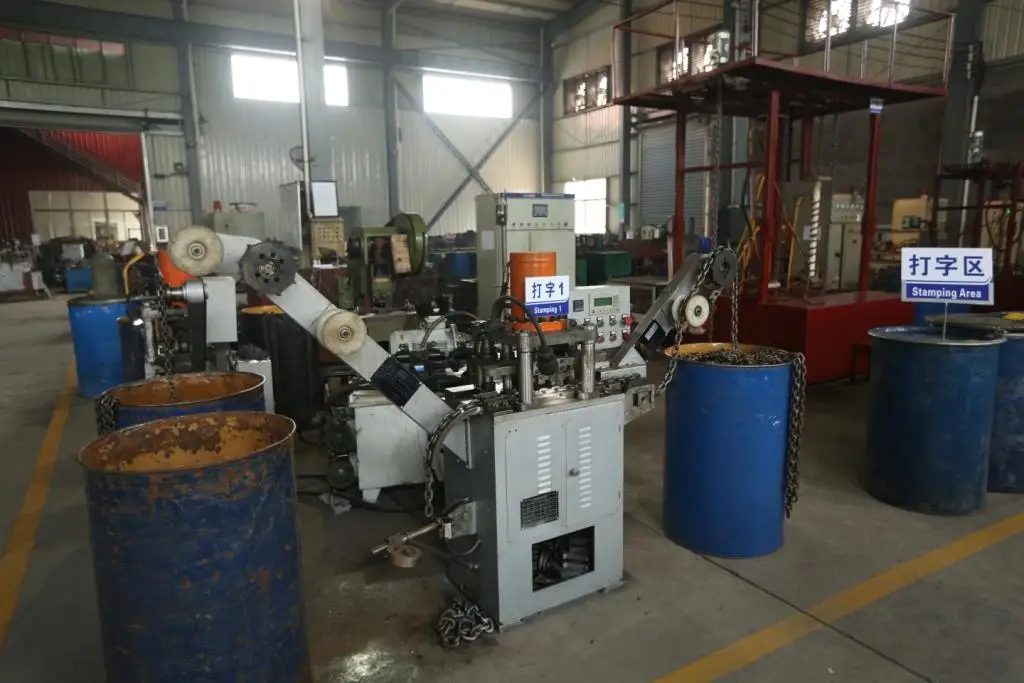

Stamping Area

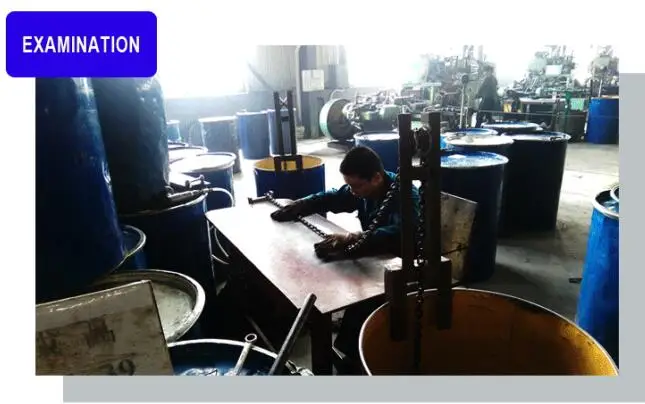

Final Examination


Packing&Shipping


Indivisual plastic bag
Carton
Iron drum




Company Introduction


Hangzhou Zhezhong Chain Co.,Ltd (Z2 CHAIN) established in Hangzhou City of China in 2006. We focuses on manufacturing G80 and higher level welded lifting chain. Our main products are G80 and 100 lifting chain based on EN818-2 standard and load chain.We have the most advanced automatic machines industry, and senior engineering group that all had decades of years experience. Based on the good machines, skilled engineers, strict quality control systems and excellent management group, Z2 CHAIN is producing and had already supplied quantity of high quality chains.

Z2LIFTING is a group of Hangzhou Zhezhong Chain Co. and Ruby Imp 7 Exp Co. We located in Hangzhou City of China. Our Business focuses on the manufacturing & supplying the high quality of lifting, rigging, material handing & marine equipments. To ensure safety and meet customers' satisfaction, Z2LIFTING always pay great attention to inspection and delivery. Our aim is not only to be a trader in lifting area, but effort to help our customer grow and build safety and long-term business in their markets.




Our Services & Strength
· Z2Lifting has a professional quality inspection group and a set of quality control system. We can also provide quality test certificates to customers.
· Z2Lifting has a firm certificate. It's certificated by GB/T 19001-2016/ ISO 9001:2015

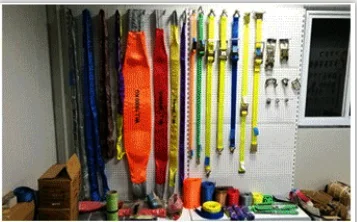

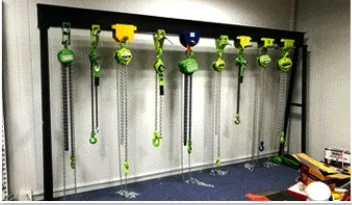

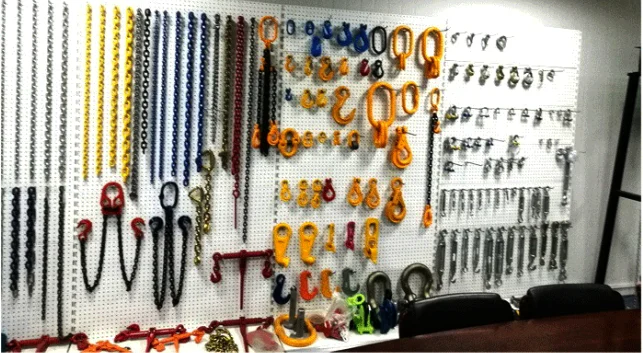

Sample Room






Exhibition


MOSCOW INTERNATIONAL TOOL EXPEO 2014
NATIONAL HARDWARE SHOW  2018
ASIA-PACIFIC SOURCING         2019


FAQ


Q: Are you trading company or manufacturer ?
A: We are factory. We have more than 16 years experience.


Q: How long is your delivery time?
A: Generally it is 30-45 days.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight. But the freight cost can be reduced in later orders.

Q: What is your terms of payment ?
A: T/T in advance, balance before shipment.

Q: What is your general international express?
A: We usually cooperate with FedEx, DHL, UPS, EMS express.


If you have another questions, pls feel free to contact us as below:
