Free Sample 28Dbi 30Dbi External BDS Gps Antenna IP67 Waterproof For Automotive Car Positional
Customization scope：Antenna Performance,Appearance style, Appearance color, Cable length, Connector type
Customization scope：Antenna Performance,Appearance style, Appearance color, Cable length, Connector type
Products Description
Structural Dimensions & Performance Diagrams
Professional designers design the appearance according to the requirements of the business. Every detail is millimeter level precise.（ Accept OEM/ODM）

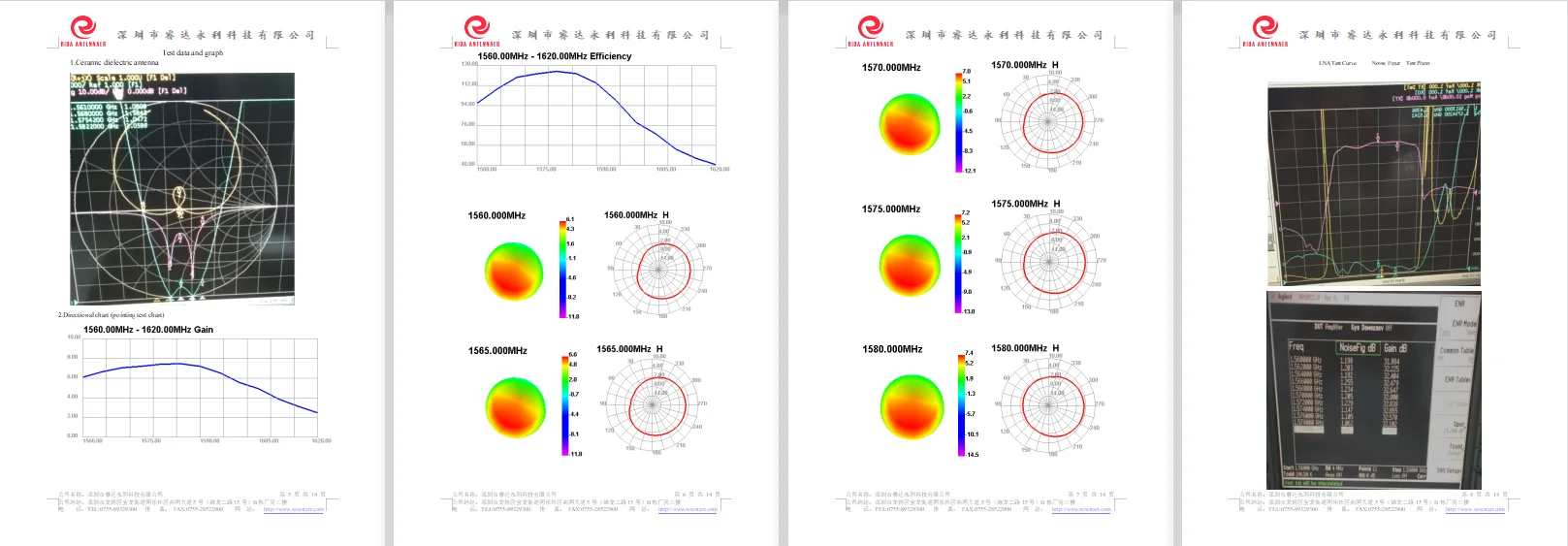

The above picture is
1)S11 Reflection Parameters
2)Pointing Test Chart
3)LNA Test Curve
4)Noise Figur
333

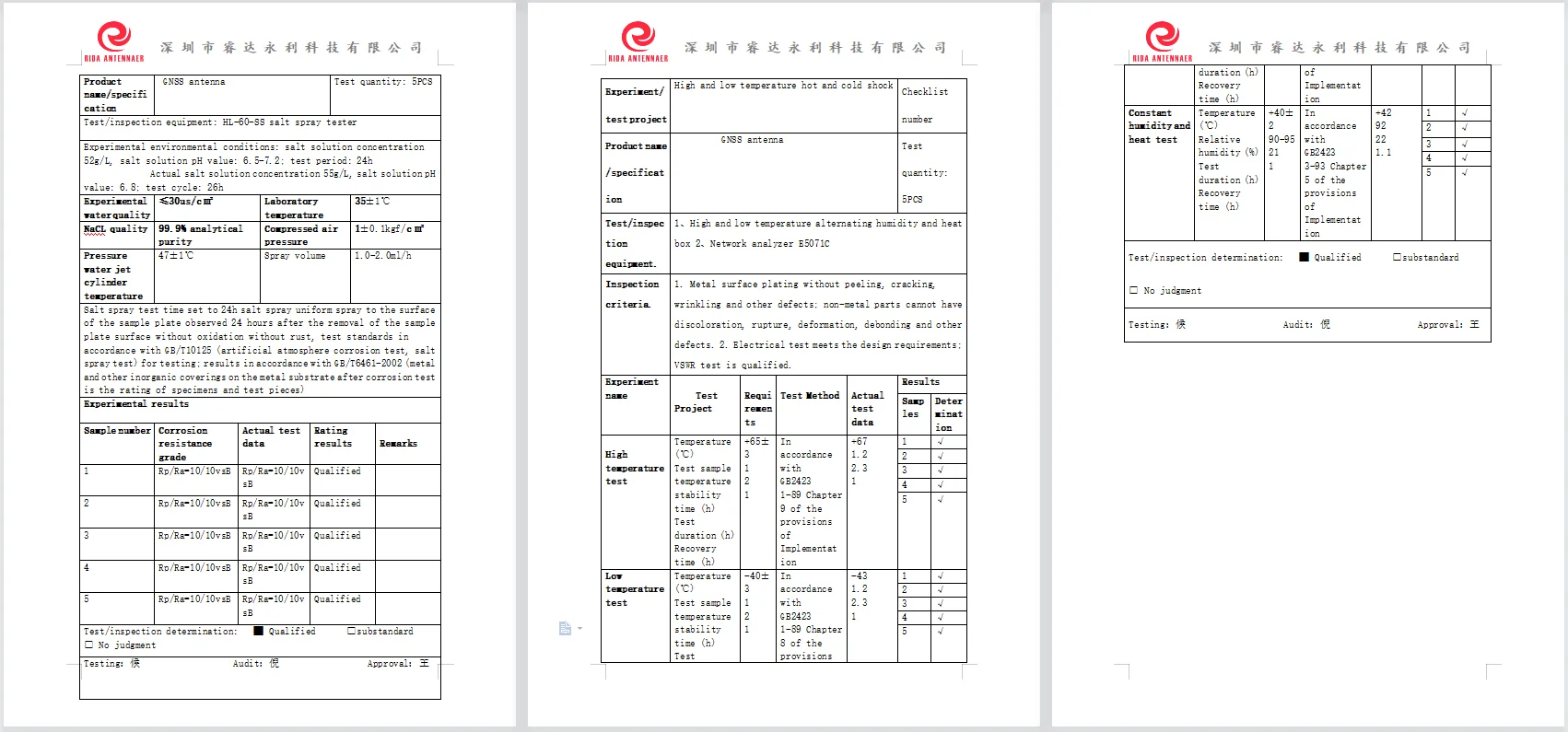

Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Guarantee the normal use of the products in harsh environments.（For more test reports, please contact）
Product Parameters & Customizable Range
Center Frequency | 1575.42±1MHz/800/1800/1900/2100mhz |
Band Width | CF±5MHz |
Polarization | RHCP |
Gain | 3dBic |
V.S.W.R | <1.5 |
Impendance | 50Ω |
Axial Ratio | 3dB |
Dimension | 20*20*4mm |
LNA Gain | 30±2dB |
Noise Figure | <1.5 |
Filter Insertion Loss | <3dB |
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz |
Supply Voltage | 2.2~5V DC |
Current Consumption | 10~26mA |
V.S.W.R | <2.0 |
Cable | RG174 |

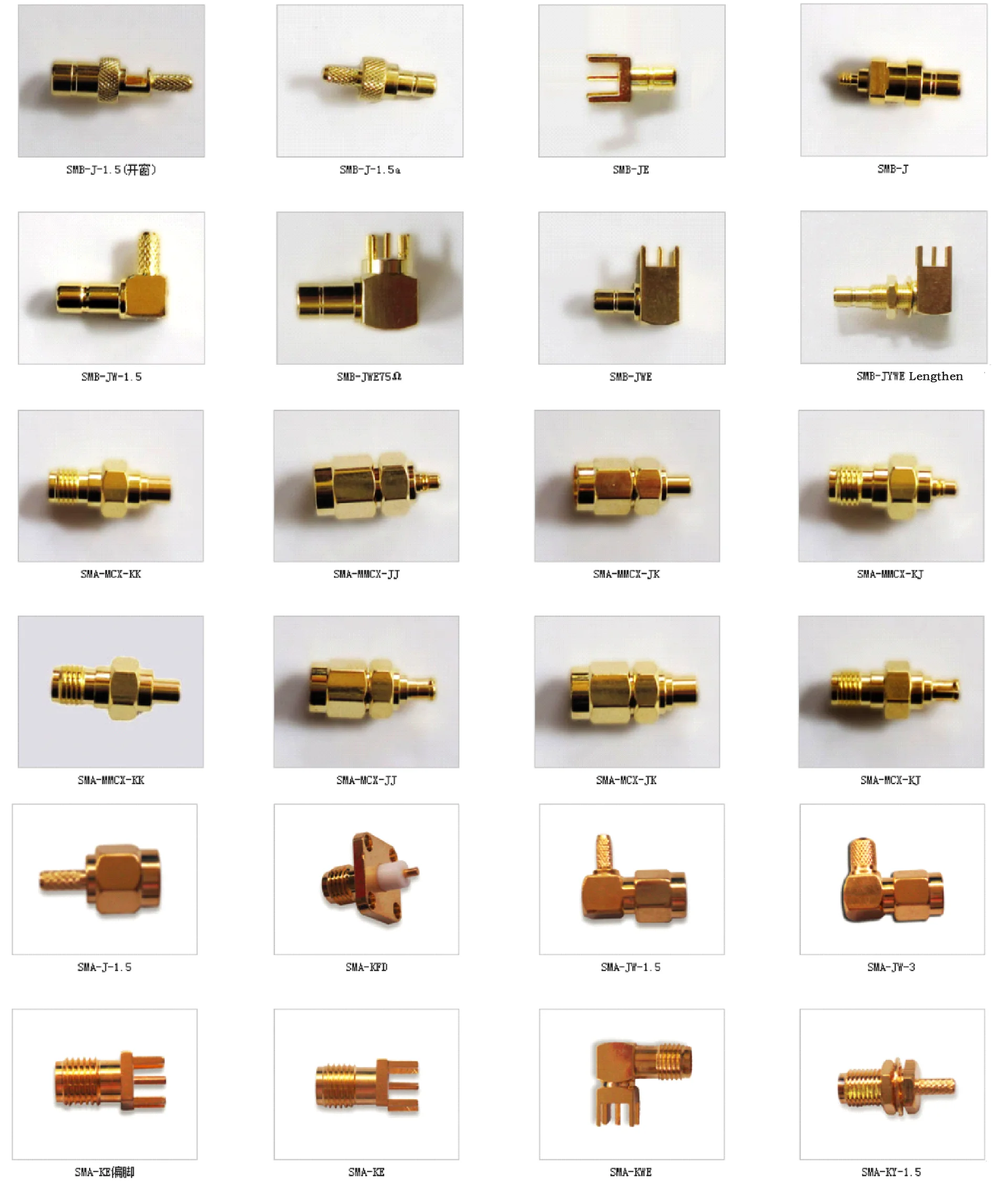

Connector | SMA/MCX/FAKRA or others |
Radome Material | ABS |
Mounting Method | Magnet |
Operating Temperature | -40°C~+85°C |
Relative Humidity | Up to 95% |
Ingress Protection | IP67 |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |

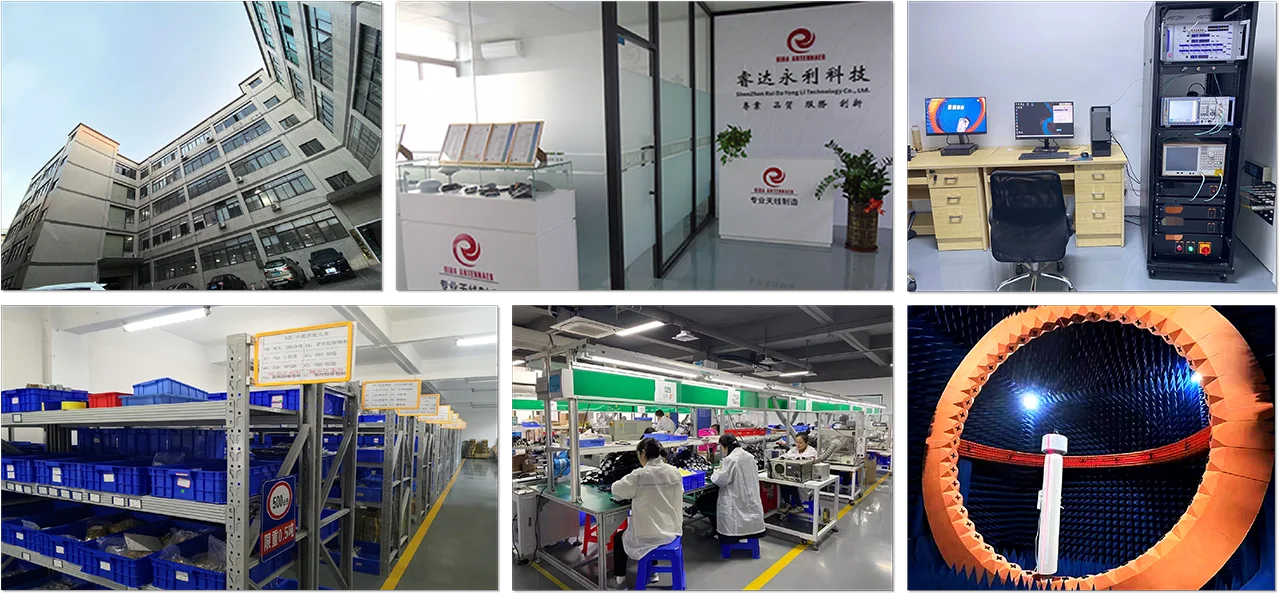

Company Profile
Shenzhen Ruida Yongli Technology Co., Ltd. focus on producing high quality antennas for 11 years, in 2021, we got the national high-tech enterprise certificate, and have many antenna patents.
Our company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 square meters.
We have an antenna lab and antenna production plant to ensure our customers' OEM&ODM needs, with an annual production capacity of over 5,000,000 antennas.
We have standardized the processes in our production plant to ensure product quality and efficiency at the same time.
Our company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 square meters.
We have an antenna lab and antenna production plant to ensure our customers' OEM&ODM needs, with an annual production capacity of over 5,000,000 antennas.
We have standardized the processes in our production plant to ensure product quality and efficiency at the same time.
Why Choose Us
Multiple professional certificates guarantee the quality of products

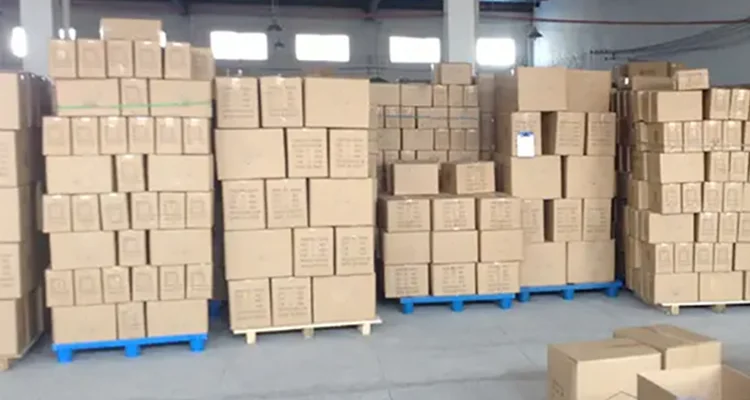

Payment & Shipping & Packaging & Warehouse

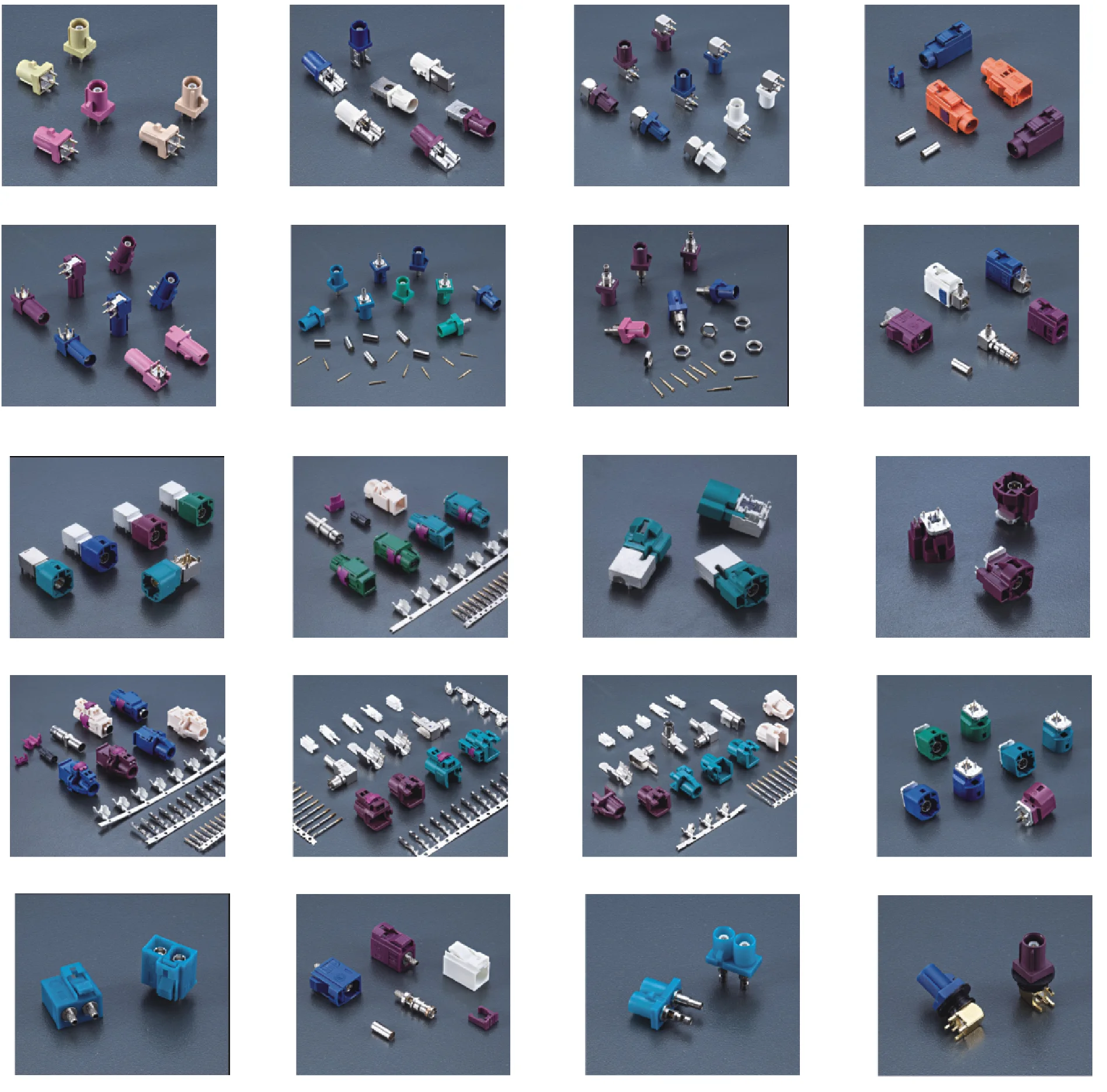

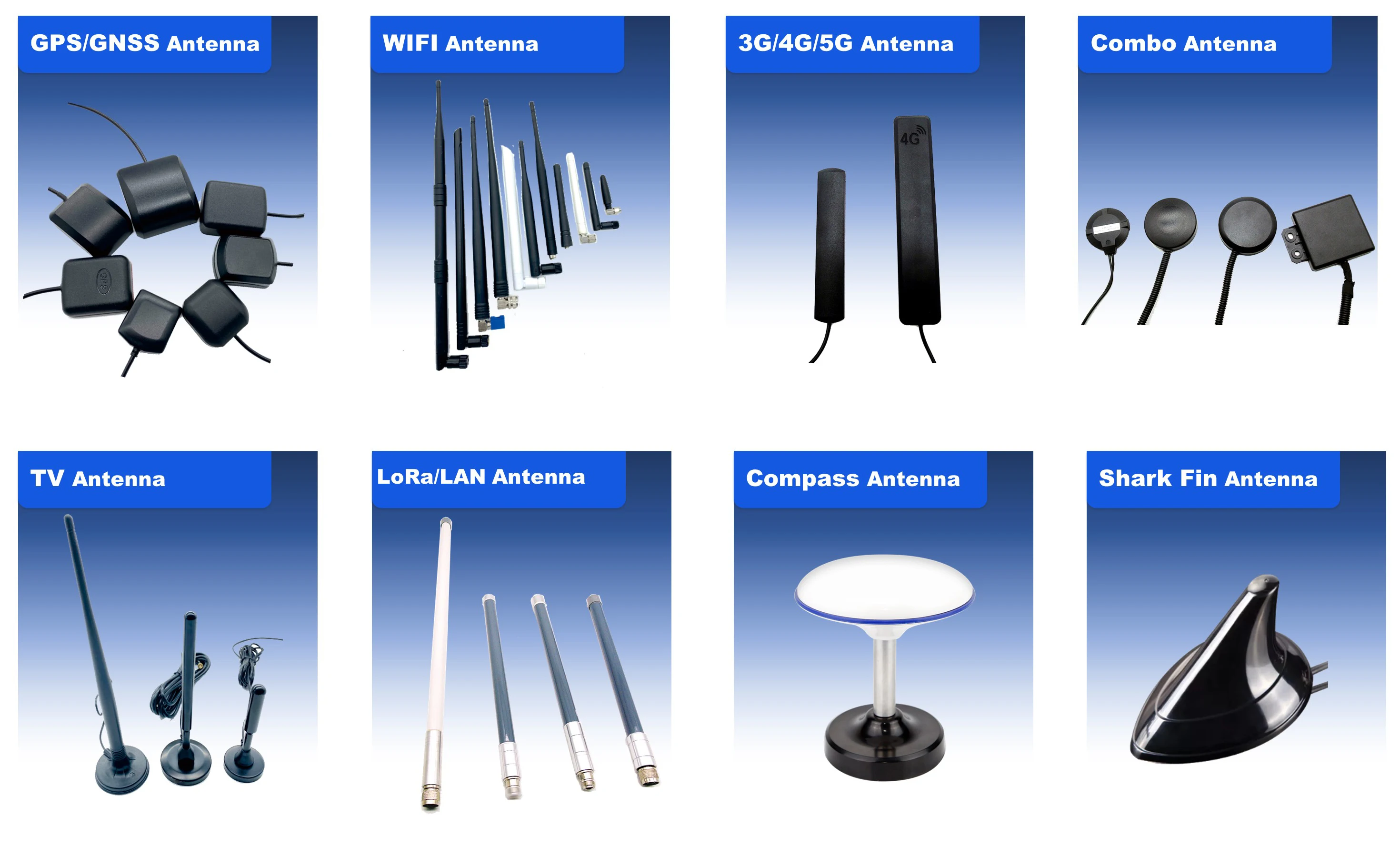

More Product
FAQ
Q1: Can I get one sample?
A: Yes, we can provide free samples if they are our finished products, you only need to pay for shipping. However, for custom samples, a sample fee will be charged.
Q2: Are you a manufacturer or a trading company?
A: We have been manufacturing antennas for 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days.
Q5: How long is your after-sales service?
A: We provide one year quality warranty.
A: Yes, we can provide free samples if they are our finished products, you only need to pay for shipping. However, for custom samples, a sample fee will be charged.
Q2: Are you a manufacturer or a trading company?
A: We have been manufacturing antennas for 10 years.
Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.
Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days.
Q5: How long is your after-sales service?
A: We provide one year quality warranty.
