Промышленный Масляный Пресс YZYX130WK с контролируемой температурой большая емкость
- Категории: Agricultural Machinery & Equipment >>>
- Поставщик: Mianyang,City,Tuxin,Grain,And,Oil,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
Items | Processing Capacty(t/24h) | Oil content of | Oil yield effidency(%) | Electric power consumption(kw.h/t) |
Oil Plants | Dry cakes(%) | |||
Rapeseed | 9~11 | 8.0 | =80 | =35 |
Cotton seeds | 9~11 | 7.5 | =75 | =55 |
Soybean | 8~10 | 7.0 | =65 | =52 |
Peanut | 9~11 | 8.0 | =91 | =35 |
Model | YZYX130WK | YZYX130-12WK | YZYX130GX(9，12)WK | ||
Screw shaft speed (r/min) | 32～44 | ||||
Driving form | V-belt drive | ||||
Power supply (kW) | 15（Y160L-4）Or 18.5（Y180M-4） | ||||
Temperature control power (kW) | ≥3.0 | ||||
Overall dimension (mm) | 1950×742×1500 | 2020×742×1420 | 2100×798×1400 | ||
Weight (kg) | 825 | 886 | 980 | ||

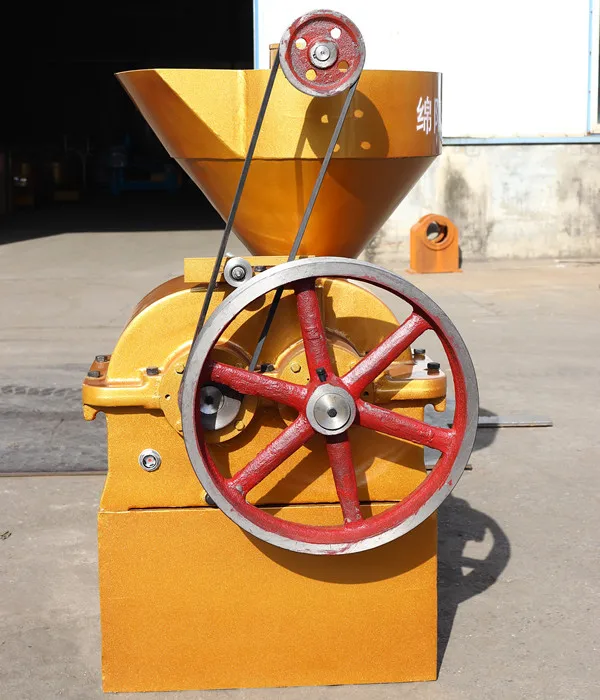

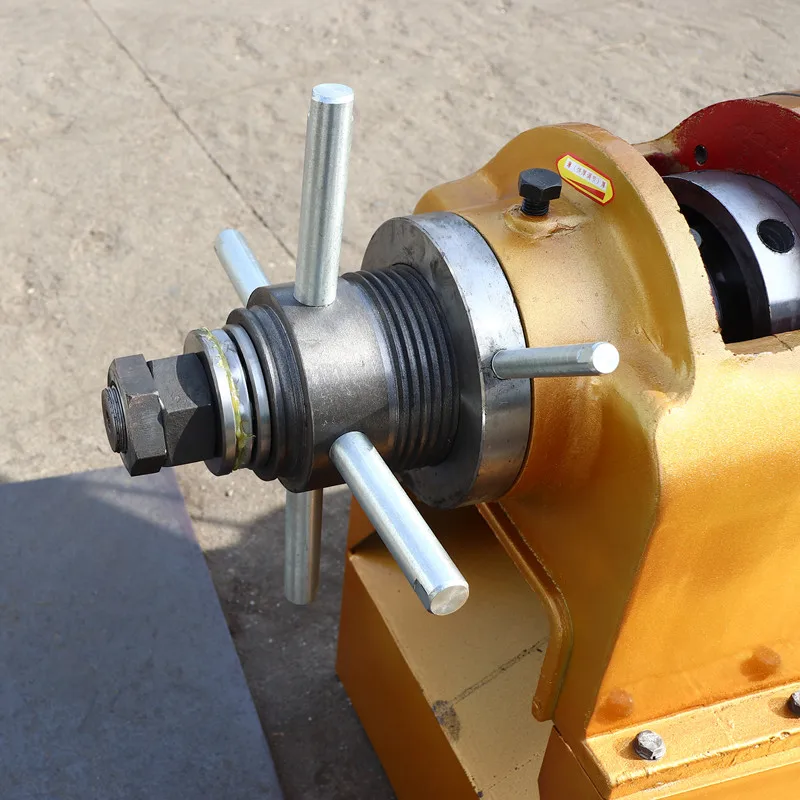

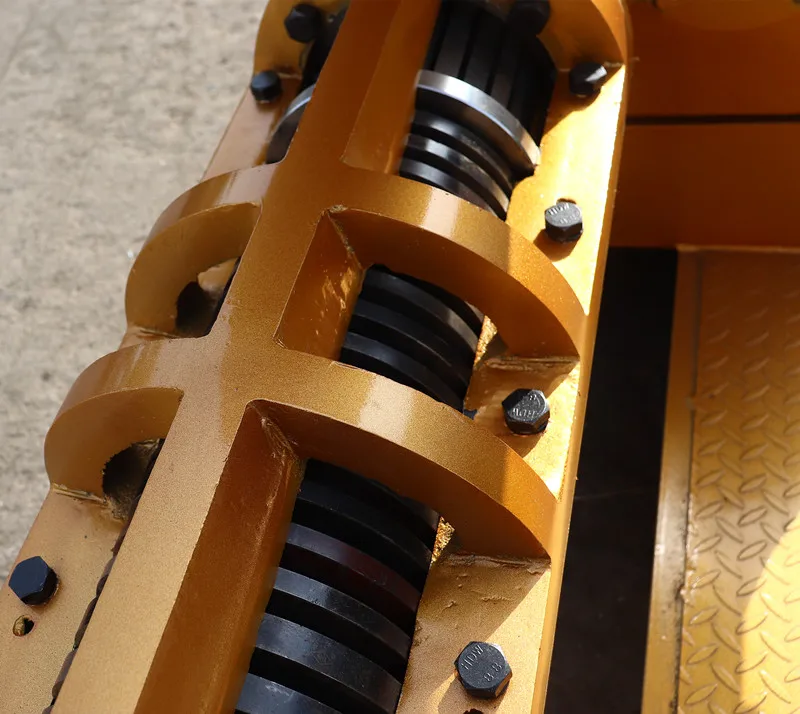

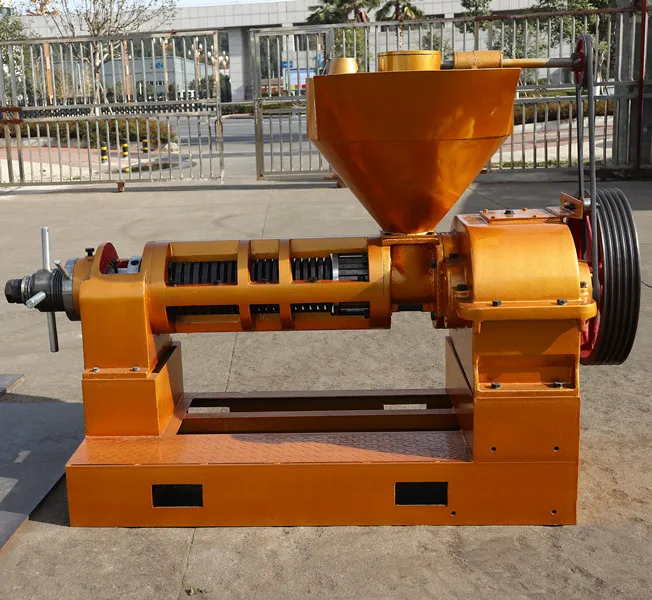

Details Images

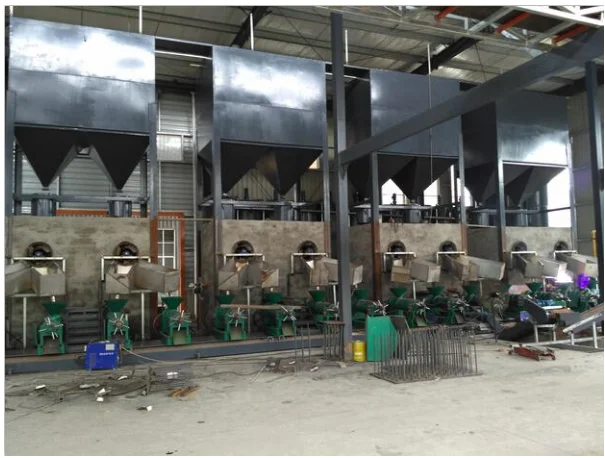

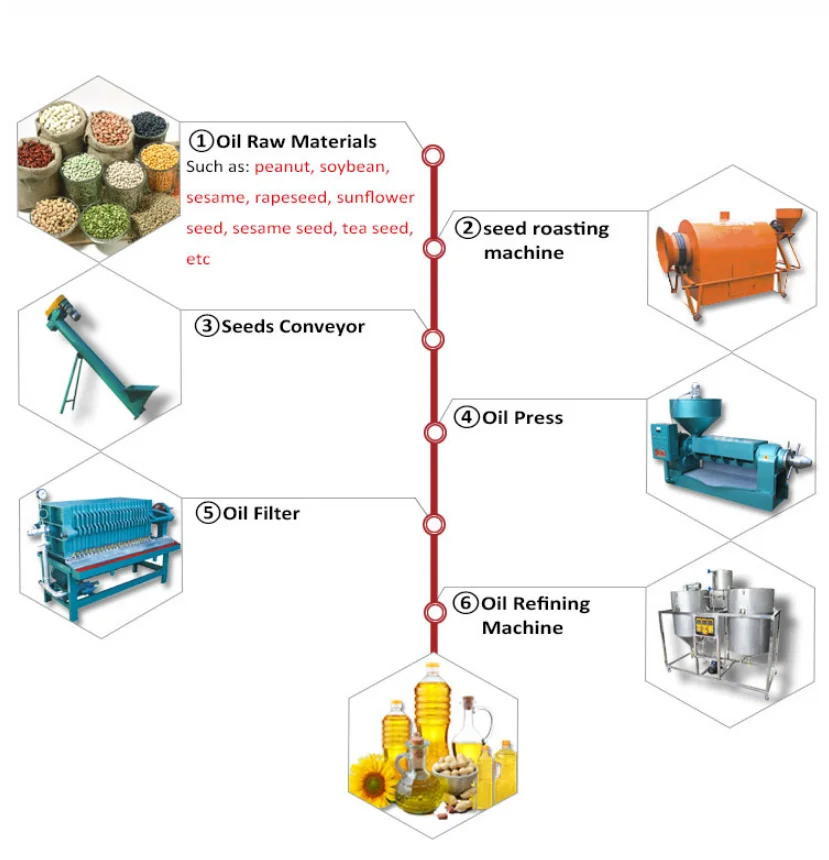

Application

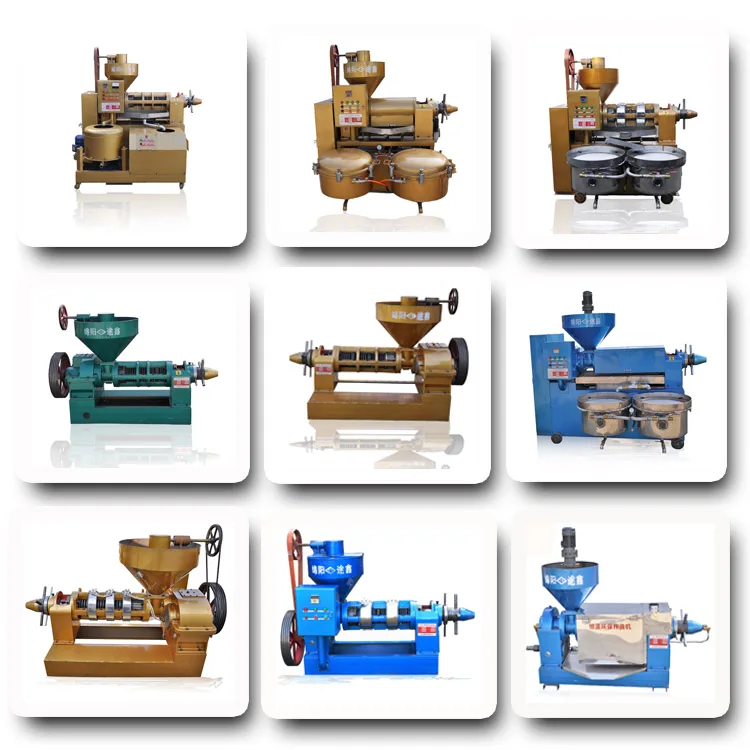

Related Products

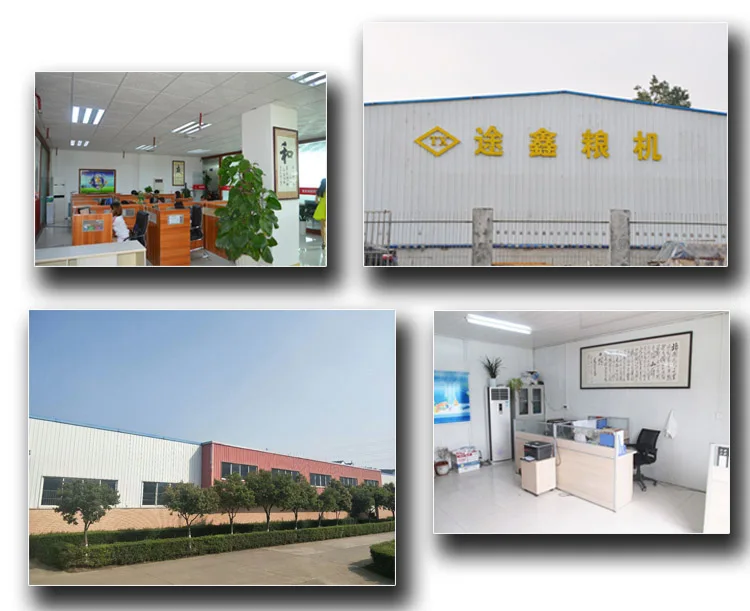

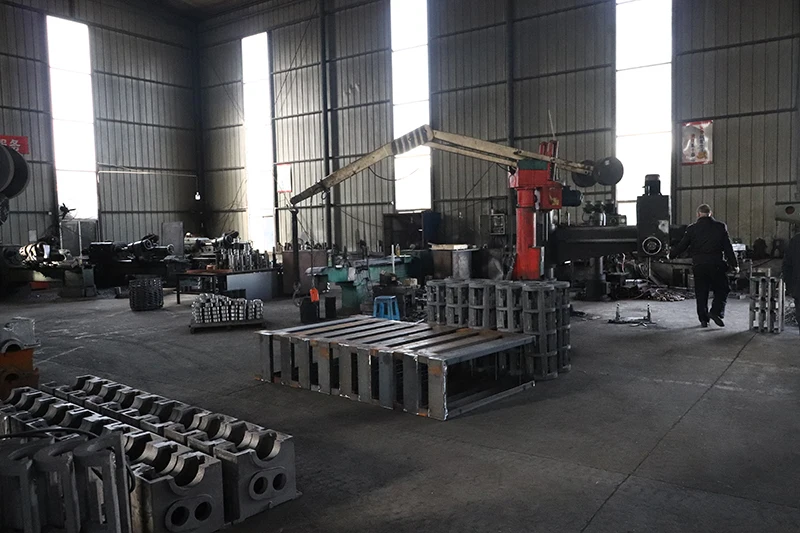

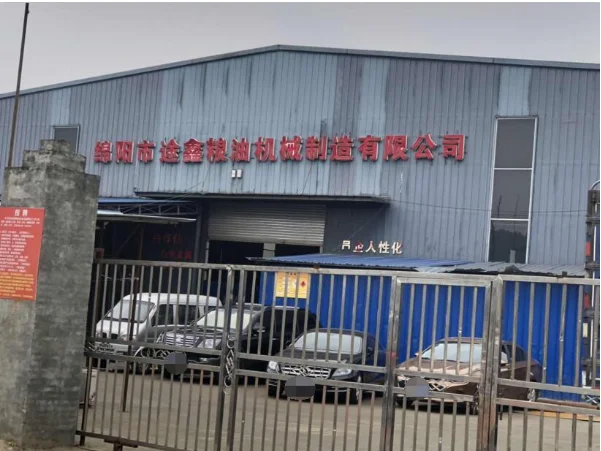

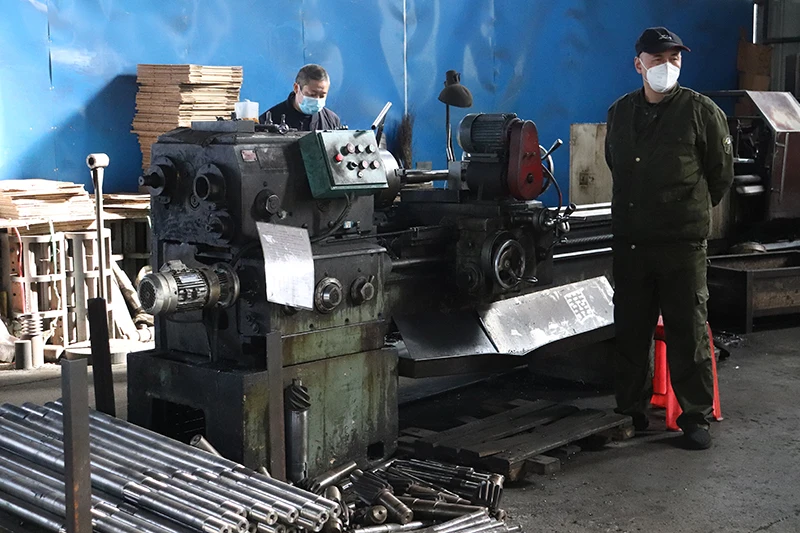

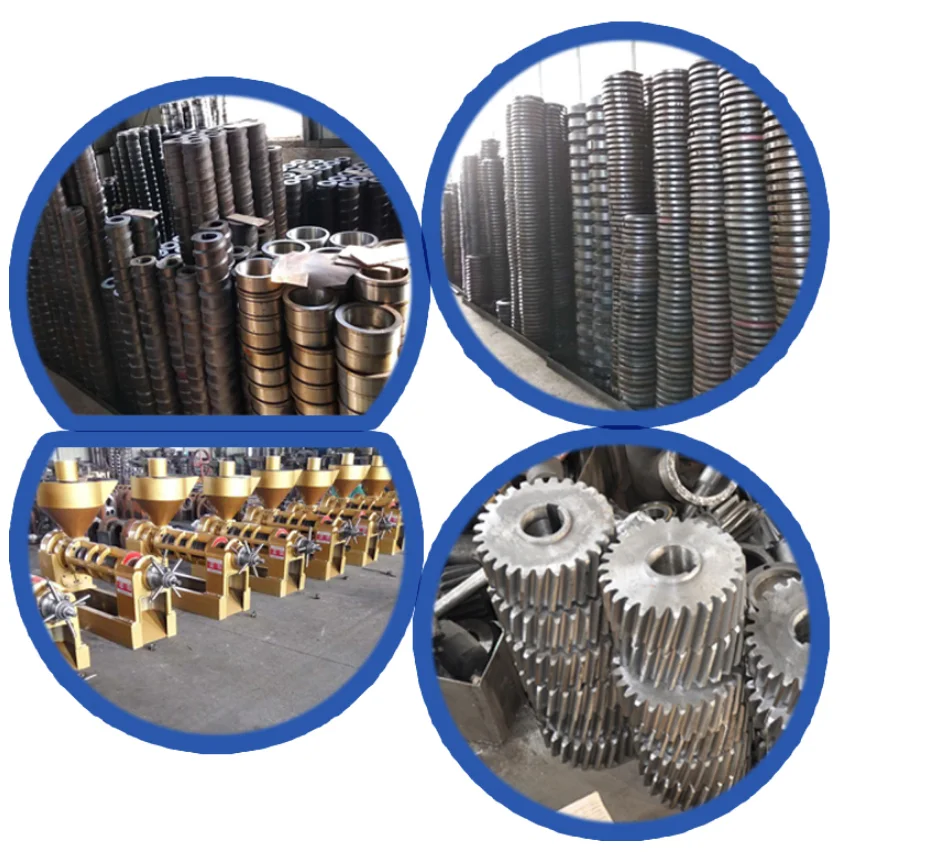

Company Profile
About us
The company is approved by the State Science and Technology Development Board. Now has become China's small and medium-sized spiral oil press and screw pressbefore and after the processing equipment set research and production as one of the key enterprises.Strong technical force, science and technology staff account for more than 15% of the number of employees, research institutes to establish a wide rangeof technical cooperation anddevelopment so that enterprises R & D capabilities even more powerful. The main production of a variety of spiral oil press, a variety of roller fried seed pot, a variety of grease filtration equipment, a variety of screw conveyorequipment. Quality of products access to international IS9001 quality management system certification.

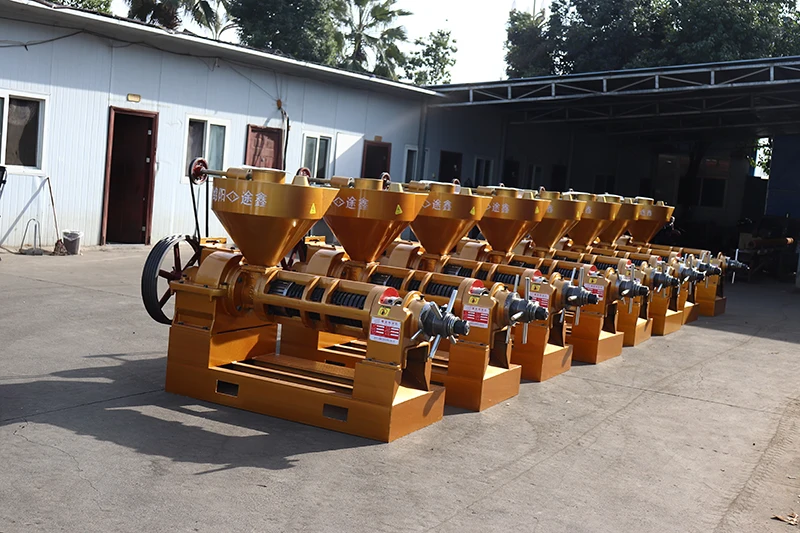

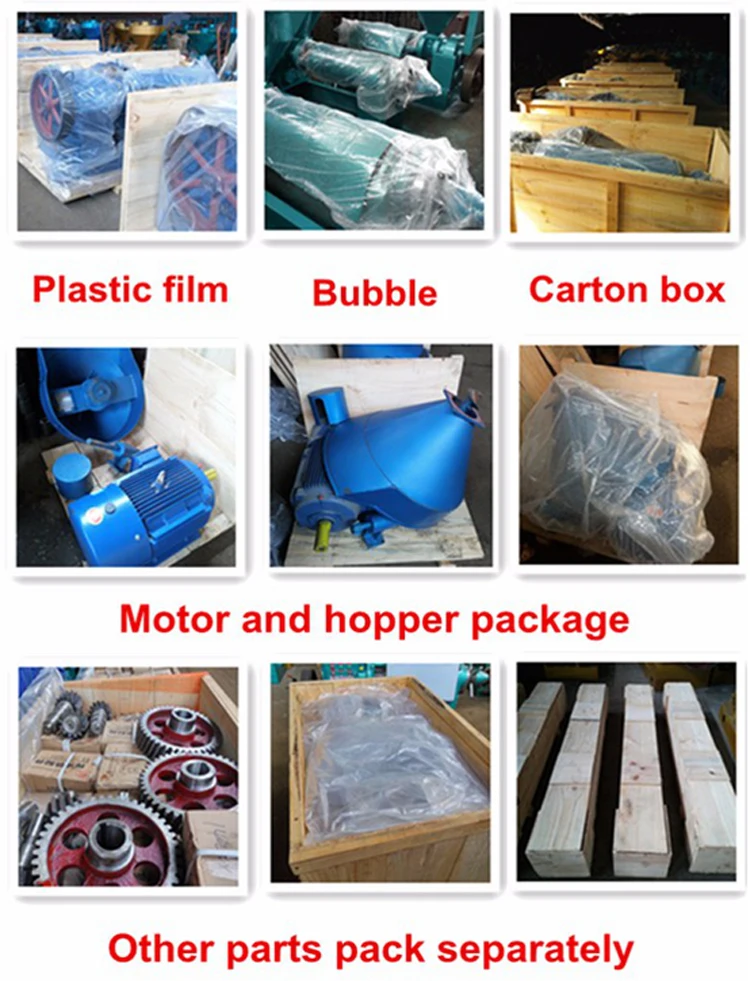

Product packaging
FAQ
Q: Are you a factory or trading company?
A: We are factory with 30year's manufacturing experiences, and we also have our own trading company. Our main products including:screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as 2mm.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as 2mm.
Q:What serivice do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. Usually only 1 time to get maximum oil. Peanuts need to be roasted to 125~130 degree with

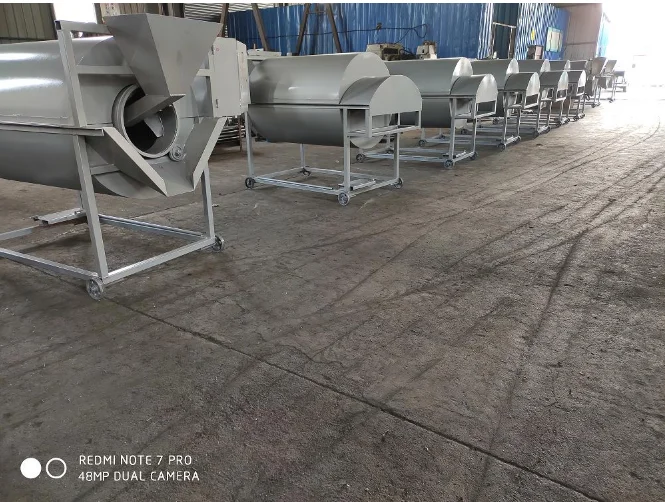

1~2% moisture. (We produce seeds roaster heated by economical fuel.)
Hot press is pressing roasted seeds. Usually only 1 time to get maximum oil. Peanuts need to be roasted to 125~130 degree with
1~2% moisture. (We produce seeds roaster heated by economical fuel.)
