Product Description
MODEL | COOLING CAPACITY |
MG-5W | 12384Kcal/h |
MG-10W(D) | 27004Kcal/h |
MG-15W(D) | 39560Kcal/h |
MG-20W(D) | 52288Kcal/h |
MG-25W(D) | 59770Kcal/h |
MG-30W(F) | 79120Kcal/h |
MG-40W(F) | 103716Kcal/h |
MG-50W(F) | 121604Kcal/h |
MG-60W(F) | 1517904Kcal/h |
1.outlet chilled water temperature range of air cooled chiller : 7 ~ 35 Celsius
2.world famous brand compressors from Danfoss, Copland, Panasonic etc
3.internal electric control parts from Schneider or Siemens etc
4.built-in water pump from CNP pump since 1991
5.high efficiency condensers: copper tube coils and aluminum fins with low noise fans, cool the water in a short duration to reduce the power consumption
2.world famous brand compressors from Danfoss, Copland, Panasonic etc
3.internal electric control parts from Schneider or Siemens etc
4.built-in water pump from CNP pump since 1991
5.high efficiency condensers: copper tube coils and aluminum fins with low noise fans, cool the water in a short duration to reduce the power consumption

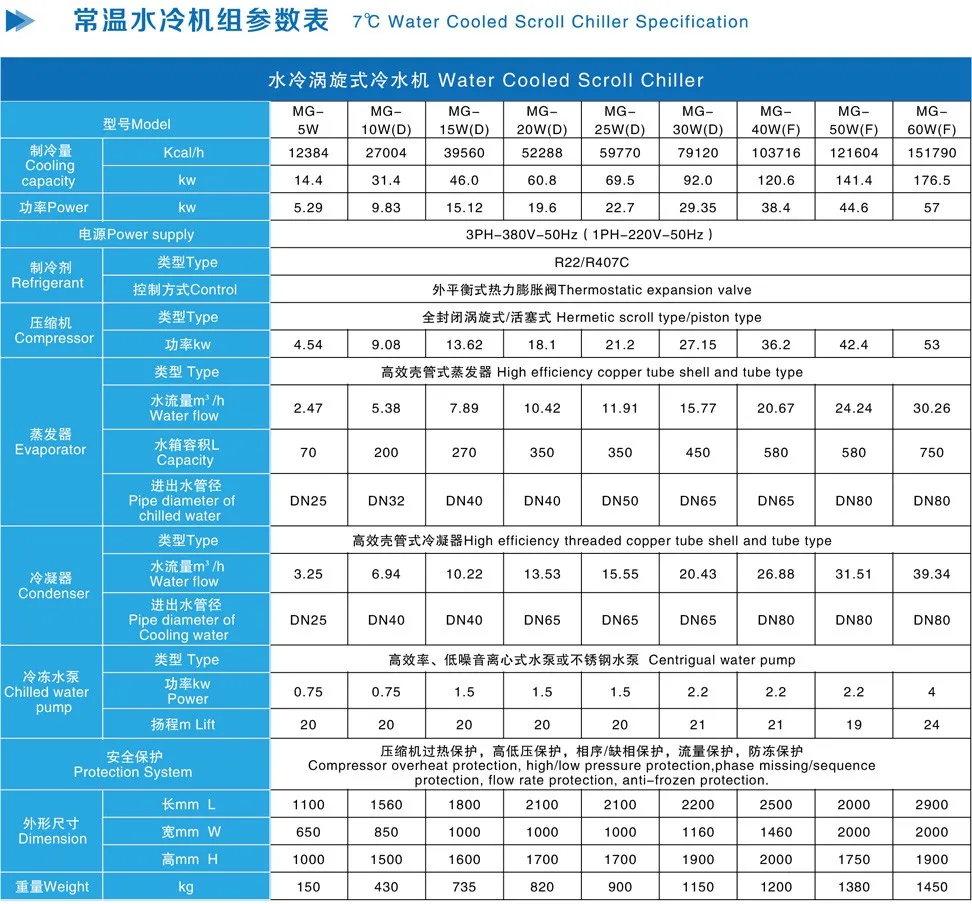

Specification
Model | MG-25 W（D） | ||
Power Supply | 3 Ph-380V-50Hz | ||
Outlet Temperature | 7 deg C ~+35 deg C can be control. | ||
Cooling Capacity | Kw | 69.5 | |
Kcal/h | 59770 | ||
Refrigerant | Type | R404a, R407C, R22 | |
Control type | Thermostatic expansion valve | ||
Compressor | Type | Hermetic scroll | |
Power(kw) | 21.2 | ||
Evaporator | Type | Shell and tube Or Tank with coil | |
Chilled water flow(m3/h) | 11.91 | ||
Tank volume | 350 L if choose tank type | ||
Pump | Power(Kw) | 1.5kw | |
Type | Centrigual water pump | ||
Condenser | Cooling water flow(m3/h) | 15.55 | |
Dimension | L*W*H(mm) | 2100*1000*1700 | |
N.G | Kg | 900 | |

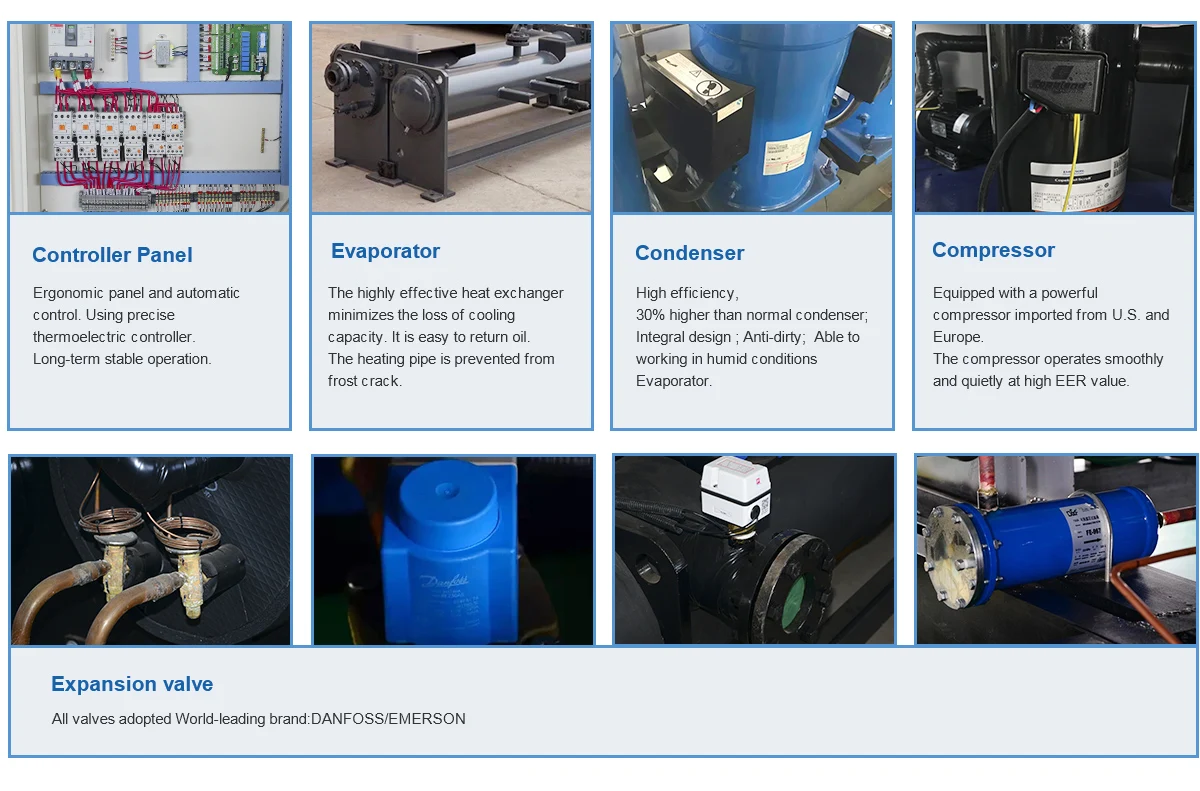

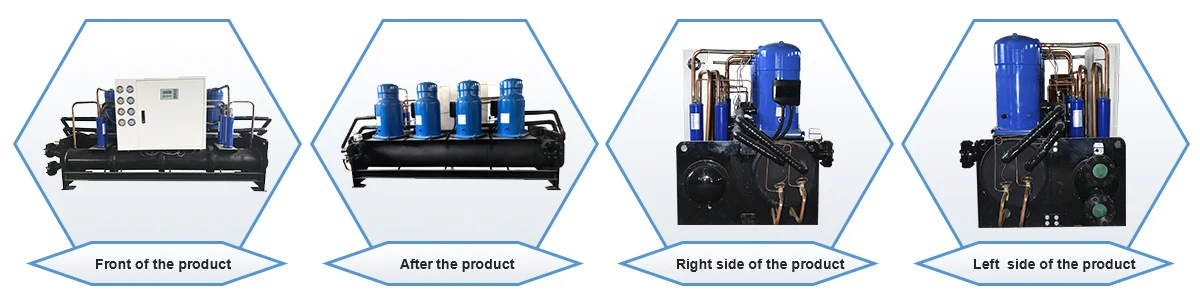

Detailed Images
-Mgreenbelt chiller product benefit-
* Manufactured by mgreenbelt chiller plant
* Designed and engineered by experienced technicians
* Proven reliability for over 15 years
* Components are new and branded
* Completely pre-packaged
* Warranty by mgreenbelt
* Replacement parts and spare parts available from stock
* Experienced aftermarket support
* Manufactured by mgreenbelt chiller plant
* Designed and engineered by experienced technicians
* Proven reliability for over 15 years
* Components are new and branded
* Completely pre-packaged
* Warranty by mgreenbelt
* Replacement parts and spare parts available from stock
* Experienced aftermarket support
After Sales Service
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FULL-SERVICES:
1. 14 Months warranty and life time technical maintenance offered.
2. All extra parts for the machine can be purchased with agent price from Mgreenbelt
3. 24 Hours working phone call/Email/Skype/MSN/Wechat/Whatsapp/Trade manager online to support.
4. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
5. Free and Professional Training at our Factory under the relaxed condition.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FULL-SERVICES:
1. 14 Months warranty and life time technical maintenance offered.
2. All extra parts for the machine can be purchased with agent price from Mgreenbelt
3. 24 Hours working phone call/Email/Skype/MSN/Wechat/Whatsapp/Trade manager online to support.
4. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
5. Free and Professional Training at our Factory under the relaxed condition.
FAQ
Pls kindly offer the following information:
1.Cooling capacity : KW?
2.Inlet /outlet water temperature: _deg C~ _deg C
3. Voltage/Frquency : PH/ V/ HZ?
4.Retrigreant: R22/R407C/R410A/R134A and etc.
5.Chiller water flow rate: m³/h
1.Cooling capacity : KW?
2.Inlet /outlet water temperature: _deg C~ _deg C
3. Voltage/Frquency : PH/ V/ HZ?
4.Retrigreant: R22/R407C/R410A/R134A and etc.
5.Chiller water flow rate: m³/h
