6.6Ah Rechargeable Miner Torch Light Flashlight Underground Coal Mine Helmet LED Mining Cap Lamp
Introduction:
T7 corded miner cap lamp use 1pcs 3W Cree led as main light, 2pcs SMD leds as the auxiliary lights,and designed with high capacity 6.6Ah rechargeable Li-ion battery. Blue or yellow bezel ring for options, lamp head with press type switch, it uses 1.65m mining cable connect with battery case. This cap lamp has strong brightness, long lighting time, long life time, high intensity, weight 550g, low usage cost and high safety.Features:
a). 1pc CREE main light and 2pcs auxiliary lights, can be meet 10000lux to 15000lux brightness.b). 6.6Ah four pcs of one group 18650 Li-ion battery safety reliable, compact and light weight .
c). 1pc main light and 6pcs auxiliary lights,power of main led is 1.6W, current is 450mA.
d). Explosion-proof and strong impact resistance, waterproof , current shock proof , and impact proof.
e). Safety : EXia IIC4(zone1 and CE certified, Our these lamps can be used in any other hazardous locations.
f). Charging protection : anti-overcharging , current control , short circuit protection and anti-overheating.
Product Parameters
Lamp model | GLT-7A | GLT-7B | GLT-7C |
Light source | 1pcs main light and 6pcs auxiliary lights | 1pcs main light & 6pcs auxiliary lights | 1pcs main light & 2pcs auxiliary lights |
Battery capacity | 6600mAh rechargeable li-ion battery pack | 6600mAh rechargeable li-ion battery pack | 6600mAh rechargeable li-ion battery pack |
Rated voltage | 3.7V | 3.7V | 3.7V |
Main light current | 450mA | 450mA | 450mA |
Power of main light | 1.11W | 1.67W | 1.67W |
Illuminous | 144LUM | 216LUM | 216LUM |
Brightness | 4000LUX | 10000LUX | 15000LUX |
Life span of main light (LED) | 100000H | 100000H | 100000H |
Battery cycles | 1000Cycles | 1000Cycles | 1000Cycles |
Working time | 22H | 16H | 16H |
Weight | 420g | 420g | 420G |
Water-proof grade | IP68 | IP68 | IP68 |
Product display
Recommend Products
Attention!!! If you can't find the similar products you want, you can send us some photos, because our website and catalog don't include all our products. Click inquiry, contact suppliers.
Application
Widely used in Hunting,automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountain-climbing,hiking, Patrolling, Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations etc.

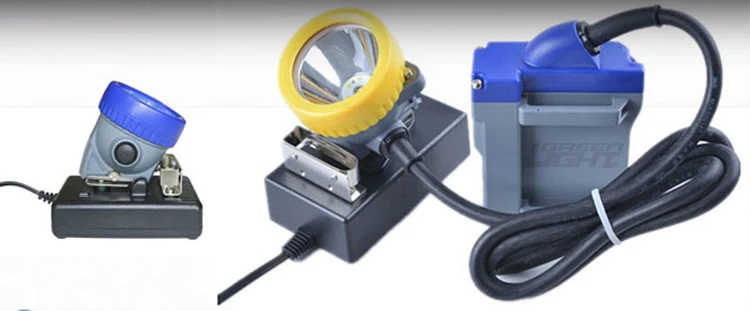

Traditional charging way：
*. Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green.
*. Connect the cap lamp with the charger. Fix the brass pin (cathode)of the charger into the hole of the cap lamp clip.
*. Rotate the head lamp 180 degree clockwise, make sure the anode touch of the head lamp is closely connected to the connected metal base (anode).
*. When it’s charged by 1A single portable charger or the intelligent chargers racks, the indicator light of the charger keeps flashing from green to red, it meaning the battery has been charged at least 90%.
*. The cap lamp can work more than 16h continuously if charging is stopped at this moment.
*. Rotate the head lamp 180 degrees anti-clockwise; take it away from the charger.
*. Then the indicator light turns red, which means the lamp is being charged.
*. If the indicator light of the charger flashes green only, then the battery has been fully charged.
Safety Attention：
a) Please Device do not shoot at eyes directly since the strong light will hurt eyes.
b) Before each use , check the functionality of the device.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
e) Please do not disassemble the lamp or repair the battery parts by yourself.
f) Please do not crash and stick the lamp.
g) Do not open or repair the device without using appropriate electrostatic protection.
*. Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green.
*. Connect the cap lamp with the charger. Fix the brass pin (cathode)of the charger into the hole of the cap lamp clip.
*. Rotate the head lamp 180 degree clockwise, make sure the anode touch of the head lamp is closely connected to the connected metal base (anode).
*. When it’s charged by 1A single portable charger or the intelligent chargers racks, the indicator light of the charger keeps flashing from green to red, it meaning the battery has been charged at least 90%.
*. The cap lamp can work more than 16h continuously if charging is stopped at this moment.
*. Rotate the head lamp 180 degrees anti-clockwise; take it away from the charger.
*. Then the indicator light turns red, which means the lamp is being charged.
*. If the indicator light of the charger flashes green only, then the battery has been fully charged.
Safety Attention：
a) Please Device do not shoot at eyes directly since the strong light will hurt eyes.
b) Before each use , check the functionality of the device.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
e) Please do not disassemble the lamp or repair the battery parts by yourself.
f) Please do not crash and stick the lamp.
g) Do not open or repair the device without using appropriate electrostatic protection.
Company Introduction
GREEN LIGHTING TECHNOLOGY CO.,LTD is commit to manufacturing of explosion-proof mining lamp. Our factory has skilled experience in underground working lamps development and production.
We specialize in producing LED miner's cap lamps , charging devices and safety anti-explosion products in mining industrial etc. GREEN LIGHTING focus on the development and innovation. We pay more attention to great quality, also have established our own marketing department for foreign business. We have lots of intelligent and multi-functional mining cap lamps for client's choose, and we can also supply OEM & ODM products according client's requirements.
We specialize in producing LED miner's cap lamps , charging devices and safety anti-explosion products in mining industrial etc. GREEN LIGHTING focus on the development and innovation. We pay more attention to great quality, also have established our own marketing department for foreign business. We have lots of intelligent and multi-functional mining cap lamps for client's choose, and we can also supply OEM & ODM products according client's requirements.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is the lead time?
A: Sample needs 7-10days, mass production time needs 25-30days.
Q3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the
goods to customers-Confirmation-Finish.
Q6. How to make this payment?
A: TT, Paypal, Western Union.
Q7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q8. Do you accept OEM/ODM?
A: Yes, it’s available.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What is the lead time?
A: Sample needs 7-10days, mass production time needs 25-30days.
Q3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the
goods to customers-Confirmation-Finish.
Q6. How to make this payment?
A: TT, Paypal, Western Union.
Q7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q8. Do you accept OEM/ODM?
A: Yes, it’s available.
