Малый радиус приводного колеса для AGV прямого привода 400 Вт с
- Категории: Material Handling Equipment Parts >>>
- Поставщик: Zhejiang,Tongzhu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

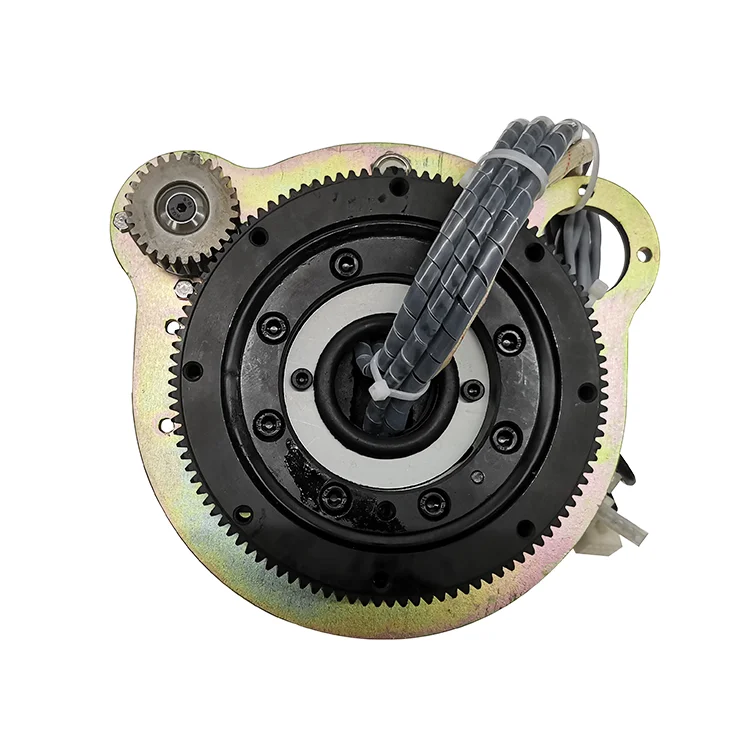

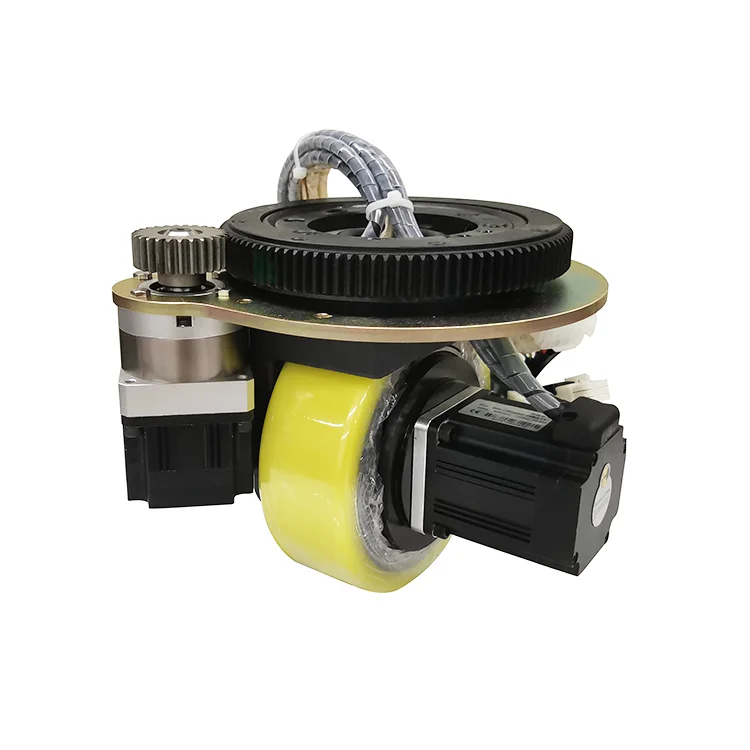

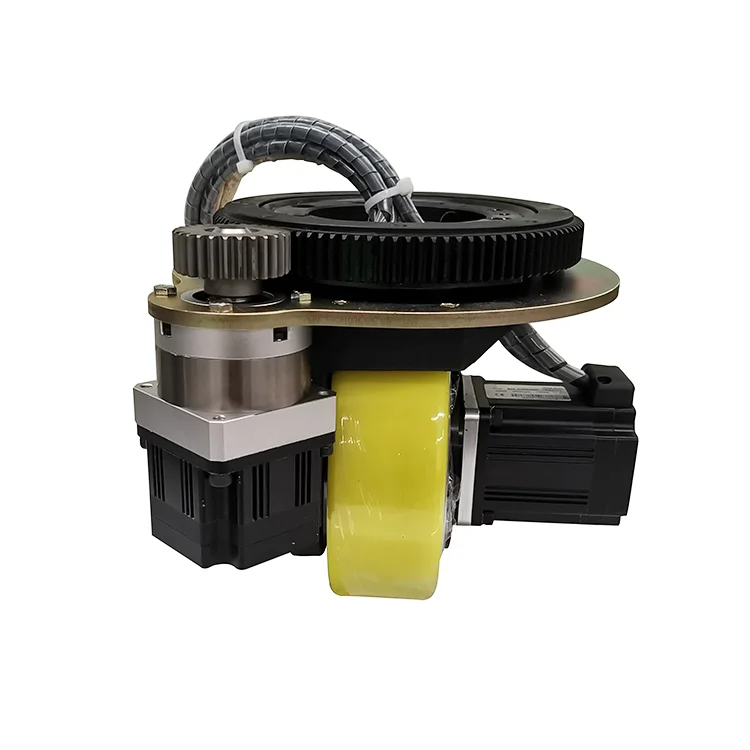

TZ05-D04S02 Small Diameter Drive Wheel
With Steering Motor
With Steering Motor
The model of this product is TZ05-D04S02. Its rated voltage is 48V. It can be used for various types of AGV vehicles, electric stackers, tractors or other industrial automatic navigation vehicles.
Product Information
Model | TZ05-D04S02 | |
Traction Motor Parameters | 13.56 MHz | |
Rated power (s2-60min) | 400W | |
Rated voltage | 48V | |
Rated speed | 3000 | |
Rated current | 12A | |
Rated torque | 1.27NM | |
Braking torque | 4NM | |
Reduction ratio | 1:26.5 | |
Encoder | 2500PPR | |
Steering Motor Parameters | ||
Rated power (s2-60min) | 200W | |
Rated voltage | 48V | |
Rated speed | 3000 | |
Rated current | 5.5A | |
Rated torque | 0.64NM | |
Reduction ratio | 1:35 | |
Encoder | 2500PPR | |
Product description

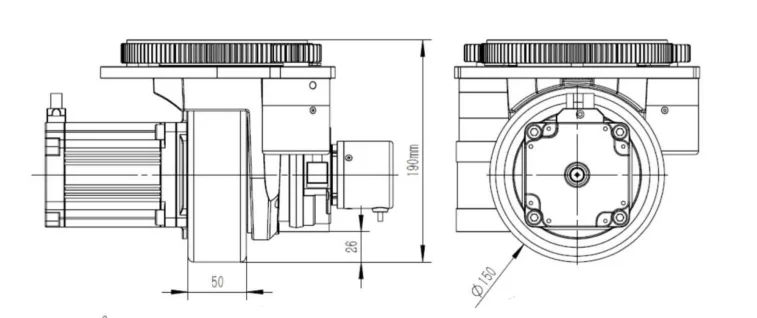

Dimensions
Advantages
Size&Structure
This wheel has a low installation height, drive more smoothly;
Small wheel size,
which is ⌀150.
Small wheel size,
which is ⌀150.
Equipped With
Servo Motor
Servo motor has the advantages of high precision,
good high-speed performance, strong anti-overload ability, and stable operation at low speed.
good high-speed performance, strong anti-overload ability, and stable operation at low speed.
2500PPR Encoder
Servo motor is equipped with an incremental encoder with a resolution of 2500 PPR,
which can meet most needs.
which can meet most needs.
Product Application
Hot-sale products
Company introduction
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
Packing & Shipping
FAQ
Q1: Payment
A: Our payment is T/T, Paypal, West Union, Trade Assurance(Ali pay or E-check), L/C and D/P
Q2: Delivery Time
A: It is up to the quantity and stocking. The usual delivery time of our stock product is 7 working days. The delivery time of OEM/ODM order is 15-40 days.
Q3: Transport/Shipment Time
A: There is currently no guarantee of the delivery time, but we will continue to pay attention and give you the latest feedback about it.
Q4: How about your after-sale service?
A: We have our own professional engineer team and we can provide technical support via online communication. Within 24 hours technical support by email, calling and so on.
Q5: How can we make sure about the machine quality after placing the order?
A: We will set all the parameters well according to your needs. Before delivery, we will check the stability and sending you the testing video until you satisfy.
