OVERVIEW
UHF desktop card issuer is a UHF band multi-purpose non-encrypted card issuer that reads the EPC number of UHF tags or cards. Combined with UHF contactless RF circuit and various codec algorithms, it can read EPCglobal UHF Class 1Gen 2/ISO 18000-6C tags/cards with a USB communication interface.USB adopts advanced plug-and-play interface without driver core technology to realize connection with PC and related devices through USB port. The reader control chip comes with watchdog and voltage detection circuit for stable performance.
It can read and write cards and has the advantages of a buzzer prompt, small size, fast reading rate, high receiving sensitivity, small working current, USB power supply, high performance, etc. It can be widely used in all kinds of parking management, personnel access control management, library, consumption management, attendance management, and other systems.
FEATURE
●USB-HID drive-free design, easy-to-use connection, and secondary development.
●Self-contained antenna, no need for external connection.
●Connect the USB for active mode, connect the USB, and perform DEMO operation for passive mode. ●The active-passive mode can be switched by itself.
●Read the card successfully once, beep once, and flash the green light.
●The cursor currently defines the window, and the card number will be displayed in the window.
●This card issuer supports Windows, Android, and Linux systems.
●Can be set to read-only or read-write.

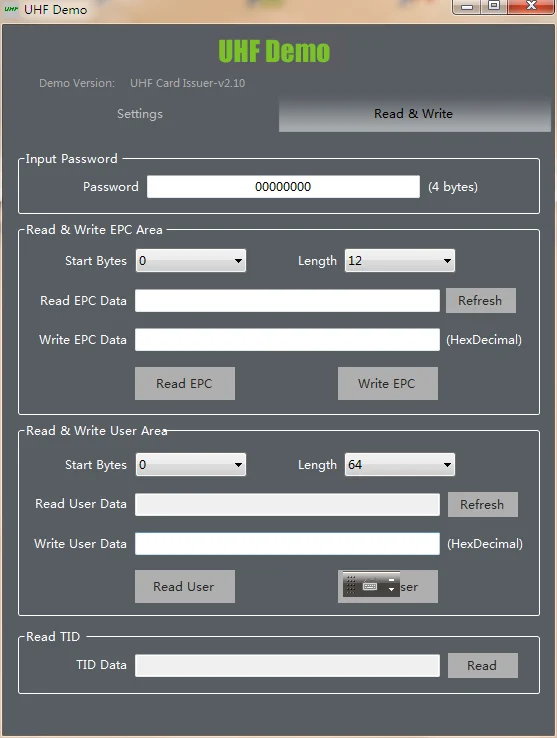

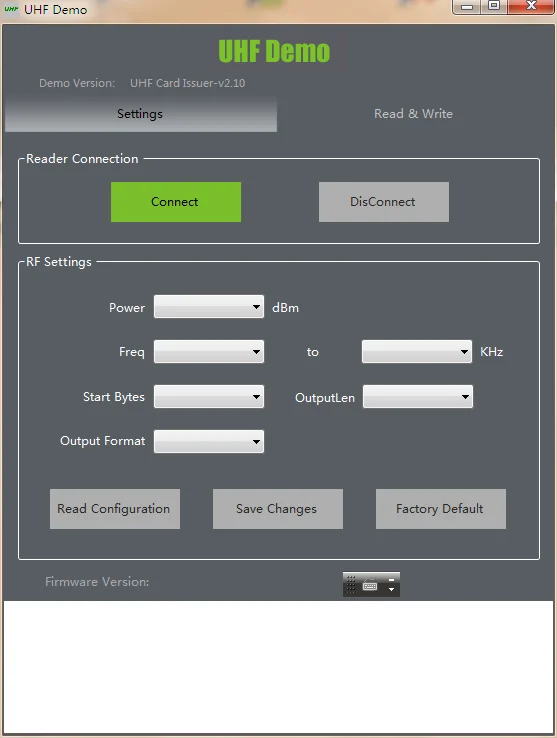

●Card writing and reading DEMO software is available to facilitate card issuance and card writing.
●Self-contained antenna, no need for external connection.
●Connect the USB for active mode, connect the USB, and perform DEMO operation for passive mode. ●The active-passive mode can be switched by itself.
●Read the card successfully once, beep once, and flash the green light.
●The cursor currently defines the window, and the card number will be displayed in the window.
●This card issuer supports Windows, Android, and Linux systems.
●Can be set to read-only or read-write.
●Card writing and reading DEMO software is available to facilitate card issuance and card writing.
Specification
Item | Value |
Place of Origin | China |
Guangdong | |
Brand Name | OEM |
Model Number | ZUD18R/W |
Special Features | USB-HID Data output |
Network | None |
Application | Indoor |
Product name | UHF RFID USB Desktop Read/Write Encoder |
Material | ABS Plastic |
Work frequency | 902-928MHz( 865-868MHz available) |
Protocol | EPC GEN1 CLASS2 / ISO18000-6C |
Work mode | Passive/ Active mode can be set |
USB-HID output | Available |
PC-end Demo | Available |
Power supply | DC 5V |

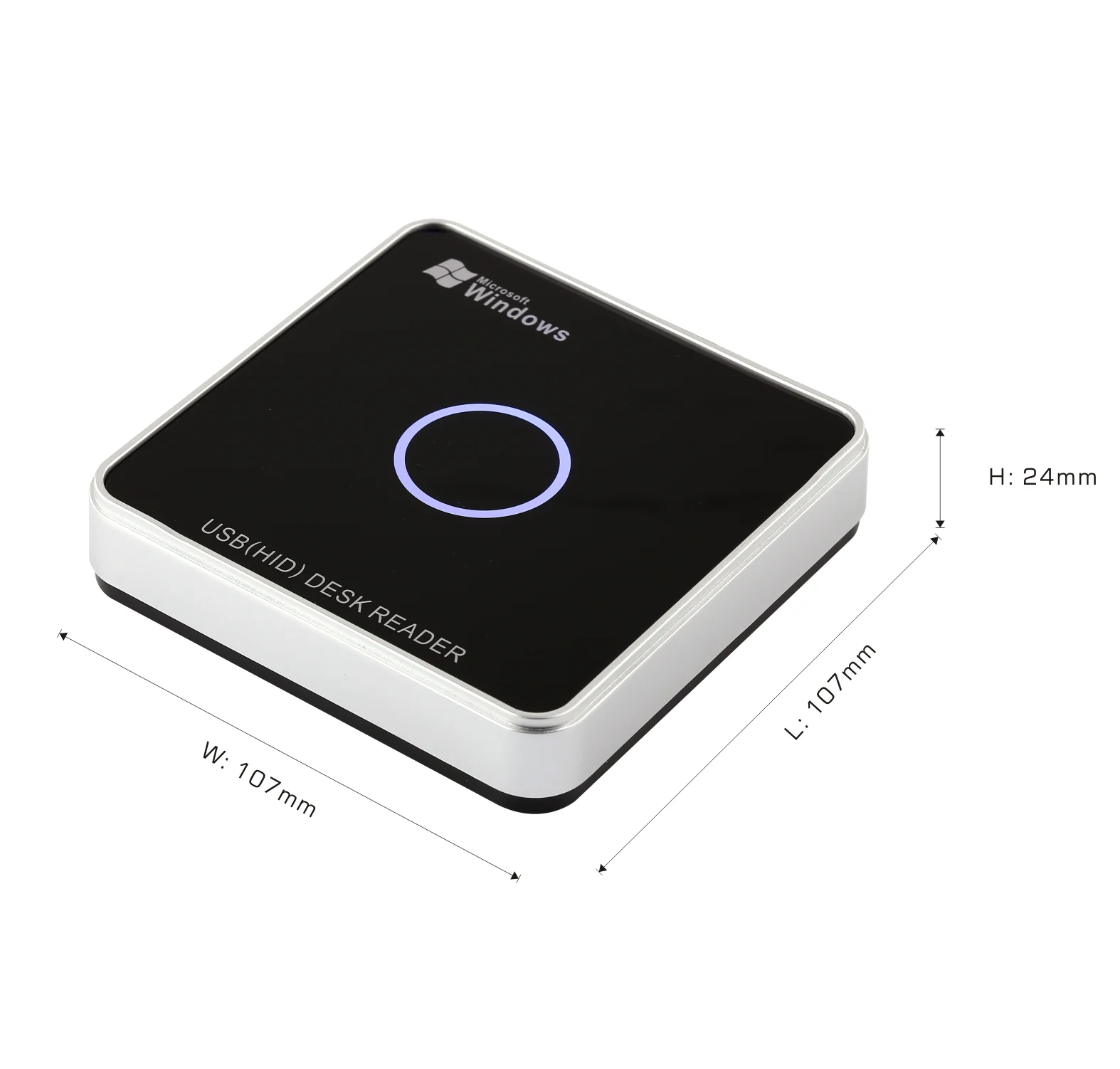

Size | 107*107*23mm |
Support O/S | Windows / Android / Linux |
Work current | Quiescent current 70 mA, work current 150 mA |
Work temperature | -10℃ ~ +70℃ |
Storage tepmerature | -20℃~+80℃ |
Operating humidity | 15%~90% |
