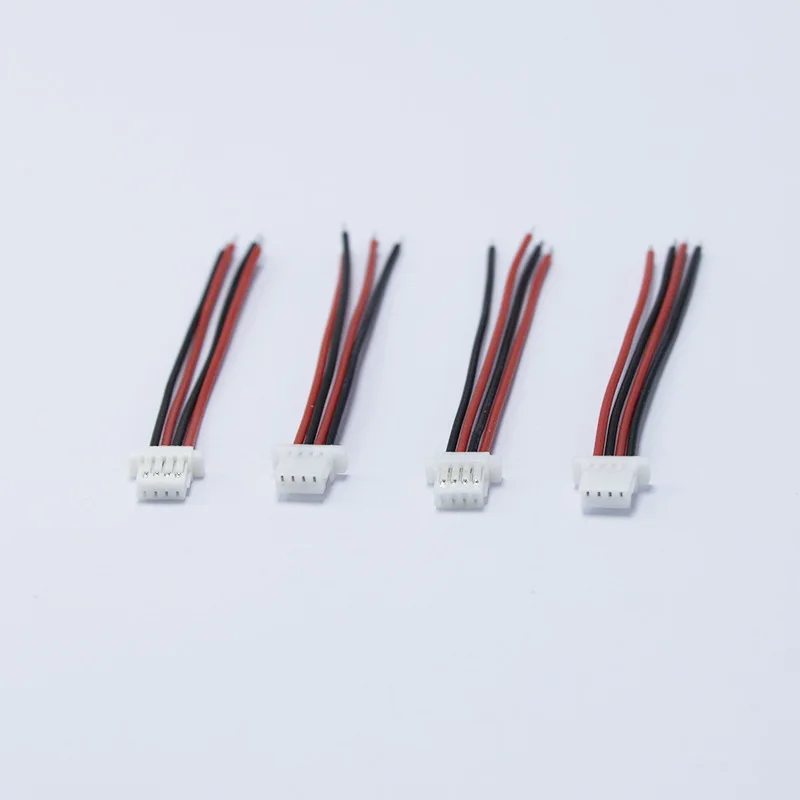

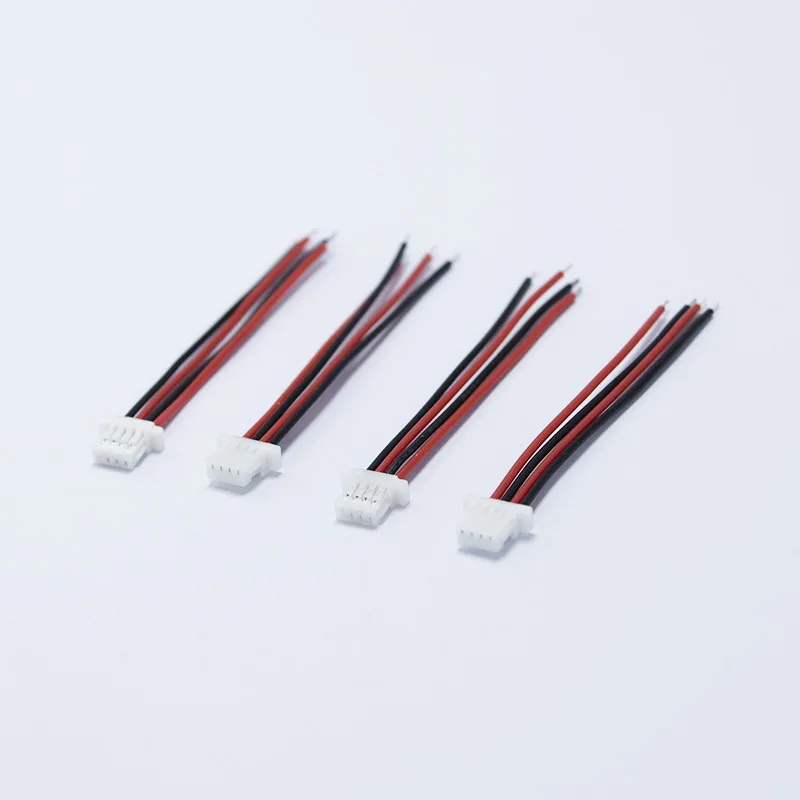

Product Description
Product name | Sh1.0 plug terminal wire male and female |
Material | PVC |
Application | Lamps, LED display, security, electronic products, electric tools, etc |
Color | OEM |
Connector | OEM |
Testing | 100% full test |
Length | AS YOUR REQUEST |
Package | Carton |
SH Specifications
Pitch:1.0mm
Poles:2 to 30
Useable wire range:AWG32# to 28#
Current rating: 1.0A AC/DC
Voltage rating: 50V AC/DC
Temperature range: -25℃ to +85℃
Withstanding voltage: 500V AC/minute
Poles:2 to 30
Useable wire range:AWG32# to 28#
Current rating: 1.0A AC/DC
Voltage rating: 50V AC/DC
Temperature range: -25℃ to +85℃
Withstanding voltage: 500V AC/minute
Material
Housing: PBT UL 94V-0
Terminal: Phosphor bronze
Housing: PBT UL 94V-0
Terminal: Phosphor bronze

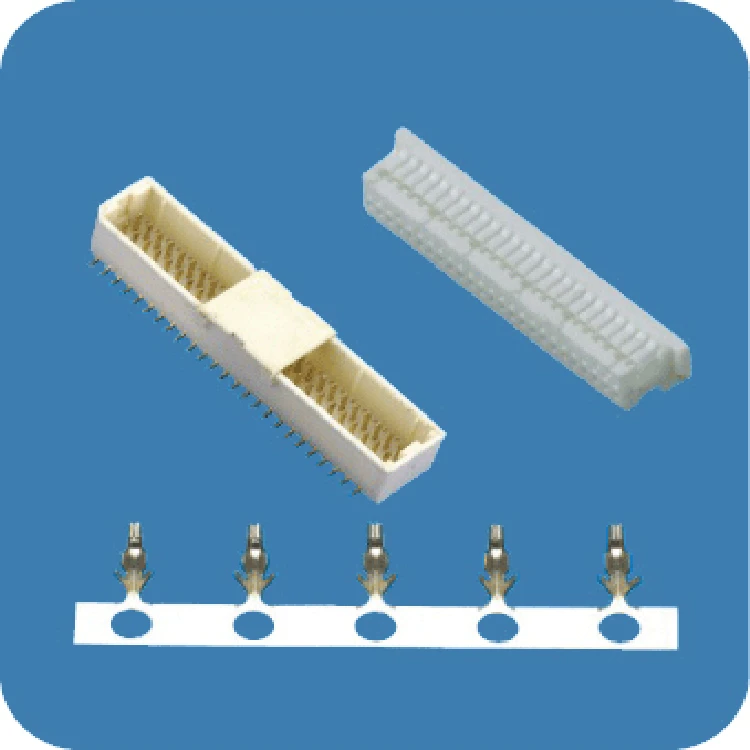

SHD Specifications
Pitch:1.0mm
Poles:10P*2 or 20p*2 or 25p*2
Useable wire range:AWG32# to 28#
Current rating: 1.0A AC/DC
Voltage rating: 50V AC/DC
Temperature range:-25℃ to +85℃ Withstanding voltage: 500V AC/minute
Material
Material
Housing: PBT UL 94V-0
Terminal: Phosphor bronze
Poles | Part No. | DIM=A | DIM=B |
2 | SH-02 | 1.00 | 5.00 |
3 | SH-03 | 2.00 | 6.00 |
4 | SH-04 | 3.00 | 7.00 |
5 | SH-05 | 4.00 | 8.00 |
6 | SH-06 | 5.00 | 9.00 |
7 | SH-07 | 6.00 | 10.00 |
8 | SH-08 | 7.00 | 11.00 |
9 | SH-09 | 8.00 | 12.00 |
10 | SH-10 | 9.00 | 13.00 |
-- | -- | -- | -- |
30 | SH-30 | 29.00 | 33.00 |
Poles | Part No. | DIM=A | DIM=B |
20 | SHD-02 | 9.00 | 13.00 |
30 | SHD-03 | 14.00 | 18.00 |
40 | SHD-04 | 19.00 | 23.00 |
50 | SHD-05 | 24.00 | 28.00 |
Common production methods
We can customize the wiring harness, which is far more than these products.Please contact customer service.

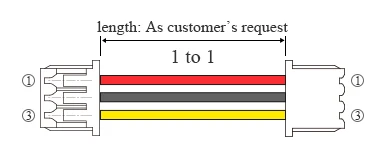

Same direction (A type)
Make terminals at both ends at the same time and thread them into the housing,And thread one-on-one,That is, the two housing are the Same direction.

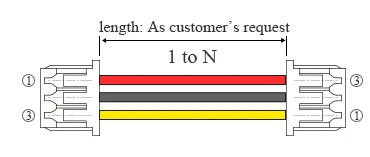

Opposite direction (B type)
Make terminals at both ends at the same time and thread them into the housing,And thread them one by one in the opposite
direction,That is, one of the housing is the above and the other is the back.
direction,That is, one of the housing is the above and the other is the back.

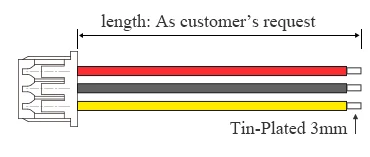

Single head (C type)
one terminal is connected into the housing, The other end is stripped and tinned.
