630 мм 1000 1300 полировальная машина для древесины МДФ
- Категории: Other Woodworking Machinery >>>
- Поставщик: Qingdao,Hongshenghong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

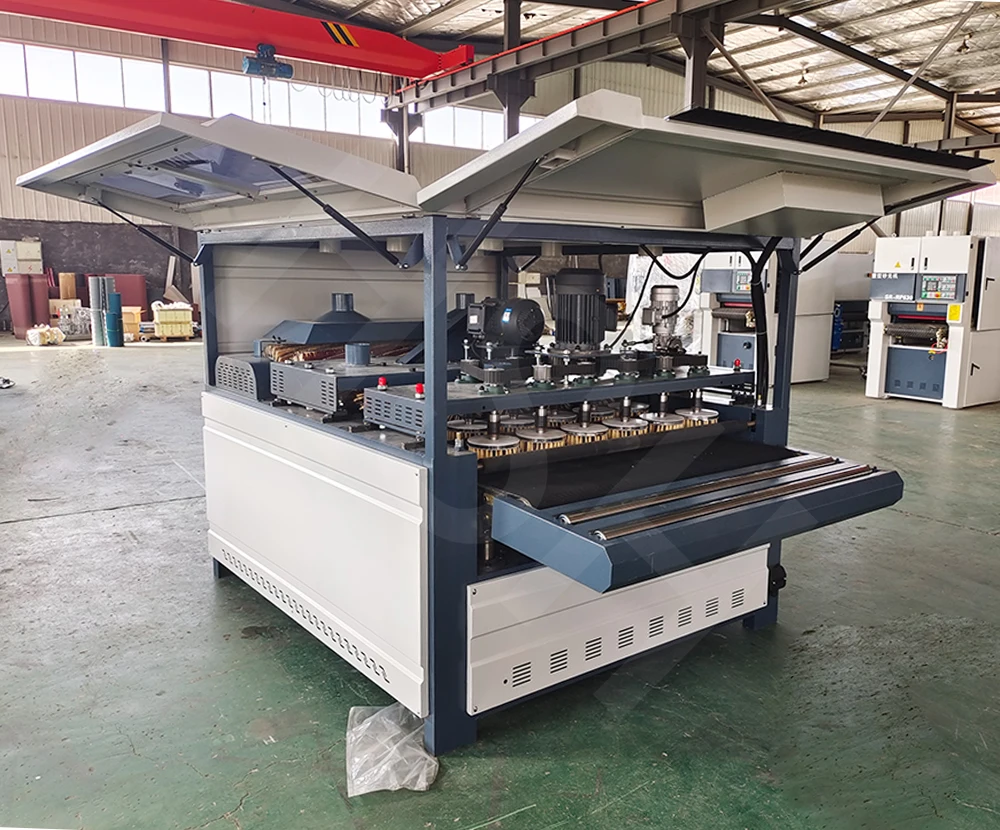

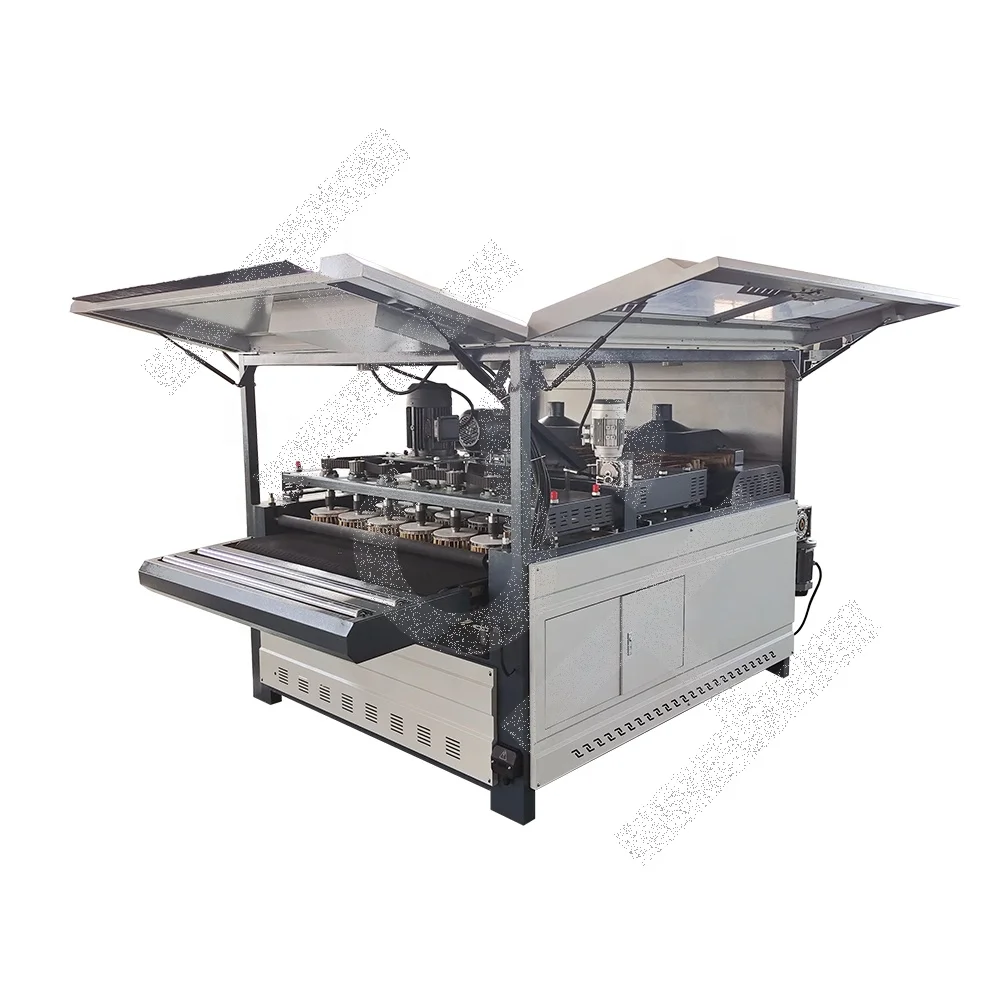

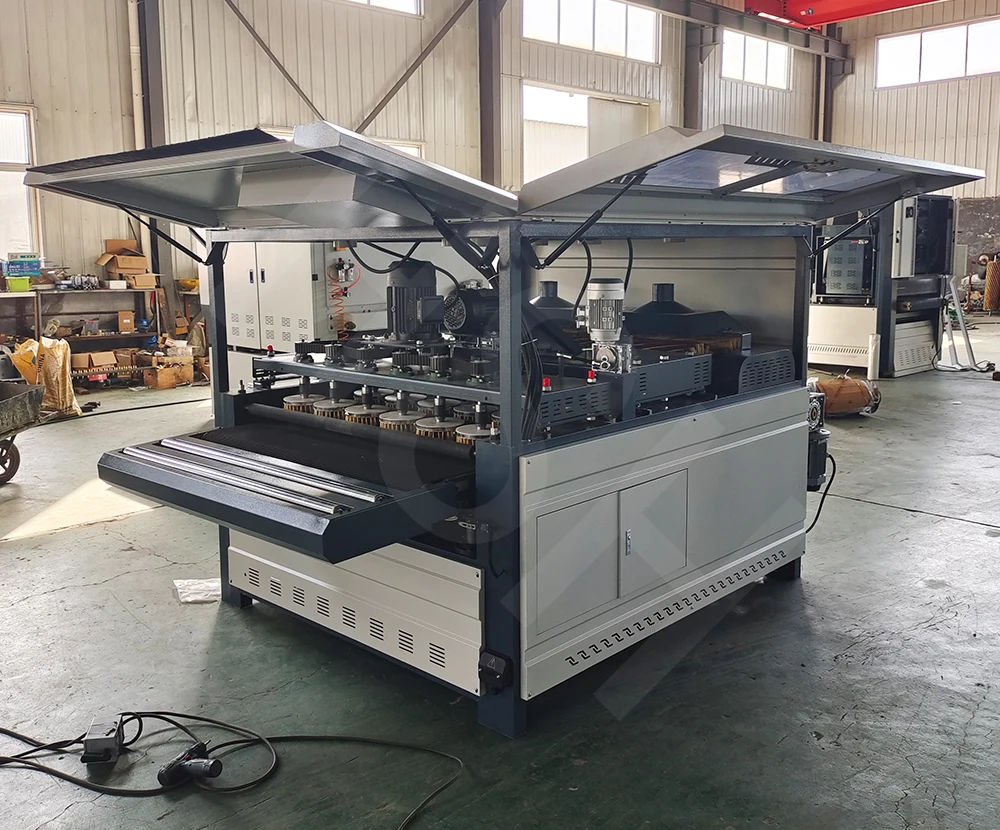

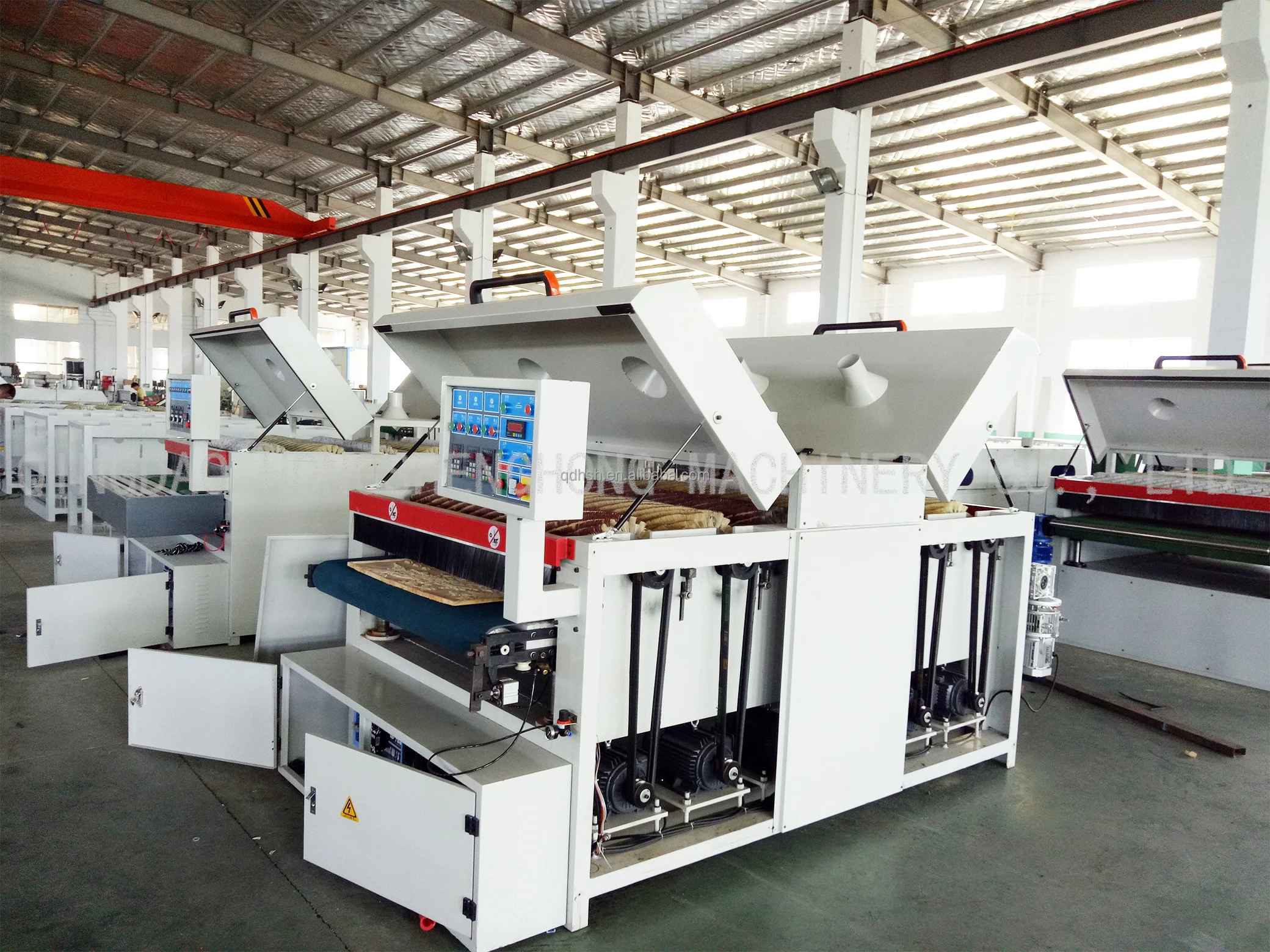

Wood Polishing Machine
1. This series of fuselage adopts plate structure to keep the stability of the fuselage, and to ensure the grinding effect of the
workpiece.
2. The platform is made of marble platform with high precision, good evenness and durable and durable.
3. The sheet metal all uses laser cutting down material,the size is accurate,the appearance is beautiful.
4. The whole machine is painted by high temperature, and it is not easy to drop the paint after the body collision, and the
antirust effect is more lasting Imported motor, motor are pure copper core international motor, more durable.
5. The wool rolls are all imported gauze strips, more durable, quality assurance.

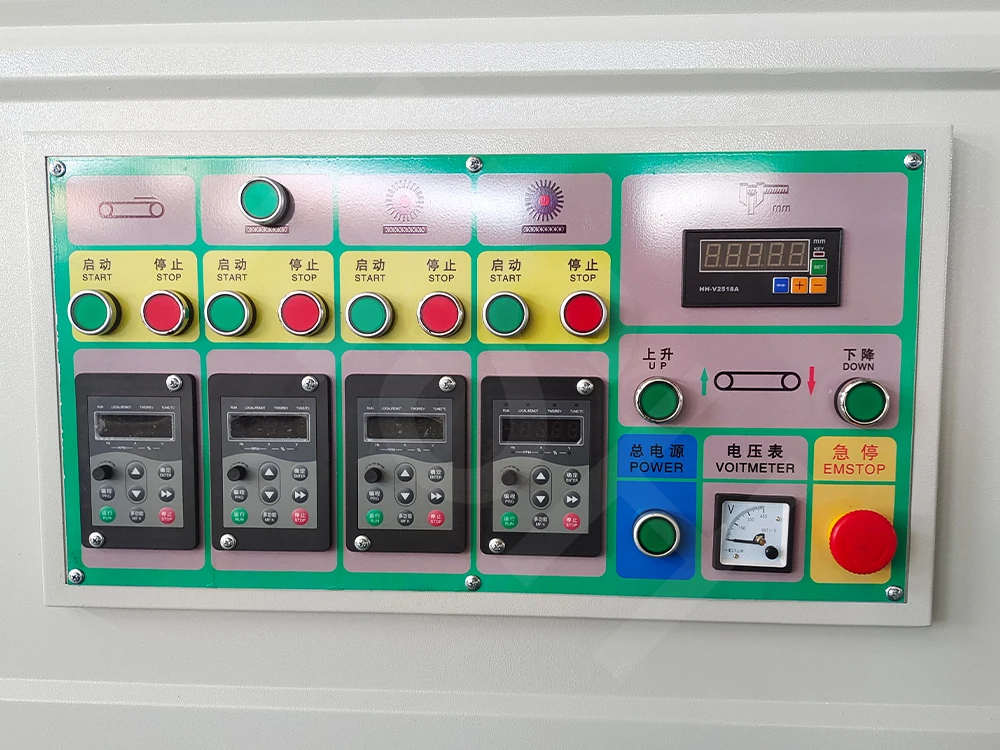

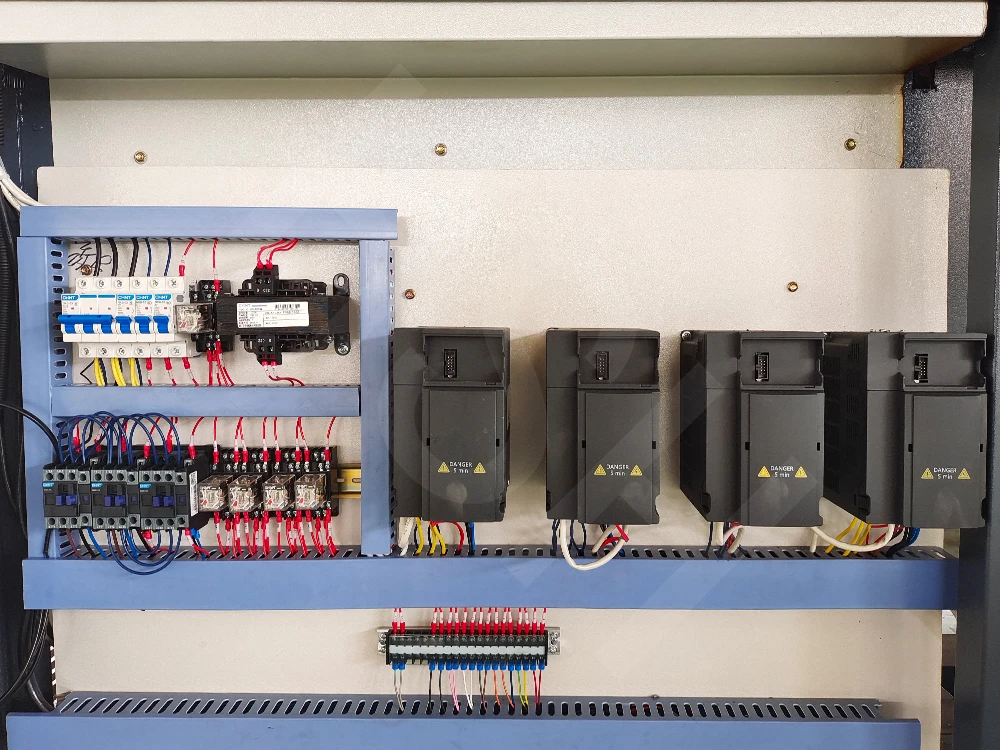

6. The machine is equipped with a frequency converter, which can adjust the speed freely, and the frequency converter is super
long and guaranteed for one year High efficiency, grinding a door every minute to save labor cost and improve work efficiency.
workpiece.
2. The platform is made of marble platform with high precision, good evenness and durable and durable.
3. The sheet metal all uses laser cutting down material,the size is accurate,the appearance is beautiful.
4. The whole machine is painted by high temperature, and it is not easy to drop the paint after the body collision, and the
antirust effect is more lasting Imported motor, motor are pure copper core international motor, more durable.
5. The wool rolls are all imported gauze strips, more durable, quality assurance.
6. The machine is equipped with a frequency converter, which can adjust the speed freely, and the frequency converter is super
long and guaranteed for one year High efficiency, grinding a door every minute to save labor cost and improve work efficiency.
Product Specifications
Model | FHDR630-6B | FHDR1000-6B | FHDR1300-6B |
Max. Working width | 630mm | 1000mm | 1300mm |
Max. Working thickness | 3~110mm | 3~110mm | 3~110mm |
Amount & Motor of circle sanding head | 4+3pcs / 1.1kW | 4+5pcs / 1.5kW | 9pcs / 2.2kW |
Amount & Motor of vertical sanding roller | 3+4pcs / 1.1kW * 2 | 3+4pcs / 1.5kW * 2 | 2pcs / 2.2kW * 2 |
Amount & Motor of horizontal sanding roller | 4pcs / 1.1kW * 2 | 2pcs /1.5kW * 2 | 2pcs / 2.2kW * 2 |

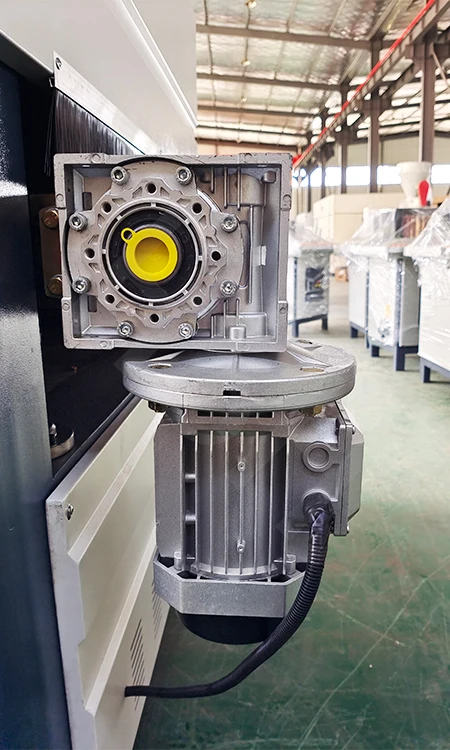

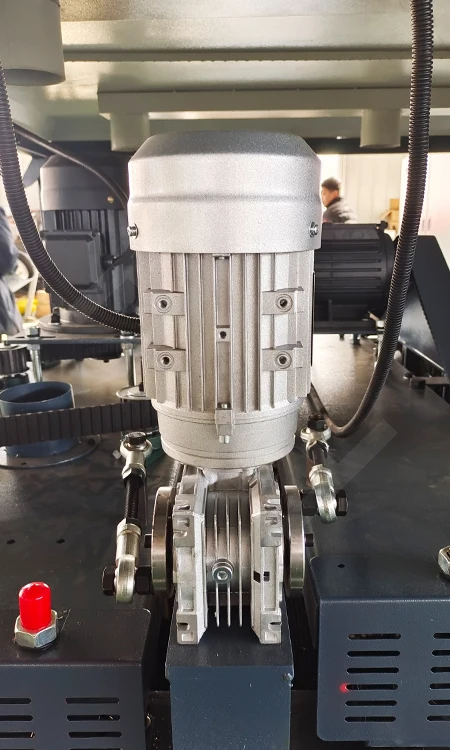

Reducer of feeding | 1.1kW | 1.5kW | 1.5kW |
Reducer of Swing | 0.25kW | 0.37kW | 0.37kW |
Reducer of lifting | 0.25kW | 0.37kW | 0.37kW |
Total motor power | 7.1kW | 9.74kW | 13.5kW |

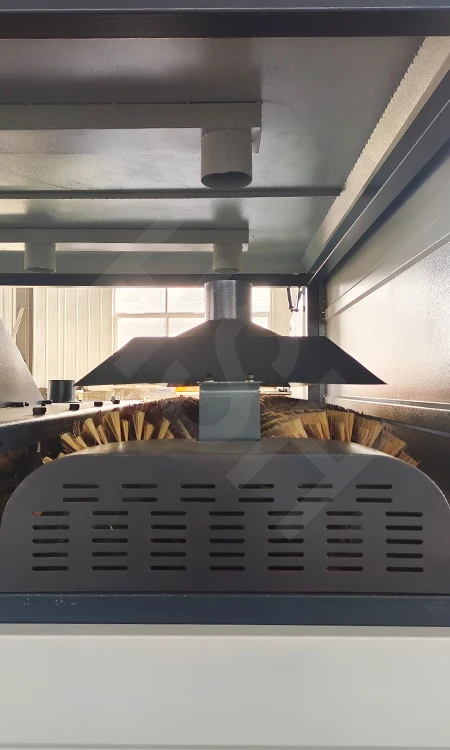

Volume of dust collection device | 1.6m³/min | 1.6m³/min | 1.6m³/min |
Feeding speed | 3~22m/min | 3~22m/min | 3~22m/min |
Dimension | 3080*1290* 1600mm | 3080*1560* 1600mm | 3080*1960* 1600mm |
Weight | 1000kg | 1200kg | 1800kg |

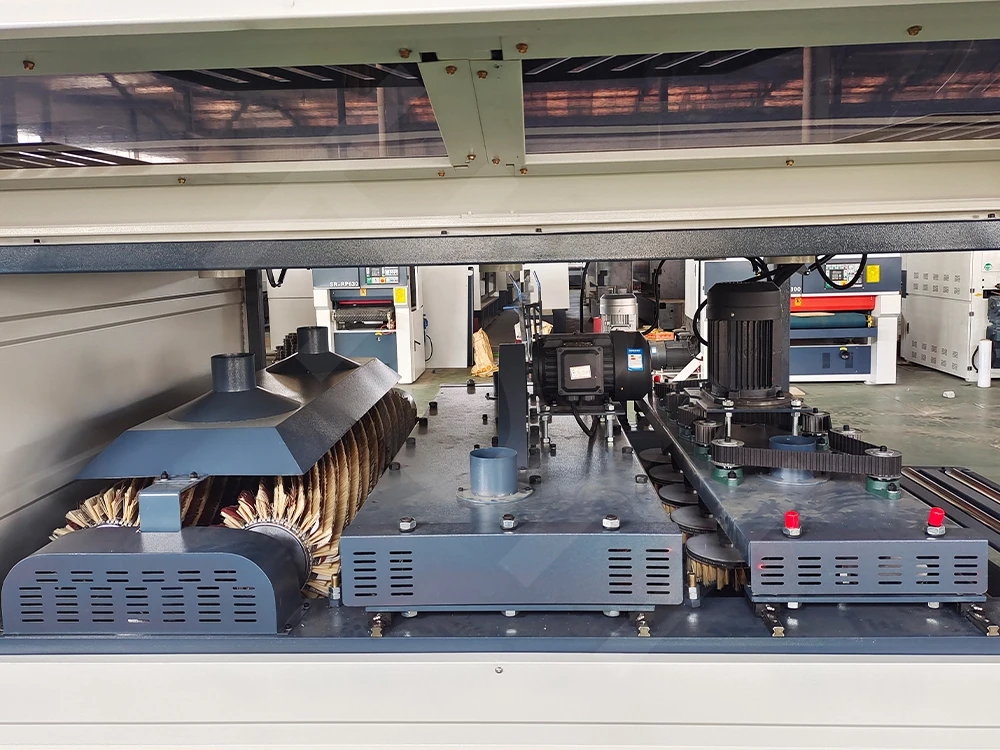

Product Configuration

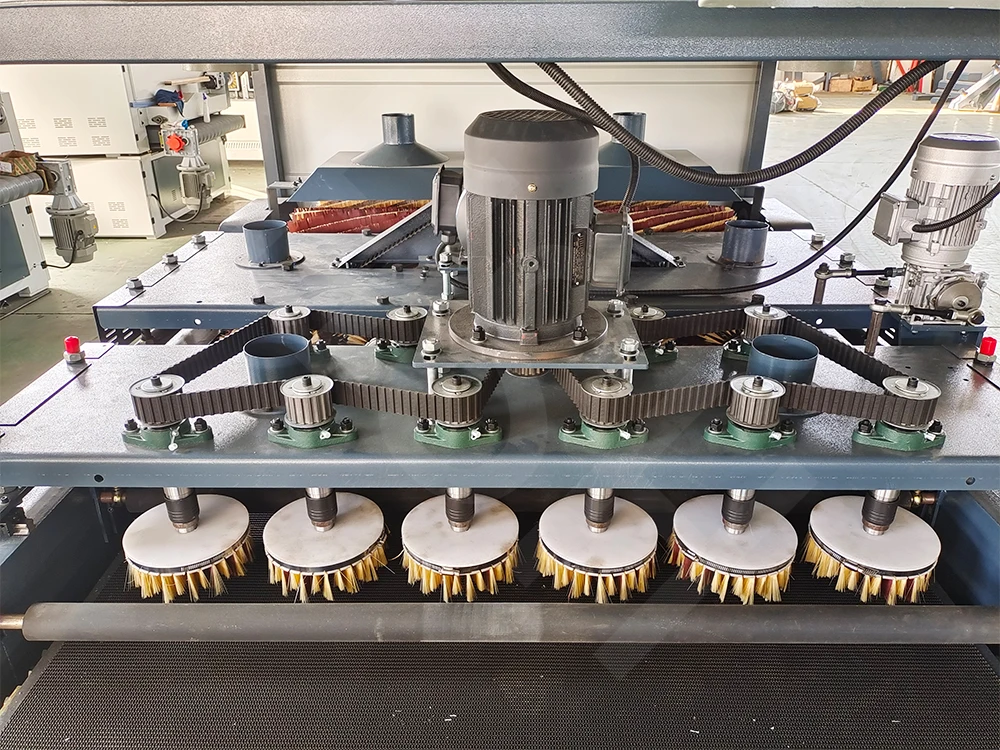

11 circle polishing rollers
6+5 circle polishing rollers for 360 degree polishing, every side can be polished.

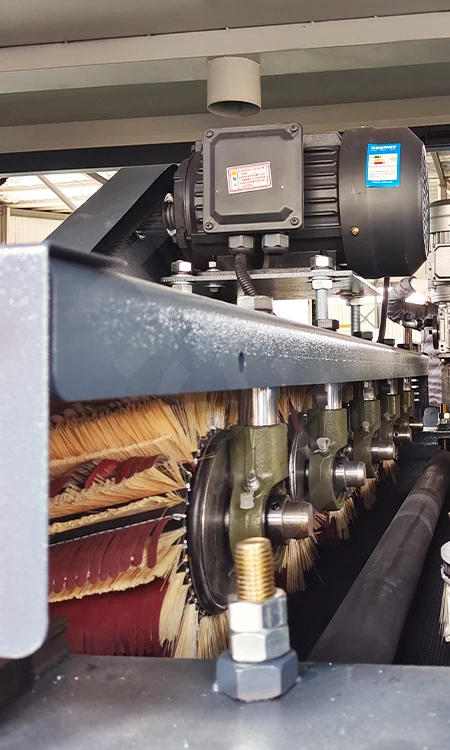

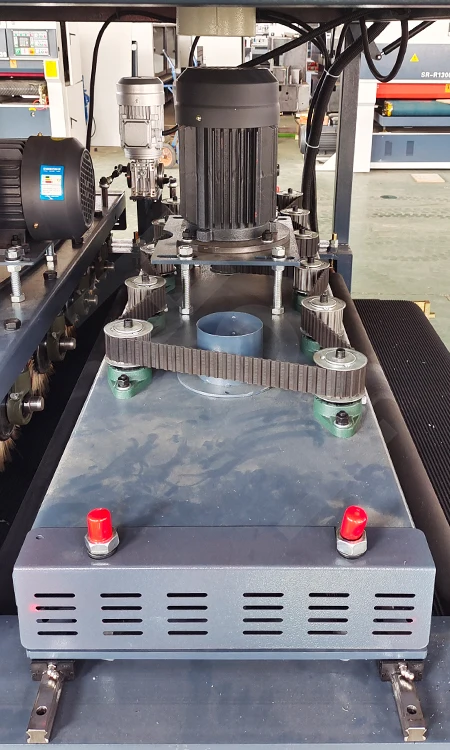

Clockwise polishing roller
5+4 clockwise polishing rollers. for left and right curved surface polishing.
5+4 clockwise polishing rollers. for left and right curved surface polishing.
2 straight polishing rollers
2 straight polishing rollers with 1300mm in length. The front and back of each corner can not polished.
Similar Products
Samples After Processing
Applicable Materials
1. For finish sanding of louver, shutter, raised panel, doors and frames.
2. For sanding finishing of hard wood, softwood, MDF, veneer, plywood, and painted panel.
2. For sanding finishing of hard wood, softwood, MDF, veneer, plywood, and painted panel.
Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sale service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
