Product Description

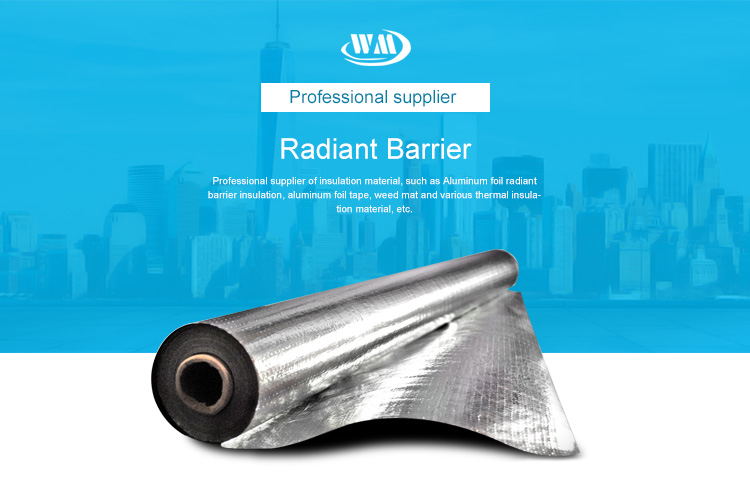

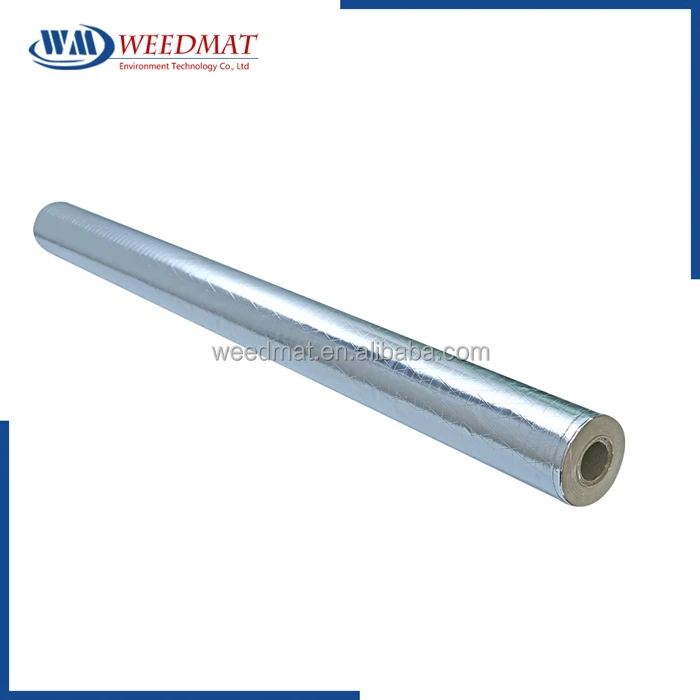

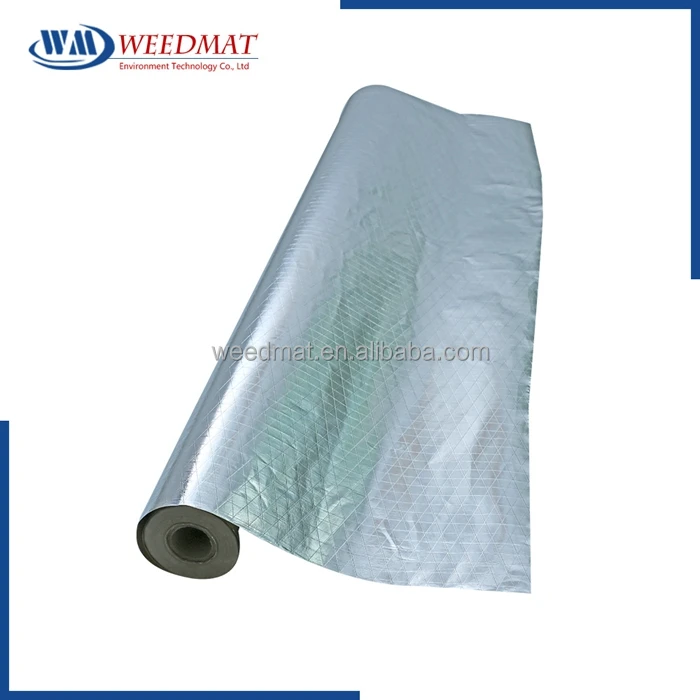

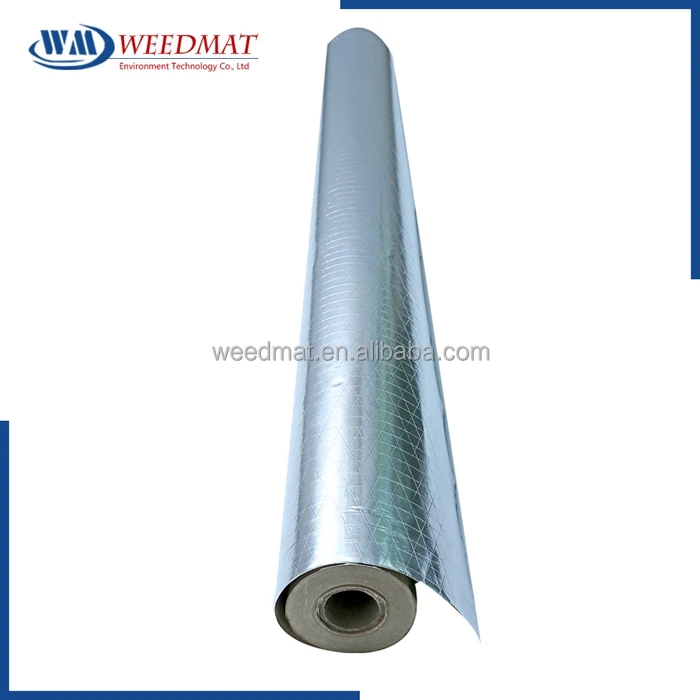

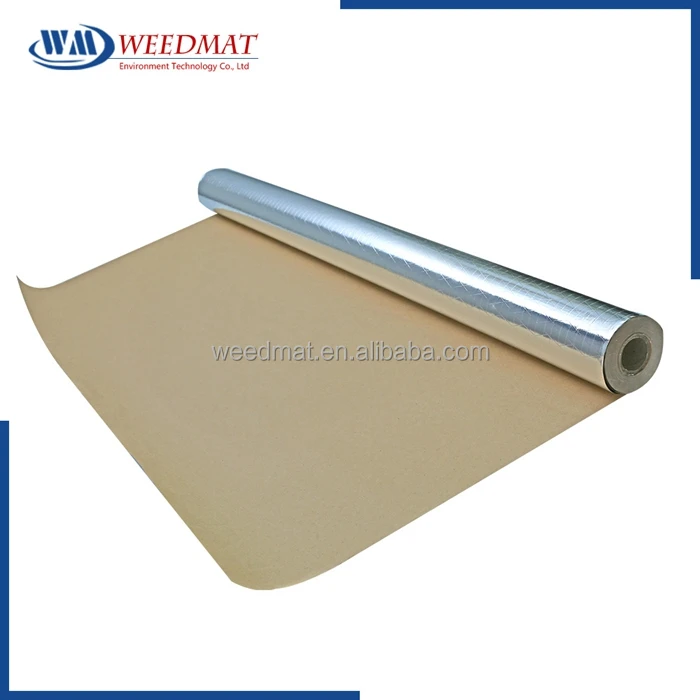

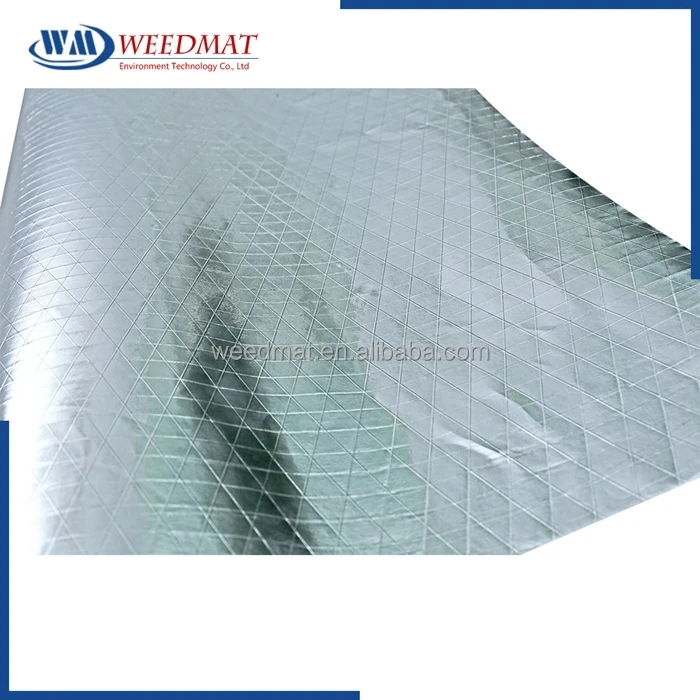

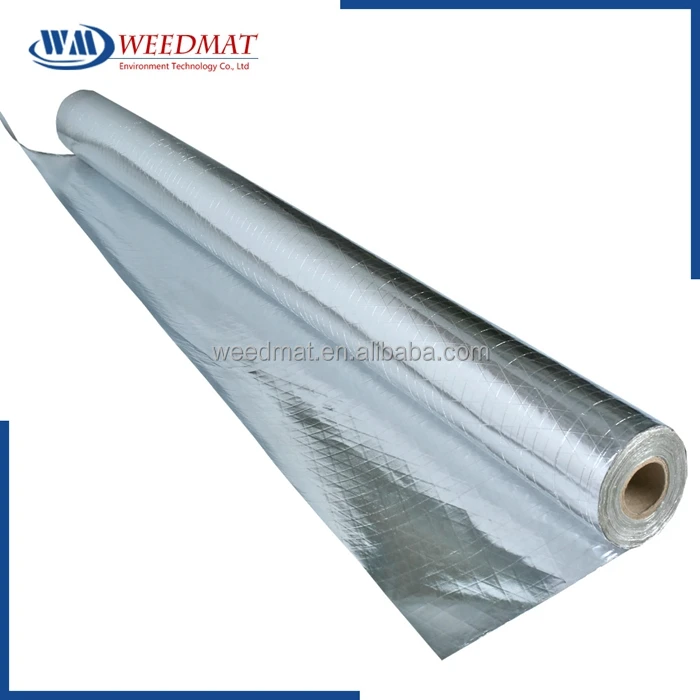

foil reinforced kraft paper
Facing Composition | Description | Values (English) | Values (Metric) |
Foil | Aluminum | 0.28 mil | 7 micron |
Scrim | Tri-directional Fiberglass |
2/inch (MD) 3/inch (XD)
|
8/100 mm 12/100 mm
|
Adhesive | Flame Retardant | ------ | ------ |
Kraft | Natural | 36.6 lbs / 3000 ft2 | 60 g/ m2 |
Technical Parameters:
Physical Properties | Test Method | Values (English) | Values (Metric) |
Basis Weight | Scale | 19.4 lbs / 1000 ft2 | 100 g/ m2 |
Permeance (WVTR) | ASTM E96, Procedure A | 0.1 perm | 5.75 ng/N.s |
Tensile Strength - MD | ASTM D828 | 28.4 lbs/inch | 5.0 kN/m |
Tensile Strength - XD | ASTM D828 | 11.5 lbs/inch | 2.0 kN/m |
Bursting Strength | ASTM D774 | 43.5 psi | 30 N/cm2 |
Low Temperature Resistance |
ASTM D1790 4 hrs @-40 oF (-40 oC)
|
Remains Flexible No Delamination
|
Remains Flexible No Delamination
|
High Temperature Resistance |
ASTM D1790 4 hrs @ +240 oF (+116 oC)
|
Remains Flexible No Delamination
|
Remains Flexible No Delamination
|
Dimensional Stability | ASTM D1204 @ 150 oF (65oC) | Less than 0.5% | Less than 0.5% |
Emissivity | ASTM E408 | 0.03 | 0.03 |
Fire Rating | UL723/ASTM E84 | Less than 25/60 - passed | Less than 25/60 - passed |
Fire Rating | BS467 Pt 6 & 7 | Class 0 - passed | Class 0 - passed |
Available Roll Width | --- | 39.4", 47", 49.21", 51.2", 53.14" | 1.0m, 1.2m, 1.25m, 1.3m, 1.35m |

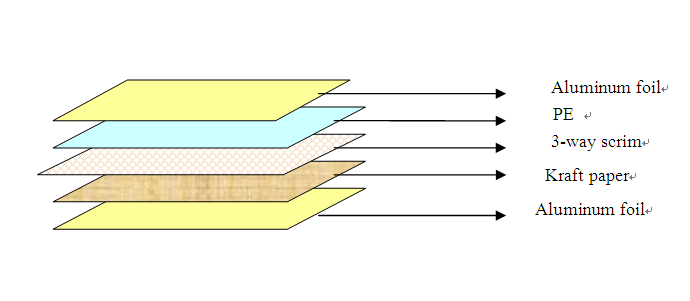

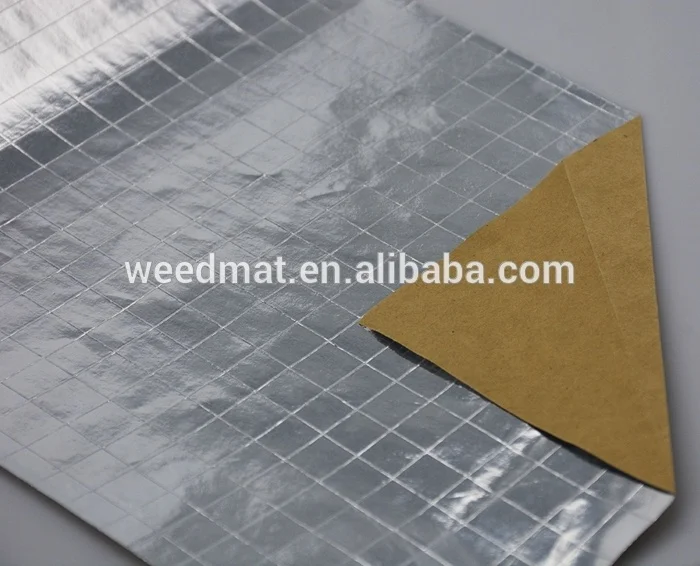

Material structures(sisalation insulation)

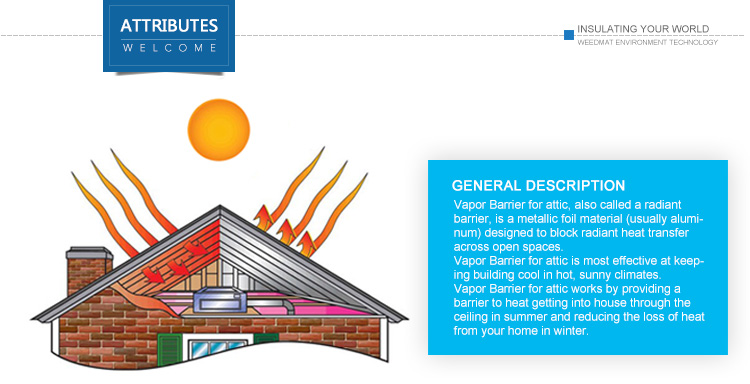

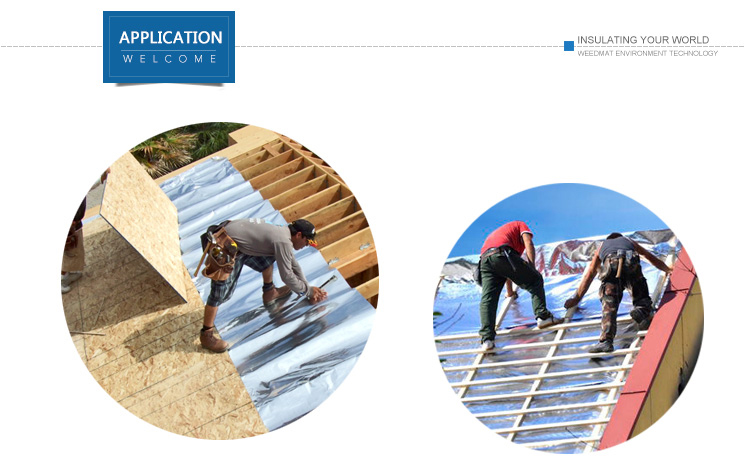

Application

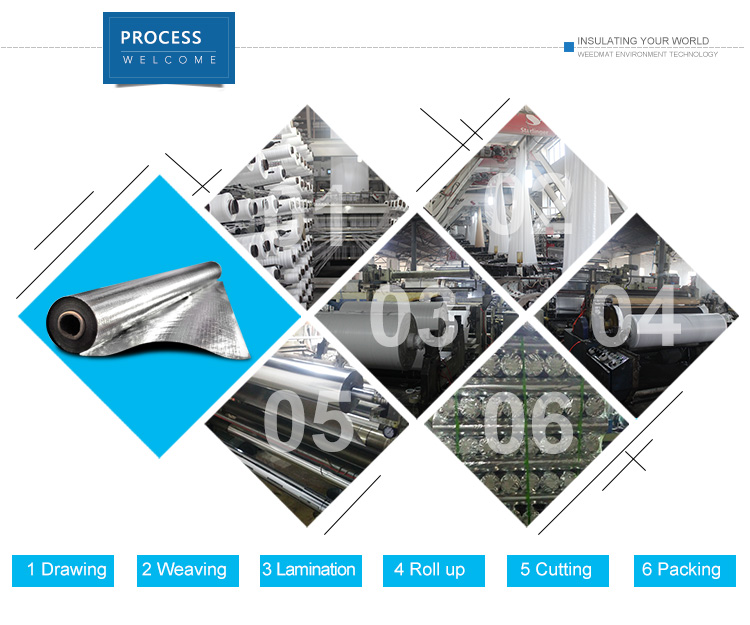

Production Process
R&D department
FAQ
1.Are you factory or trading company ?
We are a manufacture with an independent export company .
2.Sample & Order need time
Sample order time 2-3days .
General order :15days
3. How can I get a sample to check your quality?
Weedmat:We can arrange samples toyou for check our quality.By FedEx. DHL.TNT.UPS. Sample cost can be refundable after order confirmation when your quantity of the order is more than the MOQ.
5.Can you do the design for us?
Wedmat:Yes.We can manufacture the products as per your requirements.Send us high resolution images, logo and design We will send you finished files for confirmation.
7.Delivery time delay:
Weedmat:We will arrange the most urgent order to produce at the first time to satisfy our customers' request.

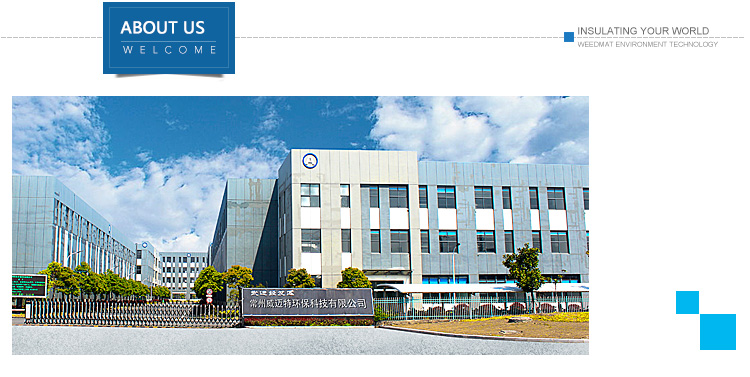

Company Information
