Высокопрочная георешетка из полиэстера 50kn 80kn 120kn 150kn 260kn 400kn 600kn 800kn
- Категории: >>>
- Поставщик: Shandong,Vegas,Engineering,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Trade Assurance order is available here.
You will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.
You will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.
Product Description

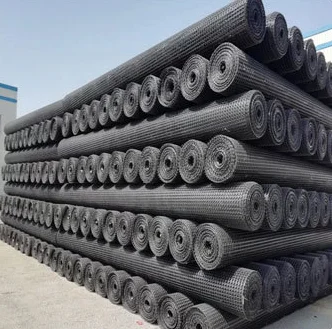

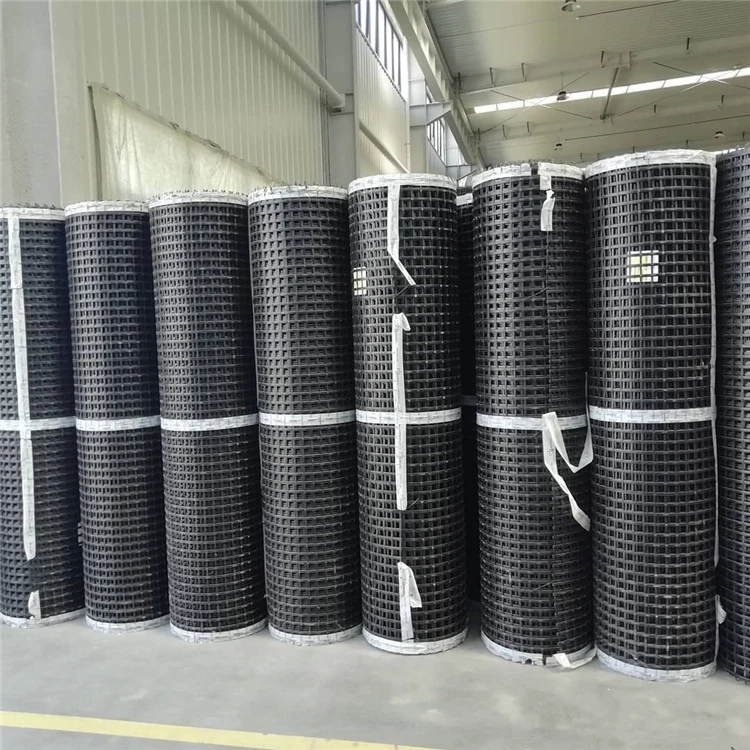

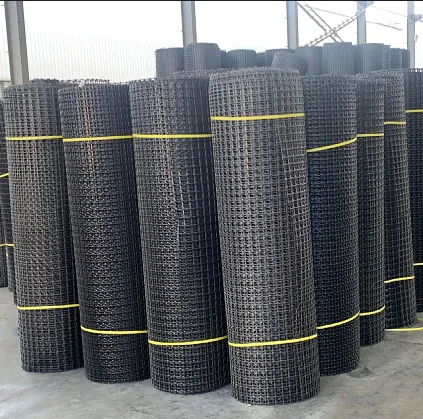

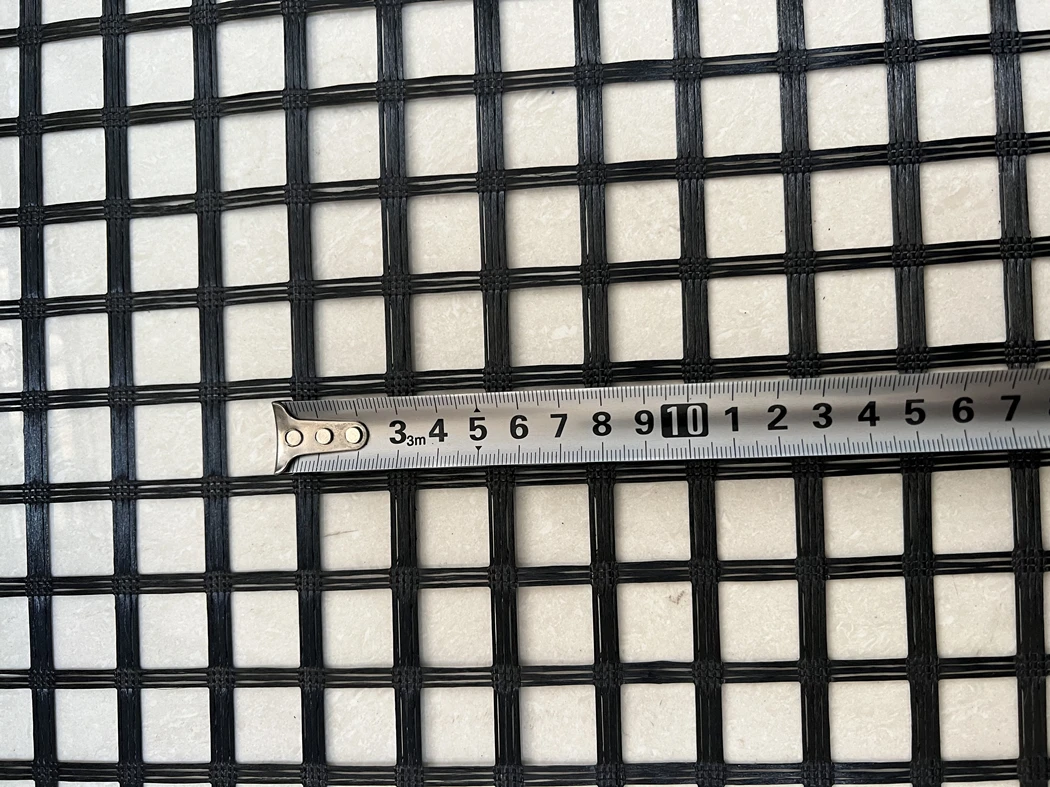

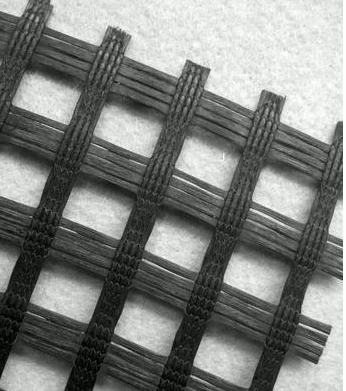

Polyester Geogrid

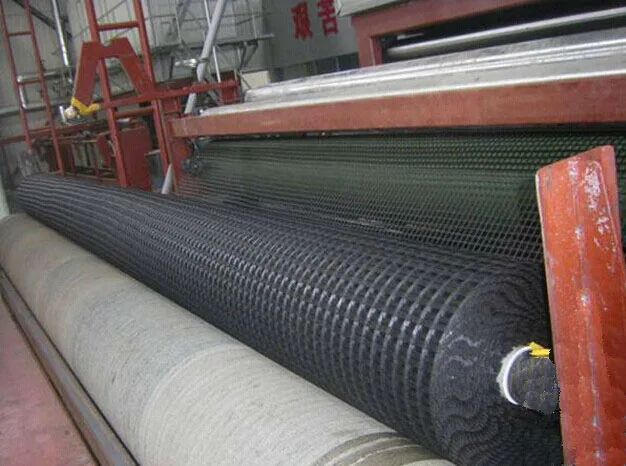

Polyester geogrid adopts high strength, high modulus, and low shrinkage twisting industrial polyester fiber as raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Its crossing points are bundled and bended together by high strength long polyester fiber forming tough conjunction. Then it forms into mesh size product after coated with high quality oil or water-soluble PVC which improves its strength, various technical standards and gives full play of its mechanical property.

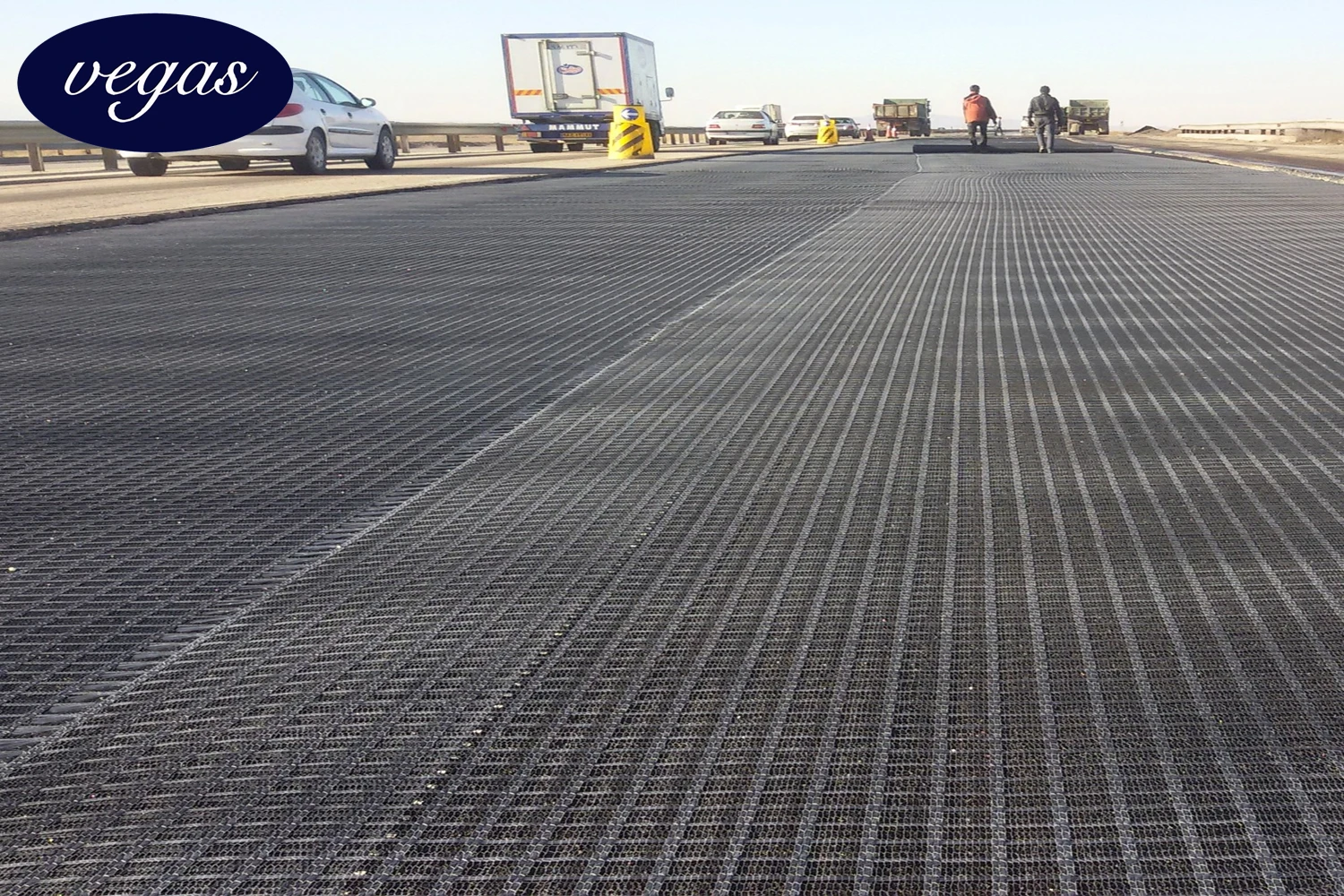

Application of PET Geogrid:
1. Airport runways, taxiways, aprons.
2. Highways and toll plazas
3. City roads and traffic signal junctions
4. Industrial roads, SEZ
5. Parking lots, bridges, asphalting on distressed PCC surface
6. Mining
7. Landfill
8. Golf and sport fields
2. Highways and toll plazas
3. City roads and traffic signal junctions
4. Industrial roads, SEZ
5. Parking lots, bridges, asphalting on distressed PCC surface
6. Mining
7. Landfill
8. Golf and sport fields
Specification
Vegas PET Geogrid:
1.Strength: 20x20kn/m--600x600kn/m, such as :60/30, 60/60, 80/30, 120/30, 150/30, 200/30 etc.
2.Polyester Geogrid coated with PVC, Bitumen, SBR
3.Elongation:10% and 13%
4.Width: 1--6m
5.Length:50m or 100m/roll,PE film outside, plastic tube inside.
2.Polyester Geogrid coated with PVC, Bitumen, SBR
3.Elongation:10% and 13%
4.Width: 1--6m
5.Length:50m or 100m/roll,PE film outside, plastic tube inside.
Vegas PET Geogrid Technical Parameter:
Warp-knitting Polyester Geogrid standard type
Project/Size | PET 20-20 | PET 30-30 | PET 40-40 | PET 50-50 | PET 80-80 | PET 100-100 | PET 120-120 | PET 600-600 | ||||||||||
Elongation rate % | ≤10 or ≤13 | |||||||||||||||||
Intensity (KN/m) | MD | 20 | 30 | 40 | 50 | 80 | 100 | 120 | 140 | |||||||||
CD | 20 | 30 | 40 | 50 | 80 | 100 | 120 | 140 | ||||||||||
Grid size (mm) | 12.7×12.7 25.4×25.4 50×50 | |||||||||||||||||
Width (m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | ||||||||||
Warp-knitting Polyester Geogrid heterogeneous type
Project/Size | PET 60-30 | PET 80-30 | PET 80-50 | PET 100-30 | PET 120-30 | PET 200-30 | PET 400-30 | PET 600-30 | ||||||||||
Elongation rate % | ≤10 or ≤13 | |||||||||||||||||
Intensity (KN/m) | MD | 60 | 80 | 80 | 100 | 120 | 200 | 400 | 600 | |||||||||
CD | 30 | 30 | 50 | 30 | 30 | 30 | 30 | 30 | ||||||||||
Grid size (mm) | 12.7×12.7 25.4×25.4 50×50 | |||||||||||||||||
Width (m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | ||||||||||
Quality Assurance:
Certificates had witnessed our continuous efforts and achieved results on employees and environmental protection, manufacturing process management and quality assurance system, The ISO9001, ISO14001, OHSAS18001 certifications are our long term promises to all our customers and ourselves. The goal of VEGAS company is to delivery finest quality geogrid products and excellent services to worldwide customers.
In recent years, we had been continuously investing in technological innovation and manufacturing facilities to ensure the leading technology and high quality products. Our talented geogeogrid design experts and their
experiences are our real wealth and competence that can make our certifications much valuable.Product innovation, quality assurance and customer satisfaction are our long term commitment to our partners. Continuous improvement had been becoming our corporate culture. With the help of our certifications, strict manufacturing and quality control processes make our employees to perform effectively and efficiently. We are not only manufacturing high quality products but also providing professional design,strict quality assurance and top after sale service with your satisfaction.
We deeply cherish our certifications, we will try our best to keep them forwarding in the right direction.
experiences are our real wealth and competence that can make our certifications much valuable.Product innovation, quality assurance and customer satisfaction are our long term commitment to our partners. Continuous improvement had been becoming our corporate culture. With the help of our certifications, strict manufacturing and quality control processes make our employees to perform effectively and efficiently. We are not only manufacturing high quality products but also providing professional design,strict quality assurance and top after sale service with your satisfaction.
We deeply cherish our certifications, we will try our best to keep them forwarding in the right direction.

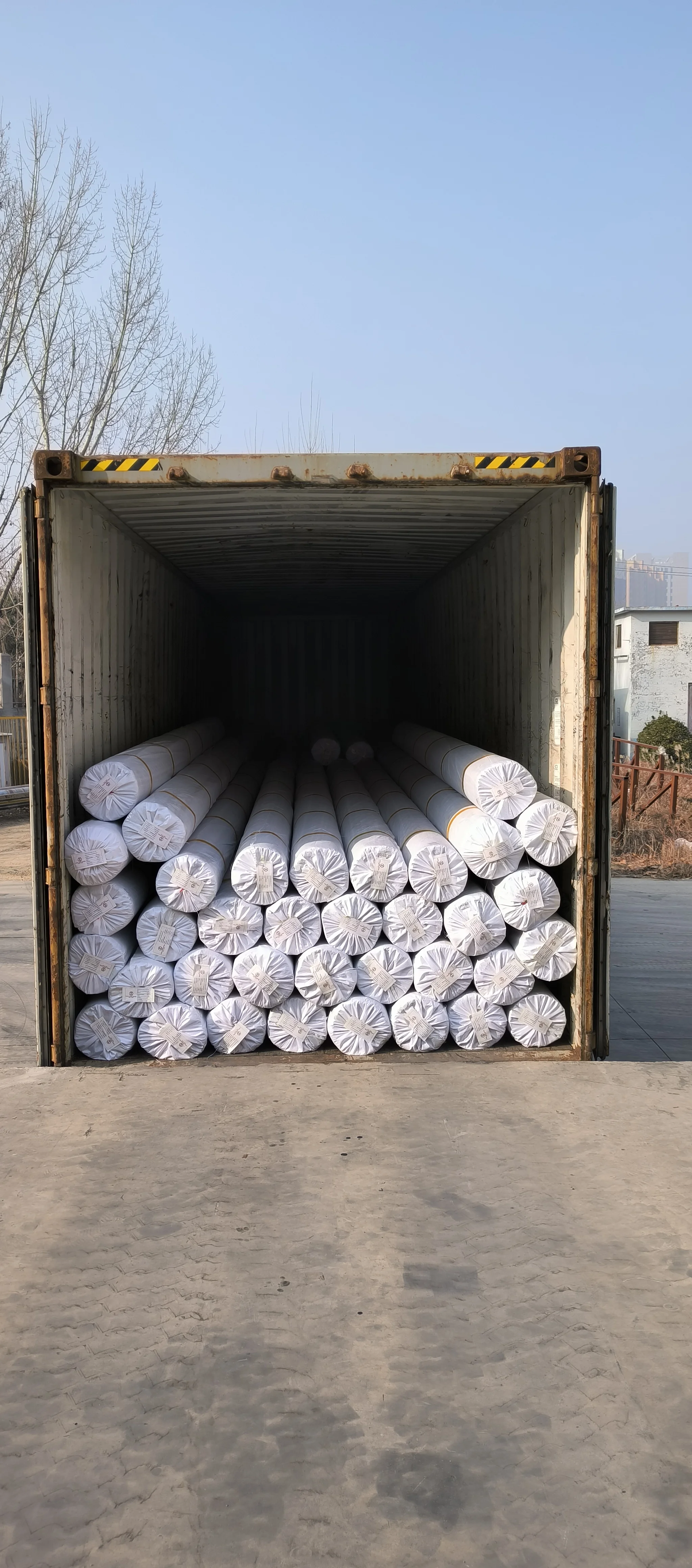

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
VEGAS is a professional geosynthetic products manufacturing company with registered capital more than $ 3 million, covers an area of 100,000 square meters. The main products are PP biaxial geogrid，PET geogrid,Fiberglass geogrid, Steel Plastic Geogrid,HDPE / LDPE Geomembrane,Plastic Grass Grids, Woven/nonwoven Geotextile, Drainage Board, Composite Membrane and Textile,Plastic netting, 3D Planting Geomat, PE pipe and other geosynthetic products.
We are specialized in providing professional geosynthetics solutions for Road, Highway, Railway, Airport, Tunnel, Mine Supporting and Protecting, Hydro, Reinforced Steep Slopes, Reinforced Retaining Wall, Reinforced Embankments, Landfill, Containment, water conservancy facilities, soft foundation treatment and other related projects.
Our target is to supply professional products with the most reasonable prices to our customers around all the world, expect tobuild long term relationship with you.
We are specialized in providing professional geosynthetics solutions for Road, Highway, Railway, Airport, Tunnel, Mine Supporting and Protecting, Hydro, Reinforced Steep Slopes, Reinforced Retaining Wall, Reinforced Embankments, Landfill, Containment, water conservancy facilities, soft foundation treatment and other related projects.
Our target is to supply professional products with the most reasonable prices to our customers around all the world, expect tobuild long term relationship with you.
CONTACTS: | Jack Ma (Marketing Director) |
EMAIL: | vegasas@sdvgs.com |
WECHAT/PHONE: | +8618553828580 |
WHATSAPP: | +8618553828580 |
WEB: | www.sdvgs.com |
ADD: | Economic Developmengt Zone,Taian City, Shandong Province,China |
FAQ
Q1: Are you a factory or trading company? Where is your company located?
A1: We are a manufacturer/factory .Our company is located in Shandong, China.

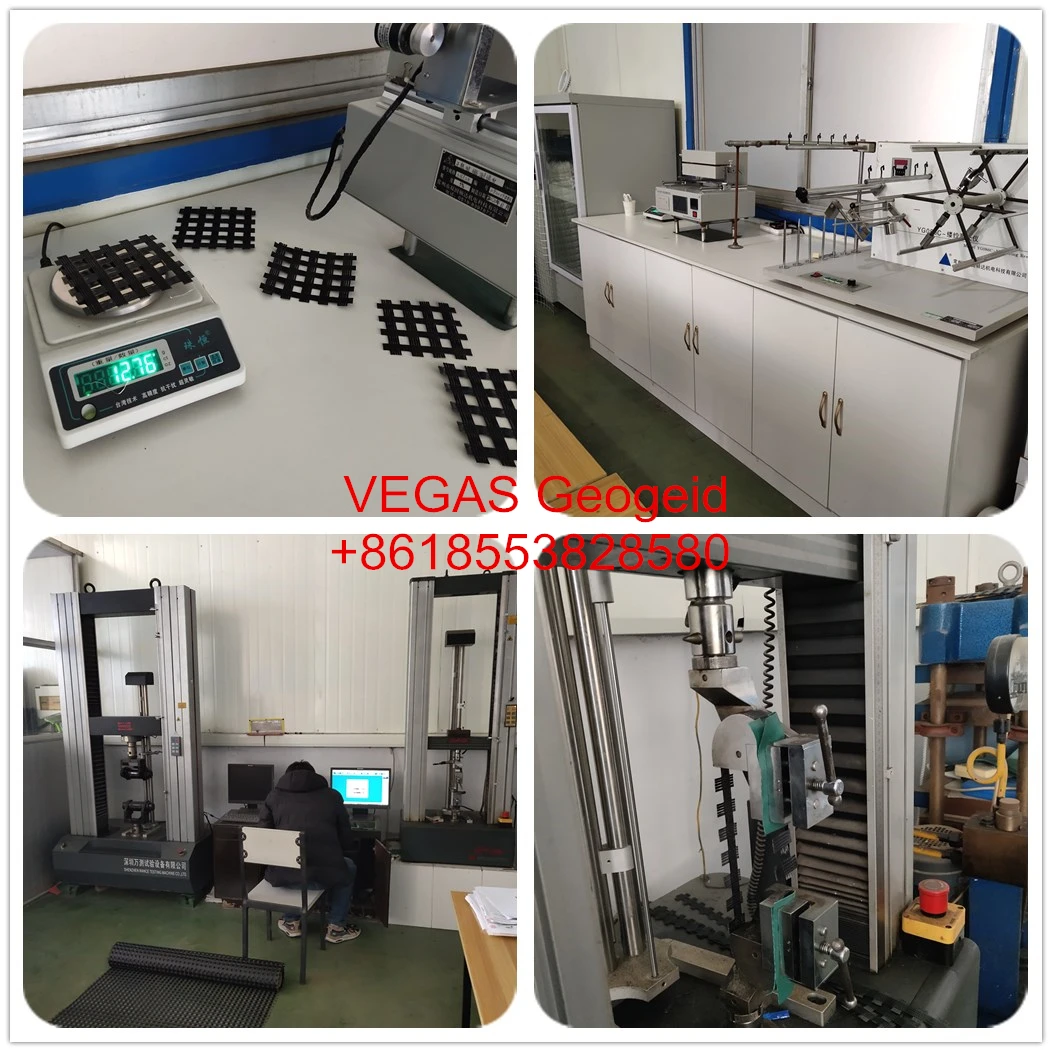

Q2: How do you ensure the quality?
A2: We are working with three QC processes to guarantee the quality:
1 .For raw materials;
2.Onsite inspection during production;
3.Final QC test for each batch of finished products.
Q3: OEM OR ODM accepted?
A3: We can produce the geomembrane with our brand as per customer's technical requirements.
Q4:How to get the sample?
A4: We can provide you samples for quality inspection.According to our company policy, samples are free,
we only charge the freight fee.The freight fee will be returned If you place the order.
Q5: What's your MOQ? Can I order small quantity for testing at first order?
A5: For new client, we accept small order for building mutual trust and long-term business relationship.
Q6: How many days will samples be finished? And how about the mass production?
A6: Generally prompt delivery for samples. The leading time of mass production will depend on the quantity.
Q7: What's the payment method you accept?
A7: T/T, L/C,D/P etc.
Q8: Can I visit your company?
A8: Welcome to visit our factory and it is our great pleasure.
A1: We are a manufacturer/factory .Our company is located in Shandong, China.
Q2: How do you ensure the quality?
A2: We are working with three QC processes to guarantee the quality:
1 .For raw materials;
2.Onsite inspection during production;
3.Final QC test for each batch of finished products.
Q3: OEM OR ODM accepted?
A3: We can produce the geomembrane with our brand as per customer's technical requirements.
Q4:How to get the sample?
A4: We can provide you samples for quality inspection.According to our company policy, samples are free,
we only charge the freight fee.The freight fee will be returned If you place the order.
Q5: What's your MOQ? Can I order small quantity for testing at first order?
A5: For new client, we accept small order for building mutual trust and long-term business relationship.
Q6: How many days will samples be finished? And how about the mass production?
A6: Generally prompt delivery for samples. The leading time of mass production will depend on the quantity.
Q7: What's the payment method you accept?
A7: T/T, L/C,D/P etc.
Q8: Can I visit your company?
A8: Welcome to visit our factory and it is our great pleasure.
