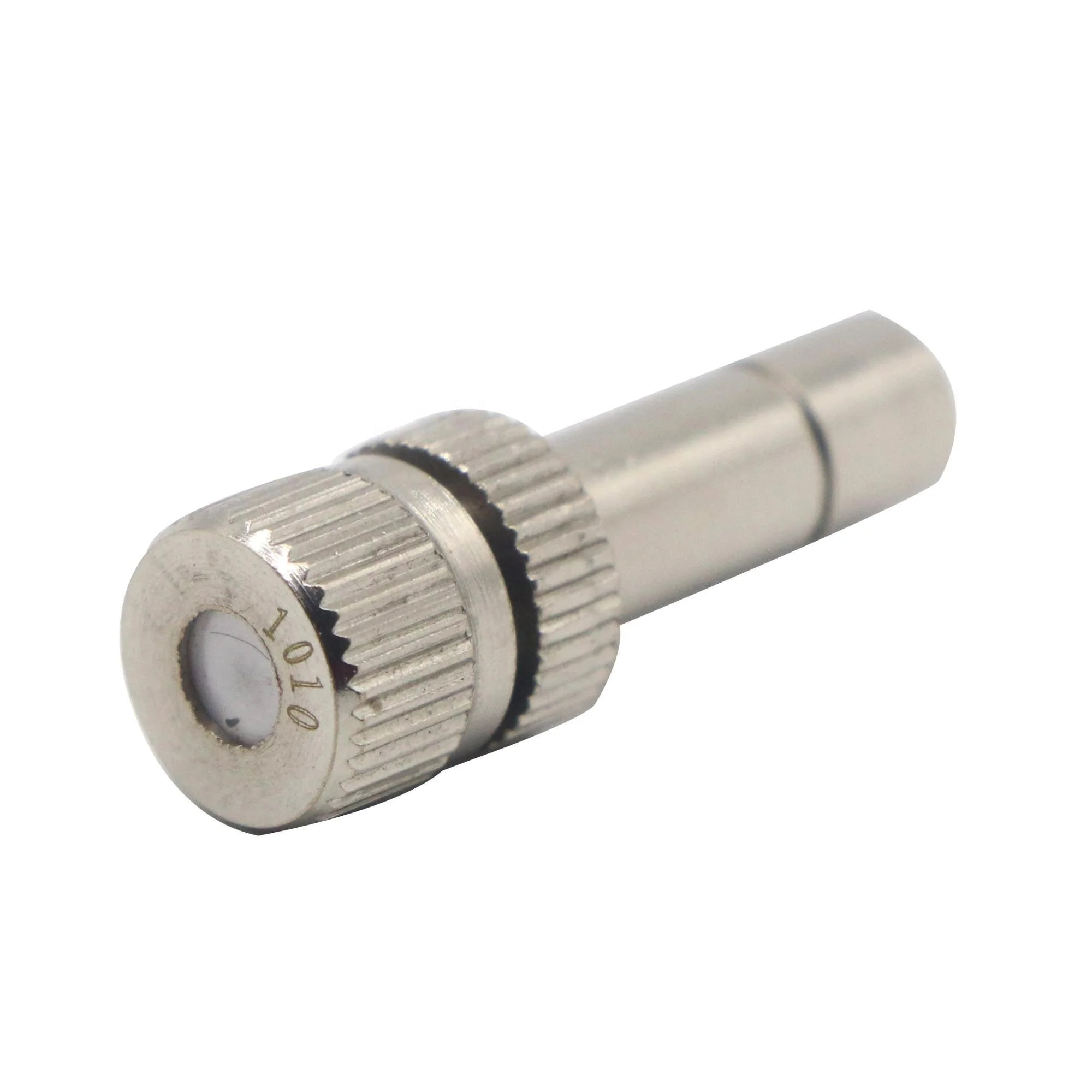

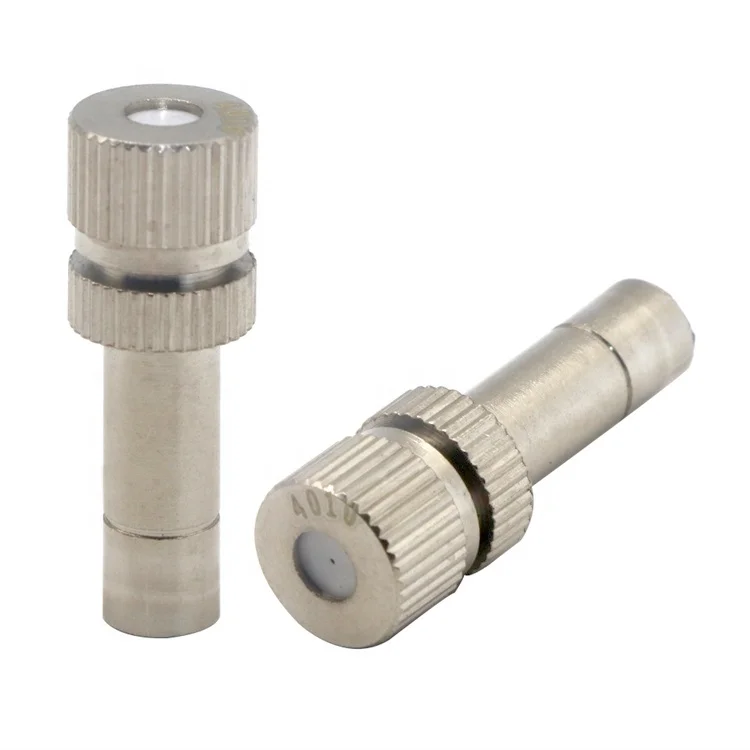

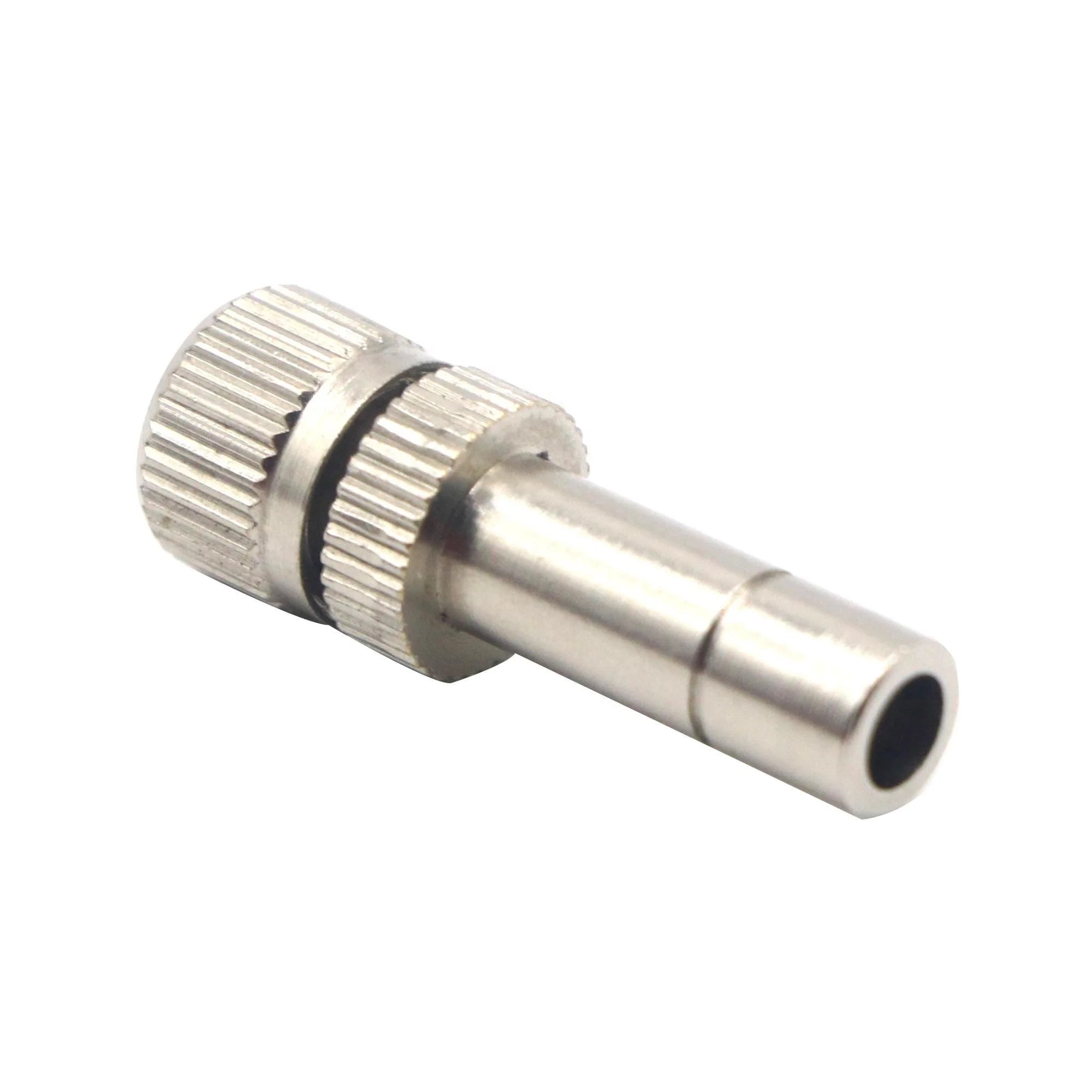

ZM Slip Lock Dust Suppression Water Cooling Quick Connect Brass Spray Head push in 6mm Mist Fog Nozzle

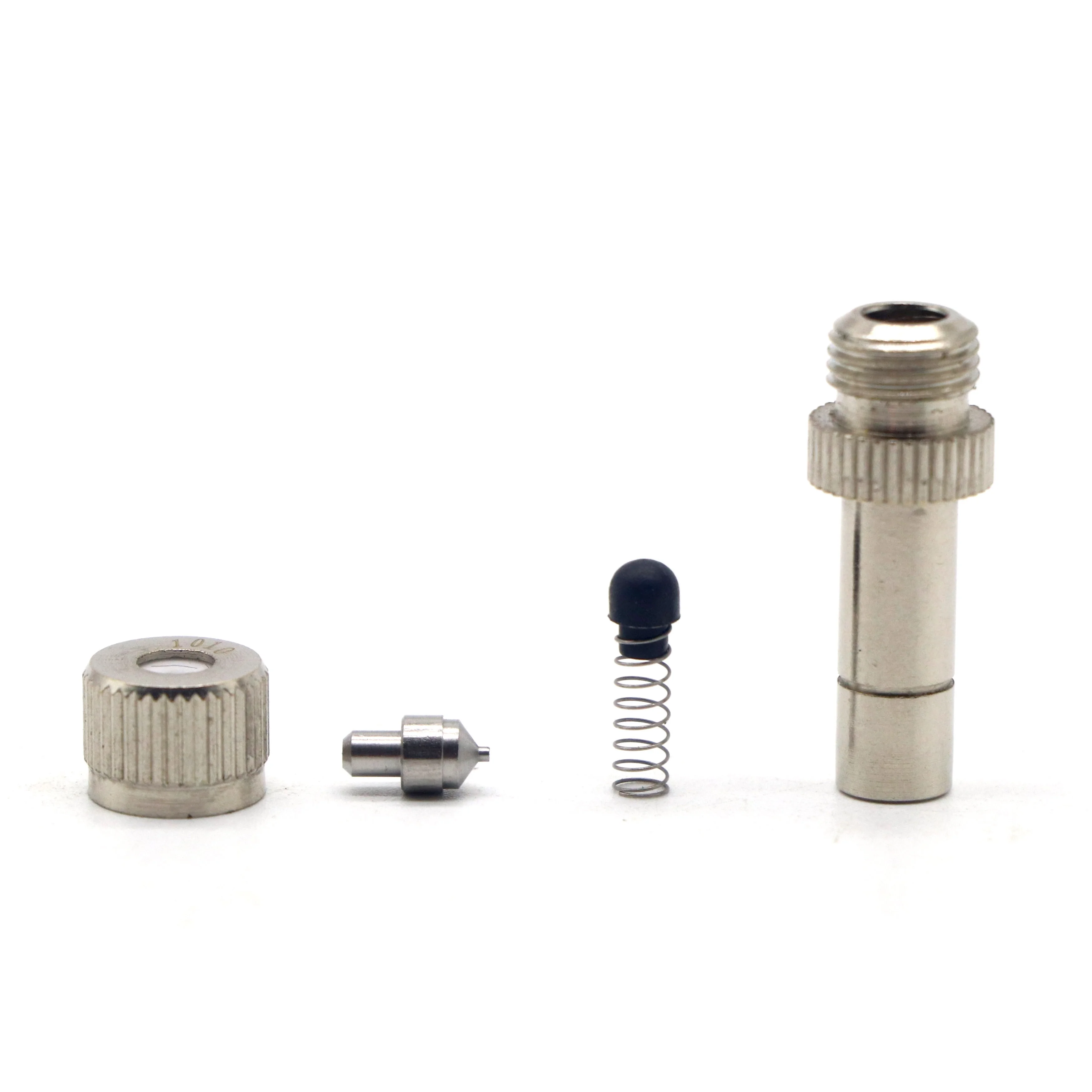

The FD anti-drop misting nozzle is usually made of brass body and SS or ceramic nozzle core inside together with SS vane. It contains a anti-drop device, the liquid is flowing at a high speed under pressure of 70-120 bar and forming a centrifugal vortex while passing the vane, then come out from the nozzle in a fine mist hollow spraying.
The filter usually made of teflon, with spray particle size of around 50 microns, this nozzle can be widely used in factory
humidification, salt fog test Inspection, artificial fog and other places of required for humidifying, The orifice of this nozzle
is punched by precision American punching machine which ensures the diameter is around 0.1mm-0.5mm.
This nozzle is well made and the cost is saved by 10 times compared with air humidification.
The filter usually made of teflon, with spray particle size of around 50 microns, this nozzle can be widely used in factory
humidification, salt fog test Inspection, artificial fog and other places of required for humidifying, The orifice of this nozzle
is punched by precision American punching machine which ensures the diameter is around 0.1mm-0.5mm.
This nozzle is well made and the cost is saved by 10 times compared with air humidification.

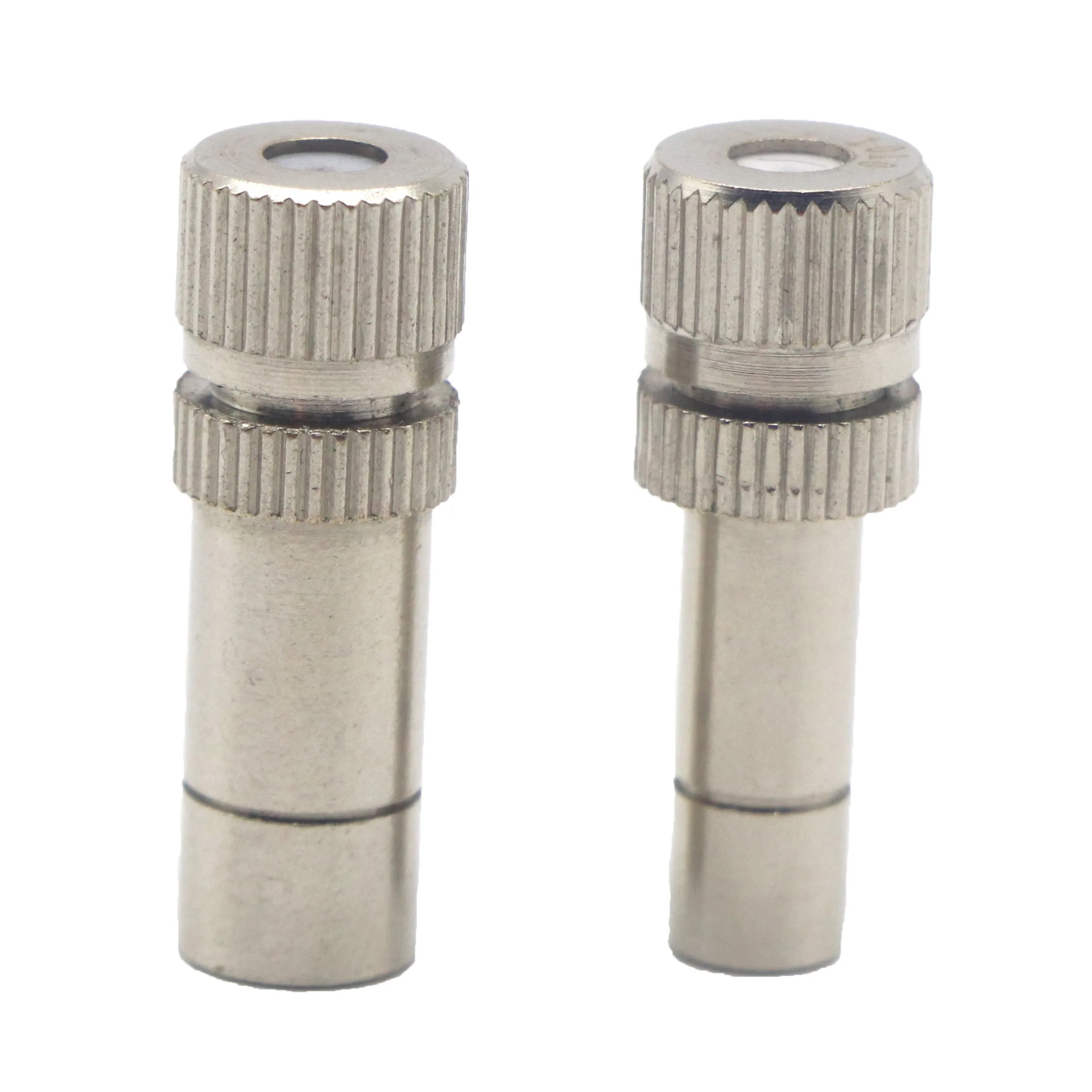

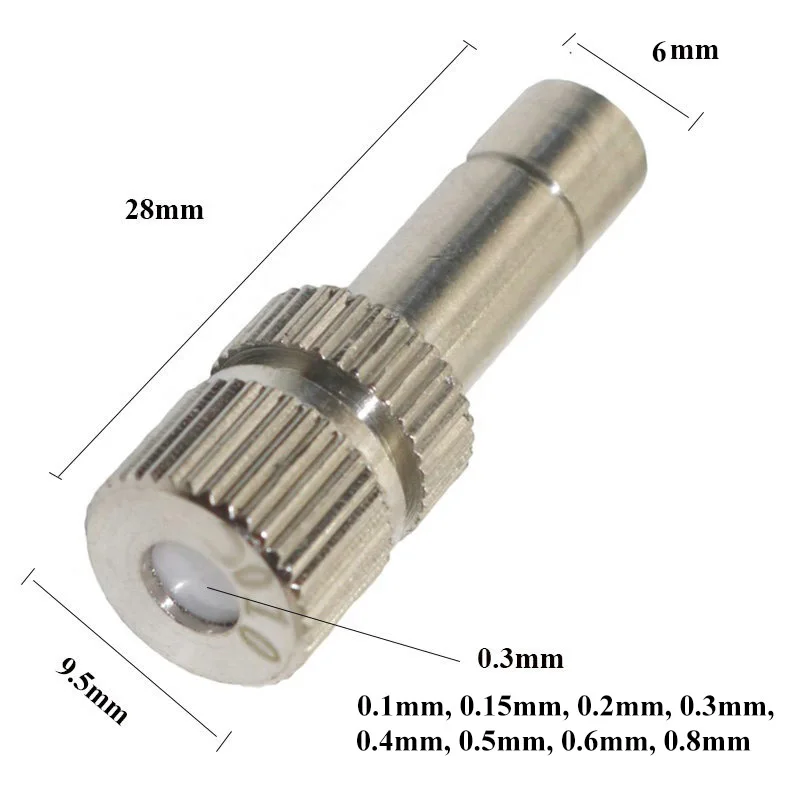

Misting nozzle

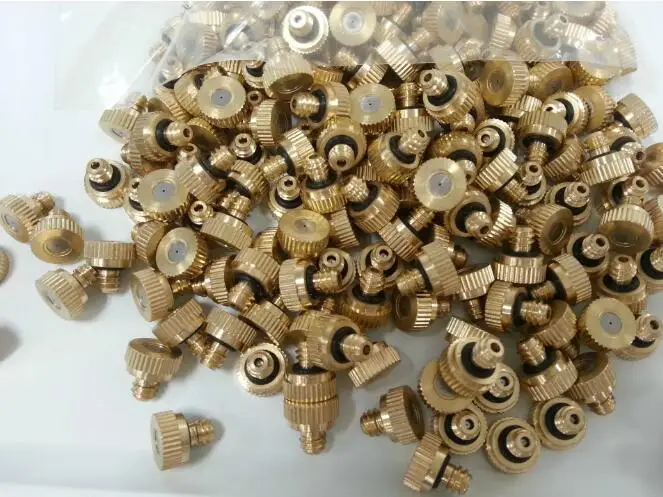

Brass misting nozzle with PP filter inside
Material is brass with nickle pated,
stainless steel orifce or ceramics orifice
Pipe Size is 6MM OR 8MM
Orifice can be customized
0.2mm, 0.3mm, 0.4mm 0.5mm, 0.6mm, 0.8mm are available
The smaller of the orifice, the finer of the mist
Working pressure is from 45PSI to 180PSI
Can be OEM, with logo on the nozzle
Material is brass with nickle pated,
stainless steel orifce or ceramics orifice
Pipe Size is 6MM OR 8MM
Orifice can be customized
0.2mm, 0.3mm, 0.4mm 0.5mm, 0.6mm, 0.8mm are available
The smaller of the orifice, the finer of the mist
Working pressure is from 45PSI to 180PSI
Can be OEM, with logo on the nozzle
Slip Lock Fog Nozzle | Flow rate(L/min) pressure | ||
Model | Orifice | 3-12bar | |
1510 | 0.15mm | 0.020-0.046 | |
2010 | 0.2mm | 0.049-0.089 | |
3010 | 0.3mm | 0.080-0.145 | |
4010 | 0.4mm | 0.095-0.178 | |
5010 | 0.5mm | 0.130-0.248 | |
6010 | 0.6mm | 0.147-0.267 | |
8010 | 0.8mm | 0.196-0.356 | |
YIBIN Z-MING TRADING CO., LTD

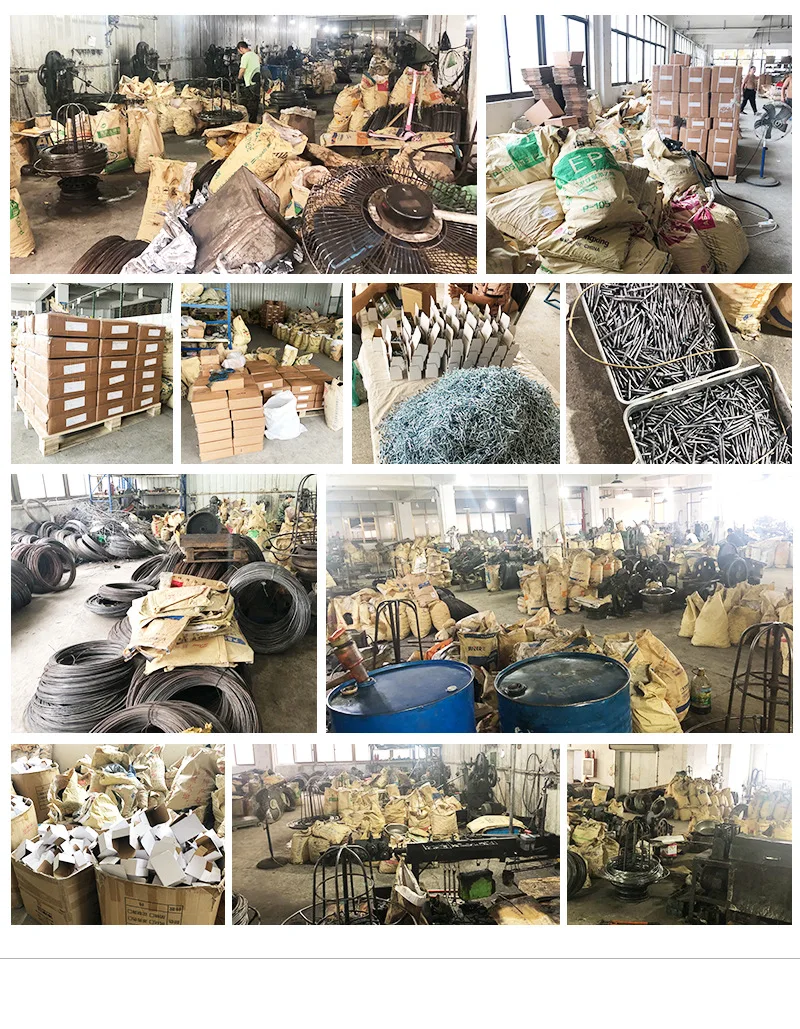

YIBIN Z-MING TRADING CO., LTD is located in Yibin, the first city on the Yangtze River of Southwest China.
It has an area of 5,000 square meters, more than 100 employees, 10 professional and technical personnel, and 5 R&D personnel. The company has more than 100 automatic equipment, 30 CNC lathes, 30 Taiwan automatic lathes, and 2 automatic inspection equipment.
The main sales countries are Argentina, Paraguay, Bolivia, Germany, Britain, Brazil, Russia, Dubai, United Arab Emirates and so on.
We are specialized in manufacturing all kinds of grease nipples(including iron grease nipple, brass grease nipple, stainless steel grease nipple), grease gun, grease gun accessories, steel pipe, grease hose, grease gun coupler, Pneumatic Components, hardware sets, rivet, screw, nut, copper washer, aluminum washer, cotter, spring, o ring, hydraulic parts and other relative auto products.
The products are mainly used in all kinds of construction machinery, such as: excavators, bulldozers, cranes, semi-trailers, trucks, sealing equipment, lubrication equipment and some bearing equipment.
It has an area of 5,000 square meters, more than 100 employees, 10 professional and technical personnel, and 5 R&D personnel. The company has more than 100 automatic equipment, 30 CNC lathes, 30 Taiwan automatic lathes, and 2 automatic inspection equipment.
The main sales countries are Argentina, Paraguay, Bolivia, Germany, Britain, Brazil, Russia, Dubai, United Arab Emirates and so on.
We are specialized in manufacturing all kinds of grease nipples(including iron grease nipple, brass grease nipple, stainless steel grease nipple), grease gun, grease gun accessories, steel pipe, grease hose, grease gun coupler, Pneumatic Components, hardware sets, rivet, screw, nut, copper washer, aluminum washer, cotter, spring, o ring, hydraulic parts and other relative auto products.
The products are mainly used in all kinds of construction machinery, such as: excavators, bulldozers, cranes, semi-trailers, trucks, sealing equipment, lubrication equipment and some bearing equipment.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
