9,500 Pound Load Capacity Electric Winch
Electric winch Eletron winch is the most common winch. Relying on the vehicle 's own power systems to drive the winch, advantages: Can be 2 in the case of dead vehicle fire basically normal (this is its biggest advantage is incomparable to other winch), especially for the area with more water has a great advantage. Simple installation can achieve multi-position installation and rapid
Electric winch is mainly used for off-road vehicles, agricultural vehicles, ATV sports car, a yacht, and other special vehicles, vehicle, ship's self-protection and traction device, can be in the snow, swamp, desert, beach, harsh environments, such as muddy road vehicle aid, communal, and possibly in other conditions, wrecker, drag and drop items, installation facilities operations, is a water and oil, water, environmental protection, to Lin, traffic, public security, frontier defense, and other outdoor sports indispensable safety devices.
Line Pull (lb.) | 10000 | 12000 |
---|---|---|
Remote Length (ft.) | 11.5 | 11.5 |
Motor | 12V DC Permanet Magnet | 12V DC Permanet Magnet |
Horsepower | 5.6 | 6 |
Gear Train System | 3-Stage Planetary | 3-Stage Planetary |
Gear Ratio | 218:1 | 236:1 |
Cluth Type | Free Spooling | Free Spooling |
Brake | Dynamic | Dynamic |
Drum Size (in.) | 2.5 × 8.8 | 2.5× 8.8 |
Rope Material | Galvanized Steel | Synthetic Rope |
Rope Size | 3/8 (in.) × 81 (ft.) | 3/8 (in.) × 86 (ft.) |
---|---|---|
Fairlead Type | 4-Way Roller | Hawse |
Full Load Line Speed (ft/min) | 5 | 5 |
No Load Line Speed (ft/min) | 16 | 16 |
Mounting Bolt Pattern (in.) | 10 × 4.5 | 10 × 4.5 |

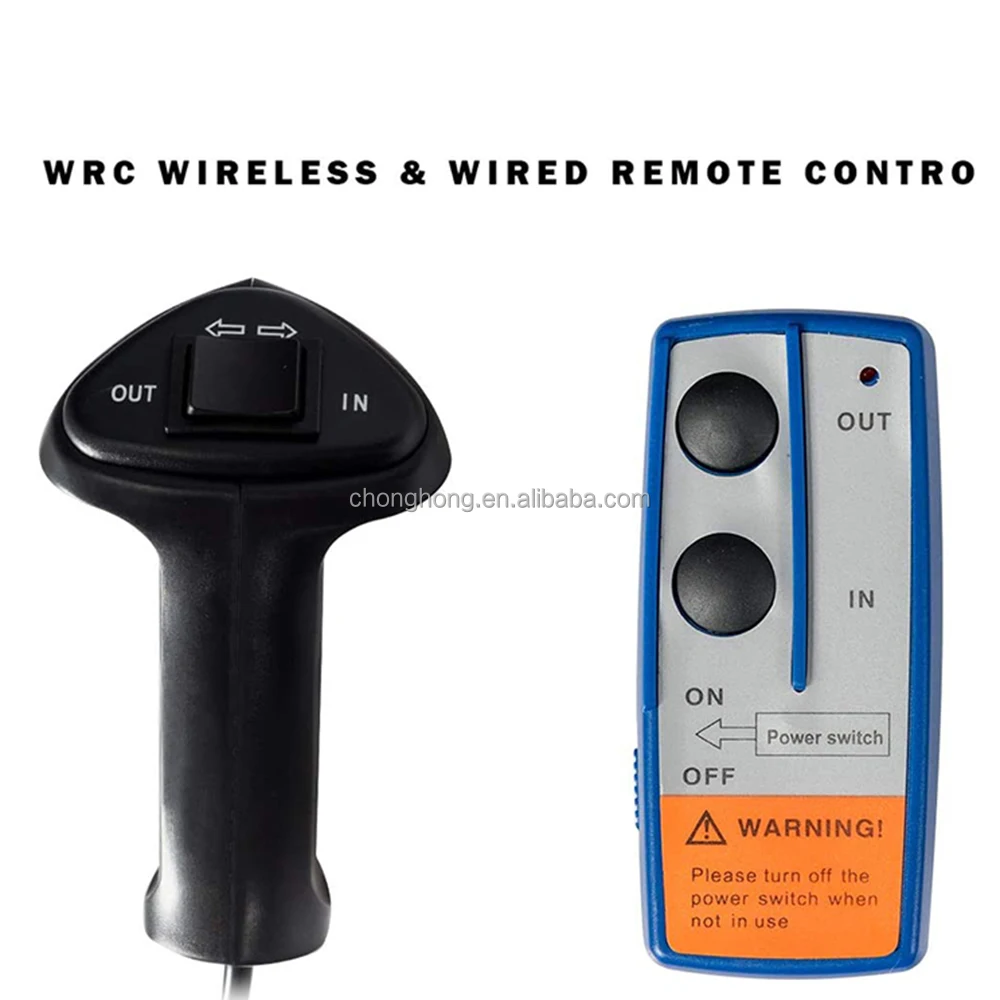

Switch Method | Handle Remote | Handle Remote |
Battery Lead | 2 Gauge, 5.8' (L) | 2 Gauge, 5.8' (L) |
Solenoid Cables | 2 Gauge, 1.5' (L) | 2 Gauge, 1.5'(L), 1'(L), 1.6'(L) |

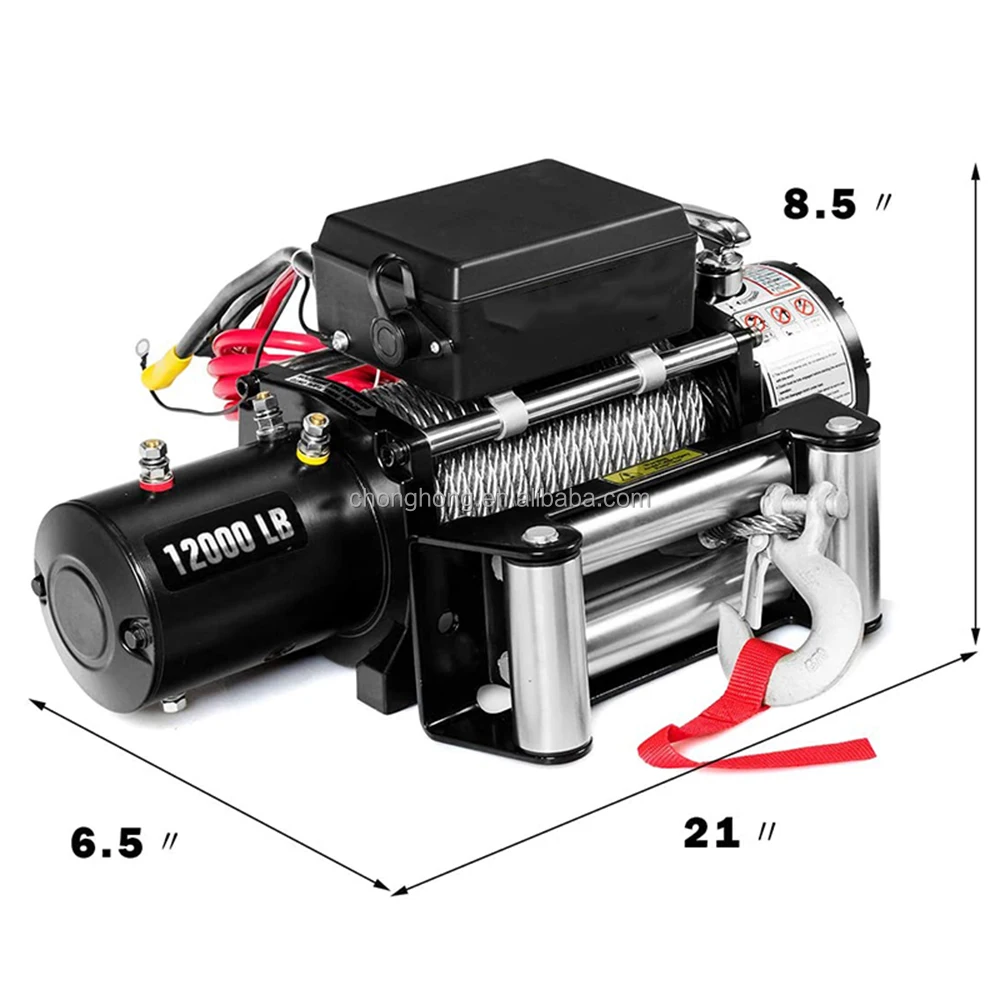

Dimensions (in.) | 21× 6.3 × 8.35 | 21.54 × 6.3 × 9.76 |
Weight (lb.) | 81 | 58 |
