Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Апком мини 450 м 360 установленная тележкой скважина буровая установка с погружным пневмоударником микроблейдинг Ротационная Машина для бурения скважин на воду буровые установки
- Категории: Mining Machinery >>>
- Поставщик: Yiwu,Vialvv,Machine,Equipment,Co.,ltd
Поделиться:
Описание и отзывы
Характеристики

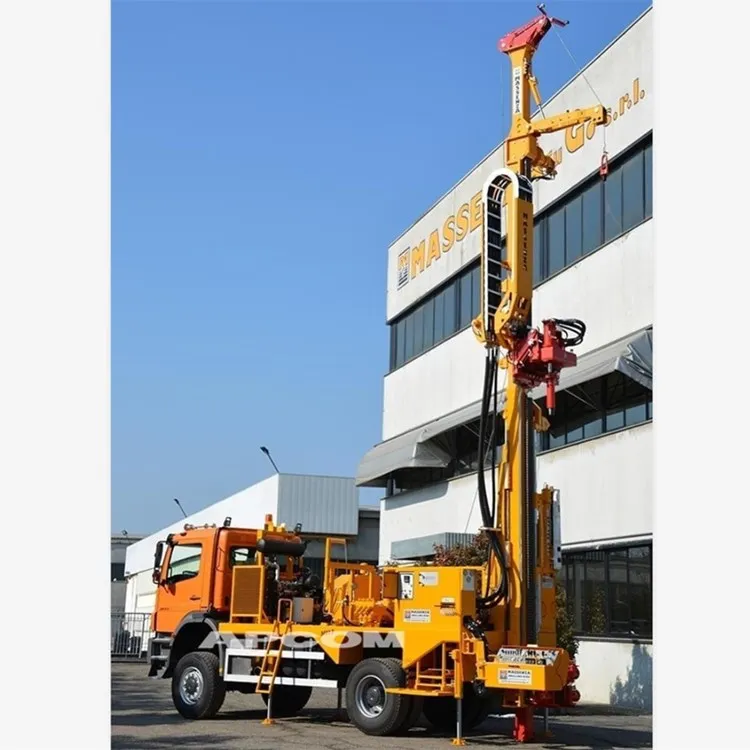

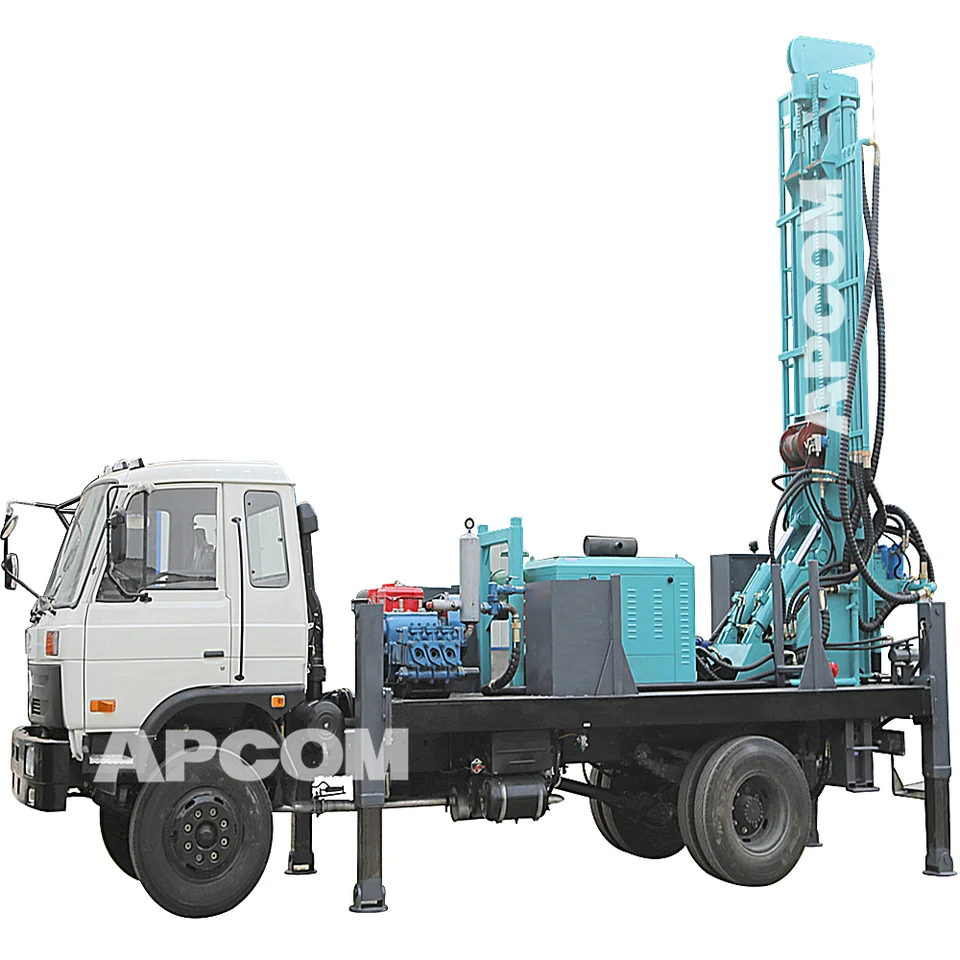

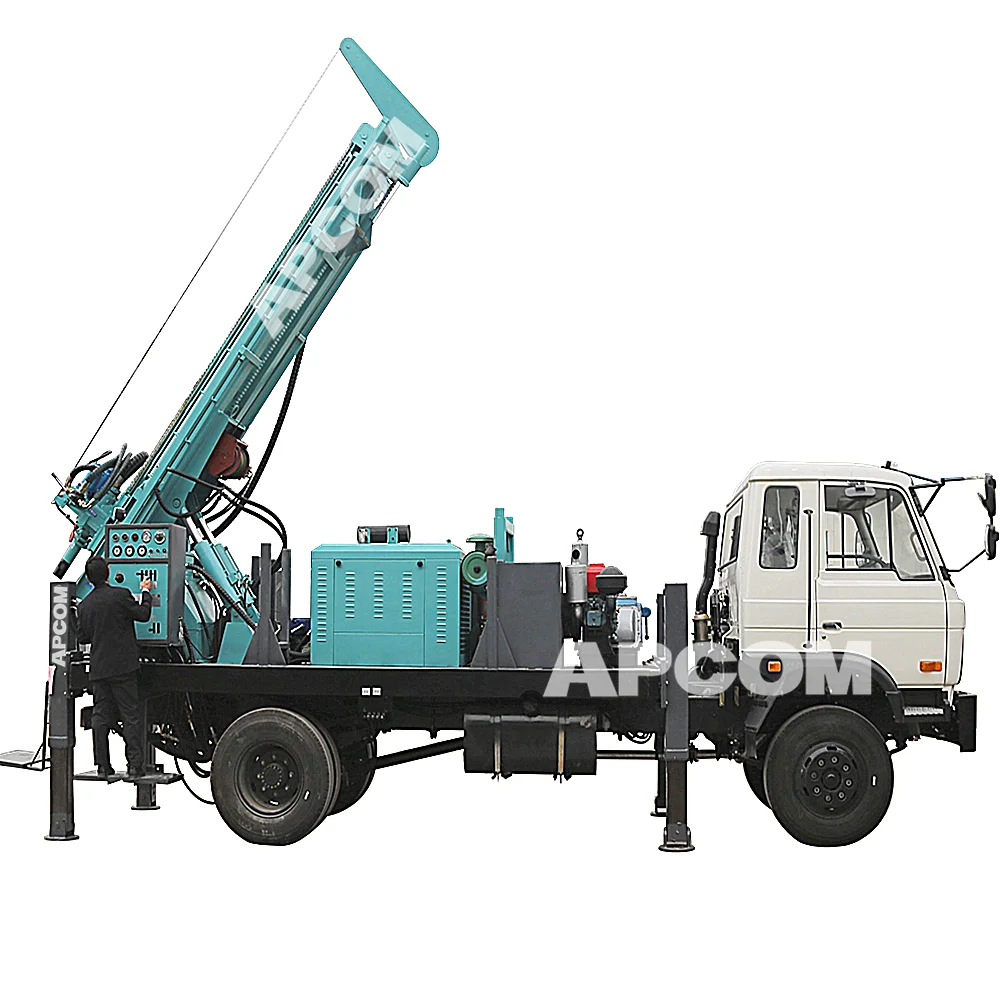

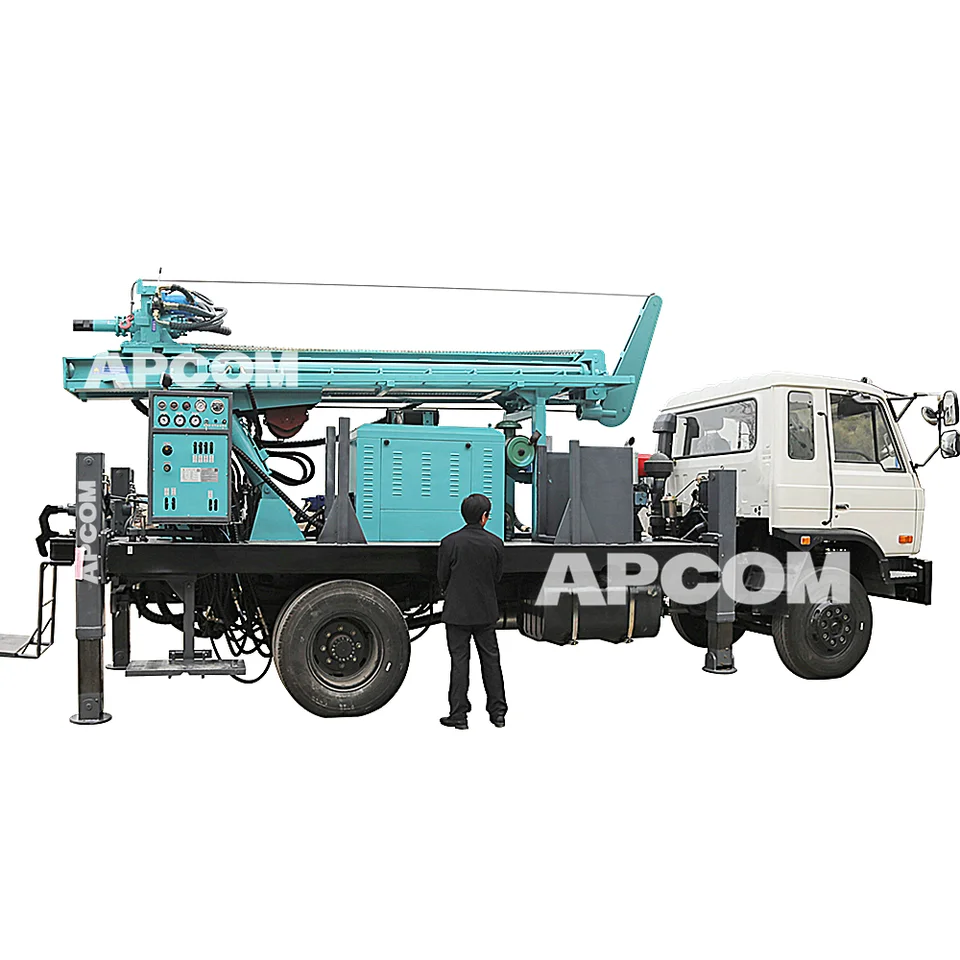

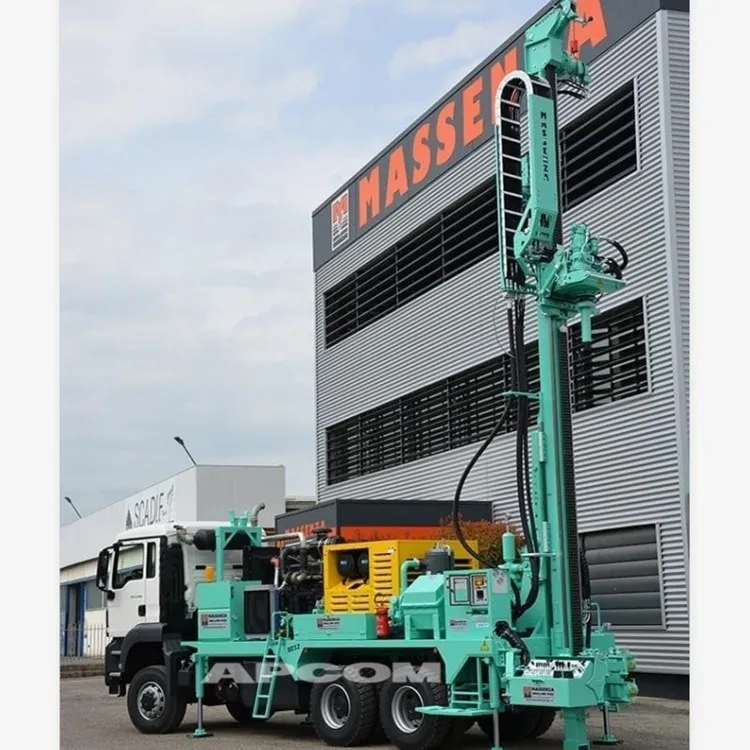

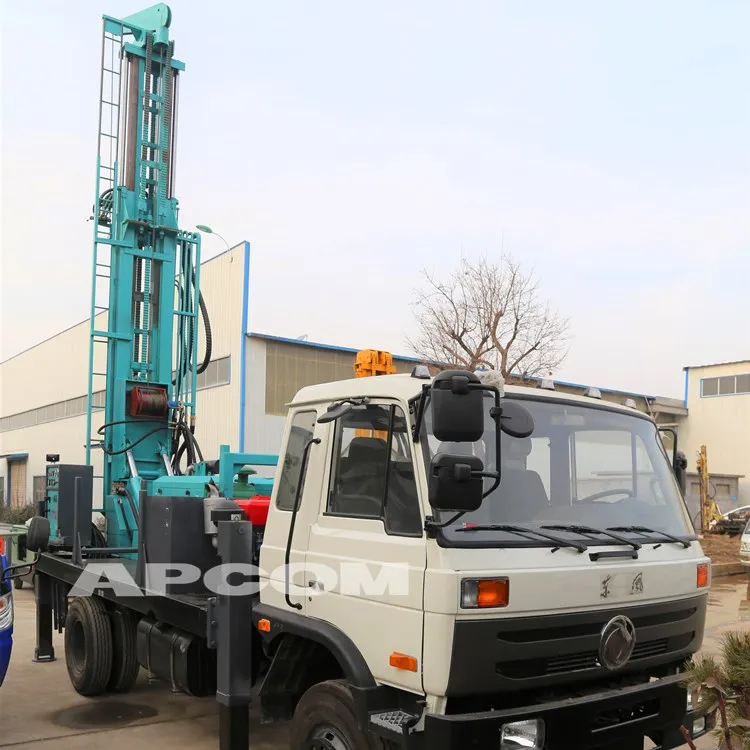

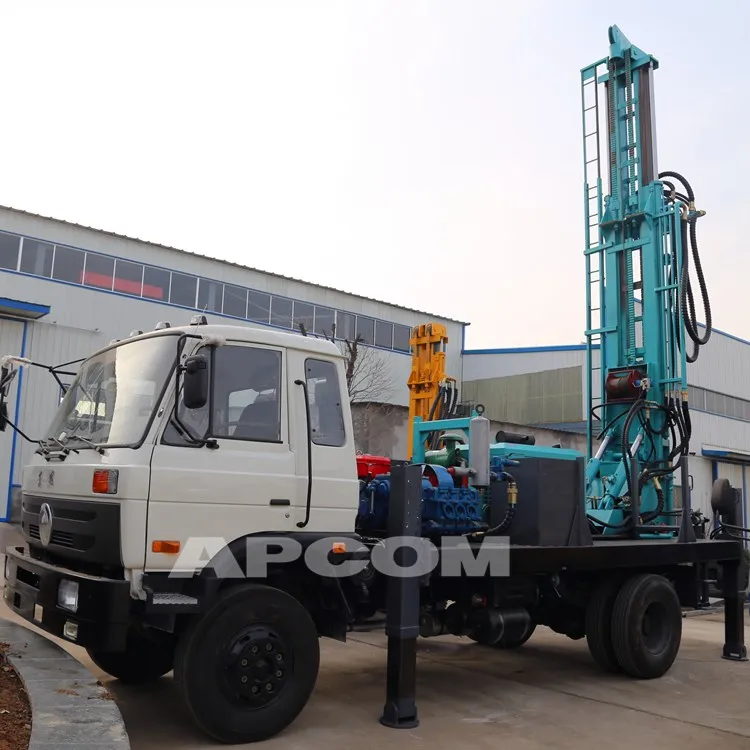

400 m Mounted Trailer Water Well Drilling Rig
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
Specifications
400 m Mounted Trailer Water Well Drilling Rig | ||||||
No | Name | unit | quantity | |||
1 | Geology drilled | - | All kinds | |||
2 | Drilling Type | - | DTH & Mud Rotary | |||
3 | Drill system and operation | - | Hydraulic | |||
4 | Hole Diameter | mm | Φ105—Φ415 | |||
5 | Hole Depth | m | 400 | |||
6 | Rotation Torque | KN | 12000 | |||
7 | Rotation Speed | rpm | 0-80 1st Gear | |||
0-160 2nd Ger | ||||||
8 | Drill pipe diameter | mm | 89/114 | |||
9 | Drill pipe length | mm | 4500 | |||
10 | Max. Feed Speed | M/min | 18 | |||
11 | Max. Lifting Speed | M/min | 5月20日 | |||
12 | Feed Stroke | mm | 3400 | |||
11 | Max. Lifting force | T | 17/20 | |||
12 | Lifting force of Main winch(Optional) | T | 4 | |||
13 | Lifting force of hoist | T | 1.5 | |||
14 | Lifting height of tool winch | m | 100 | |||
Diesel Engine | ||||||
15 | Diesel Engine type | CUMMINS | ||||
16 | Rated Horse power | Kw | 132 | |||
17 | Electrical System | Volt | 24 | |||
Compressor required | ||||||
18 | Compressor Type | Rotary Screw Air Compressor | ||||
19 | Pressure Required | Mpa | 1.05—4.5 | |||
20 | Air consumption | m³/min | 16—60 | |||
Dimension | ||||||
21 | Net Weight | T | 13 | |||
22 | Shipping Length | mm | 7550 | |||
23 | Shipping Width | mm | 2260 | |||
24 | Shipping Height | mm | 2700 | |||
25 | Ground Clearance | mm | 300 | |||
26 | Volume of Flow | mm | 200 | |||
Mud Pump(Optional) | ||||||
1 | Type | - | Hydrulic | |||
2 | Model | - | BW350 | |||
3 | Stroke | mm | 100 | |||
4 | Displacement | L/Min | 250 | |||
5 | Discharge pressure (Mpa) | Mpa | 2.5 | |||
6 | Suction tube diameter | mm | 85 | |||
7 | Discharge pipe diameter | mm | 51 | |||
8 | Foam pump | - | Optional | |||
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
Our Advantages
Drilling Tools
Contact Us
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
WhatsApp: +86 137 0579 6425
Blasting & Water Well Rig
VR Showroom Online
VR
TUV Cerf Factory
Apcom drilling rigs,
Quality is our culture."Welcome know more about APCOM air compressor & drilling rigs;
1.Top 10 brand air compressor & drilling rigs;
2. Air compressor & drilling rigs independent R & D patent products;
3. The monthly output value of machine is 3000 sets;
4. Oil free air compressor TUV certified,drilling rigs CE.
