Product Description

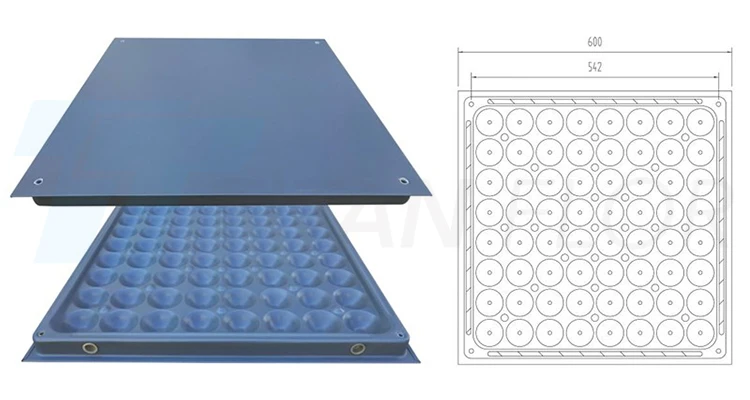

Steel cement raised floor is made of good quality cold-rolled steel sheet, which is stretched, spot-welded, and coated with epoxy powder after having been phosphoreted. There is foaming cement fully filled, with corner-lock holes punched in four sides of the panel.

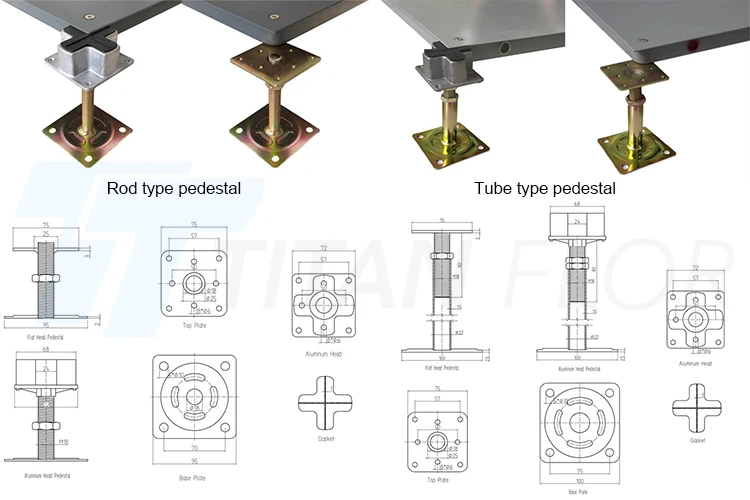

Understructure
Specification
Type | Size | Rolling load | Uniform load | Ultimate load | Concentrated load | ||||||||
10PASS | 10KPAAASS | 2.5mm deflection | |||||||||||
FS662 | 600*600*33mm | 2.45KN | 2.00KN | 3300LB/㎡ | 14.71KN/㎡ | 2000LB | 8.85KN | 662LB | 2.94KN | ||||
FS800 | 2.94KN | 2.45KN | 4000LB/㎡ | 17.78KN/㎡ | 2530LB | 11.25KN | 800LB | 3.56KN | |||||
FS1000 | 3.56KN | 2.67KN | 5000LB/㎡ | 22.22KN/㎡ | 3260LB | 14.50KN | 1000LB | 4.45KN | |||||
FS1250 | 4.45KN | 3.56KN | 6250LB/㎡ | 27.78KN/㎡ | 4130LB | 18.36KN | 1250LB | 5.56KN | |||||
FS1500 | 5.56KN | 4.45KN | 7500LB/㎡ | 33.34KN/㎡ | 5000LB | 22.17KN | 1500LB | 6.68KN | |||||
Applications

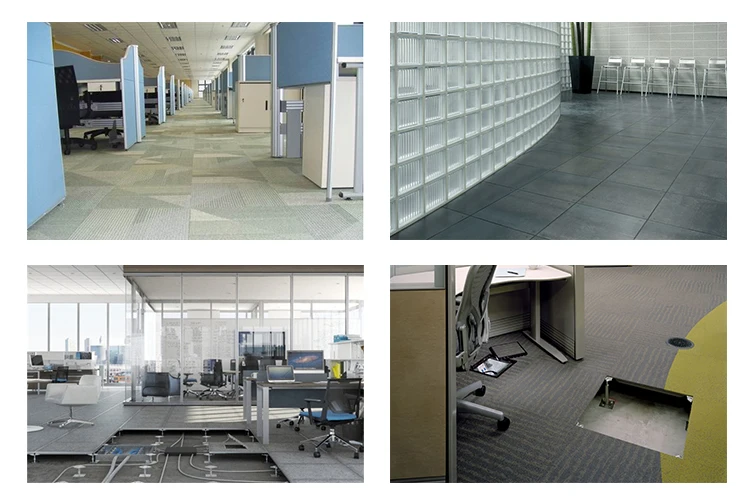

Office building, intelligent office environment, meeting room, commercial and industrial bureau, government, places that have requirements of dust-proof and water-proof, fields with wiring requirements, usually used with square carpet.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
