Product Description

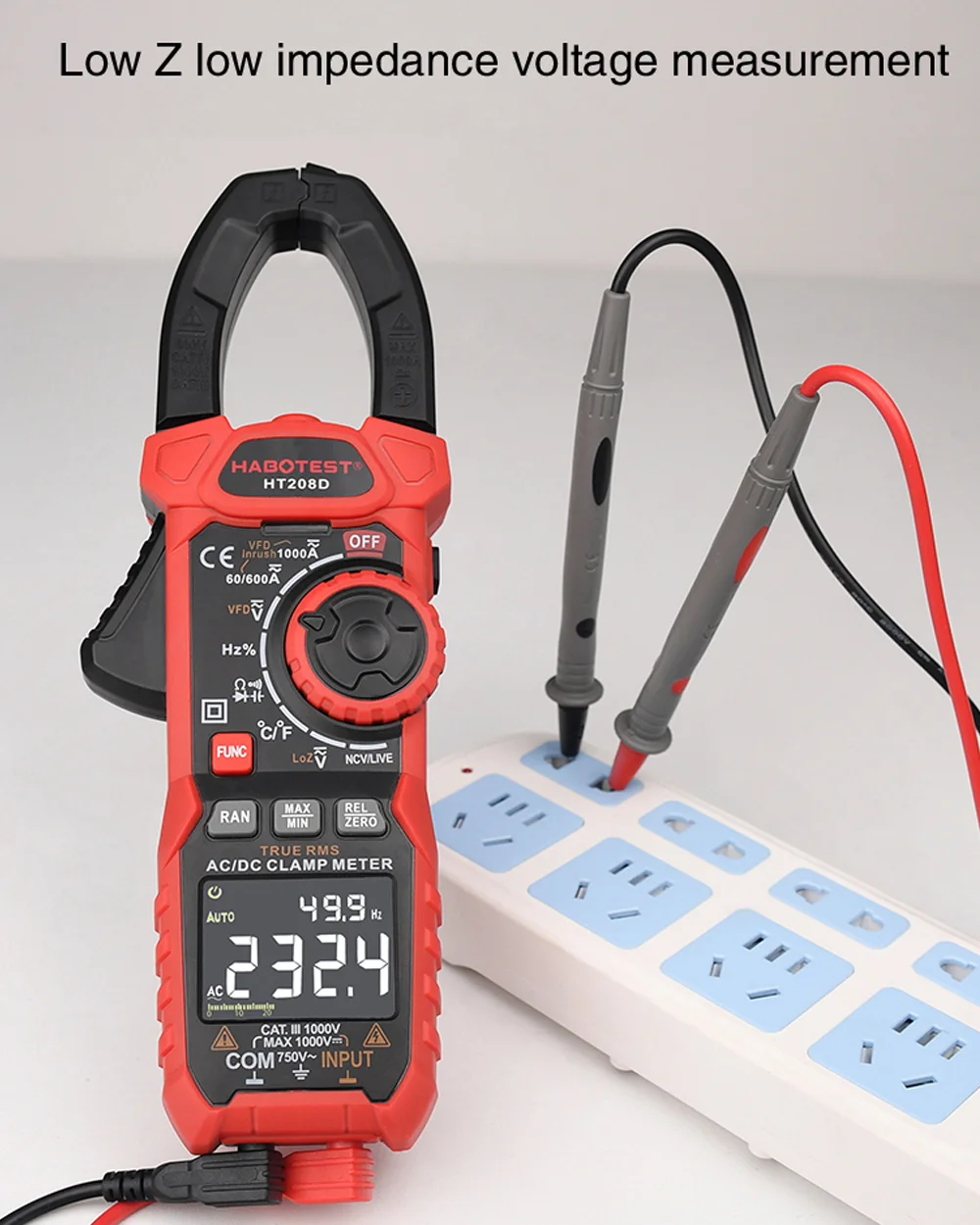

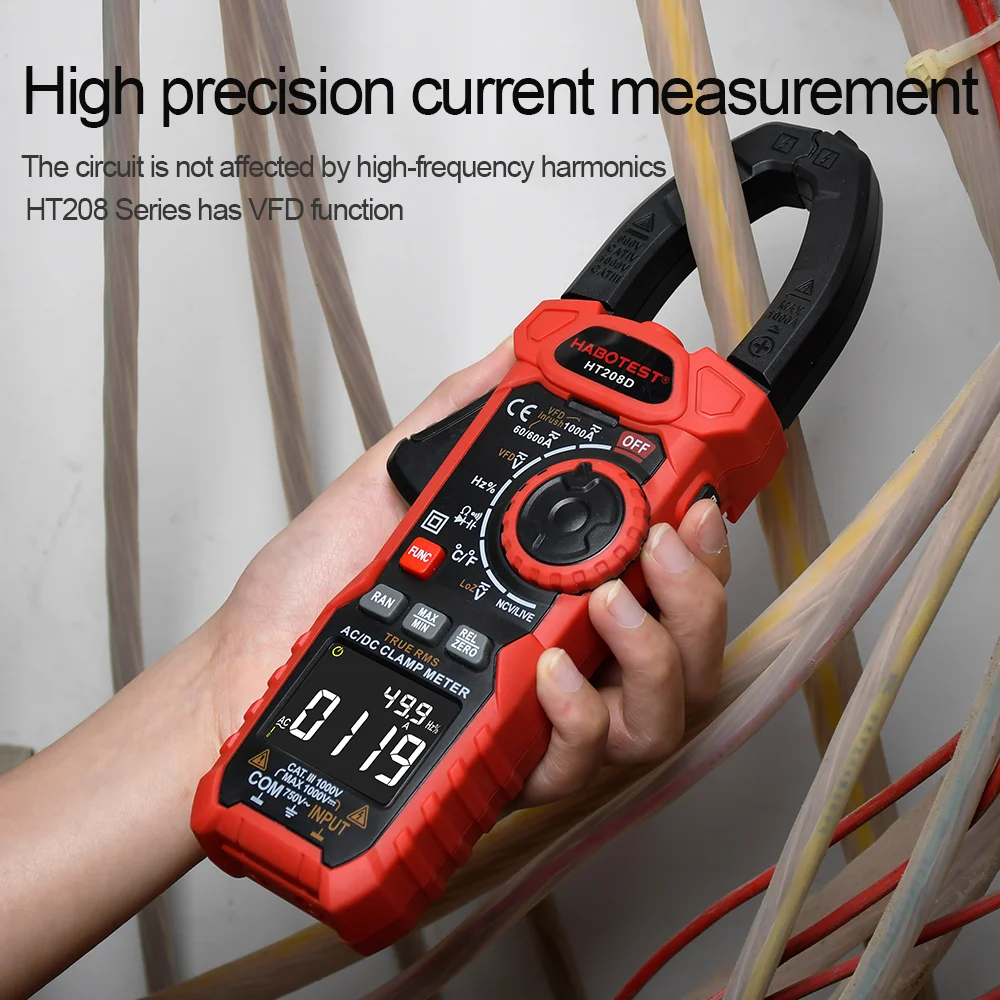

HT208D HT208A AC/DC Digital Clamp Meter True-RMS Multi-meter Current Clamp with Amp Volt Ohm Diode
This is a dual impedance true RMS digital multi-meter integrating a variety of measurements like AC/DC voltage, AC
current,frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there
are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key. FEATURES:
CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC current, AC/DC voltage, frequency, duty ratio, resistance,
continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection. WIDE OPENING JAW:
Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit. LOUD BEEP: NCV sensor send out audible and
visual alarm once received electromagnetic signal. MORE FUNCTIONS: Features data hold, flashlight, low battery display,
Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE:
Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable. AUTO-OFF: Auto power off within 15 minutes if there is no
operation, helps conserve the battery.
MULTI TESTER: Comes with 2 test leads and a thermo-couple to be used as a multi-tester. Measuring AC current: Multi‑function,
measuring AC current, AC and DC voltage, resistance, on and off, temperature, capacitance, frequency, etc. 1000A professional
clamp meter: 1000A professional clamp meter, adopts non‑contact voltage detection, which has high reliability and high safety.
Suitable for:
It is suitable for frequency conversion power supply, air conditioner and refrigerator and other refrigeration
equipment and motor performance test. LCD digital display: LCD digital display, auto range, full range overload protection, data
retention, under-voltage indication. Hand‑held: Hand‑held clamp meter, widely used in laboratory, field measurement, household and
high current measurement.
SPECIFICATIONS:
Display Type: Digital Only Measuring Current Range: 60A,600A,1000A Measuring Voltage Range: 600mV,6V,60V,600V,1000V Measuring
Resistance Range: 600Ohm,6kOhm,60kOhm,600kOhm,6MOhm,60MOhm Measuring Capacitance Range:
10nF, 100nF, 1uF, 10uF, 100uF, 1mF, 10mF, 100MF Operating Temperature: -5~50
Dimensions: 240X85X47mm
Weight: Approx. 380g
Display:
6000 Counts LCD Display Color: Double Color Display Standard Accessories: Cloth Bag ,Test Leads, Manual, Battery Jaw Opening Size:
35*60mm
REL: Yes
INRUSH: Yes
VFD: Yes
NCV: Yes
Single Package Size: 24X9X5 Cm
Single Gross Weight:0.380 Kg
Package Type: 30pcs Per Carton, Paper Carton
