Product Description
Underwear production equipment ultrasonic lace machine seamless trimming underwear machine
X10 ultrasonic lace machine is a 28KHz/1000W intelligent ultrasonic lace equipment with synchronous motion technology. Its ultrasonic core components are mainly composed of an automatic frequency tracking ultrasonic generator, a high Q value transducer, and a tool head. It can maintain efficient seam cutting during cutting, welding, and sewing. At the same time, the equipment also has functions such as user-defined speed, 10 groups of data storage, diversity of flower wheels, and multiple protection. X10 uses an automatic frequency tracking ultrasonic generator to keep the output frequency of the ultrasonic generator in the best resonant state through feedback, so as to ensure the quality of stitching and embossing. The whole machine is composed of 2.8 inch HMI human-computer intelligent interaction, which conforms to the ergonomic design and is safe and easy to operate. The matched flower wheel can be used for straight line and curve cutting, welding and sewing, which can meet the functional requirements of waterproof, sealing, antibacterial, etc. of the processing technology, without needle and thread, saving costs.
Specification
Product name | X10-D50 | Warranty time | 2 years |
Working frequency | 28KHZ | Roller diameter | D45mm |
Ultrasonic power | 1000W | Maximum speed | 40m/min（Custom) |
Bonding width | 《15mm | Workspace | 360*130mm |
Body size | 580*130*265mm | Overall size | 1200*550*1000mm |
Main Features:
* 2.8 inch HMI human-computer intelligent interaction: editable, 10 groups of data can be stored;
* Automatic frequency tracking ultrasonic generator: driven by the automatic frequency tracking ultrasonic generator, it can automatically track the optimal resonant frequency and compensate for the detuning caused by heating and other reasons;
* Synchronous motion control: PLC industrial control and human-computer interaction are used to realize synchronous and asynchronous motion of flower wheel and mold. The speed is adjustable, and the maximum speed is up to 10m/min (* This speed is standard configuration, and can be customized to improve the speed according to customer needs);
* Good mute effect: use low noise ultrasonic wave 28KHz/1000W to prevent noise interference;
* Abnormal alarm: frequency, power, amplitude and other abnormal alarm functions;
* Diversity of flower wheel: it can be customized according to needs;
* Quality assurance: international or domestic brand components are used, and the quality is stable as a rock. The whole machine is guaranteed for one year.
* Factory default of standard machine 220V 50Hz,110V needs to purchase booster, and it is recommended to purchase 2000W booster
* Automatic frequency tracking ultrasonic generator: driven by the automatic frequency tracking ultrasonic generator, it can automatically track the optimal resonant frequency and compensate for the detuning caused by heating and other reasons;
* Synchronous motion control: PLC industrial control and human-computer interaction are used to realize synchronous and asynchronous motion of flower wheel and mold. The speed is adjustable, and the maximum speed is up to 10m/min (* This speed is standard configuration, and can be customized to improve the speed according to customer needs);
* Good mute effect: use low noise ultrasonic wave 28KHz/1000W to prevent noise interference;
* Abnormal alarm: frequency, power, amplitude and other abnormal alarm functions;
* Diversity of flower wheel: it can be customized according to needs;
* Quality assurance: international or domestic brand components are used, and the quality is stable as a rock. The whole machine is guaranteed for one year.
* Factory default of standard machine 220V 50Hz,110V needs to purchase booster, and it is recommended to purchase 2000W booster

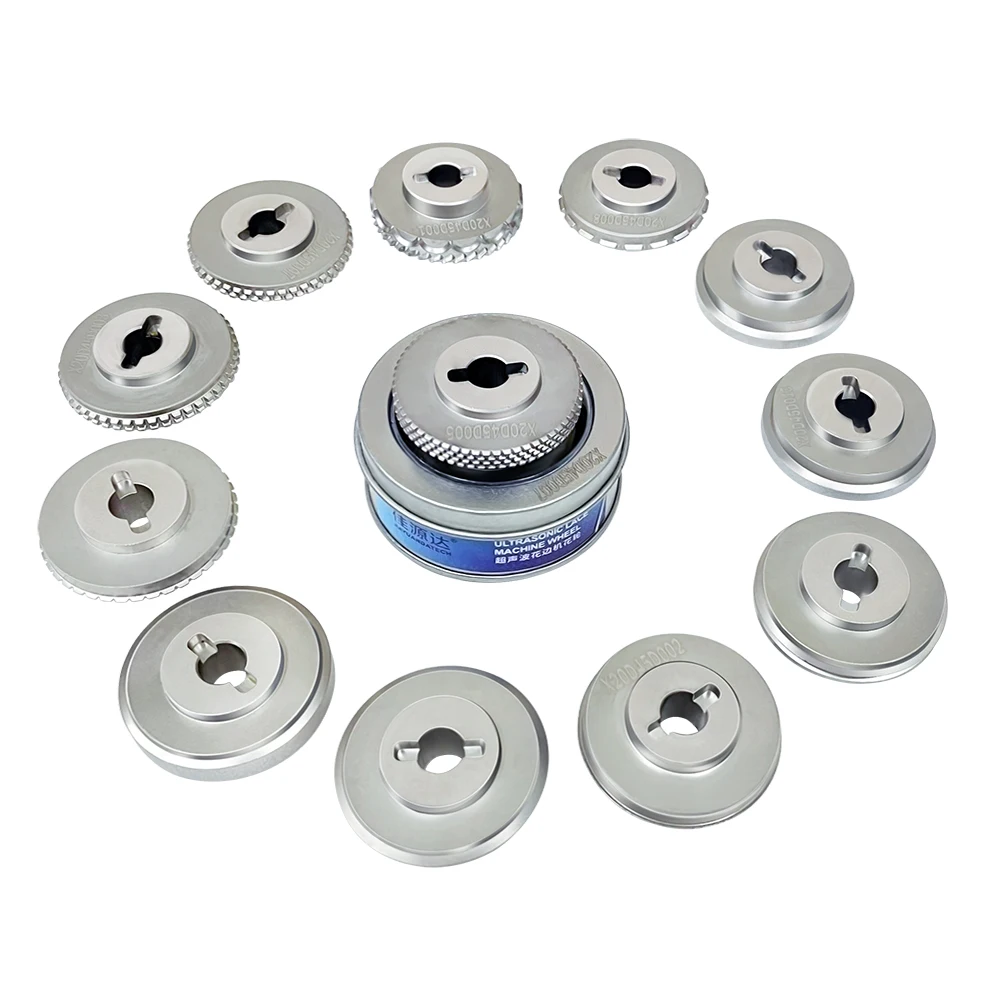

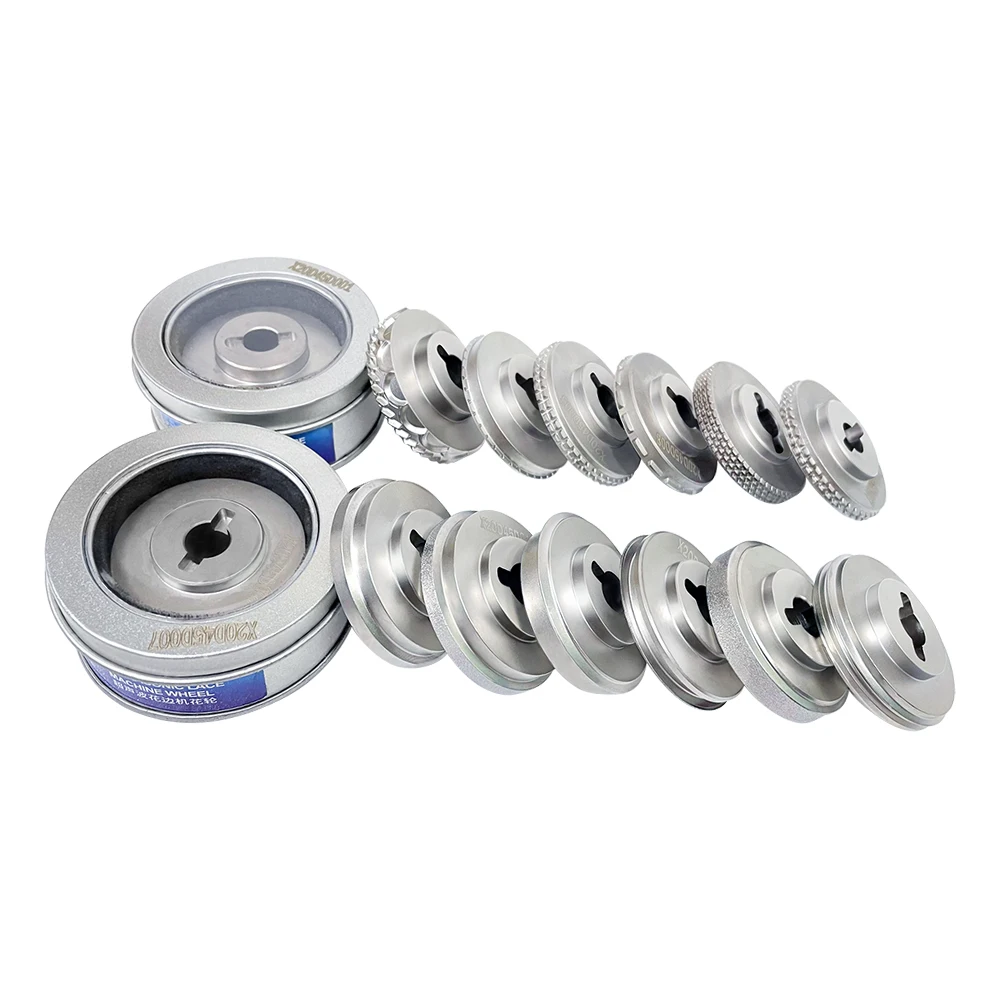

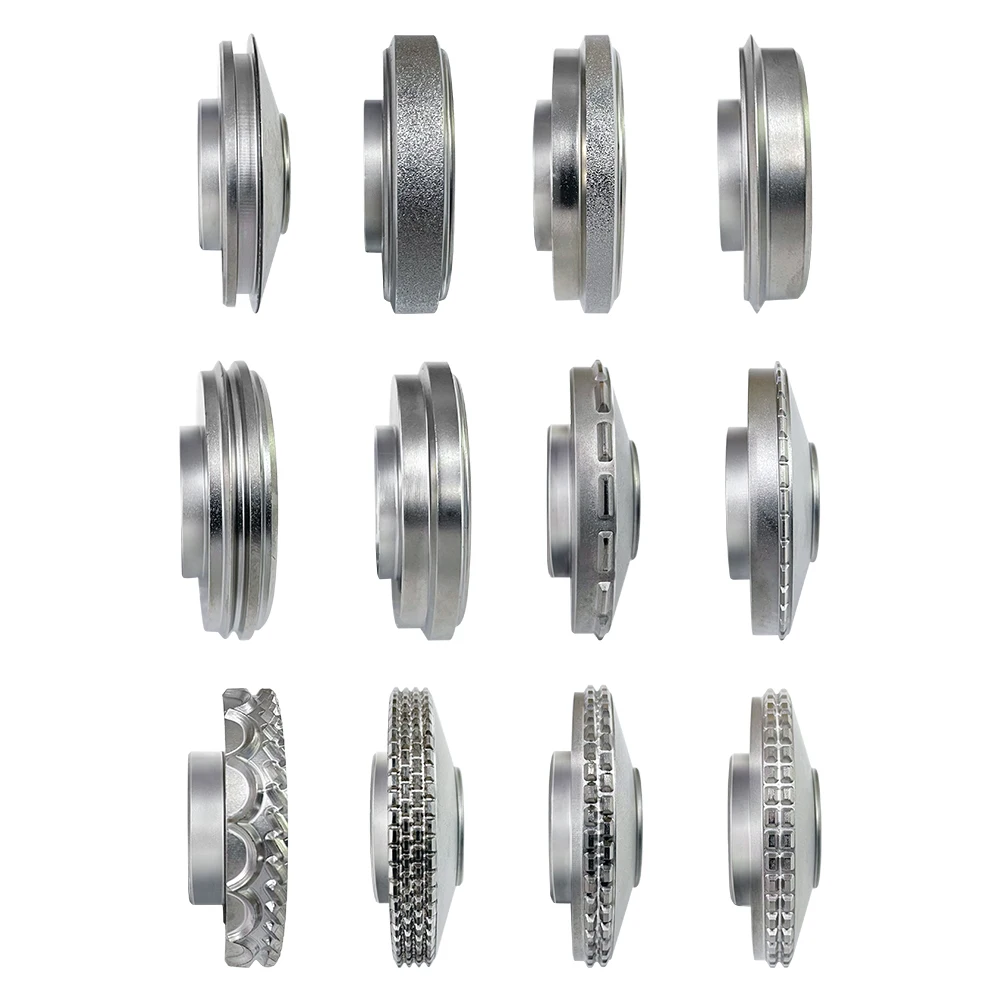

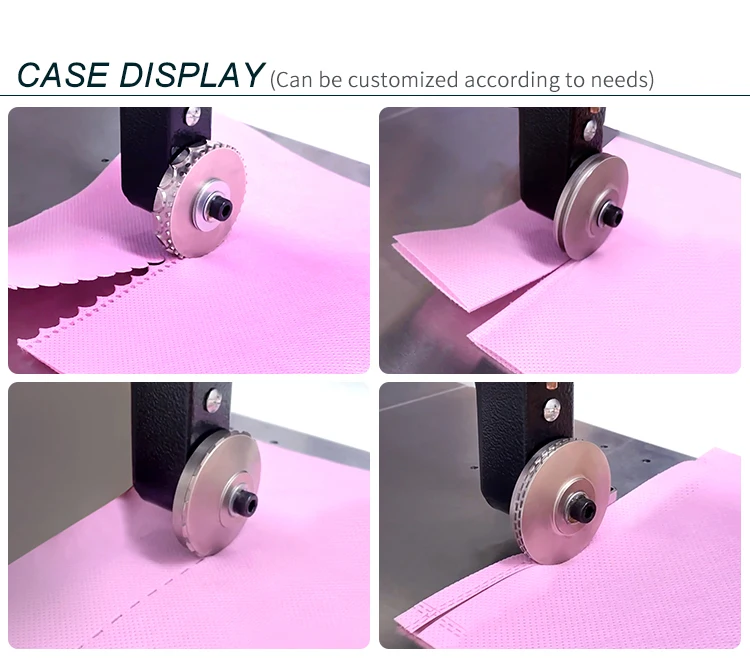

❤ A variety of beautiful lace rollers can be customized ❤

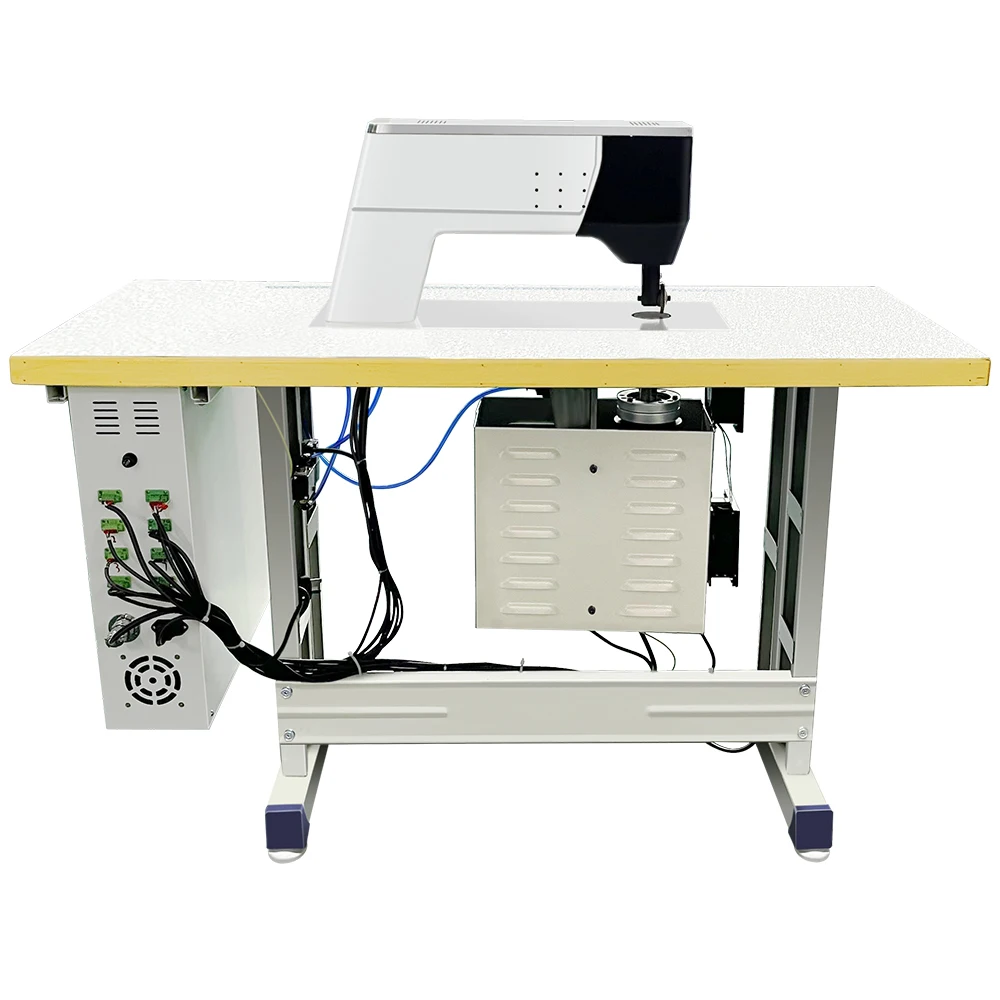

❤ Details Display ❤

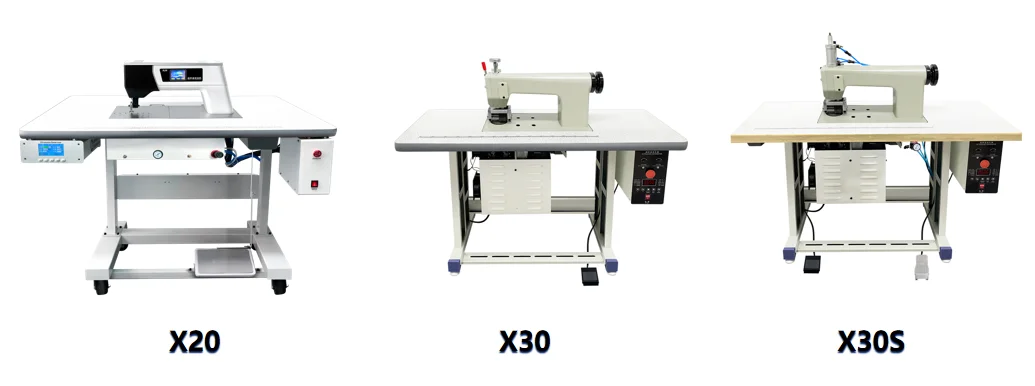

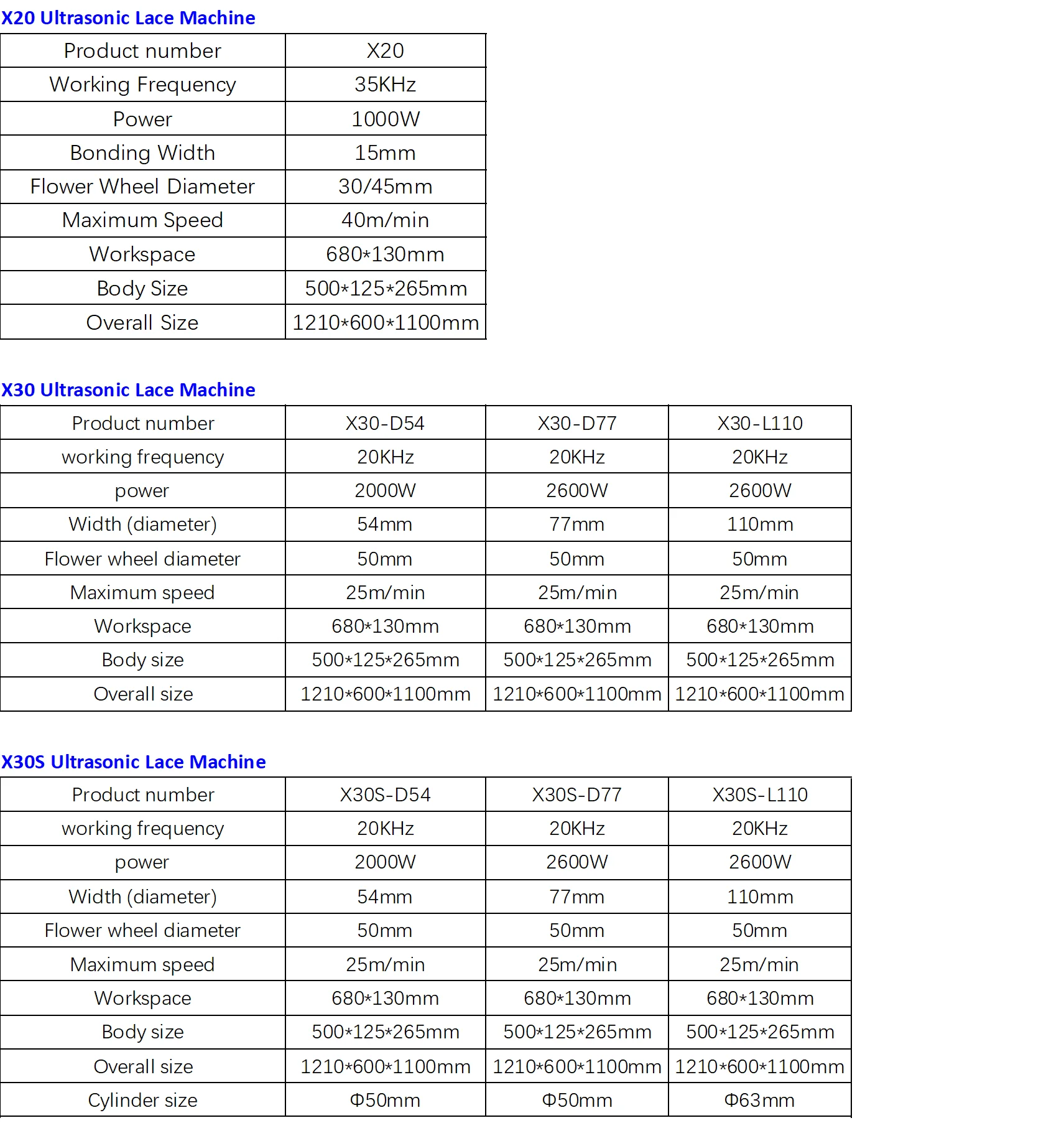

❤ More hot-selling choices of Jiayuanda X series ultrasonic lace sewing machine ❤
Certifications
Company Profile
Jiayuanda technology is a national high-tech enterprise focusing on the development of ultrasonic technology. The main products are ultrasonic generator, ultrasonic transducer, ultrasonic application tool head and ultrasonic application equipment, which are mainly used in ultrasonic cleaning, welding, atomization, extraction and cutting. They are suitable for medical, textile, plastic, metal, food, packaging, semiconductor and other industries. The products are sold all over the world and are widely praised by customers. From the core components, product strategy and supplier management, Jiayuanda technology adheres to good products and precision, and creates products that are simple to use, easy to maintain, moderate in price and good in quality, so as to create value for customers.
Our visions: Let ultrasonic technology benefit intellectual creation and life.
Our missions: Focus on ultrasonic technology, provide competitive ultrasonic solutions and create value for customers.
Core Values: Customer First, Honesty Foremost, Positive & Proactive, Self-Criticism, Struggle Together , Success Together.
Our visions: Let ultrasonic technology benefit intellectual creation and life.
Our missions: Focus on ultrasonic technology, provide competitive ultrasonic solutions and create value for customers.
Core Values: Customer First, Honesty Foremost, Positive & Proactive, Self-Criticism, Struggle Together , Success Together.
Payment & Shipment

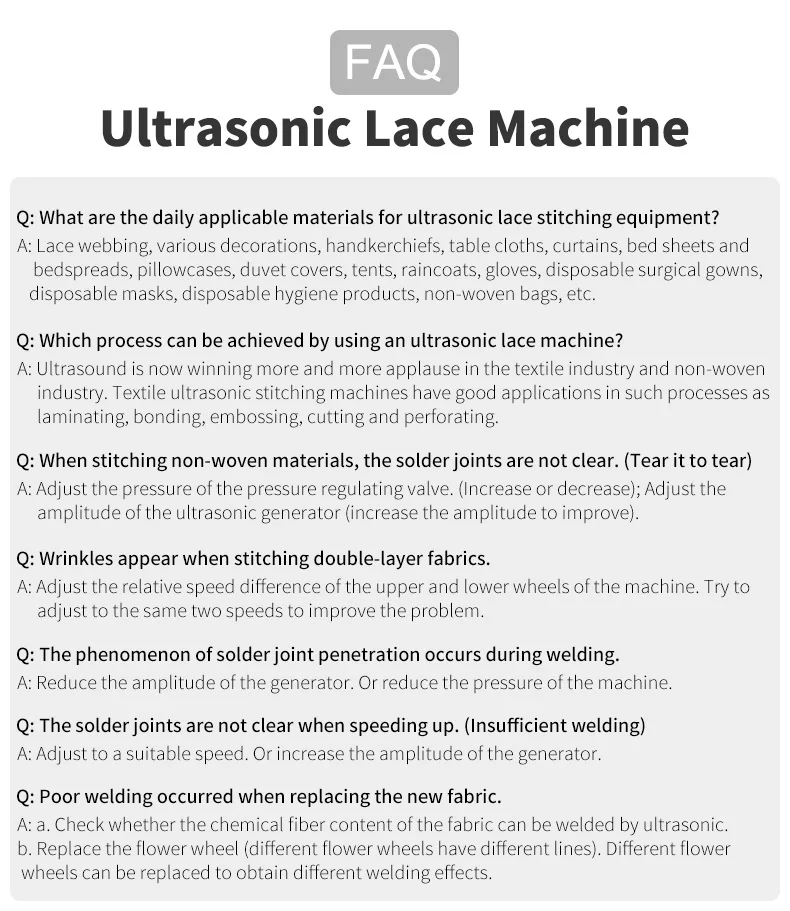

FAQ
