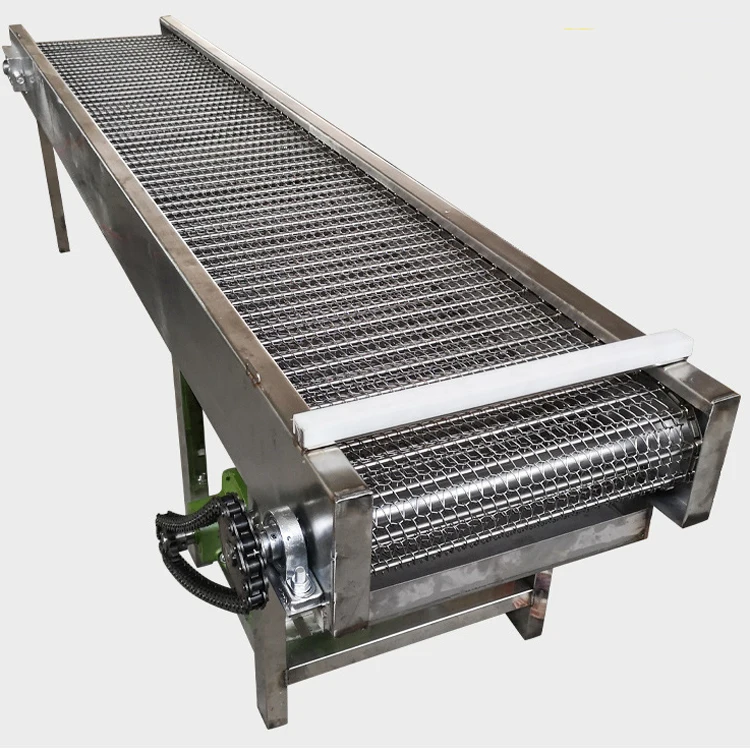

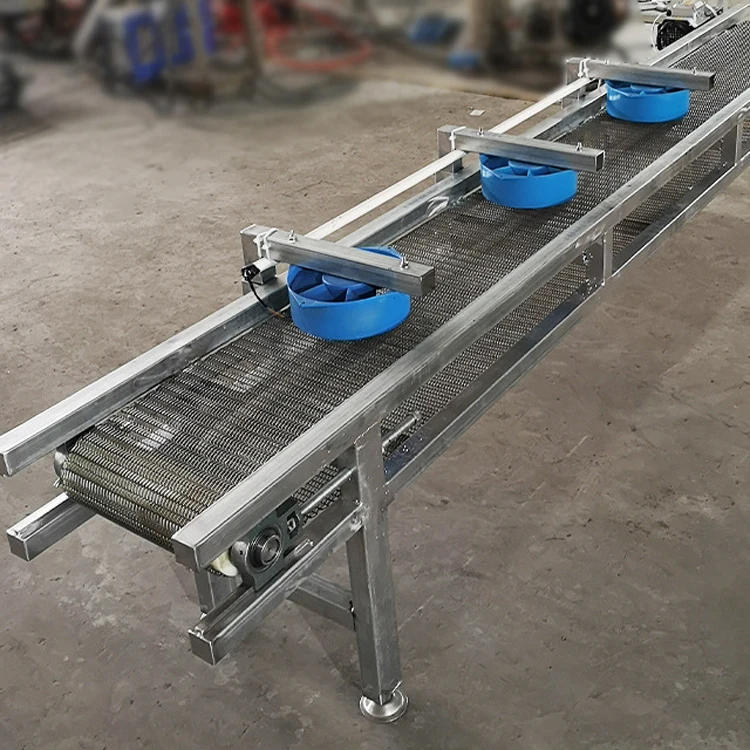

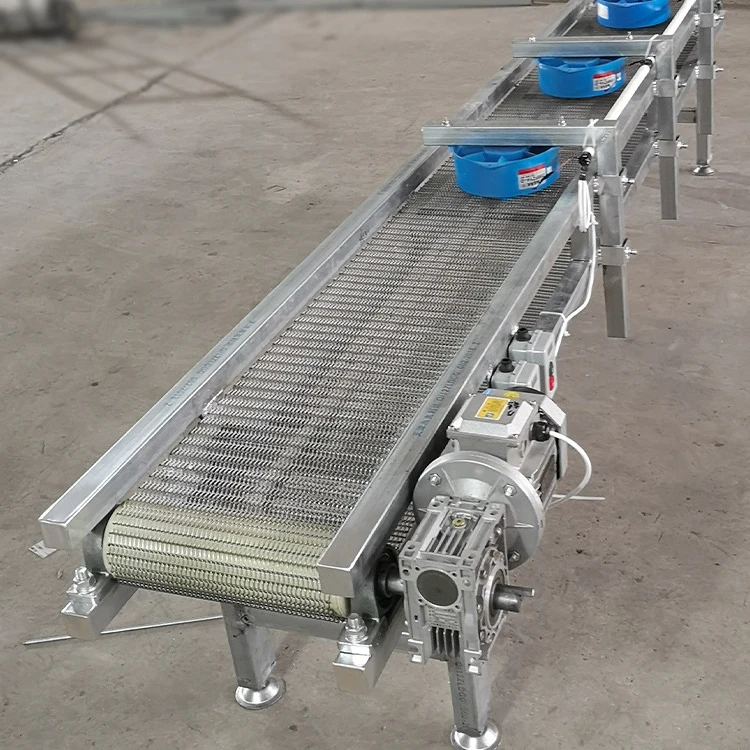

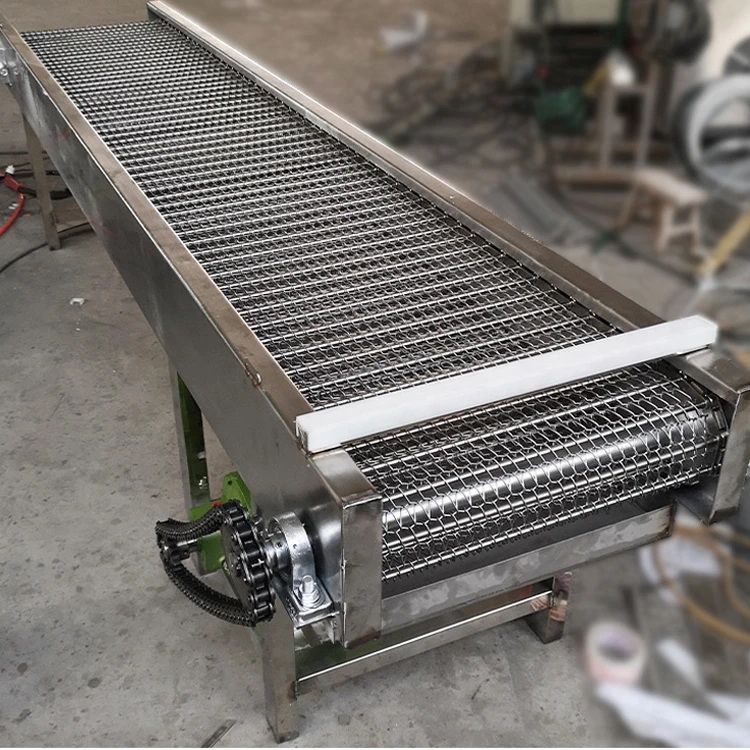

Food mesh belt conveyor 304 Stainless Steel Mesh Belt Conveyor
Product Description

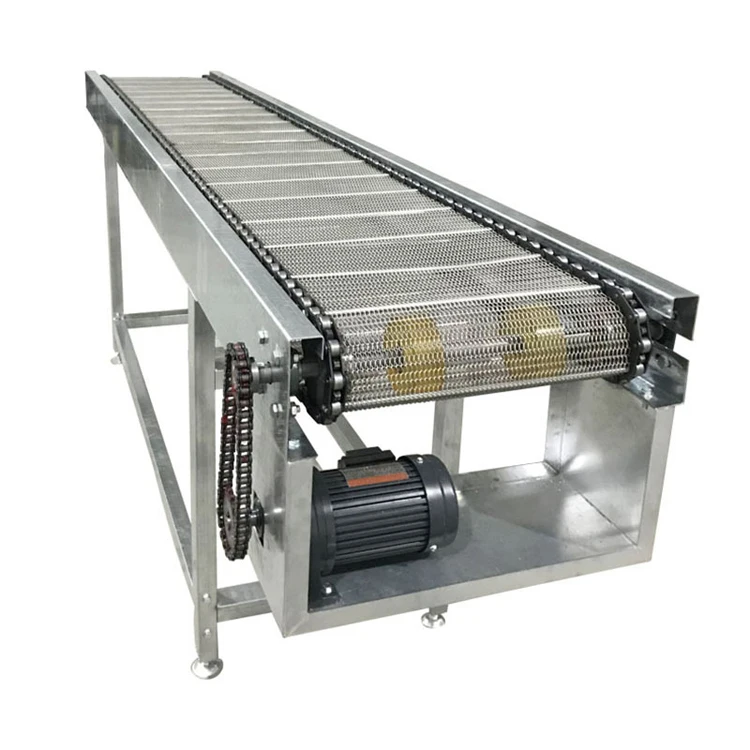

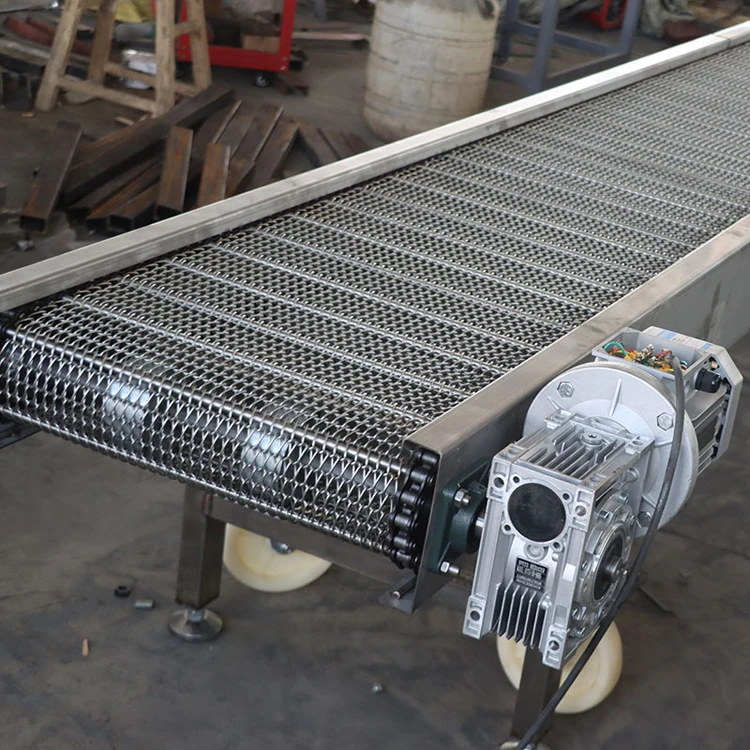

Stainless steel mesh belt conveyor sprocket drive: adopt stainless steel wire woven mesh belt as the carrier, added to both sides of the middle of the chain by wearing a pin connected, using a chain and sprocket driving so that the mesh belt along the chain transfer direction and movement; can also directly with special package roller to directly with dynamic mesh belt action. The former is generally applicable to material weight is heavy and long length of conveying form, used for cooling, drying, and other requirements of the industry of transportation, therefore, mesh belt density is dilute, which generally use relatively dense mesh belt, applicable to small material conveying distance is short or special delivery of the object, for example, with strong magnetic material conveying. Heavy net belt conveyor generally not more than 15 meters in length, width of not more than 2 meters; light stainless steel mesh belt conveyor length is generally not more than 10 meters.
Technical specifications:
| Product Name | Food mesh belt conveyor 304 Stainless Steel Mesh Belt Conveyor |
|---|---|
| Width | 150-2000mm |
| Rack material | Carbon steel, Stainless steel, Aluminum |
| Drive mode | Reduction motor drive, Electric drum drive |
| Speed control methods | Frequency control, Stepless speed change. |
| Conveyor belt material | Rubber, PVC, PU and other a variety of materials |

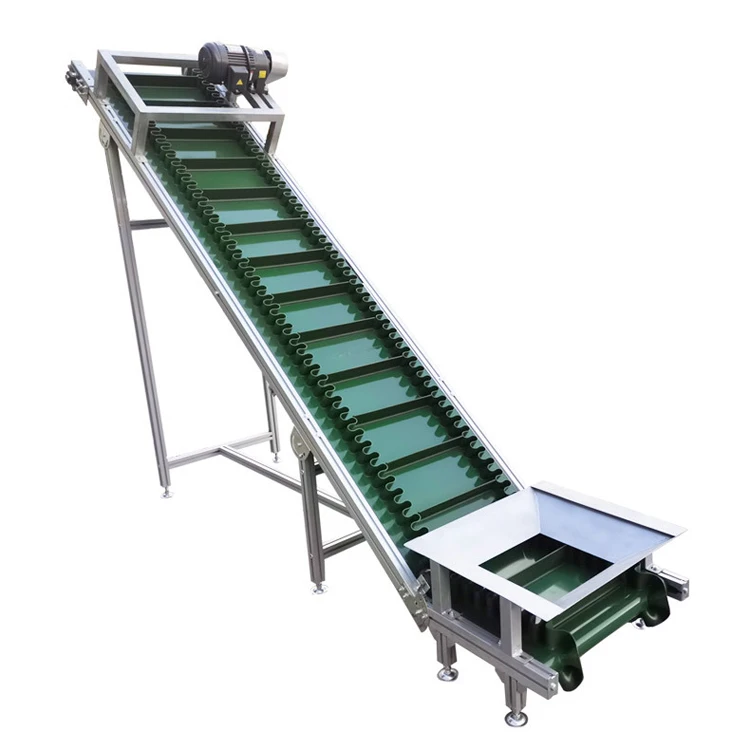

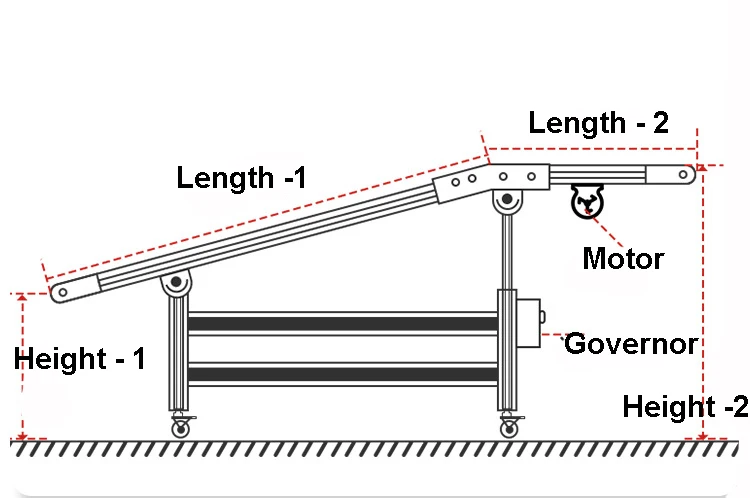

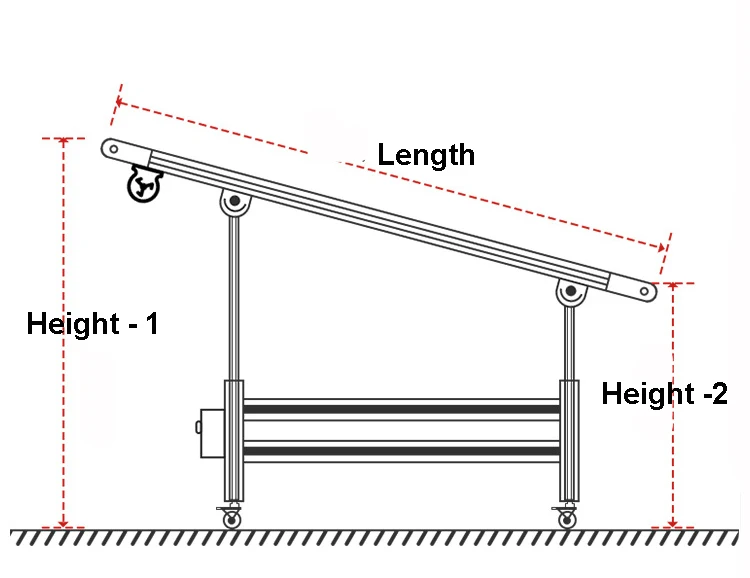

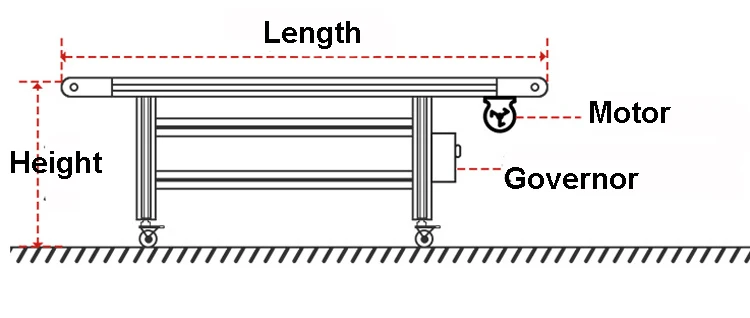

| Structure of the form | Slot type mesh belt machine, flat belt machine, climbing belt machine, turning net belt and other various forms, conveyor belt can also be added to enhance the tailgate, skirts and other accessories, can satisfy the requirements of all process. On both sides of the conveyor with a working table, the installation of light shelves, can be used as an assembly of electronic instruments, food packaging and other assembly line. |
Feature of Food mesh belt conveyor 304 Stainless Steel Mesh Belt Conveyor:
Smooth transmission, the material and the conveyor belt is no relative movement, to avoid damage to the conveyor. Less noise, suitable for working environment requirements of more quiet occasions. Simple structure, easy maintenance. Less energy consumption, low cost.
Pro Quality of Food mesh belt conveyor 304 Stainless Steel Mesh Belt Conveyor:
Conveyor using conveyor belt of continuous or intermittent movement to transport a variety of different weight of the goods, not only can transport a variety of bulk materials, but also can transport all kinds of cardboard boxes, bags and other pieces of weight is not a single piece of goods, the use of a wide range of.
Rrubber belt, PVC belt, PU belt and other a variety of materials belt . In addition to ordinary material conveying, meet oil resistance, corrosion resistance, antistatic etc have special requirements for material conveying. The use of special food grade conveyor belt, can meet the requirements of food, pharmaceutical, daily chemical and other industries.
:
Application of Food mesh belt conveyor 304 Stainless Steel Mesh Belt Conveyor:

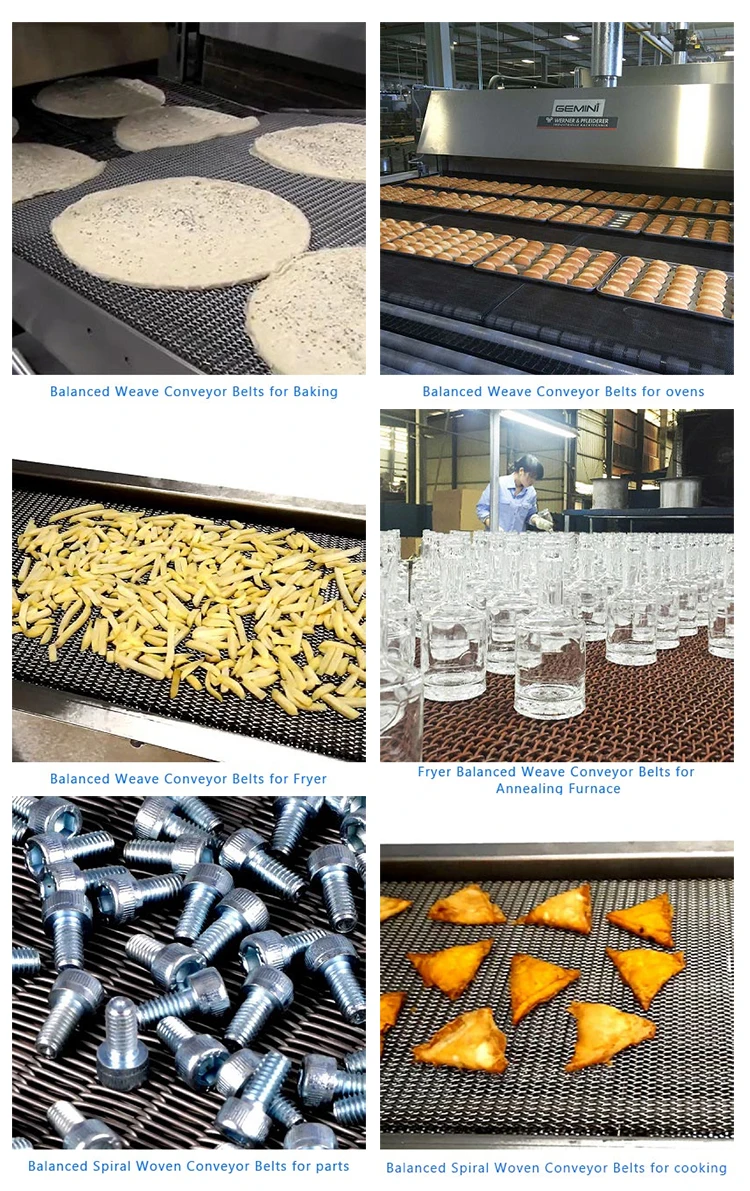

Stainless steel mesh belt conveyor is driven by a sprocket: widely used in the delivery of the beverage bottle, aluminum pot, drugs, cosmetics, food and other industries, through selection of different net belt can be made into different uses of the special equipment for the industry. The drying conveyor can be made according to the user demand, steel mesh belt conveyor, belt conveyor and drying box. Mesh belt conveyor is a supplement to the traditional belt conveyor. It overcomes the belt torn, punctured, corrosion of the shortcomings, to provide a safe, rapid, and the maintenance simple mode of delivery. Mesh belt conveyor belt transmission module, using sprocket driven conveyor belt so hard hunting, deviation.
Related Products
Company Information
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered a patent,
Q2. How long is your delivery time?
A: Generally it's 7-10 days and depending on quantity.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
