Product Description

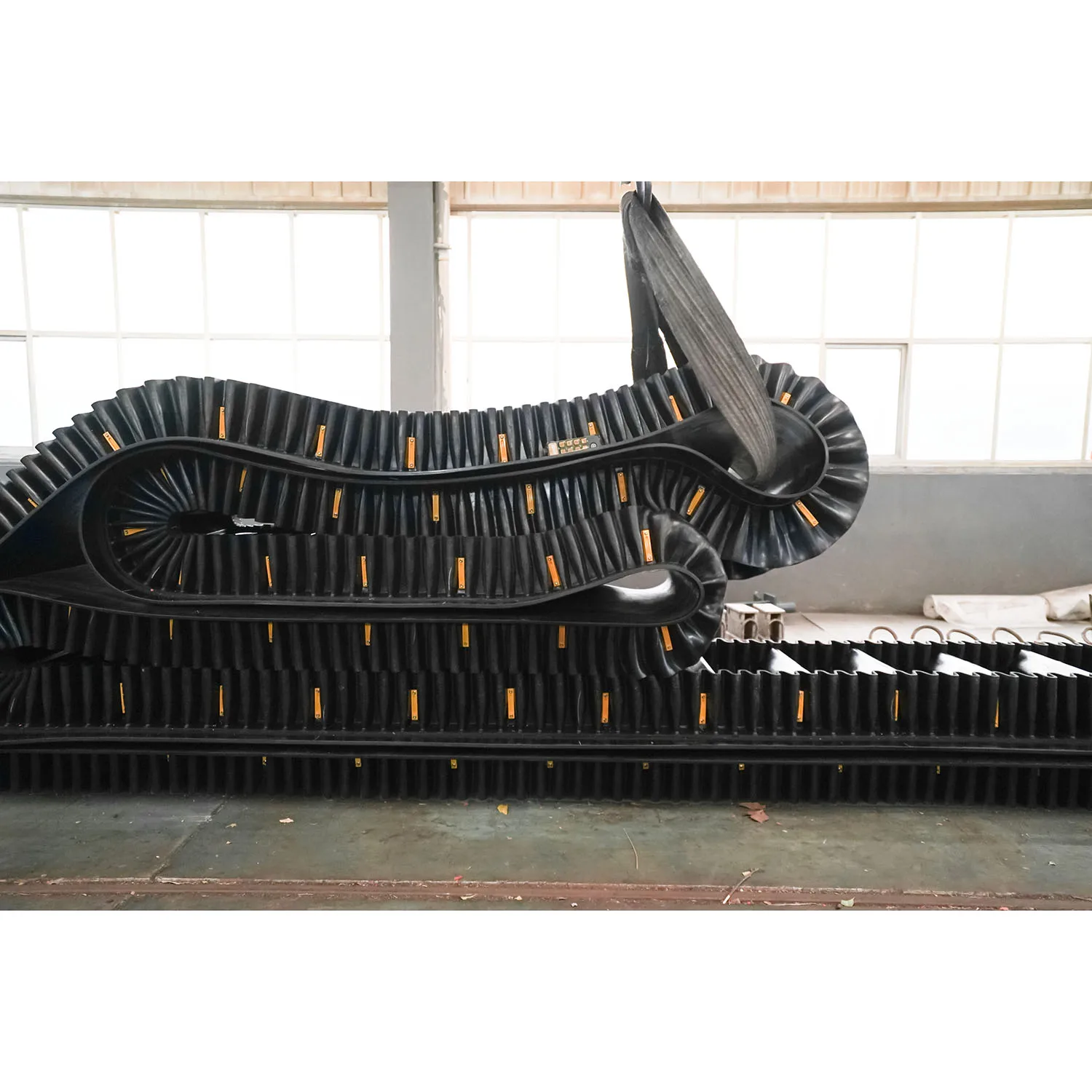

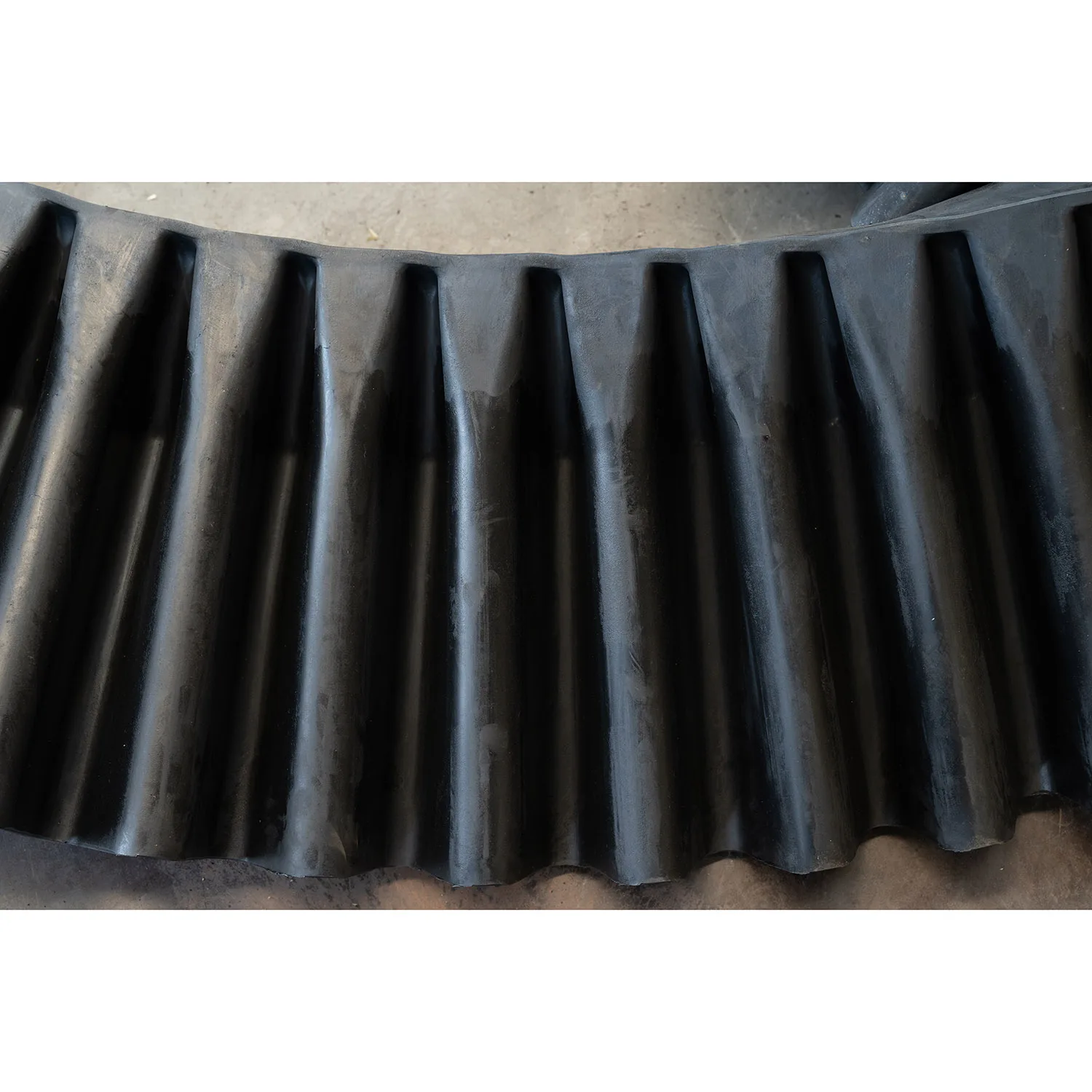

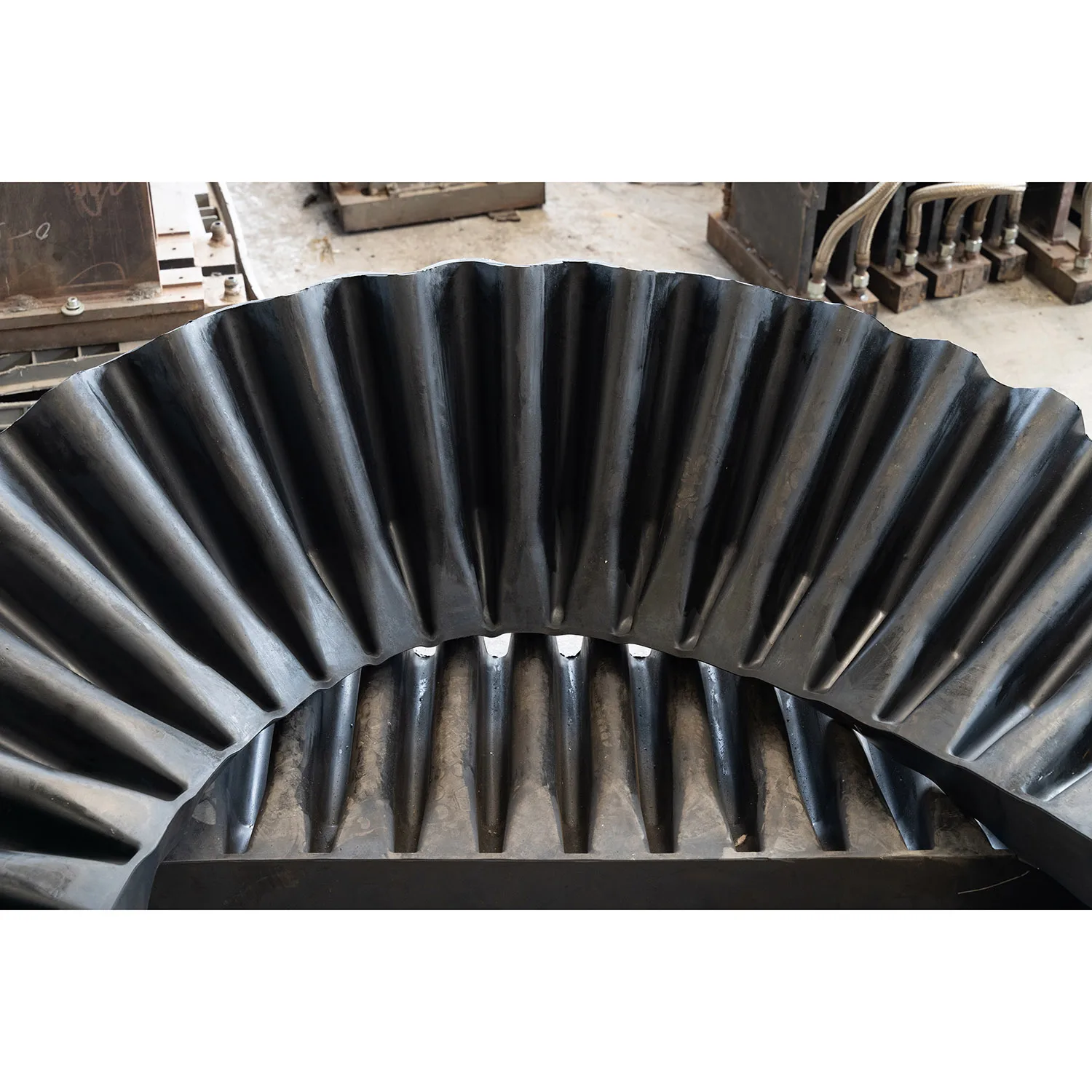

corrugated sidewall conveyor belt

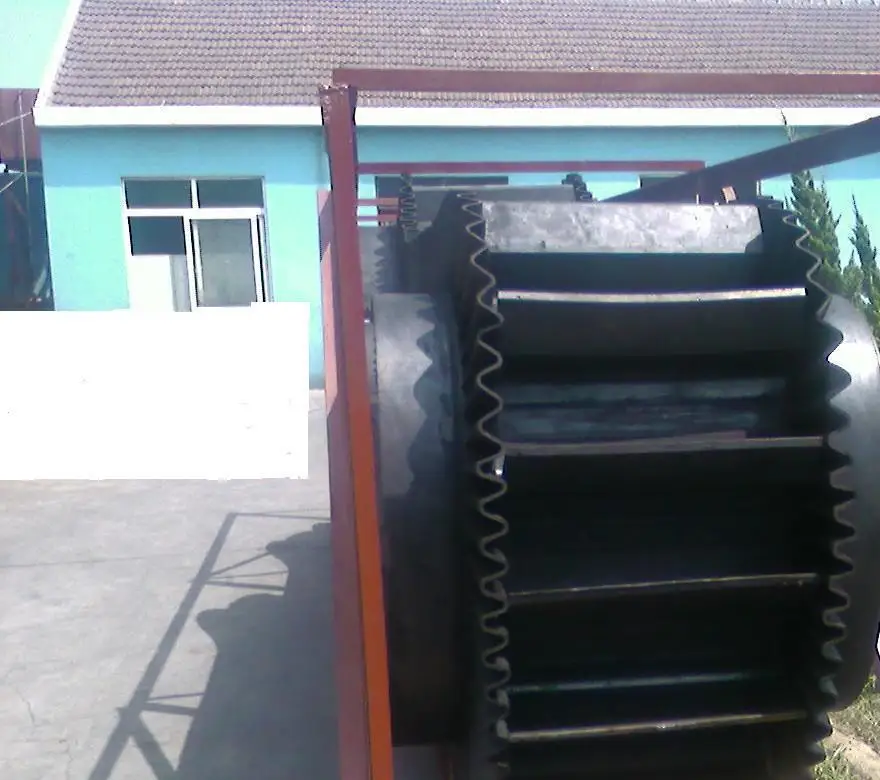

Sidewall Conveyor belt has been designed with two corrugated sidewalls and cleats molded to cross-rigid base belt which can carry heavy product loads up to the inclined angle of 75°. This belt is popular where space is at a premium and steep incline angles are desired. Sidewall and cleats are hot vulcanized to the base belt. Compared to the traditional cold bonding methods, hot vulcanizing ensures strong adhesive force between the components and the belt and therefore a much longer life of the product.
(1) Cross-stabilized Base Belts
(2) Sidewalls
(3) Cleats
Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance and it is one of the most effective ways of elevating materials in a confined space. The economic goal can be achieved by single belt operation and wide range materials can be handled in cases of limited space and strict requirements of no transfer point, low maintenance and big capacity.
components:
(1) Cross-stabilized Base Belts
(2) Sidewalls
(3) Cleats
Features
Excellent transportation performance, longer service life, 45-90 degree angle conveying saving on conveyor space
Applications
Suitable for short to medium distances, low speed material handling
Mining and materials handling, quarrying
Excellent transportation performance, longer service life, 45-90 degree angle conveying saving on conveyor space
Applications
Suitable for short to medium distances, low speed material handling
Mining and materials handling, quarrying

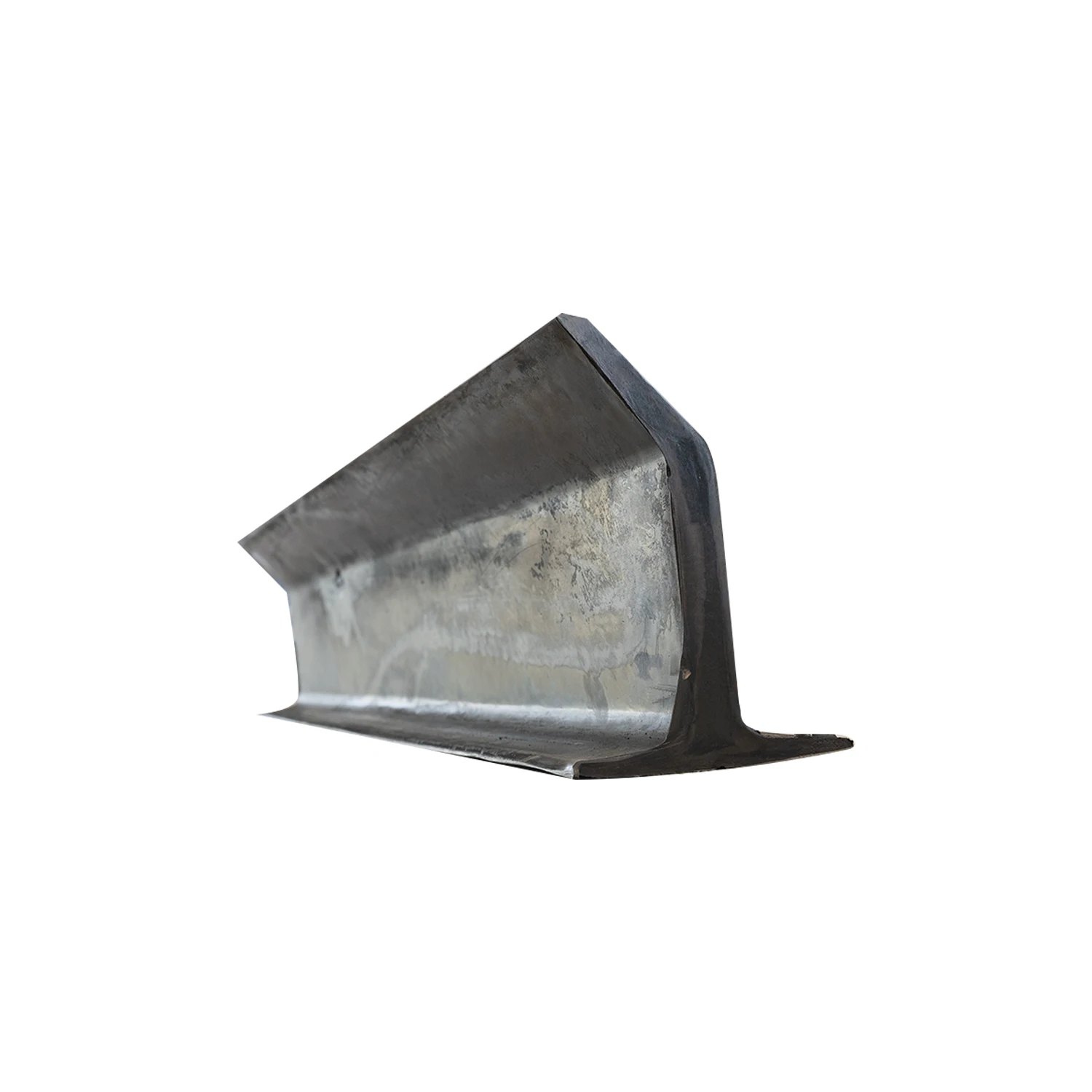

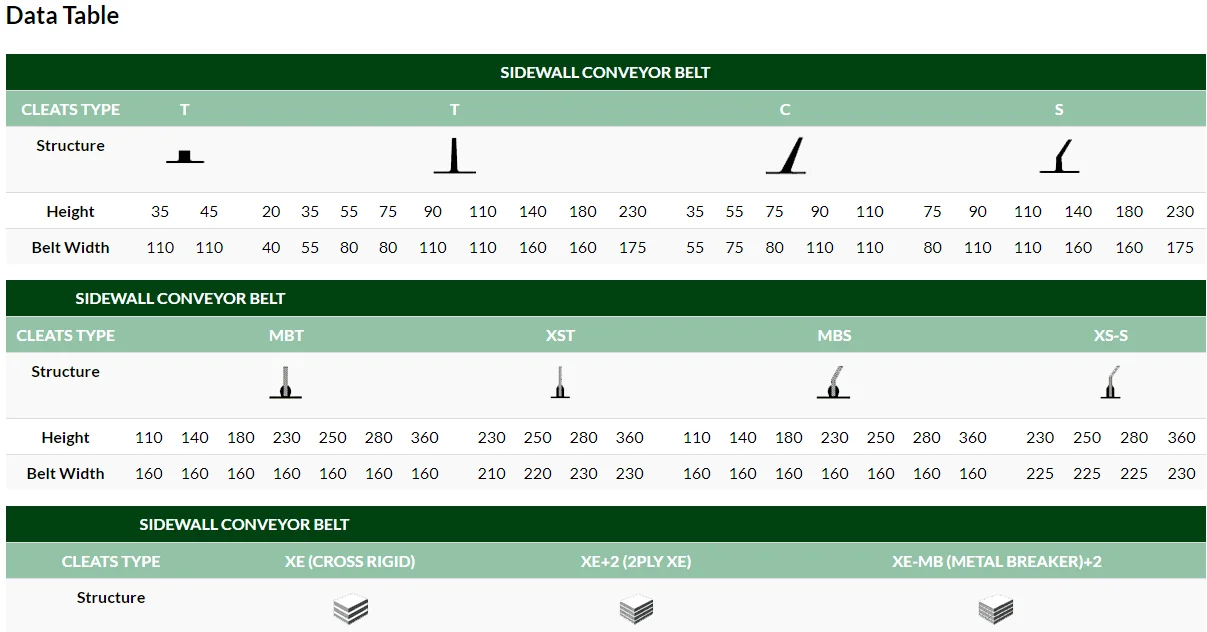

Cleat

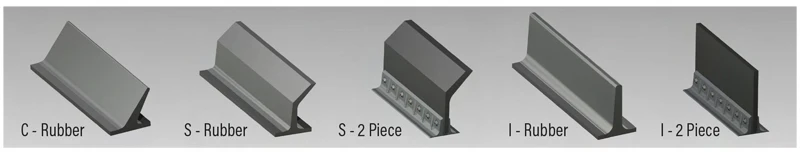

Cleat types: T, TS, C, TC and TCS
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"TS" and "TCS" cleat are normally used for abrasion condition
"T" and "TS" cleat are normally used up to 40 degree
"TC" and "TCS" are normally used from 40 to 90 degree
Cleat types: T, TS, C, TC and TCS
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"TS" and "TCS" cleat are normally used for abrasion condition
"T" and "TS" cleat are normally used up to 40 degree
"TC" and "TCS" are normally used from 40 to 90 degree

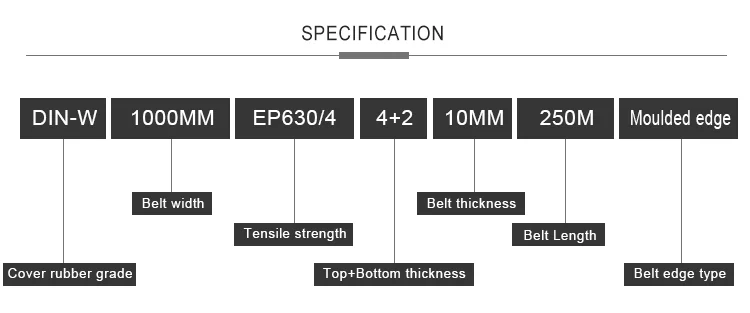

Specification
item | value |
name | sidewall conveyor belt |
Application | stone crusher, cement plant, coal mine, copper mine, sand industry, warehouse loading, etc |
Width | 400-2600mm |
other belt types | smooth conveyor belt, chevron belt, sidewall belt, steel cord belt, pipe belt, endless belt, rough top belt, heat resistant belt, oil resistant belt, fire resistant belt, cold resistant belt, chemical resistant belt. |
fabric type | EP100-500 |
Edge | molded edge and cut edge |
ply | 1-6ply |
Fabric | CC, EP, NN |
tensile strength | 8-25mpa |
Grade | X,Y,Z,W, MOR, N,M, RMAI, RMAII |
abrasion | 90-200mm3 |
surface | smooth/profiled |
Edge | Moulding/Cutting |
Details Images
Packing & Delivery
1. packing:
2. delivery :
need 20 days for one container after received prepayment

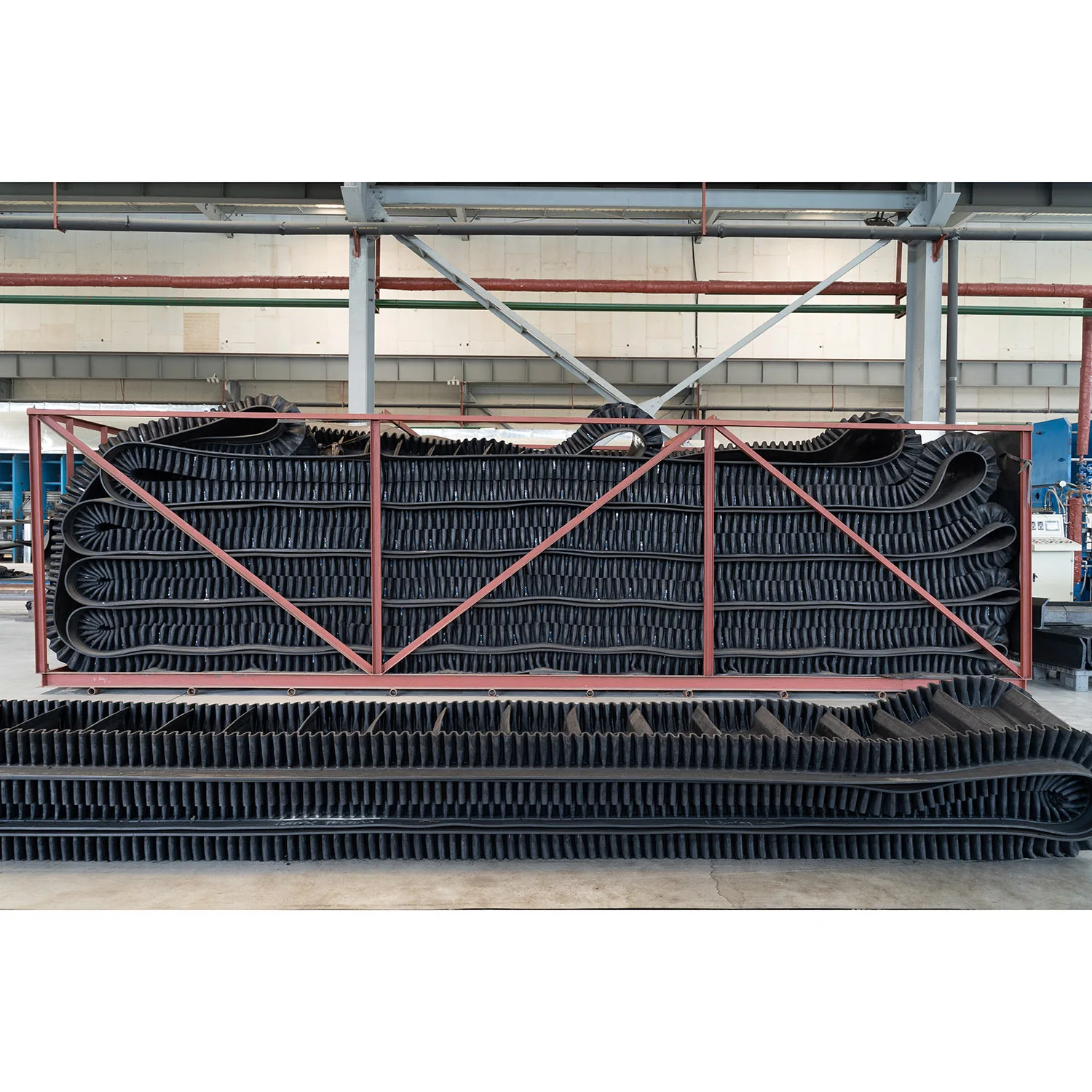

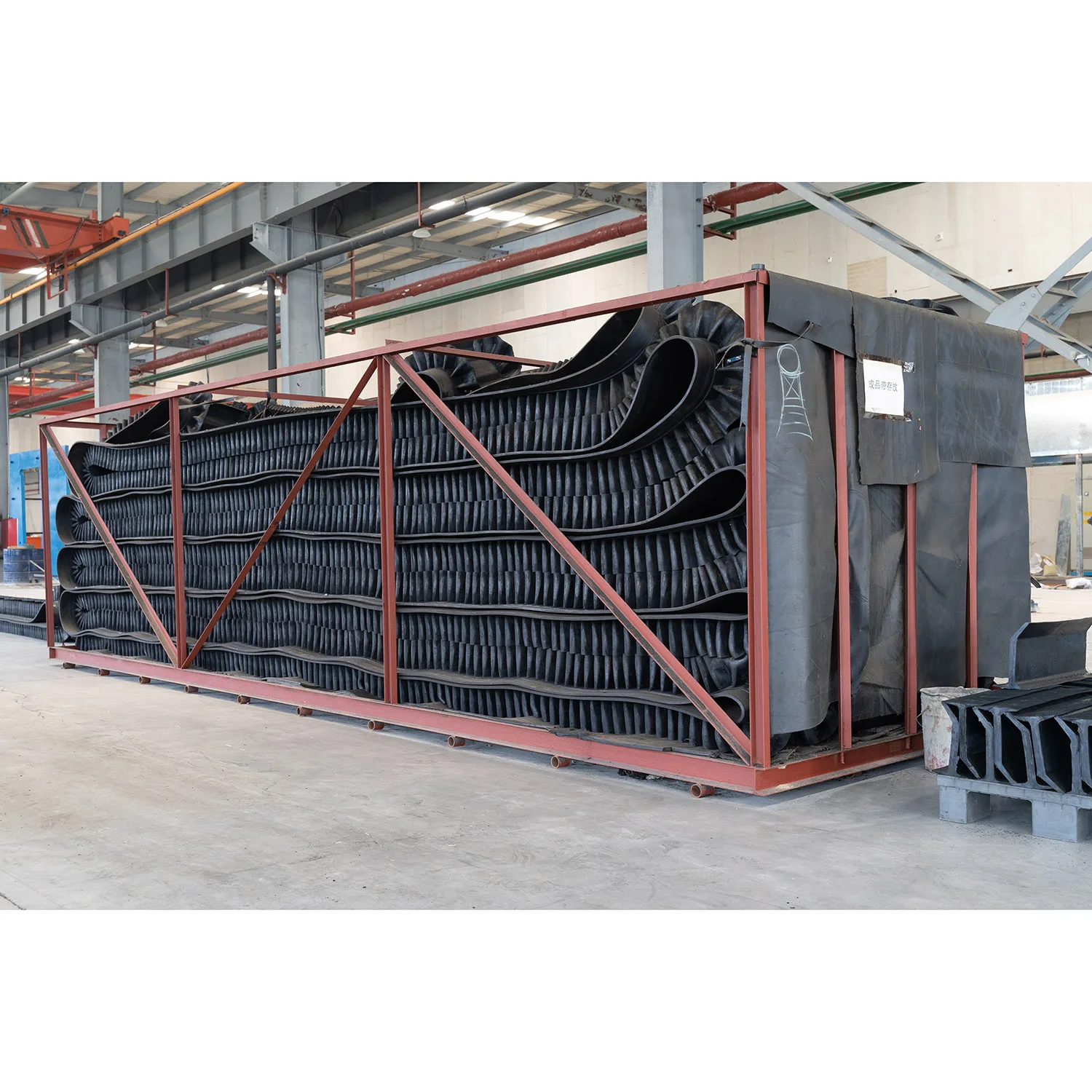

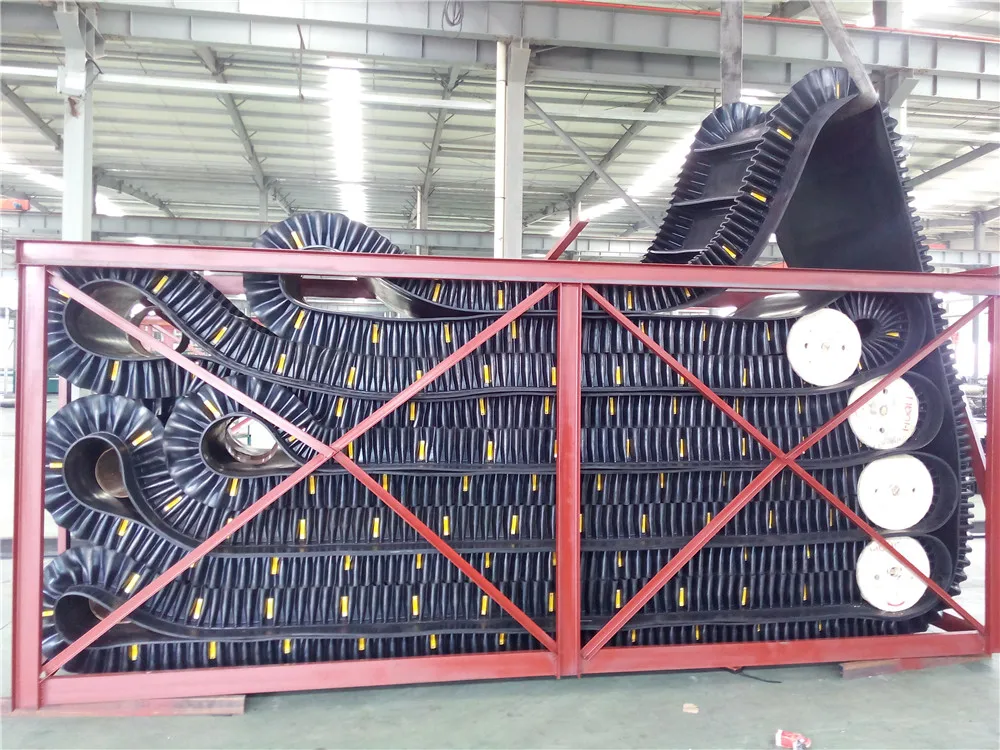

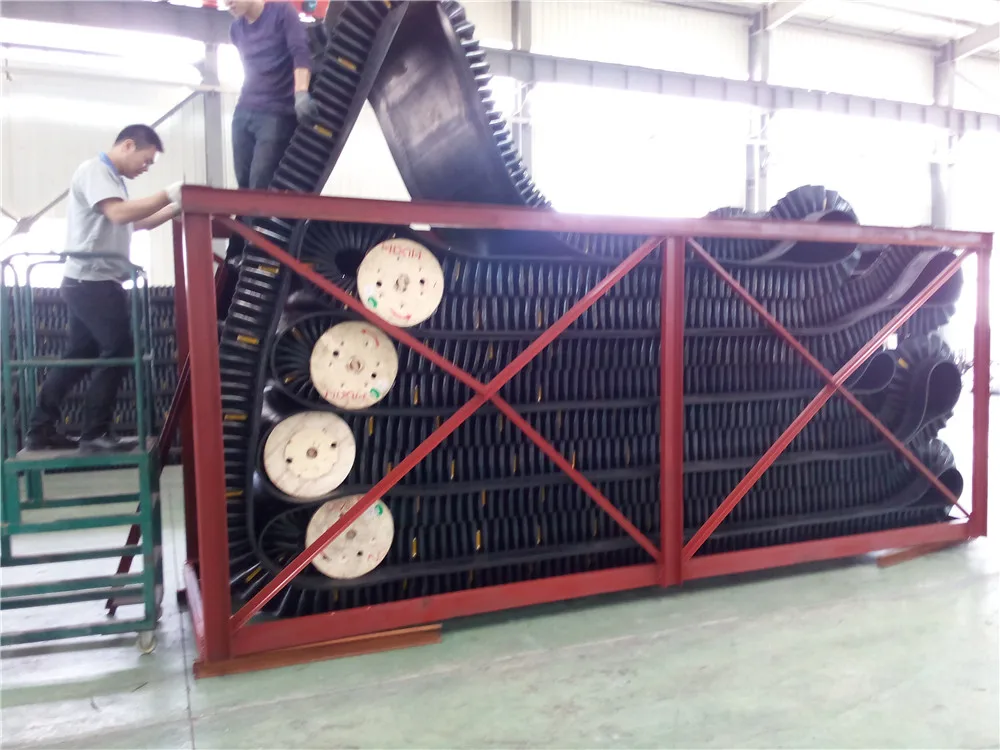

sidewall belt is packed by metal rack
2. delivery :
need 20 days for one container after received prepayment
we can make smooth conveyor belt and chevron profile conveyor belt

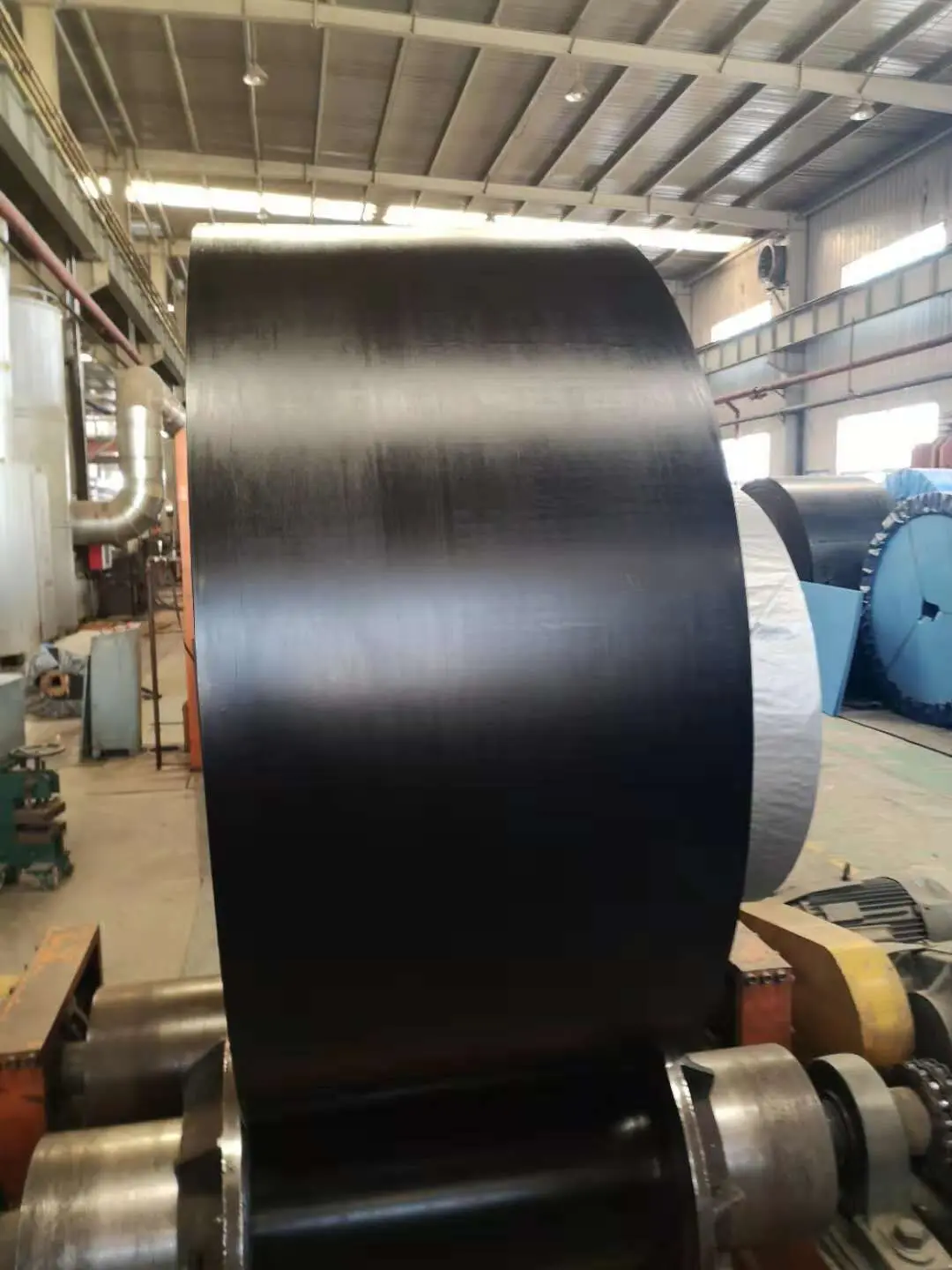

smooth conveyor belt
surface are smooth on both side
tensile strength : 8MPA-24MPA
grade : oil resistant, fire resistant, heat resistant, cold resistant,
RMAI, RMAII, M, N, Y, Z,W
edge: cut edge /moulded edge
fabric type: EP/NN/CC
fabric layer: EP100/EP125/EP150/EP200/EP250/EP300
Width: 400-2600mm
Cover thickness: 4+2, 5+2, 6+2
popular type: EP400/3, EP500/4, EP600/4, EP600/3, EP800/4
tensile strength : 8MPA-24MPA
grade : oil resistant, fire resistant, heat resistant, cold resistant,
RMAI, RMAII, M, N, Y, Z,W
edge: cut edge /moulded edge
fabric type: EP/NN/CC
fabric layer: EP100/EP125/EP150/EP200/EP250/EP300
Width: 400-2600mm
Cover thickness: 4+2, 5+2, 6+2
popular type: EP400/3, EP500/4, EP600/4, EP600/3, EP800/4
chevron conveyor belt
surface are profile chevron on top side, smooth on back side
profile height: C5, C6, C10, C15,C17,C20,C25
tensile strength : 8MPA-24MPA
grade : oil resistant, fire resistant, heat resistant, cold resistant,
RMAI, RMAII, M, N, Y, Z,W
edge: cut edge /moulded edge
fabric type: EP/NN
fabric layer: EP100/EP125/EP150/EP200/EP250/EP300
Width: 400-2600mm
Cover thickness: 4+2, 5+2, 6+2
popular type: EP400/3, EP500/4, EP600/4, EP600/3, EP800/4
profile height: C5, C6, C10, C15,C17,C20,C25
tensile strength : 8MPA-24MPA
grade : oil resistant, fire resistant, heat resistant, cold resistant,
RMAI, RMAII, M, N, Y, Z,W
edge: cut edge /moulded edge
fabric type: EP/NN
fabric layer: EP100/EP125/EP150/EP200/EP250/EP300
Width: 400-2600mm
Cover thickness: 4+2, 5+2, 6+2
popular type: EP400/3, EP500/4, EP600/4, EP600/3, EP800/4
Quality inspection
test the tear resistance of the belt
test the vulcanized speed of the belt
test breaking tension of the belt
test the adhesion of the belt and layer
test the thickness of the belt
test the length of the belt
