Product Description
The DSX CableAnalyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40
Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.
Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.
As part of the Versiv cabling certification product family, the DSX CableAnalyzer Series copper cable certifiers provides
accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple
testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.
accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple
testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.

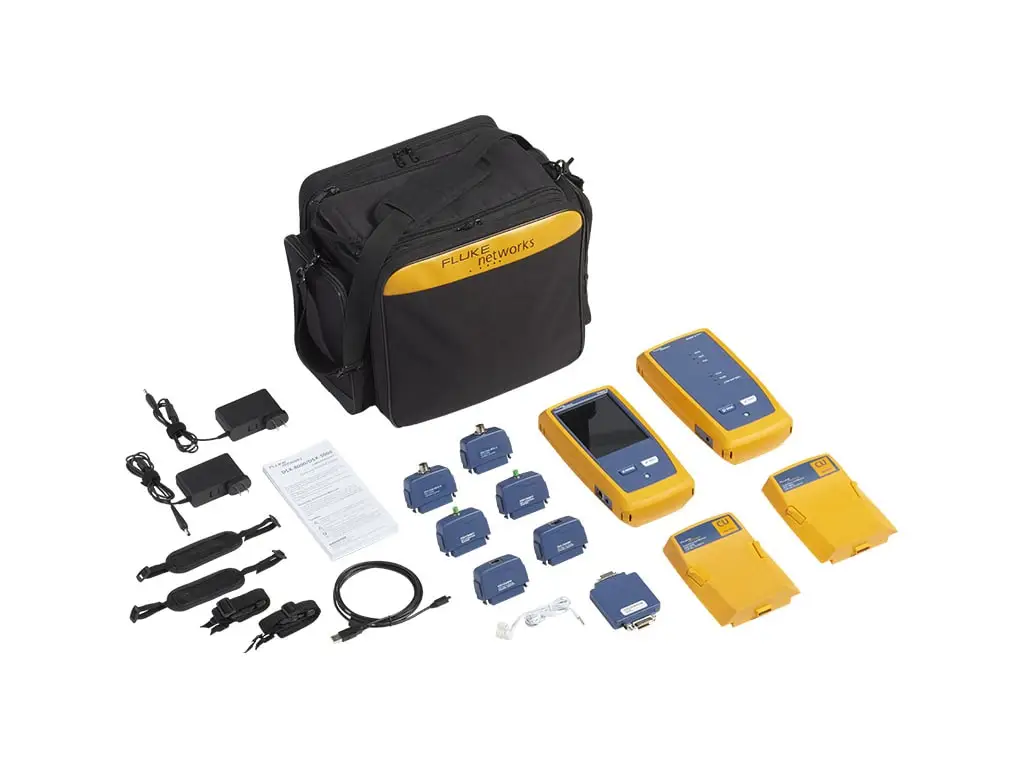

Industrial Ethernet DSX Kit 1
* Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
* Intertek Verified to TIA Level 2G – the most stringent accuracy requirement
* Complete testing for your Industrial Ethernet copper cabling
* Built in Alien Crosstalk testing capability
* Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
* Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
* ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
* Taptive user interface simplifies set-up, and eliminates errors
* Analyze test results and create professional test reports using LinkWare management software
* Compatible with Linkware Live. Linkware Live enables to easily track job progress, get
* Intertek Verified to TIA Level 2G – the most stringent accuracy requirement
* Complete testing for your Industrial Ethernet copper cabling
* Built in Alien Crosstalk testing capability
* Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
* Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
* ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
* Taptive user interface simplifies set-up, and eliminates errors
* Analyze test results and create professional test reports using LinkWare management software
* Compatible with Linkware Live. Linkware Live enables to easily track job progress, get
* The DSX reduces the time required to fix cabling faults with dedicated diagnostics
* Versiv enables users to accomplish more than ever before with a cable tester
* LinkWare Live cloud service lets the Project Manager remotely set up the testers
* ProjX management system eases tasks from initial set-up of a job to system acceptance
* Versiv enables users to accomplish more than ever before with a cable tester
* LinkWare Live cloud service lets the Project Manager remotely set up the testers
* ProjX management system eases tasks from initial set-up of a job to system acceptance
ProjX™ Management System Manages Complex Jobs with Ease
Managing the testing of multiple jobs with multiple teams, testers, and requirements is time consuming and a source of errors. Increasingly larger jobs make project organization more important than ever. The new ProjX management system on the DSX CableAnalyzer Series copper cable certifiers provides individual project files for all job specific details to be saved under a simple name, eliminating the need to re-enter job specific details after starting a project. This minimizes set-up errors or lost files when switching from one job to another or utilizing multiple testers on a single job. In addition, it provides test results by cable ID, merges any changes without duplicates and defaults to the last copper or fiber module installed. ProjX management system provides real time status to completion on each job with a 0-100% scale and gives the operator the option to isolate any test requiring a second look and helps to assure nothing is overlooked. The "Fix Later" selection creates a punch list or automatic to do list for correcting any workmanship issues. ProjX enables project managers and crew leaders to be truly efficient.

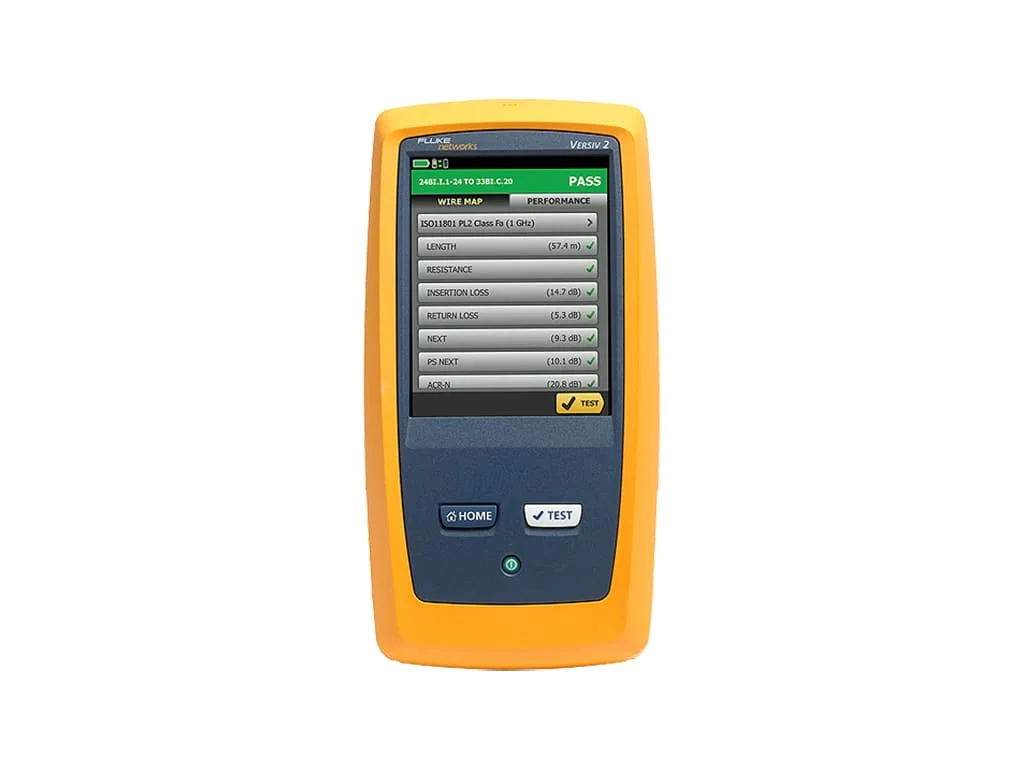

Project menu screen shows percent complete per job.
Specific screen shows up to the minute project details.
Set-up or view test limits, and testing attributes.
Performs with Unsurpassed Speed
Eight second Cat 6A test time and the fastest way to submit your certification results
No tester offers so much speed for so many tests. Complete copper certification to Cat 6A in 8 seconds or certify two fibers at two wavelengths in just 3 seconds. Endorsements by cabling vendors worldwide assure that Versiv is the fastest way to project completion and system acceptance. Quickly get a Pass or Fail result and easily review individual test parameters by value or drill into specific area on a graph.
Passing test result
Return loss graph
Pinch and zoom for more detail
MPTL Certification

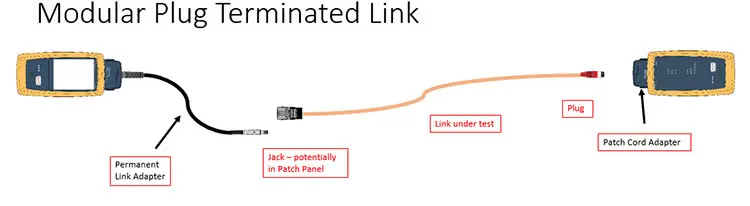

There may be scenarios where a typical four-connector channel is not used when connecting these types of devices– especially those that reside in the ceiling space where it is impractical to install a faceplate. Instead, there is just one patch cord in the telecommunications room and the permanent link is terminated at the other end with a plug so it can plug directly into the device, essentially eliminating the equipment cord. This creates what is now known as a Modular Plug Terminated Link, or MPTL.
The patch cord adapters support Category 5e, 6, and 6A performance levels and work with all DSX CableAnalyzer™ models. The latest version of the Versiv/DSX firmware is required to use the MPTL testing limits.
Specification
DSX CableAnalyzer Series Specifications | ||
Cable Types | ||
Shielded and unshielded pair LAN cabling | TIA Cat 3, 4, 5, 5e, 6, 6A, 100 Ω ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 Ω and 120 Ω | |
Standard Link Interface Adapters | ||
Permanent link adapters | Plug type: shielded RJ45 Optional Plug type: Tera | |
Channel Adapters | Jack type: shielded RJ45 Optional Jack type: Tera, GG45 | |
Test Standards | ||
TIA | Cat 3, 4, 5, 5e, 6, 6A, 8 per TIA 568 Series | |
ISO/IEC | Class C, D, E, EA, F, FA, I/II certification per ISO/IEC 11801 Series | |
Maximum frequency | DSX-5000 1000 MHz | |
General Specifications | ||
Autotest Time | DSX-5000: Full 2-way Autotest of Cat 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Cat 6A/Class EA: 10 seconds | |
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests) | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-tocrosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F) | |
Input protection | Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage | |
Display | 5.7 in LCD display with a projected capacitance touchscreen | |
Case | High impact plastic with show absorbing overmold | |
Dimensions | Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) | |
Weight | Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg) | |
Main unit and remote | Lithium ion battery pack, 7.2 V | |
Typical battery life | 8 hours | |
Charge time* | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity | |
Languages supported | English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian | |
Calibration | Service center calibration period is 1 year | |
Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) | |
