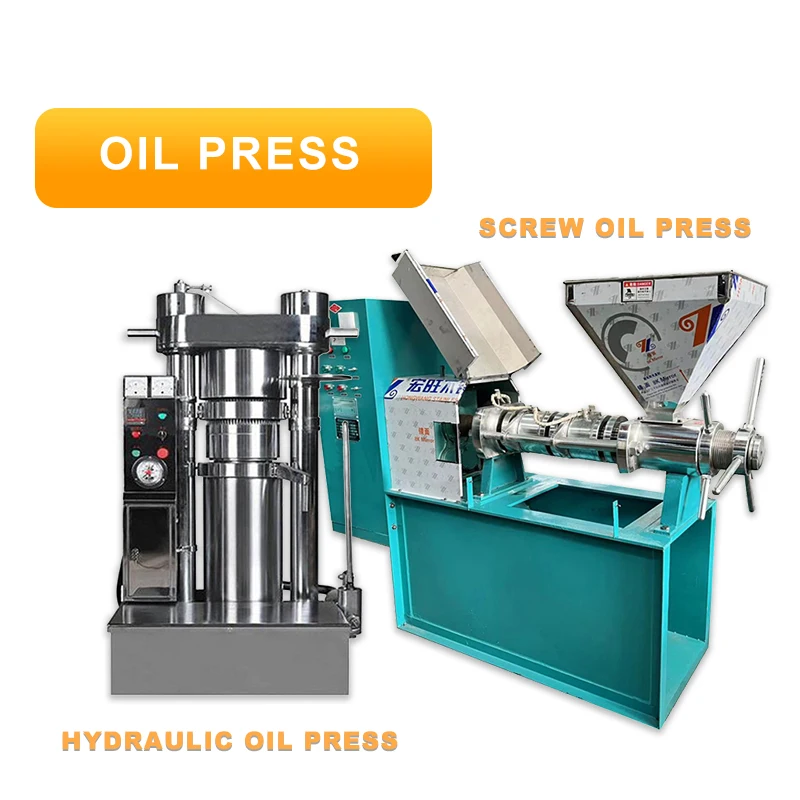

oil press
Oil press is a type of oil processing machinery. Oils processed by section of science and engineering section squeeze the machinery of vegetable oil by squeezing. The commonly used oil oil machines include hydraulic oil press and spiral oil press, and most of the presses are spiral oil press.
One machine is widely used:
It can press peanut, soybean, sunflower sesame pepper corn germ sacha inchi nut walnut olive macadamia nut almond avocado coconut
cocoa and flax. More than 20 kinds of oil crops, such as sunflower seeds, flaxsen, pine nuts, etc. Three-stage press, one press.
cocoa and flax. More than 20 kinds of oil crops, such as sunflower seeds, flaxsen, pine nuts, etc. Three-stage press, one press.

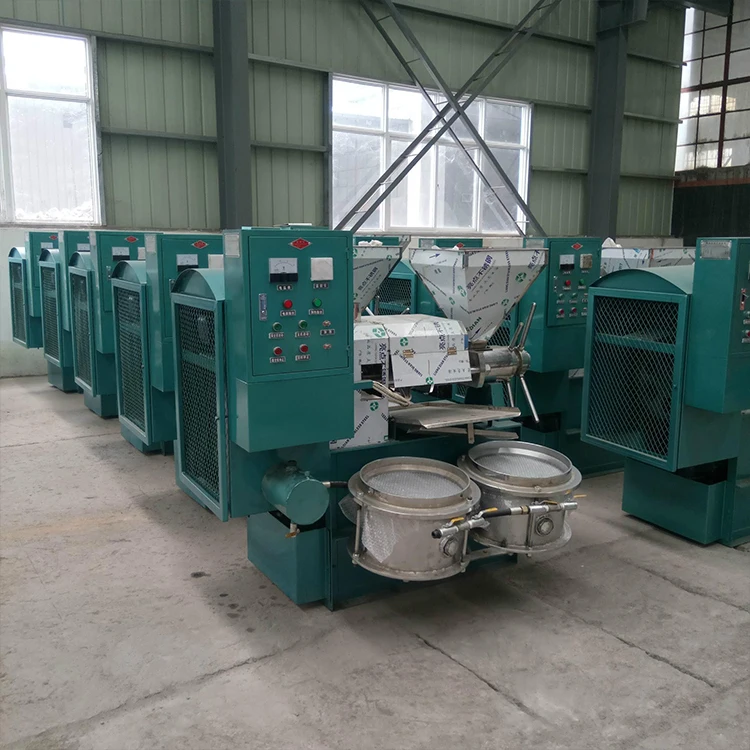

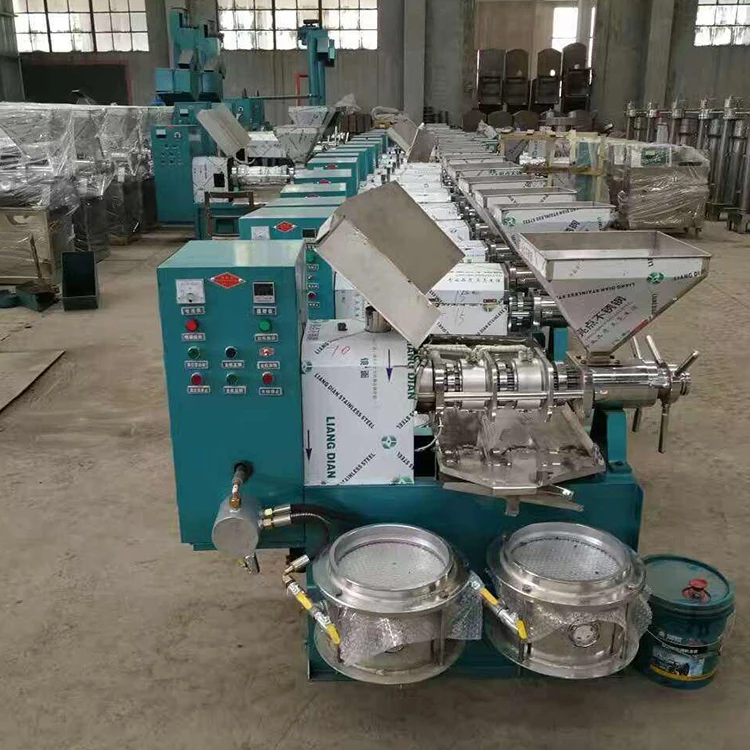

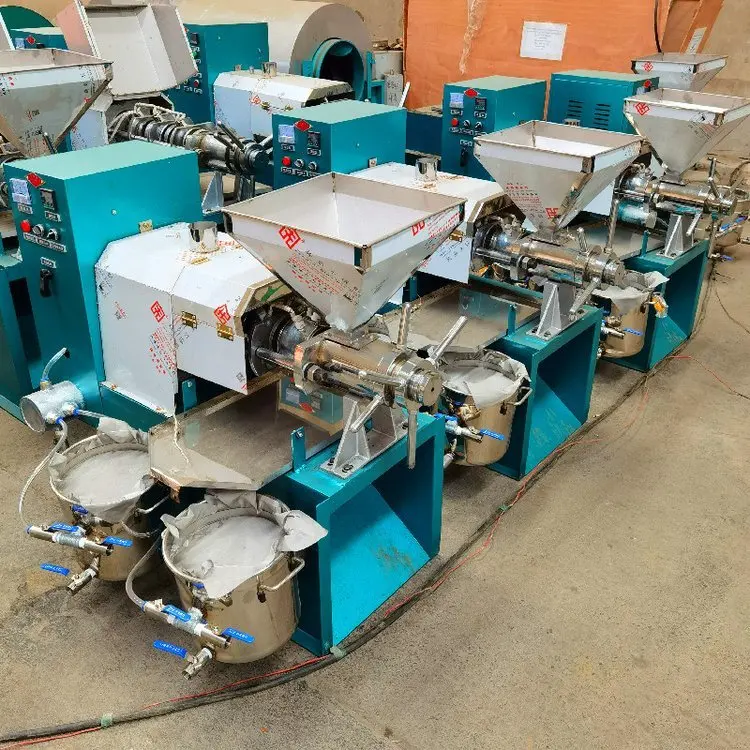

Screw oil press:
The screw oil press is mainly composed of electrical control, automatic heating, adjustment, transmission and vacuum oil filtering components. The pressed screw is by alloy steel to increase the surface hardness; The press row is grind by a surface grinder to ensure the accuracy of the oil line and improve the oil yield; Power distribution, vacuum, automatic heating and other standard components, optimize the machine configuration; The surface of the machine is chrome plated with stainless steel, which meets the standard
Screw oil press | Screw oil press | |||||||||||
model | YS-80 | YS-100 | YS-125 | YS-130 | YS-150 | YS-200 | ||||||
Power (kw) | 3 | 7.5 | 15 | 22 | 30 | 45 | ||||||
Product capacity (kg/h) | 50-80 | 150-280 | 300-400 | 180-260 | 200-380 | 450-600 | ||||||
Weight (kg) | 280 | 1100 | 1500 | 1480 | 1680 | 2200 | ||||||
Length (mm) | 1400 | 1800 | 2300 | 2130 | 2430 | 3200 | ||||||
Width (mm) | 900 | 1200 | 1300 | 1050 | 1250 | 2000 | ||||||
Height (mm) | 1250 | 1500 | 2200 | 2850 | 2850 | 2800 | ||||||

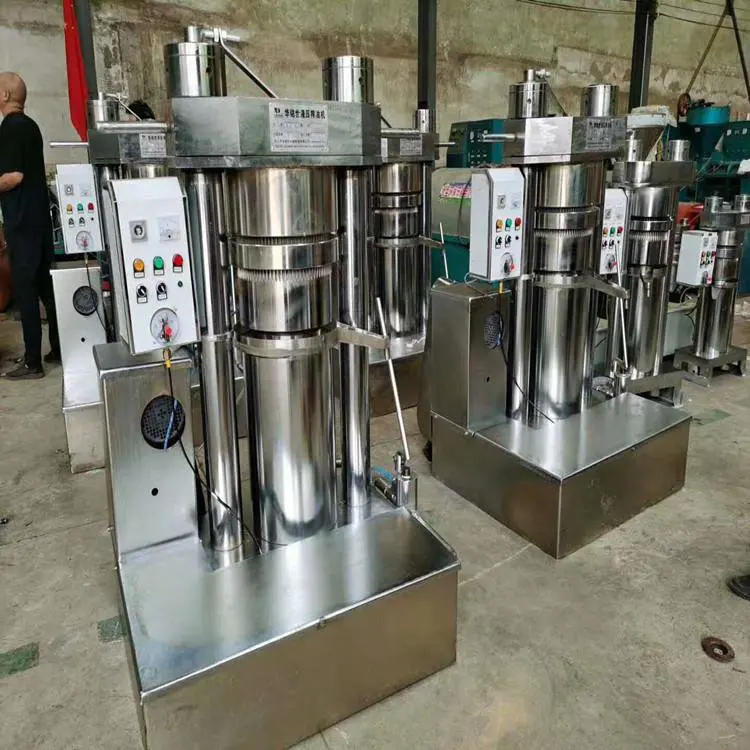

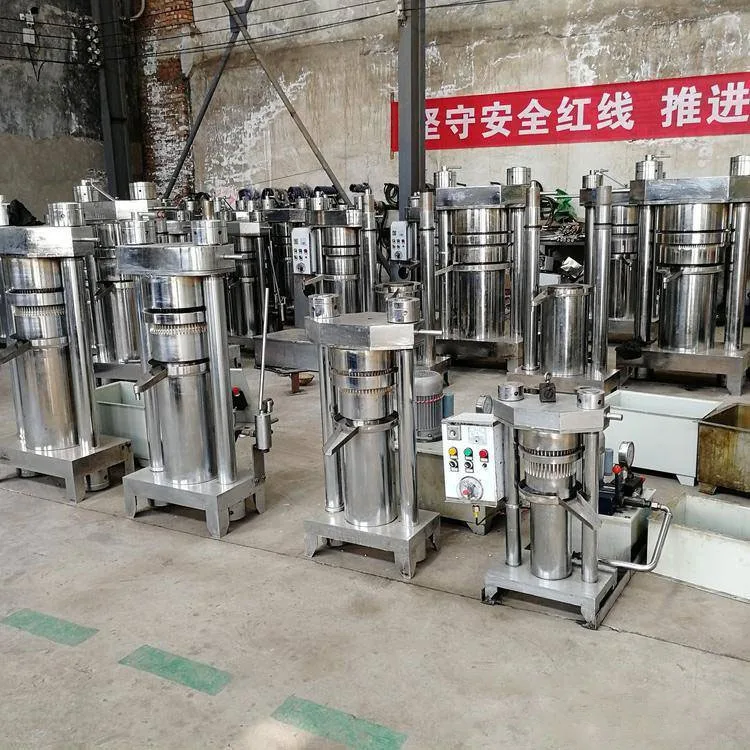

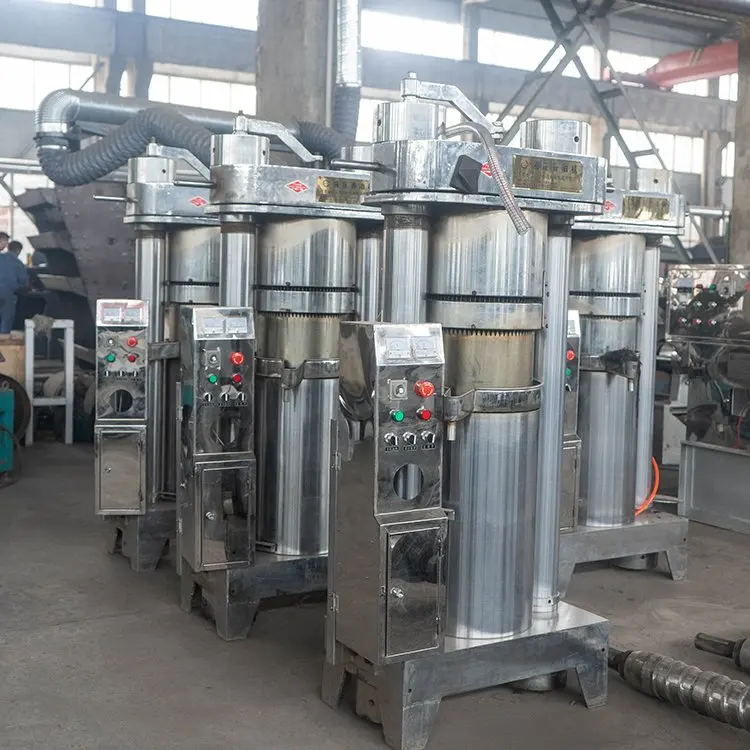

Hydraulic oil press:
This machine is used to directly add the fried oil into the oil press barrel to press oil. The main parts of the hydraulic oil press include piston, hydraulic cylinder, column, movable upper beam, base, oil pump, barrel, electric heating ring and automatic temperature control device. The materials are made of excellent metal materials, which speeds up the performance of the machine and ensures the service life of the parts.
Hydraulic oil press | ||||||||||||||||
Model | YS-150 | YS-180 | YS-230 | YS-260 | YS-320 | YS-360 | YS-415 | YS-460 | ||||||||
Capacity | 8-12 kg/h | 16-20 kg/h | 32-40 kg/h | 44-55 kg/h | 60-70 kg/h | 80-90 kg/h | 90-120 kg/h | 150-200 kg/h | ||||||||
Hopper Capacity | 2 kg | 4kg | 8kg | 12 kg | 17.5 kg | 22.5 kg | 30 kg | 50kg | ||||||||
Size ( mm ) | Length : 700 Width : 800 Height : 780 | Length : 800 Width : 900 Height : 1050 | Length : 900 Width : 1000 Height : 1400 | Length : 1050 Width : 1100 Height : 1550 | Length : 1120 Width : 1200 Height : 1650 | Length : 1200 Width : 1200 Height : 1680 | Length : 1250 Width : 1250 Height : 1700 | Length : 1450 Width : 1450 Height : 1950 | ||||||||
Weight | 240 kg | 550 kg | 950 kg | 1200 kg | 1700 kg | 2000 kg | 2200 kg | 3000 kg | ||||||||
For more information about the oil press, please consult our customer service. We will give you a one-to-one explanation. Thank you for your trust!
Oil processing technology
1. use a roaster to fry the material until done
2. put the frued material into the oil perss for extrusion
3. Pour the extracted oil into the refining oil equipment to remove impurities
4. Pour the oil into the oil filter for filtration
5. Pour the oil into the oil cooler to cool down
6. oil
2. put the frued material into the oil perss for extrusion
3. Pour the extracted oil into the refining oil equipment to remove impurities
4. Pour the oil into the oil filter for filtration
5. Pour the oil into the oil cooler to cool down
6. oil
Clear oil quality
The extracted oil is golden and pure, the nutrition of raw materials is intact, the taste is mellow and not greasy, and the oil yield is increased by 90%, which is just right for commercial use
High oil yield
The pressing system adopts directional pressure bearing and multistage propulsion. The pressure per square centimeter is 200 tons. The oil is pressed into 1.5-2mm pancakes with high pressure and high oil yield
Product display
Supporting equipment
roaster
The roaster also known as the temperature-controlled frying machine, is also known as the closed frying pan. It uses the moisture of the oil itself to make the oil steam while frying, soften the plant cellulose, prevent the high temperature carbonization of the oil, reduce the amount of slag in the oil extraction process, improve the oil yield, and make the oil quality clearer.
The temperature control frying machine has an intelligent temperature control sensor, which automatically sets the frying temperature, and no longer needs to worry about the frying phenomenon of oil.
The temperature control frying machine has an intelligent temperature control sensor, which automatically sets the frying temperature, and no longer needs to worry about the frying phenomenon of oil.
Refined oil machine
The refining equipment is used for hydration degumming, deacidification, decolorization and deodorization of crude oil (peanut oil, rapeseed oil, tea seed oil, soybean oil, sunflower seed oil, sesame oil, walnut oil, sesame oil and other edible oils) through heating and stirring. The oil treated by the refining machine has transparent color, no precipitation after long-term storage, no foaming after cooking, and less oil smoke, which can be directly filled and sold, and is suitable for processing with supplied materials and small-scale oil processing plants.
Centrifugal oil filter
Centrifugal oil filter is also called centrifugal filter, edible oil centrifugal oil filter, peanut oil filter, etc. Centrifugal oil filter is a mechanical equipment that filters solid impurities and water in oil and improves oil quality. A filter unit that removes solid impurities and water in impure oil by pressure filtration or vacuum evaporation - pressure filtration. The centrifugal oil filter uses the powerful centrifugal force generated by the high-speed rotating drum to separate the residue with different mass and weight ratio from the oil, so as to achieve the purpose of oil filtration. It can be directly ignited for experiments, and it can not foam and overflow the pan, which can reach the national secondary standard.
Plate and frame oil filter
The plate and frame oil filter is composed of filter bed, oil pump and coarse filter. The filter plate and filter frame are lined with filter paper or filter cloth as the filter medium. The filter plate and filter frame are fixed into a separate filter chamber by the pressure of the compression device. The filter paper or filter cloth pressed between the filter plate and filter frame plays a filtering role.
The plate and frame oil filter has the advantages of simple structure, easy operation and low operation cost.
The plate and frame oil filter has the advantages of simple structure, easy operation and low operation cost.
Oil cooler
The oil cooler is an air circulation high temperature cooling system, also known as the high temperature oil cooler. It has a fast cooling speed and can filter rapeseed oil, soybean oil, peanut oil, sesame oil, etc. It is the oil cooler of the oil mill. The oil cooler is mainly used for cooling and dephosphorizing the crude oil produced by the oil press, and also for processing juice, traditional Chinese medicine and other liquids. It is used in various medium and small oil mills.
Filling machine
The edible oil filling machine generally adopts the flowmeter type filling. The flowmeter type filling is that the computer automatically tracks the change of oil temperature and density to adjust the oil delivery volume at any time, so that the oil delivery quality can reduce the error caused by the change of temperature and density, and the measurement accuracy is high. Both of them adopt fixed volume filling and fixed mass filling.
The company has established a complete and effective service system and created an experienced service team, which not only plans the site, designs the installation foundation diagram and flow chart, provides technical training for customers, but also sends technicians to guide the installation and commissioning of equipment on site. The company's service outlets are located in 32 cities, including Guizhou, Sichuan, Guangxi, Hunan, Guangdong, Shandong, Shanxi, and so on. The company has established customer use files, which make traditional door-to-door service and online service work together, complement each other's advantages, and win wide praise from customers.
