Сельскохозяйственная техника машина для упаковки сена
- Категории: Balers >>>
- Поставщик: Jiangsu,Jitian,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Detailed description
reliable performance
●Integral picking and feeding system, equipped with 7 cutters, has outstanding chopping and feeding capabilities, and adopts 6 super pickers with cam-free structure, high picking efficiency and low failure rate; Imported sensor , stable and reliable quality, sensitive induction;
●Optimize the structure of the roller and the fastening method of the shaft end to ensure the bundling rate under extreme working conditions;
●High-strength auger support seat, the reliability is greatly improved;
●Wide-angle transmission shaft + safety bolt, strong product adaptability;
All the chains of the whole machine are lubricated centrally to improve the service life;
●Maintenance-free bearings, eliminating the trouble of bearing maintenance, long service life, especially suitable for low temperature environment operation.
●Integral picking and feeding system, equipped with 7 cutters, has outstanding chopping and feeding capabilities, and adopts 6 super pickers with cam-free structure, high picking efficiency and low failure rate; Imported sensor , stable and reliable quality, sensitive induction;
●Optimize the structure of the roller and the fastening method of the shaft end to ensure the bundling rate under extreme working conditions;
●High-strength auger support seat, the reliability is greatly improved;
●Wide-angle transmission shaft + safety bolt, strong product adaptability;
All the chains of the whole machine are lubricated centrally to improve the service life;
●Maintenance-free bearings, eliminating the trouble of bearing maintenance, long service life, especially suitable for low temperature environment operation.
Intelligent and efficient
The whole machine is equipped with two working modes, automatic and manual, and the user can adjust freely according to the actual operation situation; in the automatic mode, it can realize automatic winding, cutting and reset, which is convenient and efficient;
●High degree of automation, the hydraulic opening and closing and adjustment of key parts such as traction beam, pick-up, cutter, bottom plate and rear door can be completed in the cab;
●The electronic control system adopts sound and light alarm device and Chinese display interface to inform the operator of the operation status of the machine in multiple directions in real time;
●The distance between the feeding rotor and the bottom plate can be adjusted by hydraulic pressure, and the feeding volume is large without clogging;
●Reinforced universal draw beam, small turning radius, flexible operation;
●Guide roller + guide tooth combination guide and increase the speed, improve the pick-up efficiency;
●Hydraulic adjustment of the feeding base + high-strength gear shaft, large feeding volume and no clogging;
●Optimized design of the tensioning bracket structure to avoid overloading and deformation of the bracket;
●Efficient and intelligent controller, optional GPS monitoring system.
The whole machine is equipped with two working modes, automatic and manual, and the user can adjust freely according to the actual operation situation; in the automatic mode, it can realize automatic winding, cutting and reset, which is convenient and efficient;
●High degree of automation, the hydraulic opening and closing and adjustment of key parts such as traction beam, pick-up, cutter, bottom plate and rear door can be completed in the cab;
●The electronic control system adopts sound and light alarm device and Chinese display interface to inform the operator of the operation status of the machine in multiple directions in real time;
●The distance between the feeding rotor and the bottom plate can be adjusted by hydraulic pressure, and the feeding volume is large without clogging;
●Reinforced universal draw beam, small turning radius, flexible operation;
●Guide roller + guide tooth combination guide and increase the speed, improve the pick-up efficiency;
●Hydraulic adjustment of the feeding base + high-strength gear shaft, large feeding volume and no clogging;
●Optimized design of the tensioning bracket structure to avoid overloading and deformation of the bracket;
●Efficient and intelligent controller, optional GPS monitoring system.
Manufacturing Technique
Project | Specifications and Parameters | ||||
Model | 9YRZ-1.25 | 9YRZ-1.25A | 9YRZ-1.25B | ||
Length*Width*Height (mm) | 4410x2780x2440 | 4410x2780x2440 | 4150x3060x2390 | ||
Weight(kg) | 3385 | 3500 | 3640 | ||
Pick-up Width(mm) | 1900 | 2300 | 2300 | ||
Bundle Method | Net | Net | Net | ||
Number of Forming Roller(EA) | 18 | 18 | 18 | ||
Width and Height of Bales(mm) | 1250x1230 | 1250x1230 | 1250x1230 | ||
Type of Feeding Mechanism | Rotor | Rotor | Rotor | ||
Number of Knives(PCS) | 7 | 2000/7/13 | 2000/7/13 | ||
Working Efficiency(unit/h) | 30-50 | 30-50 | 30-50 | ||
Supporting Tractor Power(hp) | ≥100 | ≥100 | ≥100 | ||
Voltage (V) | 12 | 12 | 12 | ||
PTO Rotating Speed(r/min) | 540 | 540 | 540 | ||
Product Description
Reinforced universal draw beam, small turning radius, flexible operation
Imported sensor
Guide roller + guide tooth combination guide and increase the speed and pick-up efficiency
Chain thin oil centralized lubrication
Feeding floor hydraulic adjustment + high-strength gear shaft, large feeding volume, no clogging
Efficient and intelligent controller, optional GPS monitoring system

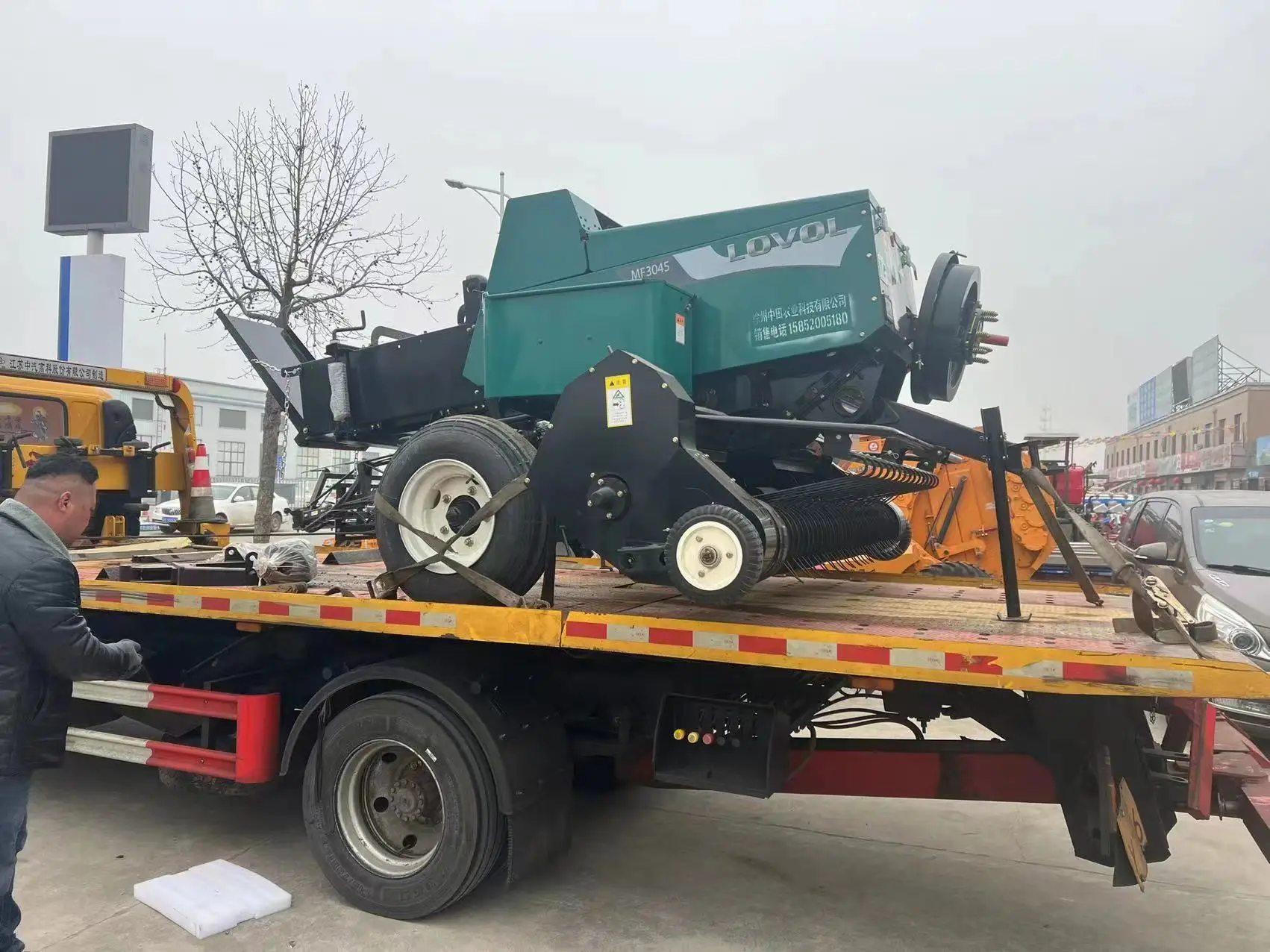

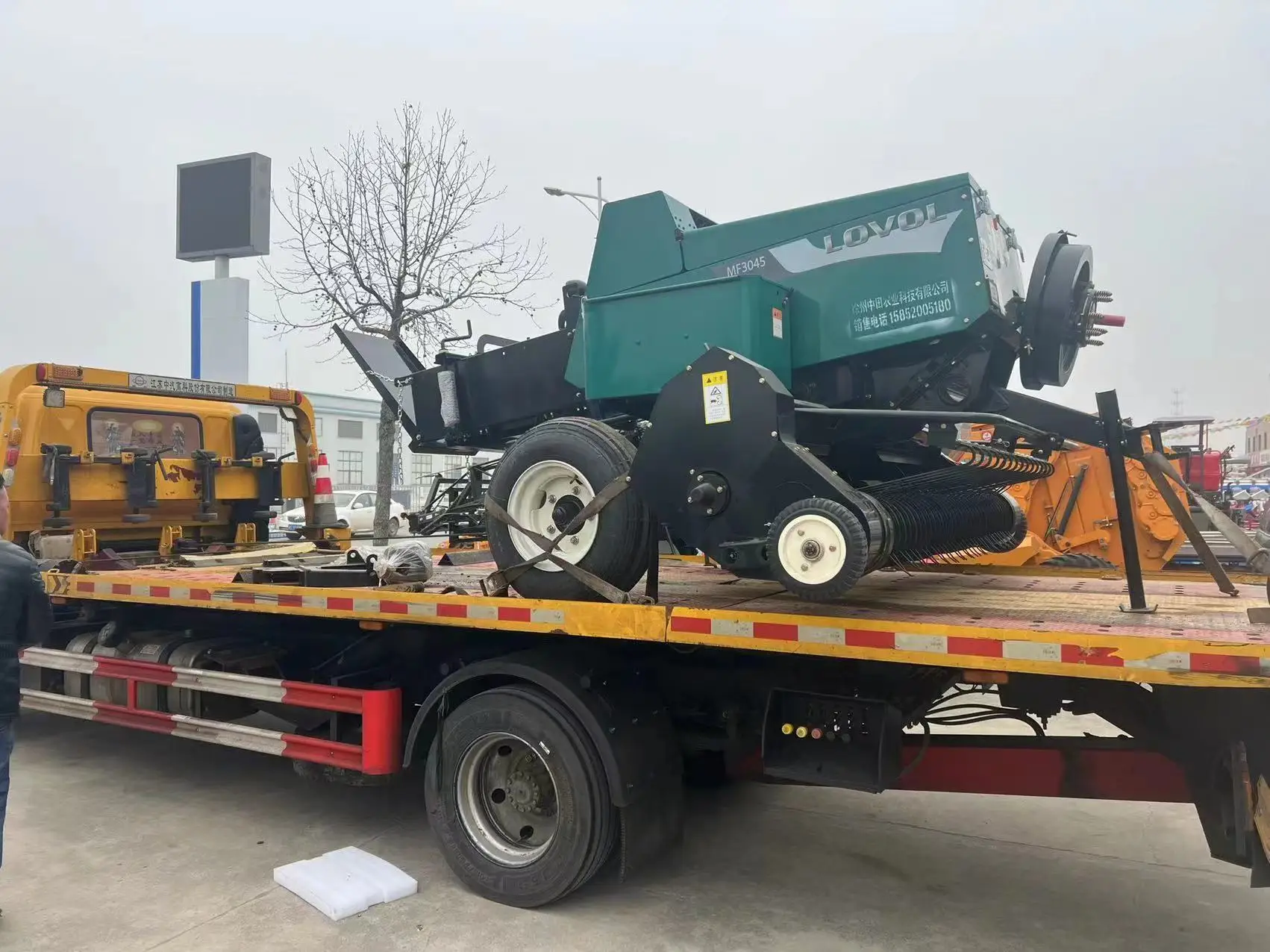

PACKING&SHIPING
Certifications
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2010,sell to Southeast Asia(30.00%),Africa(30.00%),Eastern Asia(15.00%),North
America(10.00%),South Asia(10.00%),Mid East(5.00%). There are total about 11-50 people in our office.
We are based in Jiangsu, China, start from 2010,sell to Southeast Asia(30.00%),Africa(30.00%),Eastern Asia(15.00%),North
America(10.00%),South Asia(10.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Tractor,Generator Set,Diesel Engine,Feed Machinery,Reel Irrigation
4. Why should you buy from us not from other suppliers?
Member of China Agricultural Machinery Circulation Association, Member of Jiangsu Agricultural Machinery Circulation Association,
China Agricultural Machinery Circulation and Marketing First-Class Enterprise.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Tractor,Generator Set,Diesel Engine,Feed Machinery,Reel Irrigation
4. Why should you buy from us not from other suppliers?
Member of China Agricultural Machinery Circulation Association, Member of Jiangsu Agricultural Machinery Circulation Association,
China Agricultural Machinery Circulation and Marketing First-Class Enterprise.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
