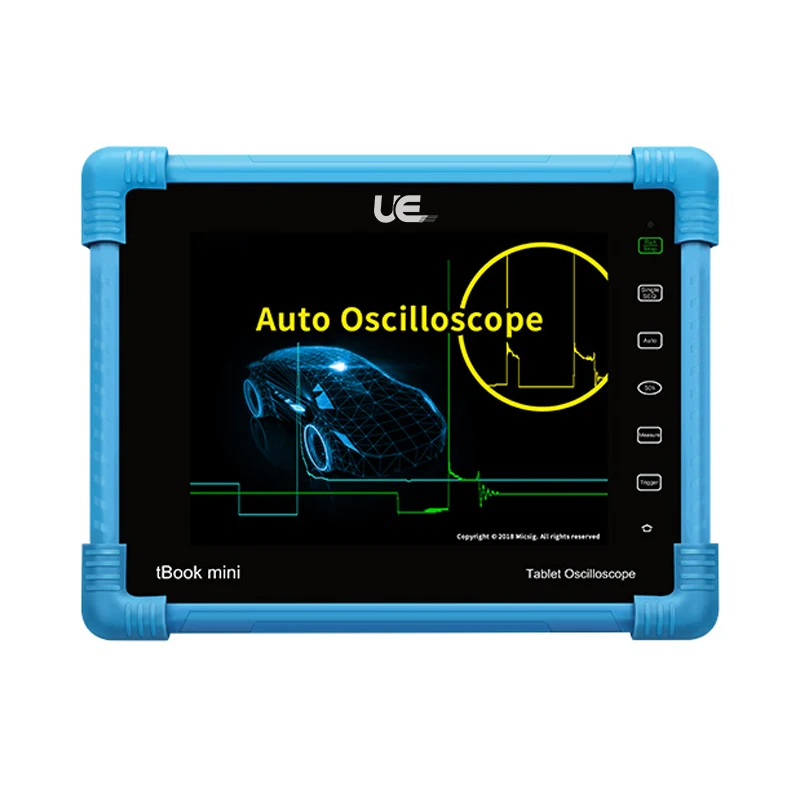

Автомобильный планшетный осциллограф подарит вам отличный опыт работы который отличается от традиционного
- Категории: Oscilloscopes >>>
- Поставщик: Sice,Automobile,Technology,(shanghai,),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Paramenters
ATO1102 | ATO1104 | |
Bandwith | 100MHz | 100MHz |

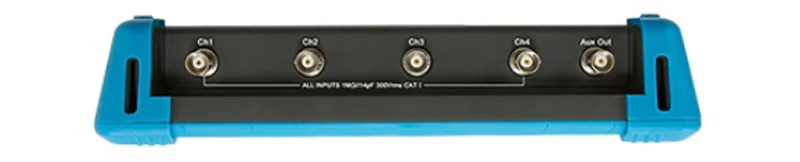

Analog Channel | 2 | 4 |
Real time sample rate | 1GSa/S（single channel） | 1GSa/S（single channel） |
Memory depth | 28Mpts（single channel） | 28Mpts（single channel） |
Support test | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (including CAN, | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (including CAN, |
LIN, Flexray, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, | LIN, Flexray, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, | |
etc.) | etc.) | |
Bandwith limitation | Full bandwidth, low pass | Full bandwidth, low pass |

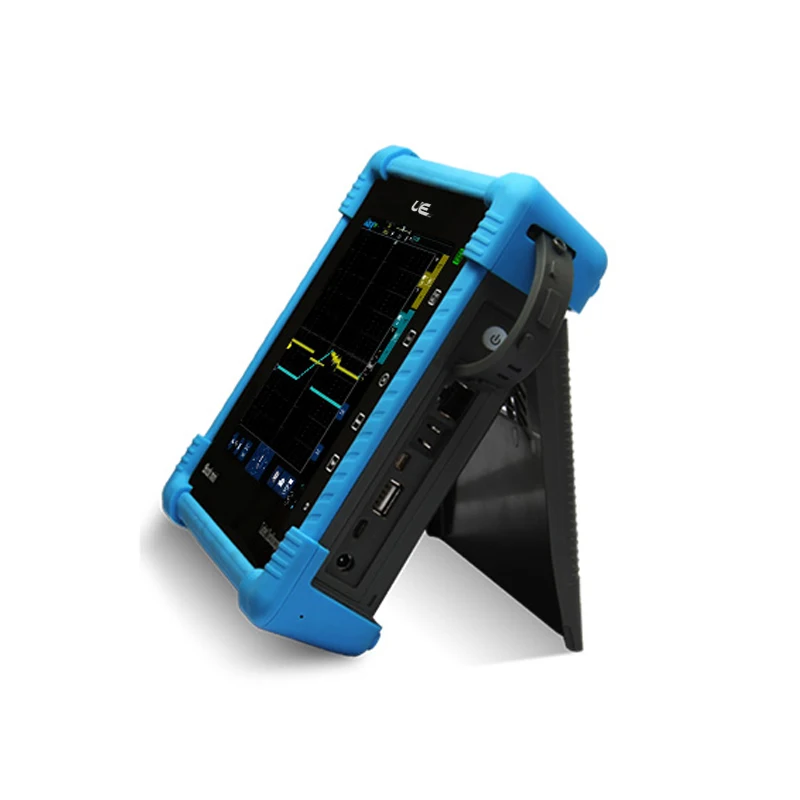

I/O port | Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power | Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power |

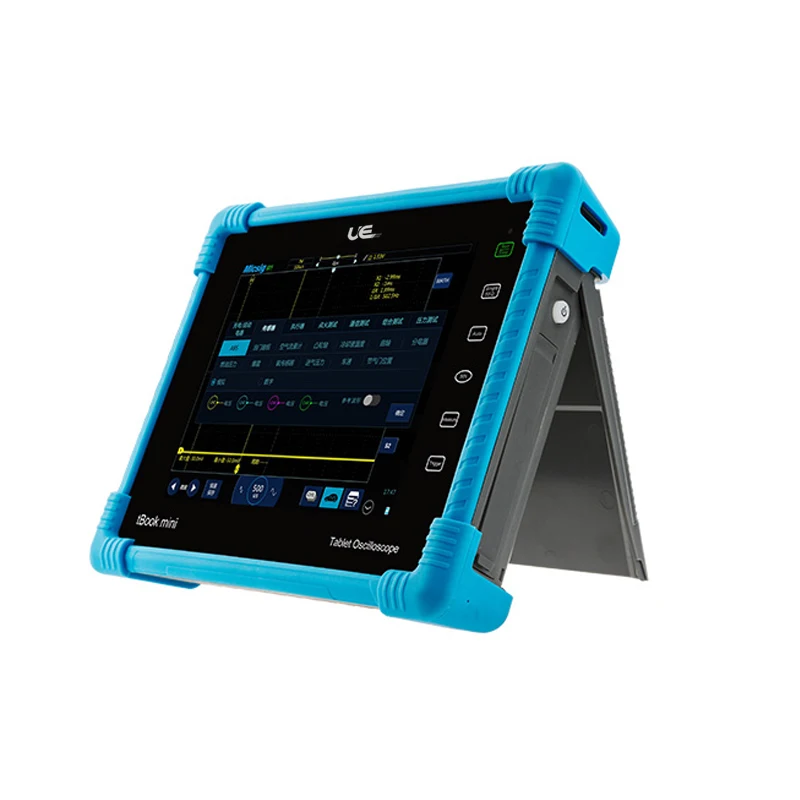

Display | 8" Industry TFT LCD touchable capacitive screen, resolution: 800*600 pixels, 14*10 grids | 8" Industry TFT LCD touchable capacitive screen, resolution: 800*600 pixels, 14*10 grids |
Dimension | 250*200*55mm | 250*200*55mm |
Features
Features
Convenient storage: save waveform / save picture / record video Wide application: petrol / diesel / hybrid / new energy vehicles / trucks, etc. Charge / start circuit, sensor, actuator, ignition test, communication test, combination test, pressure test
