1000-710 мм оборудование для стыковой сварки пластиковых труб ПЭ новинка 2023 сварочный аппарат ПЭНД
- Категории: Tube Welders >>>
- Поставщик: Shandong,Tengyi,Machinery,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

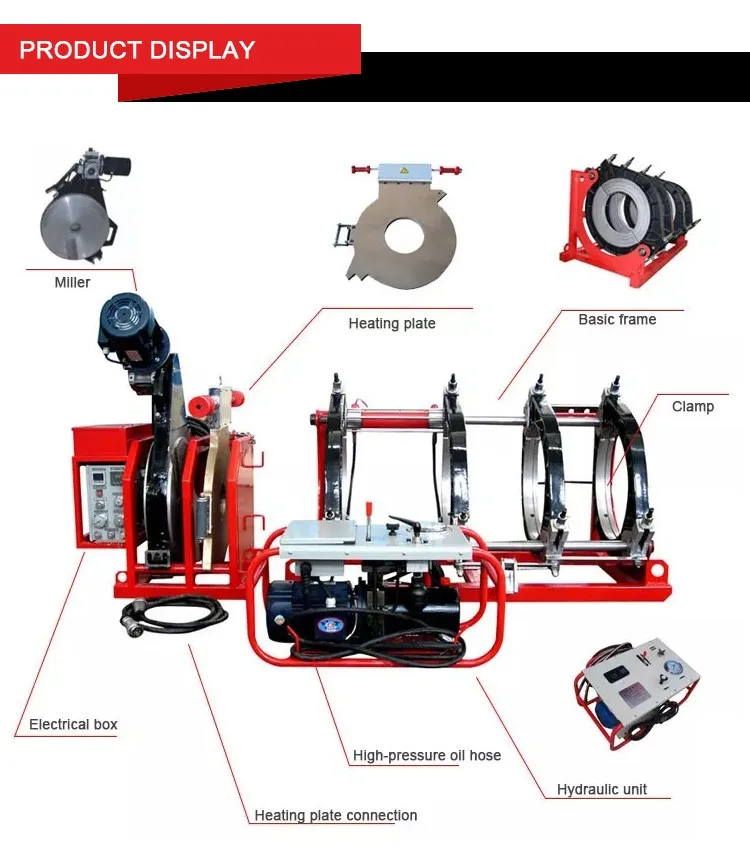

XHY1000-710 HYDRAULIC BUTT FUSION WELDING MACHINE
1: Feature:
1.The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2.The main electrical apparatus elements are best of china, many are imported from abroads.

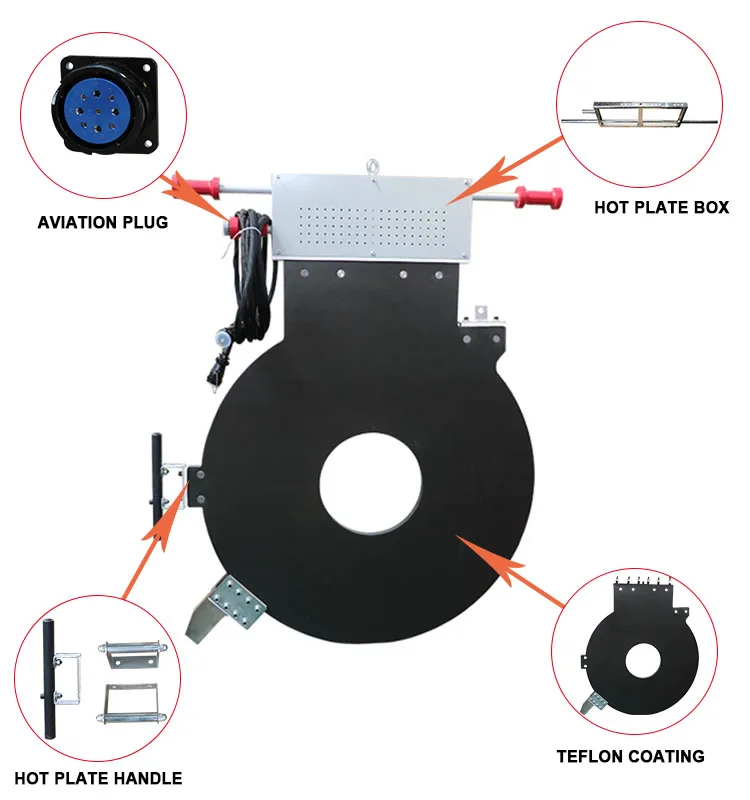

3.Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range.

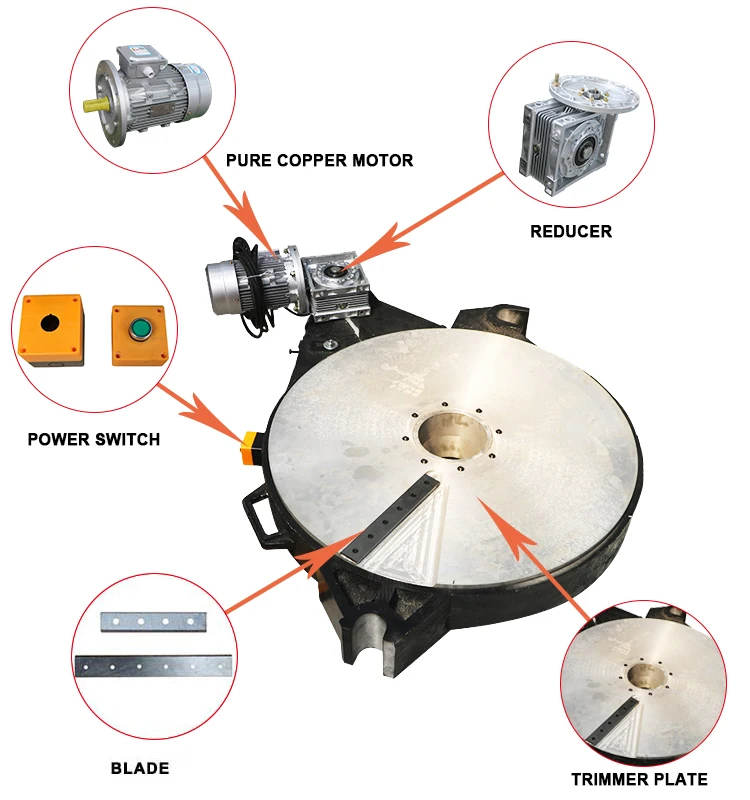

4.The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
1.The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2.The main electrical apparatus elements are best of china, many are imported from abroads.
3.Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range.
4.The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
Products Description
Product Paramenters
Model | XHY1000 |
Welding range(mm) | 710mm--800mm--900mm--1000mm |
Heating plate temperature | 270°C |
Heating plate surface temperature(170-250°C) | <±10°C |
Pressure adjustment range | 0-18MPa |
Cross-sectional area of the cylinder | 2512mm² |
Working Voltage | 380V,50Hz |
Heating plate power | 21.7KW |
Cutter power | 3.0KW |
Hydraulic station power | 3.0KW |
Lifting Power | 1.1KW |
Total power | 22.5KW |
Our Advantages
FAQ
1.Q:What is your payment terms ?
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
3.Q:How about your Guarantee and Service ?
A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007) International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
4.Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
3.Q:How about your Guarantee and Service ?
A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007) International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
4.Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
