16 мм 1NO1NC мгновенный Контактный Терминал IP65 3A цветная Кнопка питания визиток 12 В Светящийся Металлический
- Категории: Push Button Switches >>>
- Поставщик: Jiangxi,Shuangdu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

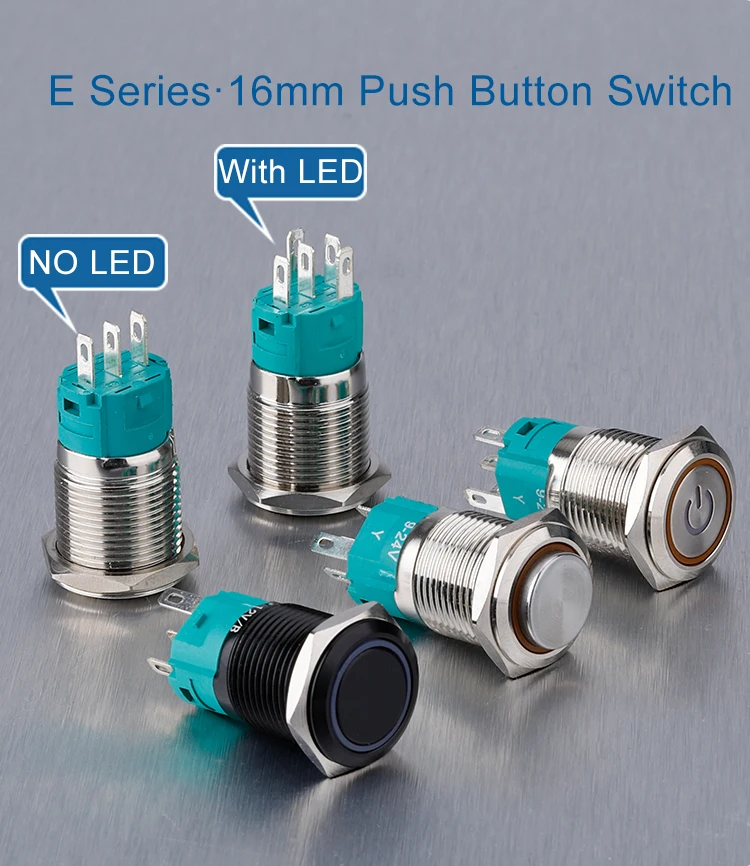

16mm 1NO1NC Momentary Pin terminal IP65 3A Colored Power Loge Button Head 12V Illuminated Metal Push Button Switch
Specification:
Product name: Push Button Switch Condition: New Material: Brass nickel plated / Stainless steel LED color: Blue White Yellow Red Green Orange Operation Type: Momentary type push it-on, release it-off Switch Rating: 5A/250VAC LED voltage: 12V or 3V, 5V, 24V, 110V, 220V Contact Configuration: 1NO1NC Head shape: High round head Hole size: 16mm
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Package include:
1 X Momentary push button switch RGB Tri-color led illuminated
Product Name | Push button switch |
Model | IB16E-G11F-* |
Mounting Hole | 16mm |
Operation Type | Momentary |
Switch Combination | 1NO1NC |
Head Type | High head |
Terminal type | Pin Terminal |
Enclosure Material | Brass nickel |
Delivery Days | 3-7 days after payment received |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -20°C ~+55°C |
Wire Connector / Wire soldering | Acceptable and with fast shipping |
Accessories | Nut, Rubber ,Waterproof O-ring |

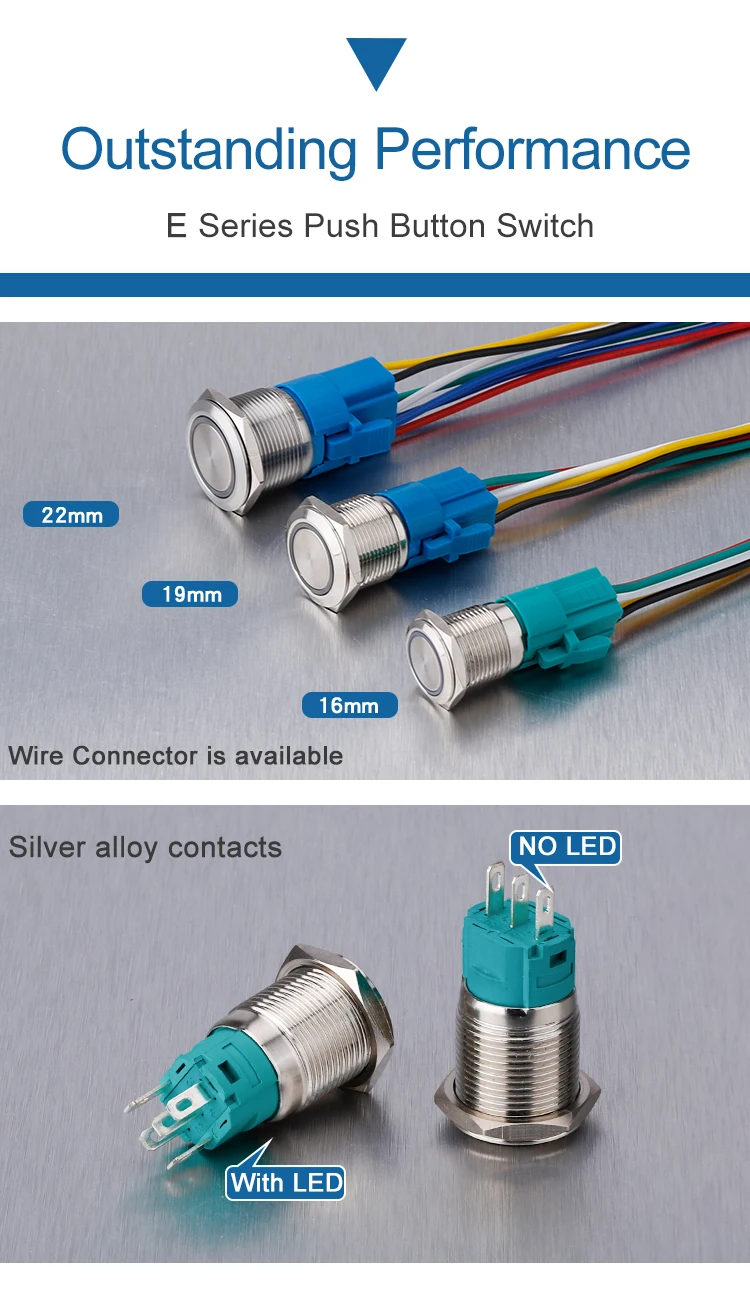

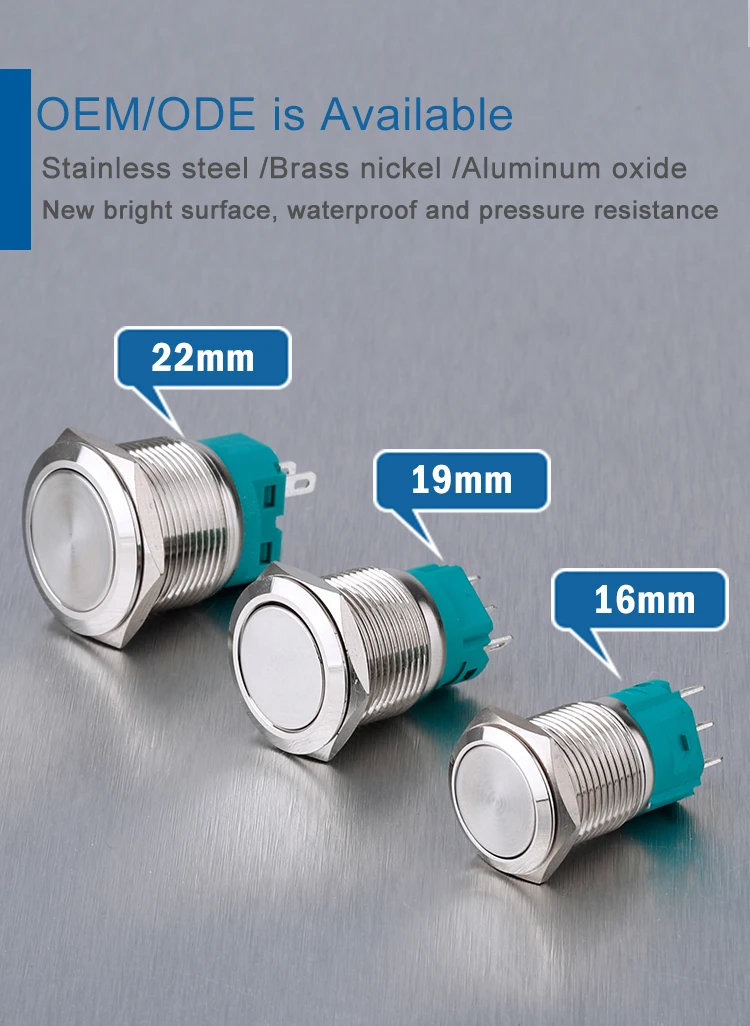

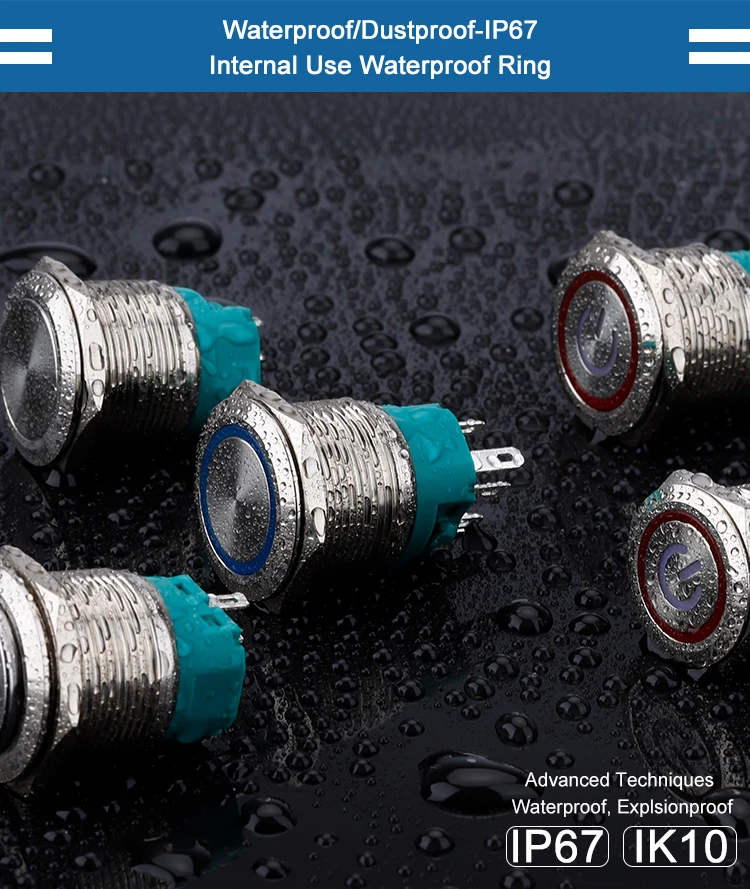

Details Images
Recommend Products
Customer Reviews
Company Profile
Product packaging
FAQ
Q1. What is your terms of packing? IP67 waterproof push button switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? waterproof push button switch
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

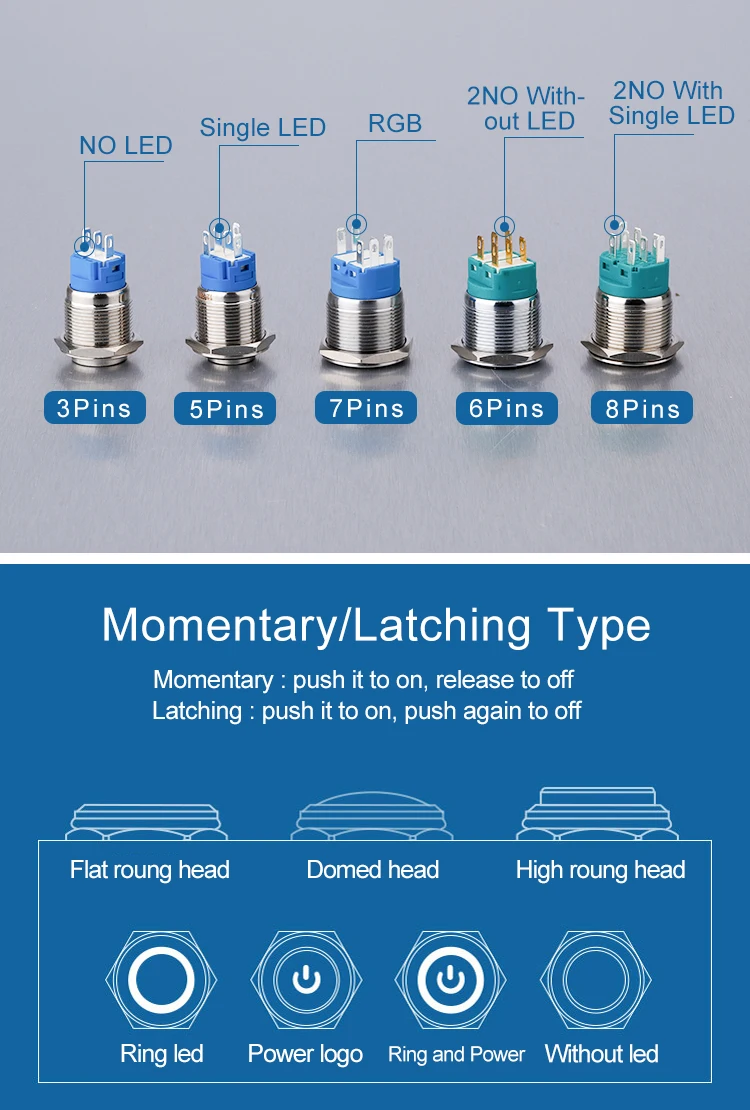

Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? waterproof push button switch
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
