Переключатель обнаружения тока M3076 M3086 индукционный релейный переключатель управление трансформатором
- Категории: Switches >>>
- Поставщик: Guangdong,Fengli,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Feature:
1. Self-powered, no external power supply required.
2. Input current 0.2-200A AC, adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the switch.
4. High-power MOS tube non-contact electronic switch.
5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level.
6. Straight-through structure design, isolation withstand voltage up to 2000V.
7. Hysteresis is less than 1% and can be used under strong magnetic conditions.
8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.
2. Input current 0.2-200A AC, adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the switch.
4. High-power MOS tube non-contact electronic switch.
5. The switch has no limit on the number of opening and closing, and the reaction speed reaches the ms level.
6. Straight-through structure design, isolation withstand voltage up to 2000V.
7. Hysteresis is less than 1% and can be used under strong magnetic conditions.
8. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.
Advantage:
> Mutual inductance current monitoring, safe isolation of input and output, self-powered
> The monitored current range is within 200A, and the monitoring setpoint can be set at any point
within this range.According to the needs of the application, it can also be set to a fixed start setpoint.
> Hysteresis <1%, can be used in a strong magnetic environment.
> Non-contact electronic switch, fast response speed, no limit on the number of on-offs.
> The shell is made of fireproof material ABS.
PRODUCT CONFIGURATION
Item | Data |
Model | M3086 |
Power supply | self-powered(no exteral power supply needed) |
Type | Normally closed |
Core type | Solid-core |
Setpoint range | 0-200A |
Output rating | 0.3A@240V AC/DC |
Off-state leakage | 0.1MA |
Overload | 200% |
Aperture | 20MM |
Hysteresis | ＜1% |
Response time | ＜200Ms |
Repeatability | 100% |
Environmental | -20~55℃ 0~95% non-condensing |
Dimensions | 65*47*25MM |
PRODUCT SPECIFICATIONS

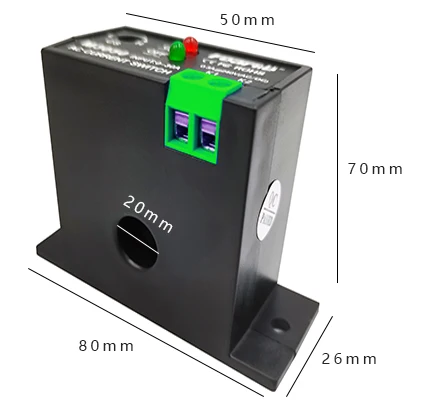

PRODUCT SIZE
Dimensions:
Application examples：
1. Linkage switch between two devices
2. Whether the monitoring equipment is working properly
3. Send a witch signal to PLC
4. Give the switch signal when the current is overloaded

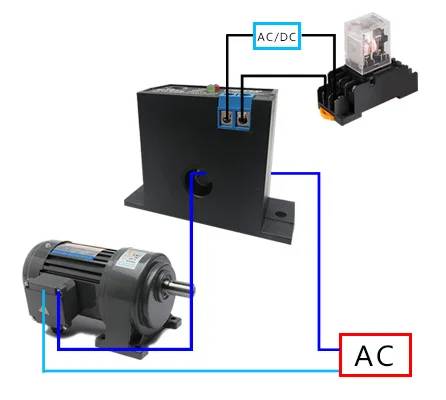

WIRING DIAGRAM
Wiring parameter description:
The load can be connected to AC and DC:（8-240V）Output rating：0.3A@240V AC/DC
Indicator light: the switch is connected when the red light is on, and the switch is disconnected when the green light is on
Perforated wire: monitoring AC current only
Normally open:
When the current through the perforated line is greater than the set value, the output terminal is connected
When the current through the perforated line is less than the set value, the output terminal is disconnected
When the current through the perforated line is less than the set value, the output terminal is disconnected
Normally closed:
When the current through the perforated line is greater than the set value, the output terminal is disconnected
When the current through the perforated line is less than the set value, the output terminal is connected
When the current through the perforated line is less than the set value, the output terminal is connected
FAQ
1Q: Are you a manufacturer?
Answer: Yes, we start from the circuit board patch, then welding, assembling one-stop production, and
2Q: Have your products passed CE, FCC, ROHS certification?
Answer: Yes.
3Q: Is there any stock?
Answer: Small batch orders, such as several hundred pieces, are available in stock in normal warehouses.
Answer: Yes, we start from the circuit board patch, then welding, assembling one-stop production, and
have our own finished product warehouse.
2Q: Have your products passed CE, FCC, ROHS certification?
Answer: Yes.
3Q: Is there any stock?
Answer: Small batch orders, such as several hundred pieces, are available in stock in normal warehouses.
When the quantity is large, a certain production cycle is required, and communicate and negotiate when
ordering.
ENTERPRISE DISPLAY
Fengqi brand current mutual inductance switches have passed CE,FCC, and ROSH certifications, with reliable
and stable quality, and are widely welcomed by merchants, manufacturers and partners from all walks of life.
Guangdong Fengli Electronics Co., Ltd. is an electronic technology company integrating R&D, manufacturing
and sales. The company's main products include AC and DC mutual inductance switches, current transformers,
ammeters, current transmitters, digital display current mutual inductance switches, small intermediate relays
and other products.
WORKSHOP DISPLAY
TRANSPORT PACKAGING
